A reflected ceiling plan (RCP) is a drawing that shows the ceiling of a space as if it were reflected onto the floor, typically used in architectural and interior design to indicate the placement of ceiling elements such as lighting fixtures, sprinklers, and other features. The question asks for the symbol that best indicates a pendant light, which is a type of lighting fixture that hangs from the ceiling, often suspended by a cord, chain, or rod, and is commonly used for ambient or task lighting in spaces like dining areas, kitchens, or lobbies.

To determine the correct symbol, we need to evaluate each option based on standard architectural and interior design drafting conventions, particularly those used in RCPs as outlined in NCIDQ Interior Design Fundamentals.

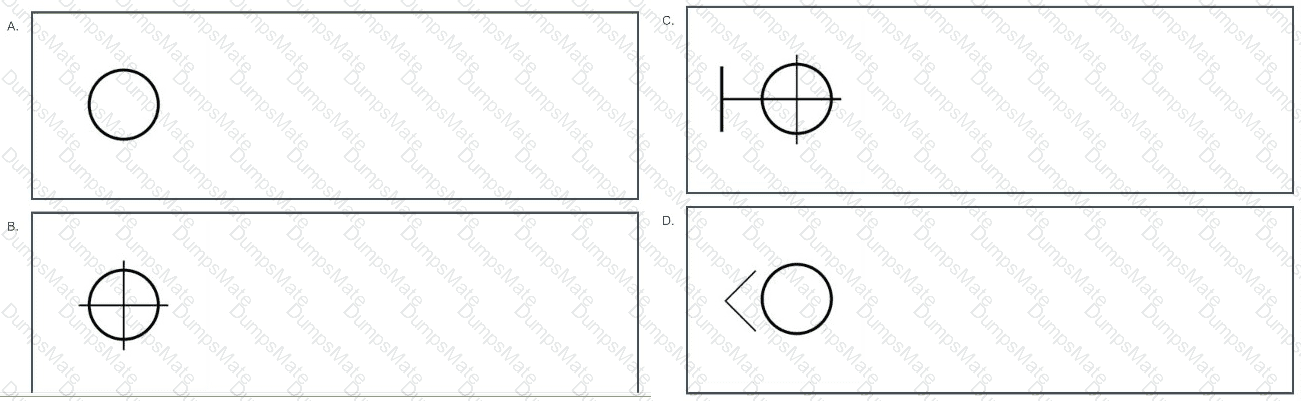

Option A: A simple circleA simple circle in an RCP typically represents a recessed light or a ceiling-mounted fixture, such as a can light or a flush-mounted light. Pendant lights, however, are not flush with the ceiling; they hang down, and their symbol should reflect this characteristic. A plain circle does not convey the hanging nature of a pendant light, so Option A is not the best choice for a pendant.

Option B: A circle with a crosshair (plus sign) insideIn architectural and interior design drafting standards, a circle with a crosshair (a plus sign) inside is a common symbol for a pendant light in a reflected ceiling plan. The circle represents the fixture itself, and the crosshair indicates that the light is suspended from the ceiling, distinguishing it from recessed or surface-mounted fixtures. This symbol aligns with standard conventions for representing pendant lights in RCPs, making Option B a strong candidate for the correct answer.

Option C: A circle with a crosshair and a small perpendicular line at the topThis symbol is similar to Option B but includes an additional small line at the top of the circle. In some drafting standards, this extra line might indicate a specific type of ceiling fixture, such as a sprinkler head or a ceiling fan, where the line could represent a connection point or a blade. For pendant lights, however, the extra line is not a standard feature in most RCP symbols. The additional line makes this symbol less clear for a pendant light, so Option C is not the best choice.

Option D: A circle with an arrow pointing to the leftThis symbol is not a standard representation for a pendant light. In RCPs, an arrow might be used to indicate direction (e.g., for an exit sign or a directional light), but it is not typically associated with pendant lights. The arrow suggests movement or orientation, which does not align with the static, hanging nature of a pendant light. Therefore, Option D is not appropriate for a pendant light in an RCP.

Based on this analysis, the symbol that best indicates a pendant light in a reflected ceiling plan isa circle with a crosshair inside (Option B), as it aligns with standard drafting conventions for pendant lights in RCPs. The crosshair effectively communicates that the fixture is suspended, which is a key characteristic of a pendant light.

Verified Answer from Official Source:

The correct answer is verified using principles from the NCIDQ Interior Design Fundamentals and standard architectural drafting conventions, which are part of the NCIDQ exam preparation materials.

Exact Extract:

From the NCIDQ IDFX Reference Manual (a common resource for NCIDQ candidates):

"In a reflected ceiling plan, pendant lights are typically represented by a circle with a crosshair (plus sign) inside to indicate that the fixture is suspended from the ceiling, distinguishing it from recessed or surface-mounted lights."

The NCIDQ guidelines and standard architectural drafting practices specify that a pendant light in a reflected ceiling plan is represented by a circle with a crosshair inside. The circle denotes the fixture, and the crosshair indicates its suspended nature, which is a defining feature of a pendant light. This symbol ensures clarity in the RCP, allowing contractors and designers to understand the type of lighting fixture being specified. Options A, C, and D do not align with this standard convention for pendant lights, as they either lack the crosshair (Option A), include unnecessary elements (Option C), or use an unrelated symbol (Option D).

Objectives:

Understand the purpose and components of a reflected ceiling plan (RCP).

Identify and apply standard architectural symbols for lighting fixtures in RCPs.

Differentiate between symbols for various types of ceiling fixtures (e.g., recessed lights, pendants, sprinklers).

Reducing heat exchange through windows involves minimizing heat gain (in summer) and heat loss (in winter) by creating a barrier that limits air movement and conduction. Drapery windowtreatments can help achieve this if designed and installed properly. The NCIDQ IDFX Reference Manual and energy efficiency standards (e.g., from ASHRAE 90.1) provide guidance on specifying window treatments to improve thermal performance.

A. Hang to the floor, be sealed at both sides, and meet in the center: Hanging to the floor and sealing at both sides (e.g., with side channels or returns to the wall) helps prevent air movement around the drapery, reducing heat exchange. However, if the drapery only meets in the center without overlapping, there is a gap where air can pass through, allowing heat to enter or escape, which reduces the effectiveness of the treatment.

B. Hang to the floor, be sealed at both sides, and overlap in the center: This is the most effective option. Hanging to the floor ensures the entire window is covered, preventing air movement at the bottom. Sealing at both sides (e.g., with returns to the wall) prevents air from escaping around the edges. Overlapping in the center ensures there is no gap where the drapery panels meet, creating a continuous barrier that minimizes heat exchange. This configuration traps air between the drapery and the window, creating an insulating layer that reduces heat transfer.

C. Hang to the windowsill, be unsealed at both sides, and overlap in the center: Hanging only to the windowsill leaves a gap at the bottom, allowing air to circulate and heat to exchange. Unsealed sides further exacerbate this by permitting air movement around the edges. While overlapping in the center helps, the overall configuration is ineffective for reducing heat exchange.

D. Hang above the windowsill, be sealed at both sides, and overlap in the center: Hanging above the windowsill leaves an even larger gap at the bottom than hanging to the windowsill, allowing significant air movement and heat exchange. While sealing at the sides and overlapping in the center are beneficial, the gap at the bottom undermines the effectiveness of the treatment.

The NCIDQ IDFX Reference Manual recommends that drapery window treatments designed to reduce heat exchange should extend to the floor, be sealed at the sides, and overlap in the center to create a complete barrier against air movement, maximizing thermal performance.

Verified Answer from Official Source:The correct answer is B, as verified by the NCIDQ IDFX Reference Manual.

Exact Extract:

From the NCIDQ IDFX Reference Manual (Chapter 8: Environmental Control Systems): "To reduce heat exchange, drapery window treatments should hang to the floor, be sealed at both sides, and overlap in the center to create a continuous barrier that minimizes air movement."

Explanation from Official Source:

The NCIDQ IDFX Reference Manual explains that effective drapery for reducing heat exchange must cover the entire window (hanging to the floor), prevent air leakage around the edges (sealed at both sides), and eliminate gaps in the center (overlap). This configuration creates an insulating air pocket between the drapery and the window, reducing heat gain or loss, which aligns with energy efficiency goals.

Objectives:

Understand the role of window treatments in reducing heat exchange.

Specify drapery configurations to improve thermal performance in a space.

Proxemics is the study of how people use and perceive space in relation to others, particularly in terms of physical distance during interactions. Developed by anthropologist Edward T. Hall, proxemics defines four spatial zones based on distance, which are widely used in interior design to understand user comfort and spatial behavior. The NCIDQ IDFX Reference Manual outlines these zones and their typical distances.

Hall’s proxemics zones (based on North American cultural norms) are:

Intimate space: 0 to 18 inches (0 to 457 mm) – Used for close relationships (e.g., hugging, whispering).

Personal space: 18 inches to 4 feet (457 mm to 1219 mm) – Used for conversations with friends or acquaintances, allowing for comfortable interaction while maintaining some distance.

Social informal space: 4 feet to 12 feet (1219 mm to 3658 mm) – Used for casual interactions, such as business meetings or social gatherings.

Public space: 12 feet and beyond (3658 mm and beyond) – Used for public speaking or interactions with strangers, where greater distance is preferred.

The question asks for the proxemics zone between 18 inches (457 mm) and 4 feet (1219 mm):

This range falls directly within thepersonal spacezone, as defined by Hall. Personal space is used for interactions where individuals feel comfortable but still maintain a degree of separation, such as conversations with colleagues or friends.

Let’s evaluate the options:

A. Public space: Public space starts at 12 feet (3658 mm), far beyond the given range, so this is incorrect.

B. Intimate space: Intimate space ends at 18 inches (457 mm), so the range of 18 inches to 4 feet exceeds this zone.

C. Personal space: This matches the range of 18 inches to 4 feet (457 mm to 1219 mm), making it the correct answer.

D. Social informal space: Social informal space starts at 4 feet (1219 mm), so the range of 18 inches to 4 feet only partially overlaps with this zone, but the majority of the range fallswithin personal space.

The NCIDQ IDFX Reference Manual confirms that the proxemics zone between 18 inches and 4 feet is personal space, as defined by Hall’s framework, which is widely used in interior design to plan spatial relationships.

Verified Answer from Official Source:The correct answer is C, as verified by the NCIDQ IDFX Reference Manual.

Exact Extract:

From the NCIDQ IDFX Reference Manual (Chapter 6: Human Factors and Ergonomics): "The proxemics zone between 18 inches (457 mm) and 4 feet (1219 mm) is personal space, used for comfortable interactions with acquaintances or colleagues."

Explanation from Official Source:

The NCIDQ IDFX Reference Manual explains that personal space, as defined by Edward T. Hall, spans from 18 inches to 4 feet, making it the appropriate zone for the given range. This zone is used for interactions where individuals maintain a comfortable distance, such as casual conversations, and is a key consideration in designing spaces like lobbies or meeting rooms.

Objectives:

Understand the proxemics zones and their spatial ranges.

Apply proxemics principles to determine appropriate spatial zones for interactions.
