UiPath-ADAv1 UiPath Automation Developer Associate v1 Exam Questions and Answers

The Retry Scope activity is used to retry the execution of a specific part of the automation in case of an error. In this case, the properties of the Retry Scope activity are set to retry 3 times with an interval of 8 seconds. Therefore, if the Work Items button appears on the screen after 8 seconds, the activity will click on the button. References: [Activities - Retry Scope]

When a transaction item throws a Business Rule Exception, it means that the item does not meet the business requirements and cannot be processed further1. Therefore, the transaction item is marked as failed and not retried, regardless of the Max # of retries setting for the queue2. However, the process does not stop and continues with the remaining transaction items in the queue3.

References:

• Business Exception vs System Exception forum post, Answer by @loginerror
• RE Framework MaxRetryNumber and Orchestrator Queue Max # Rertry, again forum post, Answer by @Arpit_Kesharwani

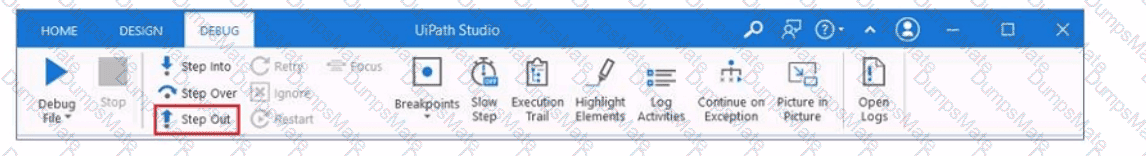

The Step Out action is used for stepping out and pausing the execution at the level of the current container. Step Out completes the execution of activities in the current container, before pausing the debugging. This option works well with nested sequences1. In the exhibit, the Step Out action will execute all the activities inside the Sequence container and then pause at the next activity in the Main workflow. References: Debugging Actions from UiPath documentation.

UI Automation is a feature that enables you to automate the interaction with UI elements on remote machines using native selectors. To use UI Automation in a scenario where multiple RDP connections are involved, you need to install the UiPath Windows Remote Desktop extension on the client machines and the UiPath Remote Runtime component on the destination machine. The extension allows you to identify UI elements on the remote desktop and send keyboard and mouse events to them. The Remote Runtime component enables the communication between the extension and the UiPath Robot service. In this case, Machine A and Machine B are client machines, while Machine C is the destination machine. Therefore, you need to install the RDP extension on Machine A and Machine B, and the Remote Runtime component on Machine C. (UiPath Studio documentation1)

References:

• 1: About Native RDP Automation - UiPath Studio.

If a process is accidentally started from UiPath Assistant, the user should manually terminate the execution from the "Jobs" tab in UiPath Assistant. This tab shows the list of running processes, where the user can stop the unintended process.

References:

UiPath Assistant Guide: Managing Jobs

The "For Each File in Folder" activity is the appropriate choice for iterating through all the files in a local folder in UiPath. This activity allows you to specify the folder path and then iterates through each file within that folder, performing actions on each file as needed. Options B, C, and D are not standard UiPath activities for this purpose.

References:

UiPath Activities Guide: For Each File in Folder

The Set Transaction Status activity is used to mark the result of a queue item processing1. If the queue item fails with an application exception, it can be retried by setting its status to Failed2. The Retried status is automatically assigned by Orchestrator when a retry is triggered3. The Abandoned status is applied when a queue item remains in progress for too long without being processed4. The Postponed status is used to delay the processing of a queue item until a specific date and time.

References:

• Managing Queues in Studio documentation, Step 9: Set Transaction Status section
• Queue Item Statuses documentation, Retried section
• Automation Best Practices documentation, Queue Item Status section
• Queue Item Statuses documentation, Abandoned section
• Queue Item Statuses documentation, Postponed section

The Activities Guide is a comprehensive documentation of all the official UiPath activity packages that are available on the Official feed. The Activities Guide provides detailed information about each activity, such as the description, properties, examples, and compatibility. The compatibility section indicates which target frameworks are supported by the activity, such as Windows, Windows-Legacy, or Cross-platform. By browsing the Activities Guide, you can find a list of all the activities that support the Windows compatibility, as well as the minimum version required for each activity package.

References:

• Activities Guide - UiPath Documentation Portal
• Deprecation of the Windows-Legacy Compatibility - UiPath Studio

The Get Transaction Data state is responsible for retrieving the next transaction item to be processed from the queue in Orchestrator. The state will loop until there are no more items in the queue or an exception occurs. A linear process can be implemented with REFramework by using a single queue item that contains all the data required for the process. (UiPath ReFramework documentation1)

References:

• 1: Robotic Enterprise Framework Template - UiPath Studio.

Unstructured input data sources significantly contribute to the complexity of an automation process, making option A correct. Unstructured data is more challenging to interpret and process, requiring more sophisticated methods for data extraction and handling, thus increasing the complexity of the automation. Standard desktop applications (option B), a low number of decision points (option C), and a low number of steps (option D) typically reduce complexity.

References:

UiPath Documentation: Input Methods

UiPath Best Practices: Project Organization

The SetTransactionStatus.xaml file is invoked in the Finally section of the Try Catch activity in the Process Transaction state of the REFramework template project. This file is responsible for setting the status of the current transaction item based on the outcome of the process. It also closes all applications that are used by the process and logs relevant information. (UiPath Studio - REFramework - UiPath Academy)

References:

• Studio - REFramework - UiPath Documentation Portal
• UiPath Studio - REFramework - UiPath Academy
• REFramework documentation.pdf - Google Drive

According to the UiPath documentation, the Try Catch activity requires at least one catch to be added1. If there is no catch defined for the Try Catch activity, the workflow will not pass the validation and will not execute. The validation error message will say: “Try Catch: At least one catch must be added to the Try Catch activity.” Therefore, the outcome of executing a Try Catch activity with a sequence placed within the Try section and no Catches section present will be a validation error. References: Activities - Try Catch

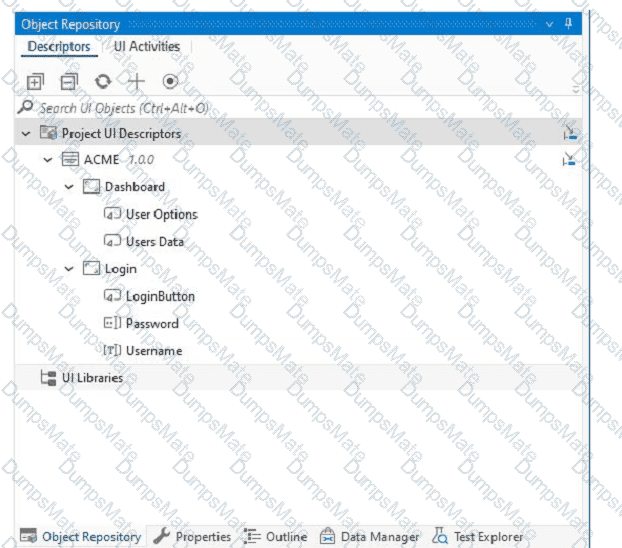

To edit a selector for only one activity without modifying it in the Object Repository, you would need to "Unlink from Object Repository". This allows you to make changes to the selector for that specific activity without affecting the linked UI element in the Object Repository, which might be used by other activities as well. Therefore, the correct answer is A.

References:

UiPath Studio Guide: Object Repository

In UiPath Studio, to convert a designed process into a template, you should use the "Export as Template" option. This feature packages the project in such a way that it can be reused as a starting point for other automation projects. Therefore, the correct answer is B.

References:

UiPath Studio Guide: Project Templates

UiPath Integration Service is a feature that enables you to integrate UI and API automation in a unified way. The three main components of UiPath Integration Service are:

• Connectors: These are pre-built or custom components that provide access to various applications or systems through their APIs. You can use connectors to perform actions or retrieve data from different sources, such as Salesforce, Slack, Google Sheets, etc. (UiPath Integration Service documentation1)
• Connections: These are configurations that store the authentication and connection details for each connector. You can create and manage connections in the UiPath Automation Cloud and share them across different folders and processes. (UiPath Integration Service documentation2)
• Triggers: These are rules that define when and how to start a process in Orchestrator based on events from connectors. You can configure triggers to react to data changes, insertions, deletions, or custom events in the connected applications or systems. (UiPath Integration Service documentation3)

References:

• 1: Integration Service - Connectors - UiPath Documentation Portal.
• 2: Integration Service - Connections - UiPath Documentation Portal.
• 3: Integration Service - Triggers - UiPath Documentation Portal.

The InitAllApplications TestCase is used to test the initialization of all the applications that are required for the automation process1. The pre-requisite for running this TestCase is to invoke the InitAllSettings XAML file in the Given section of the TestCase2. The InitAllSettings file is responsible for reading the configuration data from the Config.xlsx file and storing it in a dictionary variable3. This data is then used by the InitAllApplications file to open and log in to the applications using the credentials and URLs from the dictionary variable4.

Connecting UiPath Studio to Orchestrator enables several features, including publishing automation packages directly to Orchestrator. This connection is crucial for deploying processes and managing automation workflows at scale. It does not directly enable defining queues and arguments for automations (option B), generating API keys for third-party integrations (option C), or creating an Object Repository of elements (option D), although these can be managed within Orchestrator once the package is published.

References:

UiPath Orchestrator Guide: Connecting Robots to Orchestrator

Dictionaries in UiPath, as in other .NET environments, allow for keys and values to be of different data types. Keys must be unique within a dictionary, but the values can be duplicates. Dictionaries do not provide automatic sorting; they are collections designed for quick lookup of values based on a key. Therefore, the correct answer is B.

References:

UiPath Studio Guide: The Dictionary Data Type

A mock file is a copy of a workflow file that is used to simulate the behavior of the original workflow without affecting it1. When you create a mock file, the original workflow file is automatically added to the project dependencies, and the mock file is added to the test folder2. If you update the original workflow file, the changes are not reflected in the mock file, unless you manually update the mock file as well3. Therefore, if you add a Log Message activity and a Verify Expression activity to “MySequence” workflow file and save the project, the “MySequencemock” file will remain unchanged.

References:

• Mock Testing documentation from UiPath
• Create Mocks documentation from UiPath
• Feature request: Allow to rename Mock files forum post from UiPath Community

The recommended type of workflow for designing a complex business process using UiPath Studio is Flowchart. Flowcharts are suitable for a more complex business logic, as they enable you to integrate decisions and connect activities in a more diverse manner, through multiple branching logic operators. Flowcharts can also be used as a part of other diagrams, such as Sequences or State Machines3. Flowcharts provide a clear and visual representation of the flow of the process, as well as the possible outcomes and exceptions. Flowcharts can also be easily modified and expanded, as new activities and branches can be added or removed4. References: Flowchart and Understanding the Concept of Workflow of UiPath from UiPath documentation and Medium.

A static selector is a selector that has fixed values for the attributes of the target element, such as name, id, class, etc. A static selector is appropriate to use when the target element’s attributes do not change during runtime, meaning they are always the same regardless of the state of the application or the environment. A static selector is more reliable and faster than a dynamic selector, as it does not require any variables or arguments to identify the target element. A static selector is not suitable for situations where the target element’s properties change frequently, such as when the element is generated dynamically, or when the automation requires high flexibility, such as when the element can have different names or ids depending on the input or output data. In those cases, a dynamic selector is preferred, as it can use variables or arguments to adjust the attribute values according to the changes in the target element. References: Dynamic Selectors, Selectors

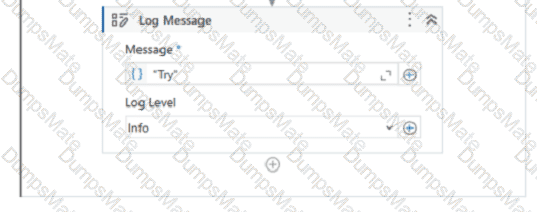

The recommended Log Level for the Log Message activity that is contained within the System Exception block of a Try Catch activity designed to catch and stop for any unknown System Exceptions is "Fatal." This level is used to indicate that a critical error has occurred, typically one that leads to a termination of the application.

References:

UiPath Studio Guide: Logging Levels

To view the complete list of attributes for the targeted UI element after generating a selector, the developer should use the "Open in UI Explorer" option. UI Explorer is a tool that provides a detailed view of the UI elements' properties and their full selectors. It allows for editing, validating, and testing selectors for better accuracy and reliability. Therefore, the correct answer is B.

References:

UiPath Studio Guide: UI Explorer

When a process is executed from the Start Job window in UiPath Orchestrator, the runtime value of an "In" argument in the "Main.xaml" file will be the value provided in Orchestrator if specified. If no value is provided in Orchestrator for this argument, then the default value specified in the "Main.xaml" file will be used, in this case, "String.Empty". Therefore, option C is correct. Arguments can be passed to the "Main.xaml" file from Orchestrator, and there is a mechanism to handle default values for arguments in case they are not provided at runtime.References:

• UiPath Orchestrator Guide: Starting a Job
• UiPath Studio Guide: Managing Arguments

The components of a process typically include "Inputs, Process Flows, Source Applications, Outputs". This refers to what the process takes as input (data/files), the sequence of steps or activities that define the process (process flows), the applications involved in the process (source applications), and what the process produces or affects (outputs).

References:

UiPath Studio Guide: Project Organization Best Practices

To extract hidden text from a pdf file, the output method that should be used is FullText only. The FullText output method is one of the options available in the Read PDF Text activity, which reads all the characters from a specified pdf file and stores them in a string variable3. The FullText output method extracts the text from the pdf file as it is, without keeping the formatting or the position of the text. The FullText output method can also extract the hidden text from the pdf file, which is the text that is not visible on the screen, but can be copied and pasted into another application4. For example, the hidden text can be the metadata, comments, or annotations of the pdf file. The FullText output method is suitable for extracting hidden text from a pdf file, as it does not depend on the visibility or the layout of the text. The other output methods, such as Native or OCR, are not suitable for extracting hidden text from a pdf file, as they rely on the appearance or the position of the text on the screen. The Native output method preserves the formatting and the position of the text, but it cannot extract the text that is not visible or selectable5. The OCR output method converts the text from the pdf file into an image and then extracts the text from the image, but it cannot extract the text that is not displayed or recognized by the OCR engine6.

References: Read PDF Text, Extracting Hidden Text from PDF, Native, and OCR from UiPath documentation and forum.

In UiPath Studio, when creating a variable, the "Default" field is optional. The "Default" field is where you can assign an initial value to the variable, which it will hold until changed during the execution of the workflow. The "Variable type" must be specified to determine what kind of data the variable will hold. The "Name" is required to reference the variable within the workflow, and the "Scope" determines where the variable can be accessed from within the project.

References:

UiPath Studio Guide: Managing Variables

A BusinessRuleException occurs when a business rule is violated or a business requirement is not met during the execution of a process. In this case, the data is not accessible and the created table displays only the header row, which means that the expected output for the client is not generated. Therefore, processing for that client must be halted and a BusinessRuleException must be thrown. (UiPath Studio - Exception Handling - UiPath Academy)

References:

• Studio - Exception Handling - UiPath Documentation Portal
• UiPath Studio - Exception Handling - UiPath Academy
• REFramework in UiPath | Robotic Enterprise Framework - SOAIS

The Designer panel is the central panel in UiPath Studio, where you can design your automation workflows by dragging and dropping activities. When you insert activities into a Sequence, they appear in the Designer panel as a linear representation that flows from top to bottom. The Snippets panel contains ready-made workflows that you can reuse in your projects. The Imports panel allows you to import namespaces and libraries that you can use in your workflows. The Outline panel shows the hierarchical structure of your project and its components. References: The User Interface, Sequences

The Alerts panel is a feature of the UiPath Orchestrator that shows the most critical alerts related to robots, queue items, triggers, and more1. The alerts are displayed in descending order of severity and time2. The Alerts panel can be accessed by clicking the Alerts bell icon on the top-right corner of the Orchestrator dashboard3. Clicking an alert in the panel redirects the user to the custom filtered page of the associated component4.

The argument name that follows UiPath best practices for argument naming conventions is out_ConfirmationNumber. According to the UiPath best practices, the argument name should be meaningful and include an indication of its type and direction. The type can be inferred from the argument’s data type, such as String, Int32, DataTable, etc. The direction can be one of the following: in, out, or io. The in direction means that the argument can only be used within the given project. The out direction means that the argument can be used to pass data outside of a given project. The io direction means that the argument can be used both within and outside of a given project4. The argument name should also follow the camel case convention, which specifies that each word in the middle of the argument name begins with a capital letter, with no intervening spaces or punctuation5. For example, the argument name out_ConfirmationNumber follows these best practices, as it indicates that the argument is of out direction, and that it stores a confirmation number value. The other argument names do not follow the best practices, as they either use incorrect or inconsistent prefixes, or do not use camel case convention. References: ST-NMG-002 - Arguments Naming Convention and Variables, arguments and workflows naming - best practice from UiPath documentation and forum.

The Is Match activity is used to check if a string matches a given regular expression pattern. The regular expression pattern can be used to validate the format of a string, such as a date. In this case, the developer wants to validate that the birth date is in the correct format, which is dd-MM-yyyy. The regular expression pattern for this format is “\d{2}-\d{2}-\d{4}”, which means two digits, followed by a hyphen, followed by two digits, followed by a hyphen, followed by four digits. The Is Match activity will return True if the input string matches this pattern, and False otherwise. Therefore, the answer is D. Activity. Is Match. References: Is Match, Regular Expressions

Name = Age Variable type = Double Scope = Body of For Each Row

Name = TimeonThePlanet Variable type = Time Span Scope = Sequence - Yes, Can Vote

Name = dt_NamesBirthdays Variable type = DataTable Scope = Voter Registration

The reason for choosing these scopes is to keep the variables in the innermost scope where they are used and to avoid unnecessary clutter and duplication in the Variables panel. You can learn more about variable scope in UiPath from the following sources:

• Variable scope - Studio - UiPath Community Forum
• How Variable Scope Works in UiPath - Video Tutorials - UiPath Community Forum
• How to pass variables as UiPath arguments example - TheServerSide
• Best Practices: Select Variables scope - UiPath Community Forum

This expression is suitable for calculating the total number of boxes because it converts both strings to integers using the Convert.Tolnt32 method, which is a built-in method in .NET that can handle various formats of numeric strings1. Then, it multiplies the two integers to get the total number of boxes as an integer. The other expressions are not suitable because they either use incorrect syntax or methods that do not exist or are not reliable for converting strings to integers. References:

1: Convert.Tolnt32 Method

One of the key advantages of using UiPath Orchestrator queues is the ability to track the status of Queue Items. This feature allows for monitoring the progress of items as they are processed by robots, including whether they are new, in progress, successful, failed, or retried, among other statuses.References:

• UiPath Orchestrator Guide: About Queues and Transactions

This LINQ query is used to group the rows in the table by the “Item” column and then find the maximum sum of the “Quantity” column for each group. The result will be the maximum total quantity for any item in the table. (UiPath Studio documentation1)

References:

• 1: LINQ Queries - UiPath Activities.

The container activity that the developer should use to search for an image multiple times is Retry Scope. The Retry Scope activity is used to retry the execution of a set of activities as long as a condition is not met or an error is thrown. The Retry Scope activity has two sections: Action and Condition. The Action section contains the activities that need to be retried, such as searching for an image on a website. The Condition section contains an activity that returns a Boolean value, such as Image Exists, which checks if the image is displayed on the screen. The Retry Scope activity also has two properties: NumberOfRetries and RetryInterval. The NumberOfRetries property specifies how many times the Action section is retried before throwing an error. The RetryInterval property specifies how much time passes between each retry1. By using the Retry Scope activity, the developer can handle the error on the website and search for the image multiple times until it is found or the maximum number of retries is reached. References: Retry Scope from UiPath documentation.

The REFramework template is a robust and scalable framework for building RPA projects1. It uses a config file to store the settings and constants that are used throughout the project2. The config file has two sheets: Settings and Assets. The Settings sheet contains the key-value pairs that are read by the InitAllSettings workflow and stored in the config dictionary. The Assets sheet contains the names of the assets that are stored in Orchestrator and need to be retrieved by the InitAllApplications workflow. The OrchestratorQueueName key is used to specify the name of the queue that is used to store the transaction items for the process. If the OrchestratorQueueName key is present in both the Settings and Assets sheets, but an asset with the corresponding name is not present in Orchestrator, the behavior at run time will be as follows:

• The InitAllSettings workflow will read the value of the OrchestratorQueueName key from the Settings sheet and store it in the config dictionary.
• The InitAllApplications workflow will try to retrieve the asset with the name OrchestratorQueueName from Orchestrator using the Get Asset activity. Since the asset does not exist, the activity will throw an exception.
• The exception will be caught by a Try Catch block and handled by a Log Message activity with level Warning and message “Asset not found: OrchestratorQueueName”.
• The flow will continue with the next asset in the Assets sheet or move to the next state if there are no more assets.
• The flow will use the value of the OrchestratorQueueName key from the config dictionary whenever it needs to access or update the queue.

Therefore, option B is correct. Option A is incorrect because the exception is thrown in InitAllApplications workflow, not InitAllSettings workflow. Option C is incorrect because an empty string is not saved for the OrchestratorQueueName key in the config dictionary. Option D is incorrect because the OrchestratorQueueName key is added to the config dictionary and the flow does not throw in Get Transaction Data workflow.

References:

• How to Use Enhanced REFramework to Implement UiPath Projects article from UiPath
• Config.xlsx documentation from UiPath
• [InitAllSettings.xaml] documentation from UiPath
• [InitAllApplications.xaml] documentation from UiPath
• [TransactionItem Variable] documentation from UiPath

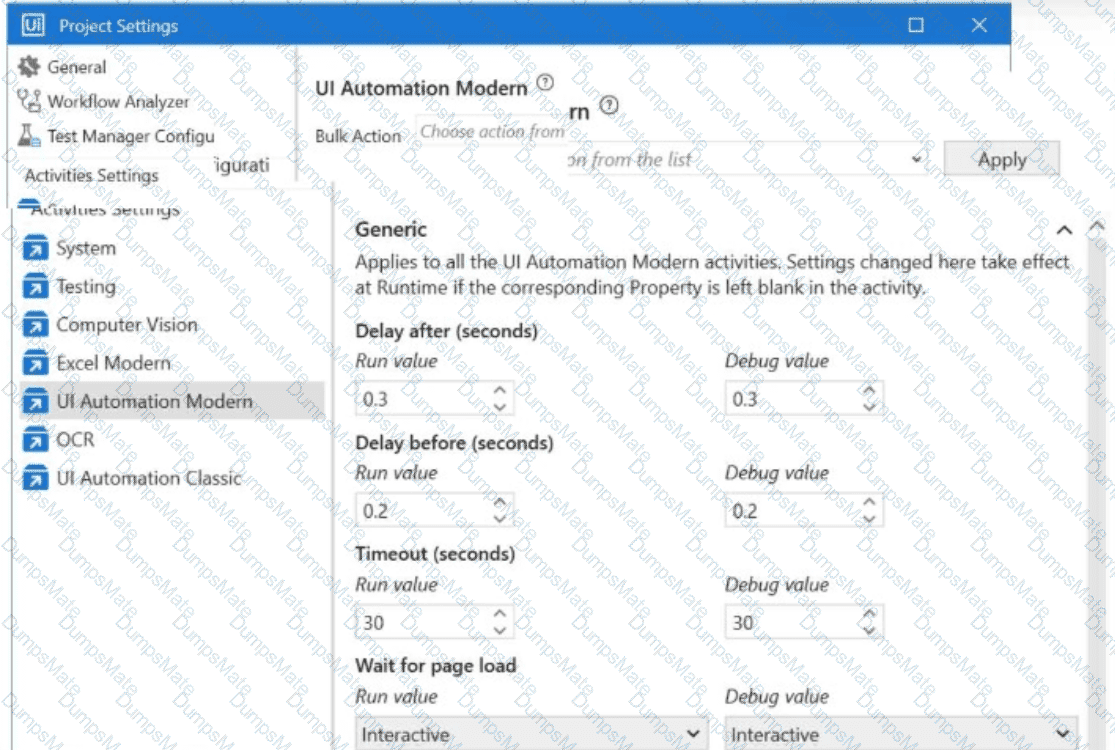

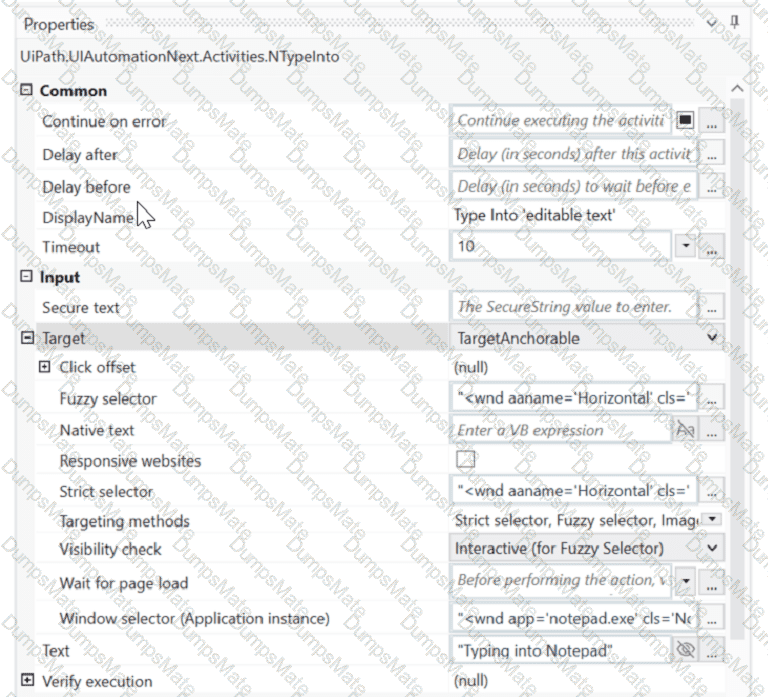

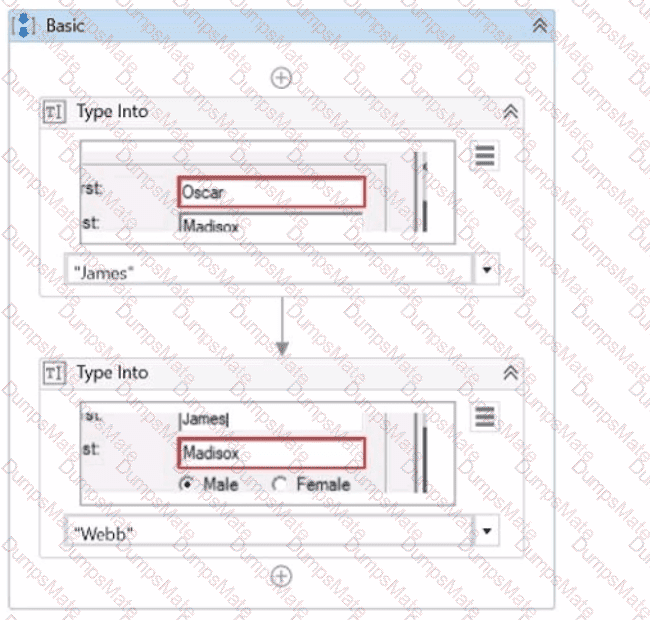

The Type Into activity is used to type text into a UI element. The activity has different properties that can be configured to control the input method, the delay between keystrokes, the cursor position, and the text formatting. The Activity Project Settings for UI Automation Modern activities allow you to set the default values for these properties at the project level. However, you can also override these values at the activity level by using the Properties panel. In this case, the Activity Project Settings are set to remove a Single Line in Run mode and Multi Line in Debug mode. This means that when the workflow is executed, the Type Into activity will delete any existing text in the UI element before typing the new text. If the workflow is run in Run mode, only one line of text will be deleted. If the workflow is run in Debug mode, all lines of text will be deleted. (UiPath Studio documentation1)

References:

• 1: Configuring Activity Project Settings - UiPath Studio.

Global Constants are a type of variables that can store data in a central location that can be accessed by all workflows and activities in a project. Unlike Global Variables, Global Constants have a fixed value that cannot be modified during the automation execution. Global Constants can be created from two places in UiPath Studio: the Data Manager panel and the Variables panel. The Data Manager panel is a new feature in UiPath 2022.10 that allows the developer to manage all the data elements of a project, such as variables, arguments, data types, and data sources. The Variables panel is a classic feature that allows the developer to create and edit variables for a specific workflow. To create a Global Constant from the Data Manager panel, the developer needs to select the Constants tab, click on the New Constant button, and fill in the required fields, such as name, type, value, and description. To create a Global Constant from the Variables panel, the developer needs to select the Global scope, click on the Create Variable button, and fill in the required fields, such as name, type, value, and description. In both cases, the developer needs to make sure that the Is Constant option is checked, which indicates that the variable is a constant and cannot be changed.

References:

• Global Variables and Constants - UiPath Community Forum
• Data Manager - UiPath Studio
• Variables Panel - UiPath Studio

A good selector for matching specific invoices with the vendor tax ID defined in a pre-selected existing list would use variables or arguments to replace the specific vendor tax ID. The correct syntax for dynamic selectors in UiPath uses double braces {{VendorTaxID}} to represent variables within the selector. Therefore, the correct answer is A, as it correctly uses a variable placeholder for the VendorTaxID.

References:

UiPath Studio Guide: Selectors with Variables

Remote Debugging is a feature that allows you to debug a process that is running on a remote machine or robot from your Studio1. To use Remote Debugging, you need to have a Remote Machine Connection, which is a connection type that enables you to interact with a remote machine using its IP address and port number2. The prerequisite for performing Remote Debugging using a Remote Machine Connection is that TCP/IP connectivity exists between the Studio machine and the remote machine3. TCP/IP is a protocol that defines how data is transmitted and received over a network4. Without TCP/IP connectivity, the Studio machine cannot communicate with the remote machine and cannot debug the process.

Option A is incorrect because Studio and the remote robot do not need to be connected to the same Orchestrator tenant for Remote Debugging using a Remote Machine Connection5. Option B is incorrect because the same user does not need to be signed in Studio and the remote robot for Remote Debugging using a Remote Machine Connection. Option C is incorrect because Remote Debugging using a Remote Machine Connection does not require Studio, the remote robot, and Orchestrator to be running version 2021.10 or later. Remote Debugging using a Remote Machine Connection was introduced in version 2020.10.

Variables and arguments are both used to store and pass data in UiPath, but they have some differences in their scope and direction. Variables are used to pass data between activities within the same workflow file. They have a default direction of In/Out, which means they can be read and written by any activity in the workflow. Arguments are used to pass data between different workflow files. They have a specific direction of In, Out, or In/Out, which means they can only be read or written by the workflow that invokes them or the workflow that is invoked. Variables and arguments can have different data types, such as String, Int32, Boolean, etc. Variables can be assigned to an argument value, but arguments cannot be assigned to a variable value. References: Managing Arguments, Variables, Arguments, and Control Flow in Studio, Different between variables and arguments

When the activity encounters a NullReferenceException, the Finally block is not executed and a runtime error occurs. This is because the Catches section of the Try Catch activity only handles the ArgumentException type, which is a specific type of exception that occurs when one of the arguments provided to a method is not valid1. A NullReferenceException is a different type of exception that occurs when there is an attempt to dereference a null object reference2. Since the Catches section does not have a handler for the NullReferenceException type, the exception is not caught and the execution is stopped with a runtime error. The Finally block, which contains the activities that are always executed regardless of the outcome of the Try Catch activity, is also skipped3. References: ArgumentException Class, NullReferenceException Class, and Try Catch from UiPath documentation.

The default URL of the OCR server that runs the Computer Vision service is https://cv.uipath.com/.  This is the endpoint of the UiPath Computer Vision Cloud service, which provides OCR capabilities for document understanding and UI automation1. The other options are not valid URLs for the OCR server.

References:

• Document Understanding - UiPath.DocumentUnderstanding.OCR.LocalServer Activities documentation, Introduction section

The Automation Developer installation package is a standalone installer that allows you to install UiPath Studio, Assistant, and Robot on your computer. This package is suitable for developers who want to create and test automation projects in UiPath Studio. (UiPath Studio - Installation Options - UiPath Academy)

References:

• Studio - Installation Options - UiPath Documentation Portal
• [UiPath Studio - Installation Options - UiPath Academy]
• [UiPath Studio - Installation Guide - UiPath Academy]

The default polling interval for an event trigger is 5 minutes, which means that the trigger checks for new object events every 5 minutes. This value can be customized using the Adjustable Polling Interval feature, which allows users to choose the interval on which event triggers check for new object events. The polling interval can be changed from a specific connector’s page or from the Connections tab. (UiPath Automation Developer study guide)

References:

• How to modify the polling interval for Integration Service Triggers?
• Integration Service - Triggers
• UiPath Integration Service - Vote on Tutorials

When converting a Windows-Legacy project to Windows, the project dependencies are automatically updated to the highest available version that is compatible with the Windows target framework. This is done to ensure that the project can use the latest features and improvements of the activities packages, as well as to avoid potential issues or conflicts with the legacy versions. The updated dependencies are reflected in the project.json file and the Manage Packages window of the project. The developer can also manually update the dependencies to a specific version if needed.

References:

• Deprecation of the Windows-Legacy Compatibility - UiPath Studio
• Convert Windows Project to Windows-Legacy - UiPath Community Forum

The DateTime.ParseExact method converts a string into a DateTime object using a specified format and culture1. The format parameter defines the order and symbols of the date and time components in the string2. The culture parameter determines the conventions for date separators, time indicators, and other symbols3.

In this case, the string variable DateString has the value “03/03/2023 16:23:11”, which means the 3rd of March, 2023, at 4:23:11 PM. To convert this string into a DateTime variable, we need to use the format “dd/MM/yyyy HH:mm:ss”, which matches the order and symbols of the string components. The “dd” represents the day as two digits, the “MM” represents the month as two digits, the “yyyy” represents the year as four digits, the “HH” represents the hour as two digits in 24-hour format, the “mm” represents the minute as two digits, and the “ss” represents the second as two digits2. The slashes (“/”) and colons (“:”) are used as date and time separators respectively. The Culturelnfo.InvariantCulture parameter specifies that the string uses invariant culture, which means it is not associated with any specific language or region3.

Therefore, option D is the correct expression to convert the string variable DateString into a DateTime variable. Option A has a wrong hour format (“hh” instead of “HH”), which would cause an exception if the hour is greater than 12. Option B has a wrong order of day and month (“MM/dd” instead of “dd/MM”), which would result in an incorrect date. Option C has a wrong minute format (“mm” instead of “MM”), which would cause an exception if the month is greater than 12.

The Get Test Data Queue Item activity is used to retrieve a test data queue item from Orchestrator and store it in a variable. The output type of the variable is Dictionary, which means that it is a collection of key-value pairs that can be accessed by using the key name. For example, if the test data queue item contains the fields Name, Age, and Gender, then the output variable can be used to get the values of these fields by using expressions like outputVar(“Name”), outputVar(“Age”), or outputVar(“Gender”). (UiPath Studio documentation1)

References:

• 1: Get Test Data Queue Item - UiPath Activities.

A screenshot of a computer Description automatically generated

The correct sequence for the computation of the signature for client apps that receive Orchestrator requests and need to check their authenticity is:

• Retrieve the X-UiPath-Signature HTTP header. This header contains the signature of the request body, encoded in Base64. (UiPath Orchestrator documentation1)
• To obtain the raw signature bytes, decode the value of the header from Base64. You can use any tool or library that supports Base64 decoding. (UiPath Orchestrator documentation1)
• Compute the hash using SHA256 and the signing key (UTF-8 encoded). The signing key is a secret value that is shared between Orchestrator and the client app. You can use any tool or library that supports SHA256 hashing. (UiPath Orchestrator documentation1)
• Compare the computed signature to the value from X-UiPath-Signature HTTP header. If they match, then the request is authentic and has not been tampered with. If they do not match, then the request is invalid and should be rejected. (UiPath Orchestrator documentation1)

References:

• 1: Webhooks - UiPath Orchestrator.

A business exception is an exception that occurs due to a fault in the business process logic or data, such as invalid input, incorrect format, missing information, etc. Business exceptions are usually predictable and can be handled gracefully by logging the error and moving to the next transaction. In this case, a queue item that contains a partial phone number is an example of a business exception, as it is caused by a human mistake and does not affect the functionality of the application or system. (UiPath Automation Developer study guide)

References:

• Business Exception vs System Exception
• Exception Handling

Variables can be created from different areas or panels in the UiPath Studio interface, such as the body of an activity, the properties panel, the expression editor, or the variables panel. However, the activities panel is the only one among the given options that is a valid area for creating variables. The activities panel contains a list of activities that can be dragged and dropped to the designer panel to build workflows. By right-clicking a field in an activity and selecting Create Variable from the context menu, or pressing Ctrl+K, a variable can be created and assigned to that field. The variable’s type and scope are automatically determined based on the activity and the container it is part of.

References:

• Create Variables Tutorial in Studio | UiPath
• Studio - Managing Variables - UiPath Documentation Portal
• Managing Variables - UiPath Studio

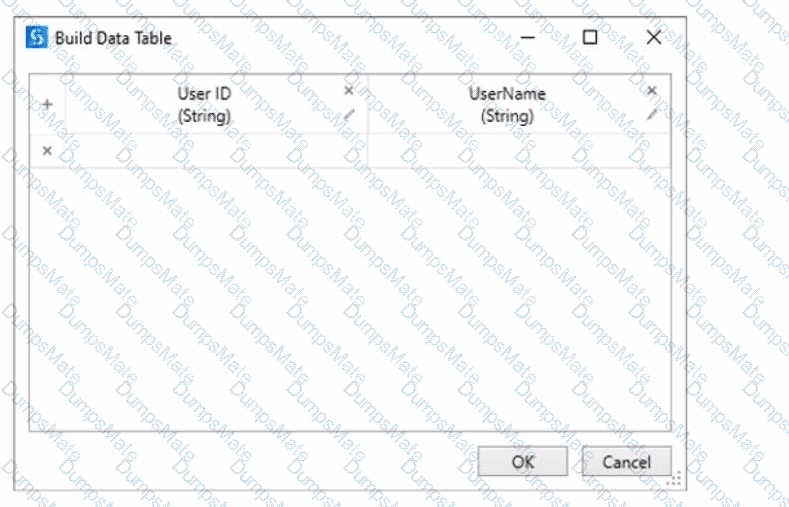

A DataTable variable is a data structure that can store and manipulate tabular data in UiPath. A DataTable variable has rows and columns that correspond to the rows and columns of the tabular data source, such as an Excel or CSV file. A DataTable variable can be used to store the input data for a REFramework transactional project, where each row represents a transaction item. The REFramework template can be modified to use a DataTable variable as the TransactionItem type and to process each row in the GetTransactionData and ProcessTransaction workflows. Using a DataTable variable is the recommended approach for handling tabular data when building a REFramework transactional project in UiPath, because it is efficient, flexible, and easy to use. (UiPath ReFramework documentation1)

References:

• 1: Robotic Enterprise Framework Template - UiPath Studio.

The Assign activity is used to assign a value to a variable. In this case, the variable is “qty”. The value of the variable will be 80 after executing the Assign activity because the expression in the Assign activity is “dt.AsEnumerable().Where(Function(x) x(“Item”).ToString.Equals(“mango”)).Select(Function(y) y(“Quantity”)).ToString”. This expression is filtering the data table “dt” for rows where the “Item” column is equal to “mango” and then selecting the “Quantity” column from those rows. Since there is only one row in the data table where “Item” is equal to “mango”, the value of the “Quantity” column in that row is 80. (UiPath Studio documentation)

References:

• : [Assign - UiPath Activities].

Connections are the core component of the UiPath Integration Service. They enable you to create and manage tasks and exchanges between users and external applications using the authentication process of the API provider. Each connection is associated with a specific connector, which defines the actions and triggers that can be performed on the external application. You can create connections in the Integration Service page of the Automation Cloud portal, and use them in your automation projects in Studio, StudioX, Apps, or Assistant. You can also share connections with other users or groups in your organization using folders and permissions1.

References: Integration Service - Connections - UiPath Documentation Portal

When a developer starts a blank process in UiPath Studio, the following dependencies are automatically installed by default: UiPath.System.Activities, UiPath.Excel.Activities, UiPath.Mail.Activities, UiPath.UIAutomation.Activities and UiPath. Testing.Activities. These dependencies provide the basic activities and packages that are needed for most automation projects, such as working with data types, files, Excel, email, user interface, and testing. The developer can also add or remove other dependencies as needed, depending on the specific requirements of the automation project. References: Creating a Basic Process, Managing Dependencies.

The Find Text Position activity is used to find the position of a text on the screen and return it as a UiElement variable. This can be used as an anchor to locate the text input field that corresponds to the text label. The Type Secure Text activity is used to type a password or other sensitive information into a UI element, without revealing the actual text. The input text is provided as a SecureString variable, which is encrypted and cannot be viewed in plain text. This ensures that the sensitive information is entered securely and accurately into the text input field.

References:

• Find Text Position - UiPath Activities
• Type Secure Text - UiPath Activities
• UiPath Anchor Base Tutorial & AnchorPosition Example

Based on the image you sent, the automation process consists of four steps: opening Notepad.exe, typing some text, saving the file, and closing Notepad.exe. Each step has a Log Message activity that writes a text value to the Output panel. If Notepad.exe is not running, the first step will fail and throw an exception. The exception type is SelectorNotFoundException, because the Open Application activity cannot find the selector for Notepad.exe1. Therefore, the Log Message text value that is contained in the Output panel is “SelectorNotFoundException”, which is option D.

References: Open Application documentation.

A personal workspace in UiPath Orchestrator is a type of modern folder that allows a user to work on their own automation projects without affecting other users or folders1. A personal workspace can be converted into a regular folder by using the Convert to Folder option in the folder settings2. When this happens, the owner of the initial workspace is added by default to the newly created folder and assigned the Folder Administrator role2. This role gives the user full control over the folder and its entities, such as processes, queues, assets, etc3. The other options are incorrect because they do not reflect the actual outcome of converting a personal workspace into a folder.

References: Personal Workspaces documentation, Use of UiPath Orchestrator Folder Packages and Workspaces, Folder Roles documentation.

The Asset Type that should be used for storing email addresses of the process owners is Text. Text assets are used to store only string values, such as names, addresses, URLs, etc. Text assets can be easily retrieved and updated using the Get Asset and Set Asset activities in UiPath Studio. Text assets are suitable for storing email addresses, as they can contain alphanumeric characters, symbols, and special characters. Text assets can also be used in various activities that require string input or output, such as Send Email, Write Line, Assign, etc.

References: About Assets and Assets in UiPath Orchestrator and their usage in project from UiPath documentation and RPA Learners.

The Write Line activity is used to write a specified text to the Output panel. The text can be a string literal, a variable, or an expression. In this case, the Write Line activity in the Main xaml file has the text "out_ShoppingBasket + “, “Orange””. The out_ShoppingBasket is a variable of type String, which is declared in the Main xaml file and has the default value of “Apple”. The variable is passed as an argument to the SuperMarket xaml file, where it is assigned a new value of “Orange”. The argument direction is Out, which means that the value of the argument is passed back to the Main xaml file after the execution of the SuperMarket xaml file. Therefore, the value of the out_ShoppingBasket variable in the Main xaml file is changed from “Apple” to “Orange”. The expression "out_ShoppingBasket + “, “Orange”” concatenates the value of the out_ShoppingBasket variable with a comma and a space, followed by the string literal “Orange”. The result of this expression is “Orange, Orange”. The Write Line activity writes this text to the Output panel. Therefore, the answer is B. Orange. References: Write Line, Variables, Arguments

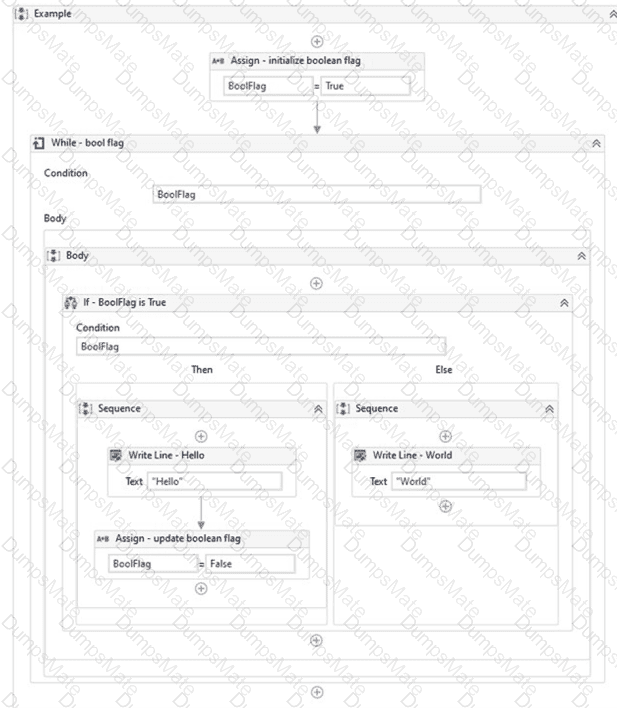

The While activity is a Control Flow activity that enables the developer to execute a specified part of the automation while a condition is met. The condition is evaluated before the loop body is executed, which means that the developer can assess the value of a counter or any other variable before performing the actions inside the loop. This type of activity can be useful to iterate through an array, a list, a data table, or any other collection of data, or to repeat an action until a certain value is reached or changed. The While activity can be found in the Activities panel, under Workflow > Control.

References:

• While - UiPath Activities
• While Activity - UiPath Studio
• UiPath While Loop Tutorial with Examples - RPA Tutorial

The String.Join method takes two parameters: a separator and an array of strings. It returns a new string that concatenates the elements of the array using the separator. The correct syntax is String.Join(separator, array). Therefore, option B is the correct answer.

References:

• Automation Developer Associate Training course, Section 1: Data Manipulation, Lecture: Data Manipulation with Strings in Studio
• How to use Array of string forum post, Answer by @balupad14

Credential stores are secure locations where you can store and retrieve sensitive data such as robot credentials and credential assets1. Orchestrator supports the use of multiple credential stores and has built-in integrations with the following ones2:

• Azure Key Vault: A cloud-based service that provides secure storage and management of secrets, keys, and certificates3.
• CyberArk CCP: A component of the CyberArk Privileged Access Security Solution that provides centralized management and distribution of credentials to applications and robots4.
• HashiCorp Vault: A tool that enables secure access to secrets and encryption keys across dynamic environments5.
• Thycotic Secret Server: A web-based solution that protects privileged accounts and credentials from cyberattacks and insider threats.
• BeyondTrust: A platform that offers privileged access management, remote access, and vulnerability management solutions.
• CyberArk: A leader in privileged access management that secures credentials, sessions, and endpoints across hybrid and cloud environments.

Therefore, option A is the correct answer, as it lists all the credential stores that have built-in support in Orchestrator. Option B is incorrect because it includes Cisco and Google Credentials, which are not credential stores supported by Orchestrator. Option C is incorrect because it includes Amazon Security Services, which is not a credential store supported by Orchestrator. Option D is incorrect because it includes Cisco, Amazon Security Services, Microsoft SCS, and IBM Vault, which are not credential stores supported by Orchestrator.

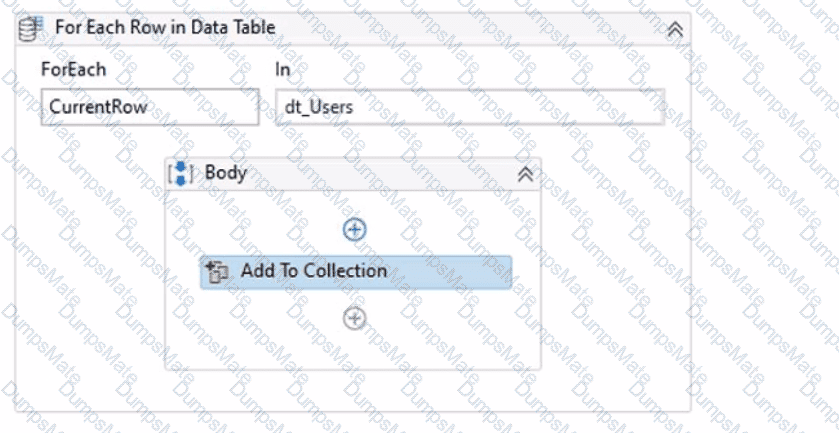

The argument "in_UserName" from "BuildUserID.xaml" should be mapped to the "Username" column of the current row in the "DataTable_Users" data table. The correct expression for accessing this value is CurrentRow("Username").ToString, which converts the value in the "Username" column of the current row to a string suitable for the argument.

References:

UiPath Studio Guide: The Variables Panel

A process can be found in the UiPath Assistant after being published from UiPath Studio and deployed as an automation in Orchestrator. UiPath Assistant is a desktop tool that enables users to easily access, manage, and run automation workflows on their machines. It displays all the available automations that the user can run, either from Orchestrator or locally. To run an automation from Orchestrator, the user needs to connect the UiPath Assistant to Orchestrator and synchronize the automations and settings with the cloud. The user can also add automations to the launchpad for quick and easy access, create custom folders and sections to organize the automations, view the status and progress of the running automations, and access the help and feedback options.

References:

• Software Robot Assistant - Desktop Automation | UiPath
• Robot - About UiPath Assistant - UiPath Documentation Portal

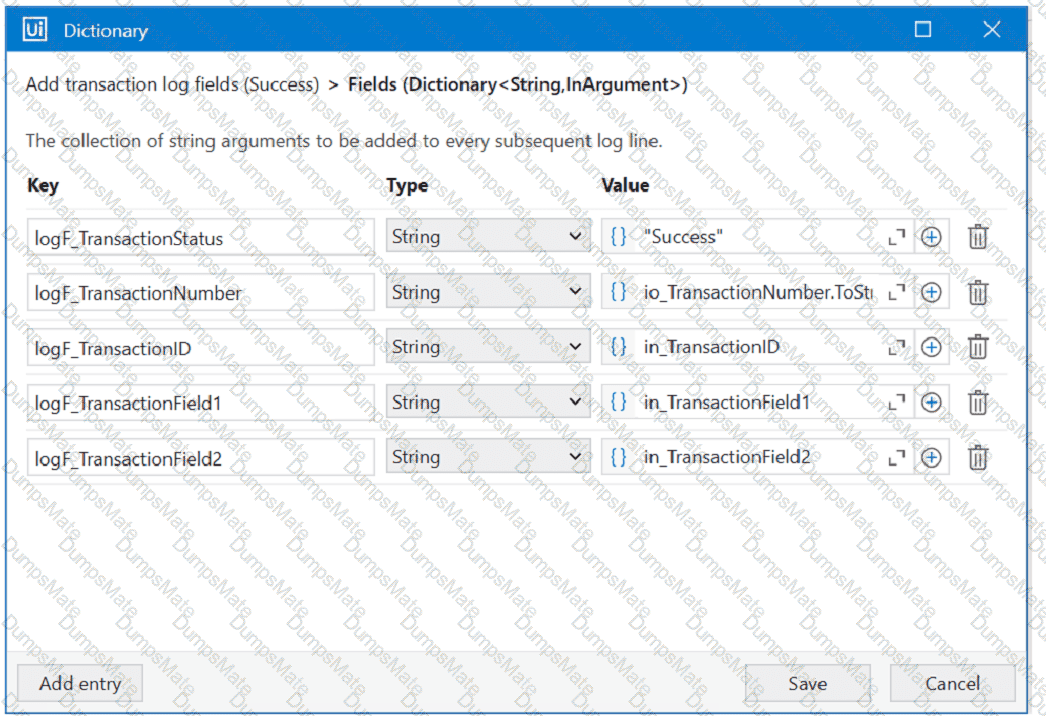

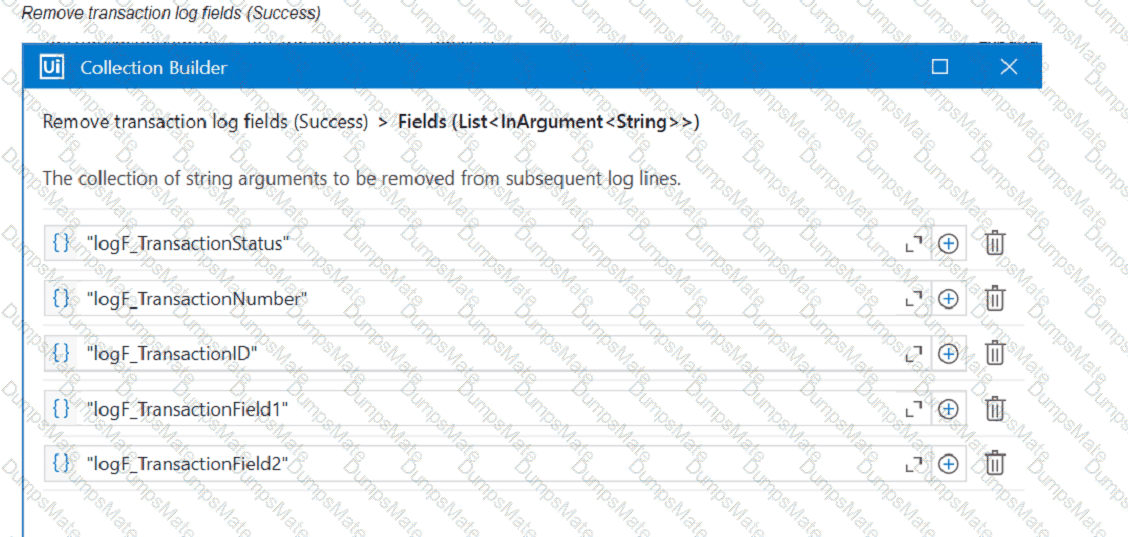

The Add Log Fields activity allows developers to create custom log fields that are added to the Robot Execution Logs. These custom log fields can be used to store and display additional information that is relevant to the automation process, such as transaction ID, invoice number, customer name, etc. The custom log fields can help to improve the traceability and analysis of the automation process, as well as to filter and group the logs based on specific criteria. (UiPath Automation Developer study guide)

References:

• Add Log Fields
• Logging and Log Levels

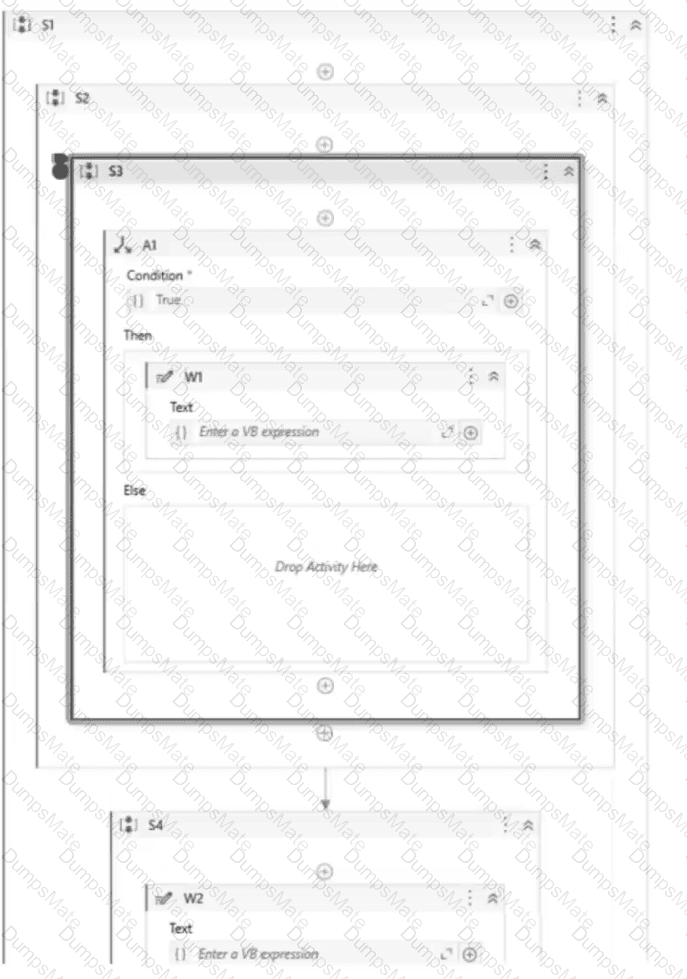

When a developer selects "Step Out" from the Debug section in UiPath Studio's ribbon interface while examining a suspended state upon reaching a breakpoint, the executor will be directed to the activity that called the current container (or the next activity in the higher scope). In the context of the provided sequence structure, stepping out from A1 (assuming that's where the breakpoint is) would go to the next higher scope, which is S2, as it is the sequence that contains A1. Therefore, the correct answer is D (S2 in the image).

References:

UiPath Studio Guide: Debugging Actions

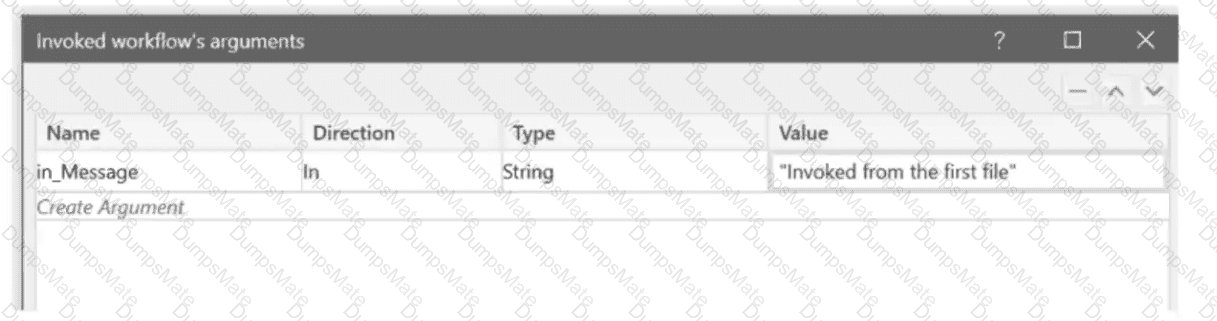

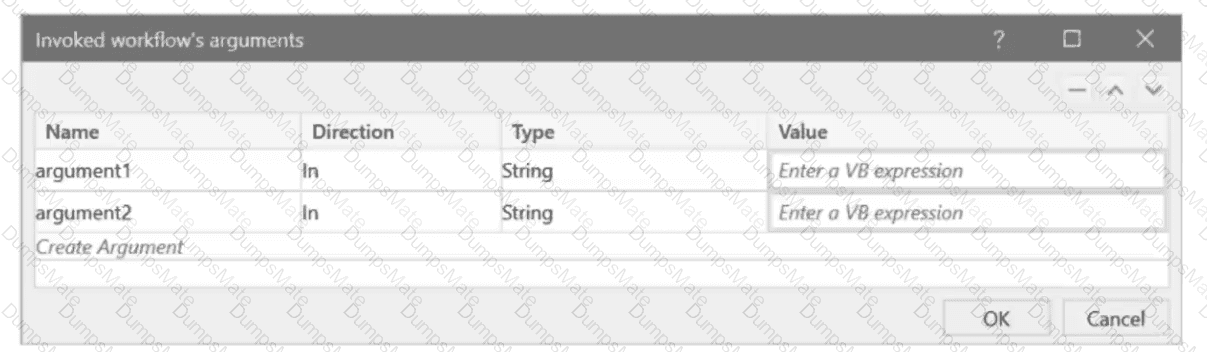

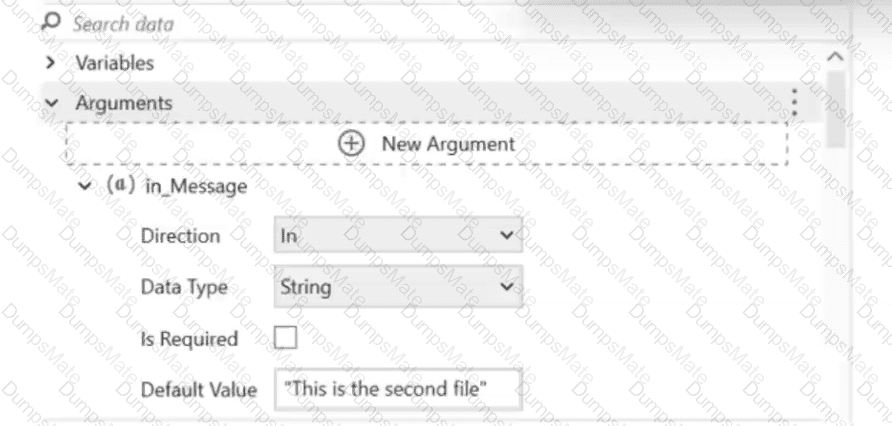

In the given scenario, the "SecondaryWorkflow.xaml" is invoked from "PrimaryWorkflow.xaml" with an argument "in_Message". The Import Arguments panel of the Invoke Workflow File activity in "PrimaryWorkflow.xaml" is showing that the value "Invoked from the first file" is passed to "SecondaryWorkflow.xaml". Since the "SecondaryWorkflow.xaml" has an argument "in_Message" with the default value "This is the second file", this default value is overridden by the value provided during the invoke action. Therefore, when the Log Message activity in "SecondaryWorkflow.xaml" is executed, it will log "Invoked from the first file", making option B correct.

References:

UiPath Studio Guide: Invoking a Workflow

The "Parallel" activity in UiPath is used to run multiple sequences or activities simultaneously, i.e., asynchronously. This activity can host multiple branches, each with a sequence of activities that can run in parallel with others. It is suitable for scenarios where tasks can be performed at the same time without depending on the completion of others. Hence, the correct answer is A.

References:

UiPath Activities Guide: Parallel Activity
