Why Secure One End of the PCIe Tray First?

TheSupermicro MI300X chassis is designed for modular tray installation, meaningsecuring one end firstensures:

Proper alignment of PCIe slots and connectors

Stable mountingto prevent unwanted movement

Prevention of unnecessary strain on installed expansion cards

What Happens If Both Ends Are Handled at the Same Time?

ThePCIe tray may shift out of alignment, making it difficult to properly install other components.

Misalignment can cause:

PCIe devices to not seat properly

Power or data cables to be obstructed

Increased risk of mechanical damage during reinstallation

Step-by-Step Correct Installation Process:

✅Step 1:Align the PCIe tray with its designated mounting slots.✅Step 2:Secure screws onone end firstto hold the tray in place.✅Step 3:Adjust the other end and ensureproper seatingbefore fully tightening all screws.✅Step 4:Reconnect all PCIe cables and verify system connectivity.

Why Other Options Are Incorrect?

B (Cables getting in the way)→ While cable management is important, the main issue istray movement, not cable obstruction.

C (Tray will not function)→ The tray will functiononce properly seated, butincorrect installation can lead to PCIe misalignment.

D (Tray will break)→ The tray is designed for durability; it will not break unlessexcessive force is applied.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Service Guideconfirms thattrays must be secured at one end first to ensure proper alignment.

Importance of Proper Alignment in Motherboard Tray Installation

Themotherboard tray in Supermicro MI300X systemsisprecisely designedto fit intopre-existing grooves in the chassis.

Ensures a Secure Fit

If the motherboard tray isnot aligned with the grooves, itmay not seat correctly, causing structural instability.

Prevents Cable Routing Issues

Improper alignmentcan interfere with airflow and cable routing, leading to cooling inefficiencies.

Guarantees Proper PCIe and Power Connections

Misalignmentcan cause PCIe slots and power connectors to be slightly off-position, leading tofailed component detection.

Proper Installation Steps for the Motherboard Tray:

✅Step 1:Slide the motherboard tray into thechassis groovesfor proper alignment.✅Step 2:Ensure it isflush with the chassisbefore securing screws.✅Step 3:Tighten screws evenly to prevent misalignment.

Why is False Incorrect?

IfFalse were correct, it would imply that the motherboard tray can be installedwithout aligning it properly, which isnot possiblein Supermicro MI300X systems.

The systemwill not function properlyif the motherboard tray is misaligned.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Service Manualconfirms that themotherboard tray must be aligned with the grooves before securing it with screws.

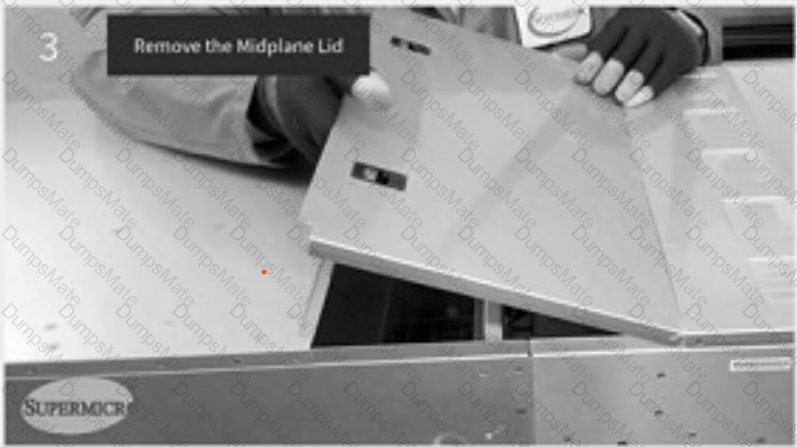

Themidplane lid removal processis designed to betool-freeand follows aspecific sequence to avoid damage.

Thecorrect methodis:

Push in on the two handleslocated near thePCIe tray.

Slowly lift the midplane lid up, ensuring it does not catch on other components.

Remove the lid at an angleto avoid damaging adjacent connectors.

Why this method is used?

Theangled removalhelpsavoid contact with fragile connectorson the midplane.

Forcing the lid straight upcould damage PCIe slots or motherboard connectors.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Disassembly Manualdetails thecorrect method for removing the midplane lid.

When reinstalling trays (GPU, motherboard, or PCIe) inSupermicro MI300X GPU systems, it iscrucial to secure one end firstbefore working on the opposite end.

Why is this necessary?

To prevent tray misalignment

Trays in Supermicro systemshave specific guide rails and screwsthat must bealigned correctly before full installation.

If both ends are handled simultaneously,one end may shift, causingmounting misalignment.

Avoiding unwanted movement

If you install a tray at both ends without securing one first,it can get pushed out, leading to incorrect seating.

This can causepoor PCIe connectivity, power delivery issues, or misaligned airflow paths.

Ensuring cables are properly routed

If a tray is not secured properly,cables may shift during installation, increasing the risk of pinched or damaged cables.

Why other options are incorrect?

B (Cables getting in the way)→ While cable management is important, the key issue istray movement, not cables.

C (Tray will not function)→ The traywill function once properly seated, but incorrect installation cancause connectivity issues.

D (Tray will break)→ The tray is designed for durability;it will not break unless excessive force is applied.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Service Guideconfirms that traysmust be secured at one end before installing the opposite end to ensure proper alignment.

ForSupermicro MI300X GPU systems,removing the power supply unit (PSU) improperlycan lead to serious issues.

Why the red lock exists?

Thered locking mechanismensures that thePSU is properly securedin the system.

Before disengaging the PSU, thered lock must first be unlockedto avoid damage.

If you forcefully shift the release lever without unlocking the red lock:

B: The power supply unit will fail→ If the PSU is removed improperly, it can causeinternal damageto power connectors, resulting in PSUfailure or improper functioning.

C: You could permanently damage the lock on the power supply unit→ Thelocking mechanismis designed for smooth disengagement. Forcefully shifting the lever canbreak or warpthe lock, making itimpossible to secure the PSU back in place.

Incorrect Answers Explained:

A (All answers are correct)→ This is incorrect becausenot all answers are valid.

D (The PSU can no longer be secured into the tray)→ This happensonly if the lock is damaged, which is covered underoption C.

Supermicro’s official documentation clearly statesthatunlocking the red lock firstis a critical step before removing or replacing the PSU.

Why Must the Motherboard Tray Be Removed First?

TheNVMe backplane in Supermicro MI300X systemsis installedbehind the motherboard tray. This means themotherboard tray acts as a barrier, andit must be removed before gaining access to the NVMe backplane.

Step-by-Step Removal Process:

Power Down and Disconnect Power Supply Units (PSUs)

Turn off the system anddisconnect all power cablesto avoid electrical damage.

Remove PCIe Expansion Cards(if applicable)

Some systems have PCIe devicesmounted over the NVMe backplane, which must be removed first.

Disengage the Motherboard Tray

The motherboard tray must be unscrewed and carefully lifted outbefore accessing the NVMe backplane.

Now, Remove the NVMe Backplane

Once the motherboard tray is out, theNVMe backplane is fully exposed, allowing it to be removed.

Why Other Options Are Incorrect?

A (GPU Tray)→ The GPU tray isnot blocking direct accessto the NVMe backplane.

C (Power Supply Unit)→ The PSU isnot directly obstructingthe NVMe backplane, although it should be powered down.

D (PCIe Expansion Cards)→ These may need to be removedif installed over the NVMe backplane, but themotherboard tray is the primary component that blocks direct access.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Installation Guideexplicitly states thatthe motherboard tray must be removed before handling the NVMe backplane.

Why Must the Support Bar Be Removed First?

Thesupport baris areinforcement structureinside the chassis that providesmechanical stabilityto components, including theAOM bracket.

Since the AOM bracket is partially covered by the support bar, you mustremove the bar firstto gain full access.

Step-by-Step Removal Process:

✅Step 1:Remove the screws securing the support bar.✅Step 2:Carefully lift and remove the support bar without tilting it.✅Step 3:Now, unscrew and remove the AOM bracket.

Why is False Incorrect?

IfFalse were correct, it would suggest that the AOM bracket can be removedwithout touching the support bar, which isnot possibledue to obstruction.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Disassembly Manualconfirms that thesupport bar must be removed first before accessing the AOM bracket.

To remove theheatsink from the motherboard tray,a T30 Torx bit is required. This tool ensuresproper torque applicationandprevents damageto both the heatsink and the motherboard.

Why a T30 Torx bit is necessary?

Supermicro MI300X GPU systems use precision heatsink retention mechanisms.

Theheatsink screws are secured with factory torque settingsand require aT30 Torx bitfor safe removal.

Using an incorrect tool (Phillips screwdriver, T20, or T40) can strip the screw heads, making it difficult to remove the heatsink without causing damage.

Incorrect Answers Explained:

A (PH2 Phillips screwdriver)→ Not strong enough for heatsink screws, which requirehigh torquefor proper seating.

C (T20 Torx bit)→ Toosmall, risksstrippingthe screws.

D (T40 Torx bit)→ Toolarge, does not fit the heatsink screws.

Official Documentation Reference:

Supermicro MI300X Service Manualspecifies that aT30 Torx bitmust be used to remove the heatsinkwithout damaging the motherboard.

Thecorrect and safemethod to remove the backplane from the motherboard tray is to useboth hands, gently tilting thetop of the backplanetowards yourself while carefullylifting it up and outof the motherboard tray.

This ensures that:

No undue forceis applied to the connectors or PCB.

No components or cablesare unintentionally damaged.

Proper handling of static-sensitive componentsis maintained.

Removing the backplane improperly can result in:

Connector damageto the motherboard or backplane.

PCB warping, which could lead to future malfunctions.

Potential data center downtimedue to component failure.

According toSupermicro's official documentation, this method aligns withindustry best practicesandrecommended service proceduresforSupermicro MI300X GPU systems.
