OMG-OCUP2-FOUND100 OMG Certified UML Professional 2 (OCUP 2) - Foundation Level Questions and Answers

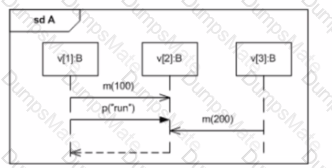

In UML sequence diagrams, a signal is typically represented as an asynchronous message without a return value. Asynchronous messages are often denoted with an open arrowhead, and they can represent the sending of a signal.

Looking at the diagram provided, 'p' is sent from 'v2[C]' to 'v3[B]' with an open arrowhead, which indicates that it is an asynchronous message. This fits the common representation of a signal, as it does not expect a response.

'A', 'B', and 'C' do not represent signals in the context of a sequence diagram: A) 'v' is not shown in the diagram; it might refer to a lifeline, which is not a signal. B) 'B' refers to a class or object type and not a message or signal. C) 'm' is represented as a synchronous message (as it has a return arrow), which is not typical for signals.

Therefore, the correct answer is:

D. p

Pseudostates in UML state machines serve a different purpose than regular states. They are used as markers or waypoints to facilitate complex state transitions. Key distinctions include:

• Transient Nature: Pseudostates do not represent persistent states of an object. They are not associated with entry/exit actions or internal activities like regular states. The state machine immediately transitions through a pseudostate.
• Run-to-Completion Restrictions: A run-to-completion step (the sequence of states and transitions activated by a single event) cannot end in a pseudostate.

Let's analyze why the other options are incorrect:

• Option A (A pseudostate must have an outgoing transition):While most pseudostates have outgoing transitions to guide the flow of the state machine, this is not a strict requirement. For example, the 'terminate' pseudostate signifies the end of a statemachine and thus has no outgoing transitions.
• Option B (An outgoing transition from a pseudostate must always terminate on a regular state):While true in many cases, outgoing transitions can also target other pseudostates for more intricate state machine designs.
• Option D (The outgoing transitions of a pseudostate must have triggers that consist exclusively of guard conditions):Pseudostate transitions can have a mix of triggers, including events, timeouts, and guard conditions.

References:

• UML Specification (Superstructure) Version 2.5.1: Specifically, sections covering statemachines (Chapter 14), pseudostates (Section 14.2.3.8), and run-to-completion steps (Section 14.2.3.13). You can find it on the OMG website: https://www.omg.org/spec/UML/2.5.1

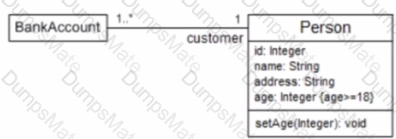

In UML 2, a class diagram is used to depict the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among the classes. The constraint{age >= 18}in thePersonclass diagram indicates a condition that must hold true for the instances of thePersonclass whenever they are used in the context of aBankAccount. This constraint is an invariant of thePersonclass that specifies the rule for the attributeage.

Now, let's consider the provided options and explain why option B is correct:

A. The preferred age to open a bank account is 18 years old or older – This statement is incorrect because the diagram does not indicate a preference; it indicates a constraint or a rule.

B. Only customers who are 18 years old or older can open a bank account – This is the correct statement. The{age >= 18}constraint next to theageattribute of thePersonclass signifies that any instance ofPersonassociated with aBankAccountmust be at least 18 years old. SincePersonis connected toBankAccountwith the role namecustomer, this implies that only persons who are at least 18 can be customers of a bank account.

C. The age condition should only hold when the setAge(Integer) function is called – This statement is incorrect because the constraint{age >= 18}is not a condition that applies only when thesetAgeoperation is invoked. Instead, it is a class invariant that must always hold true for any instance ofPerson.

D. An object of Customer with age set to 18 or greater will raise an exception – This is incorrect because the UML diagram specifies a constraint, not an exception condition. The constraint ensures validity, not the raising of an exception.

The answer is verified according to the UML 2 Foundation documents, such as the UML 2.5 specification, where class diagrams and constraints are defined. The specification states that constraints are semantic conditions or restrictions expressed in natural language text or in a machine-readable language that must hold true for the system being modeled (UML 2.5 specification, section 7.9).

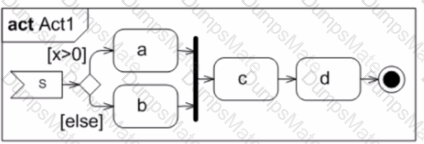

The provided image depicts a block diagram with a signal, decisions, and actions. Here's a breakdown of the elements and why answer choice A is the most accurate:

• Signal: Represented by a vertical arrow labeled "Signal", indicating an external stimulus that triggers the process.
• Decision Diamond labeled "x>0": This diamond represents a decision point based on the condition "x greater than 0". The flow splits into two paths based on whether the condition is True (Yes) or False (No).
• Paths from the Decision:
• Action c: This action is positioned below the decision diamond.

Analysis of Action c's Execution:

• Upon receiving a Signal, the decision point is evaluated.
• Depending on the value of x:
• In either case (True or False), after the corresponding action (a or b) finishes, action "c" is then executed once.

Other Answer Choices Analysis:

• B. Two or more Signals must be received... The diagram suggests execution upon receiving one Signal.
• C. Action c will get executed twice... The diagram indicates c executes only once after either a or b.
• D. Nothing can be said... The diagram conveys a clear sequence of actions based on the signal and the decision.

• Represent the movement of data or objects between activities.
• Can support multicast, meaning sending a single token to multiple recipients.
• Can support transformation, where input tokens are altered or transformed into different output tokens.

Control Flows

• Represent the sequence of execution between activities.
• Generally carry control tokens to indicate when the next activity can begin.

Explanation for why Answer B is Correct

• Multicast and Transformation: Object flows are specifically designed to handle more complex scenarios with multiple inputs, outputs, and the ability to transform data. Control Flows are focused on the order of execution and don't directly support these capabilities.

Analysis of Other Options:

• A. Both object flows and control flows can pass... : While both can carry tokens, the specializations of multicast and transformation are unique to object flows.
• C. Only control flows provide additional support... : This is incorrect. As mentioned above, these features are associated with object flows, not control flows.
• D. Only object flows may reorder... : This is potentially true, but less central to the main difference between object flows and control flows, which is the ability of object flows to support multicast and transformation.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Object Flow, and Control Flow https://www.omg.org/spec/UML/2.5.1/

A key characteristic that should apply to any useful model, including those created with UML, is that it abstracts away irrelevant details. This abstraction is crucial for managing complexity by focusing on the essential aspects of the system that are relevant to the current perspective or analysis task. By removing unnecessary information, the model remains understandable and manageable, even as the underlying system grows in complexity. This principle helps maintain a clear and concise representation of the system, enabling stakeholders to focus on strategic decisions without being overwhelmed by details.

In UML 2, a structured class can have internal parts, which are depicted using 'parts' or 'roles' within the class diagram. These internal parts are used to show the composition of the class in terms of contained classes or components. In the context of the question, the structured class named 'System' contains two parts named 'Subsystem1' and 'Subsystem2'.

Option C is the equivalent definition of 'System' in terms of UML 2 notation for several reasons:

• It represents the structured class 'System' with internal parts correctly labeled as 's1:Subsystem1' and 's2:Subsystem2-[ ]', which indicates the role names 's1' and 's2' followed by the class type 'Subsystem1' and 'Subsystem2' respectively. The notation '1..*' after 's2:Subsystem2-[ ]' suggests a multiplicity, meaning that there can be one or many instances of 'Subsystem2' associated with 'System'.
• The compartmentalization within the structured class is indicative of the composition of the 'System', showing that 'Subsystem1' and 'Subsystem2' are integral parts of the 'System'.
• The notation conforms to the standard UML 2 representation for composite structures, as described in the UML 2 Superstructure Specification, where a class can be broken down into its constituent parts within the class rectangle.

This information is verified against the UML 2 Superstructure Specification, which is the authoritative source for UML notation and semantics. Particularly, this aligns with section 9.3.5 on Composite Structures Diagrams, which details the graphical notation for parts and roles within a structured class.

A valuable model in UML and systems design is characterized by its usefulness rather than its complexity or how "correct" it is in an engineering sense. A model's primary objective is to effectively communicate the key aspects of a system or process, and simplicity often enhances this communication by making the model easier to understand and use. The value of a model thus comes from its ability to facilitate decision-making, problem-solving, and understanding among stakeholders. This perspective aligns with the principle of Occam's Razor in modeling, which suggests that simpler solutions are preferable when all other factors are equal. In UML, a model that provides clear insights with minimal complexity is considered more valuable because it is accessible to a wider audience and can be more readily applied to solve real-world problems.

In UML, visibility of an attribute is determined by the scope of the classifier it belongs to and its visibility markers. The attribute 'v' is marked with a '-' sign, indicating it is private. Being private, it would normally be visible only within the class it is defined in, which is 'S' in this case. However, since 'T' is a subclass of 'S' (as indicated by the generalization relationship, a line with a closed, unfilled arrowhead), it inherits the attribute 'v'. Therefore, 'v' is visible in both 'S' and 'T'.

Option A is incorrect because it does not consider inheritance. Option B is incorrect for the same reason. Option D is incorrect because a private attribute in a class is not visible to the entire package, only to the class itself and its subclasses.

The UML 2.5 specification states that a private member is only accessible within the namespace it is defined (section 7.5.3). Since 'T' is within the namespace of 'S' due to inheritance, 'v' is visible in both.

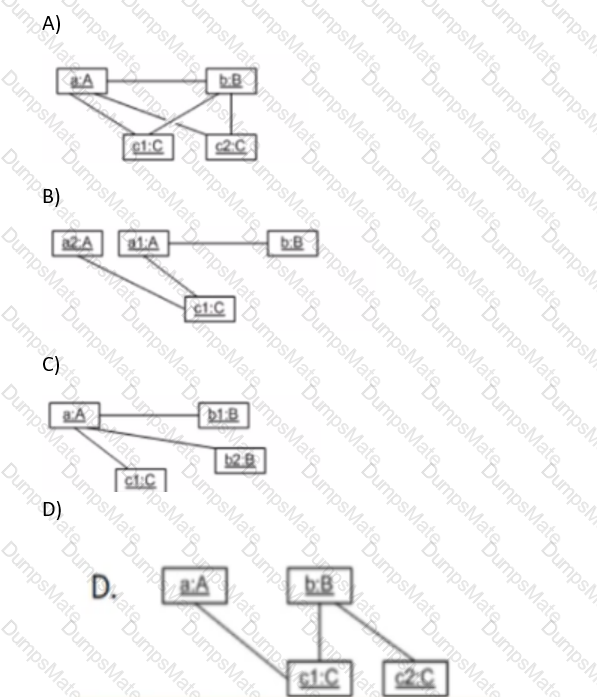

The question asks to identify which object diagram corresponds to the provided class diagram. In order to verify which object diagram is correct, we must look at the class diagram to understand the relationships and multiplicities between the classes, and then match these with the objects and links in the object diagrams.

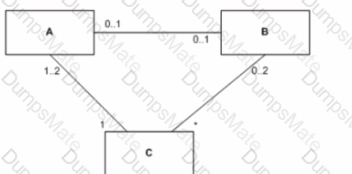

The class diagram (not visible in your query but implied to be the reference for the object diagrams provided) must contain three classes, A, B, and C, with specific multiplicity relationships among them. Here’s how we deduce the correct object diagram:

• Multiplicity between A and C is "1..2", which means that for each instance of A there must be one or two links to instances of C.
• Multiplicity between B and C is "0..2", which means that for each instance of B there are zero, one, or two links to instances of C.
• Multiplicity between A and B is "0..1", which indicates that for each instance of A there can be zero or one link to an instance of B.

With these rules, we analyze the object diagrams:

• Option Ahas one instance of A linked to two instances of C, which is correct according to the "1..2" multiplicity. However, there are two instances of B (b1 and b2) each linked to a single instance of C (c1), which violates the "0..2" multiplicity rule because it implies there should be two links from c1 to the B instances (b1 and b2) but instead, there are two separate links to the same instance of C (c1), which is not allowed.
• Option Bhas similar issues where two instances of A (a2 and a1) are linked to a single instance of C, which violates the "1..2" multiplicity rule.
• Option Cshows each instance of A and B linked to their own separate instances of C. This violates the "1..2" multiplicity between A and C since there is only one link from A to C and does not show the possibility of two links which the multiplicity "1..2" would allow.
• Option Dshows a single instance of A linked to two instances of C (c1 and c2), which satisfies the "1..2" multiplicity. Additionally, there is a single instance of B linked to one of the instances of C (c1), satisfying the "0..2" multiplicity. The A instance has no direct link to the B instance, which is allowed because the "0..1" multiplicity permits zero links between instances of A and B.

Based on this analysis, the only object diagram that satisfies all the multiplicity constraints of the class diagram isOption D.

The verification of the answer can be cross-checked with the UML 2 Foundation documentation, specifically in the section dealing with object diagrams and their correlation with class diagrams, which will confirm that object diagrams represent instances of classes and must comply with the multiplicities defined in the class diagram they are derived from. Multiplicity notation and interpretation are fundamental concepts in UML and are well documented in the UML specification by the Object Management Group (OMG).

In UML, basic types like byte, short, and long are represented as DataType elements. These are typically used to specify the types of attributes, parameters, or return values of operations in a model. Option A shows three separate classes named Byte, Short, and Long, which would represent these as distinct data types within the UML model.

Option B incorrectly uses stereotypes on objects, which is not the correct UML representation for data types. Option C shows a class with attributes of different types, but it does not define these types as basic types. Option D is incorrect because it uses stereotypes on DataType elements, which is not the standard way to represent basic types in UML.

According to the UML 2.5 specification, DataTypes are a kind of classifier that specifies a domain of values without identity (section 10.5.8). DataTypes are not classes; they do not have operations and cannot have instances that maintain an identity.

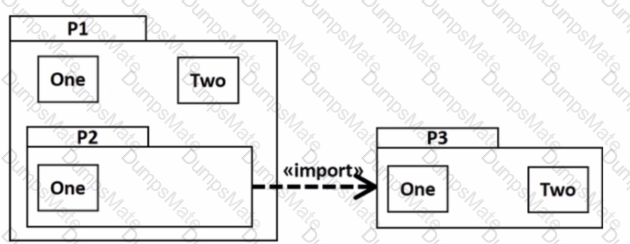

In UML, the<<import>>relationship indicates that the namespace of the target element (in this case,P3) is added to the namespace of the source (in this case,P2). However, it's important to distinguish between different types of imports. There are two types of import relationships:

• Public Import: IfP2were to importP3publicly (using<>), then all public members ofP3would become accessible toP2as if they were part ofP2.
• Private Import: IfP2were to importP3privately (using<>), then the public members ofP3are only accessible withinP2and not to elements that useP2.

Given the diagram, it seems thatP2is importingP3(the nature of the import, public or private, is not explicitly mentioned). Assuming it is a public import and considering thatP2itself is withinP1, which is the higher-level package, thenP1has visibility over its own contents as well as any elements imported intoP2.

ElementOneinP3has the same name asOneinP1, and typically in UML, when an element is imported into a namespace where an element with the same name exists, the imported element is not accessible without a qualified name to avoid ambiguity. However, sinceP2is withinP1, it could be argued thatOneinP3, when imported, would effectively "merge" withOneinP1, thereby makingOnevisible insideP2without a qualified name due to its presence in the higher-level packageP1.

Therefore, the correct answer is:

B. One

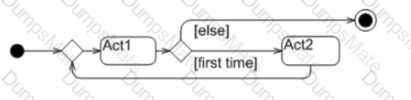

The correct answer is Option B. This diagram accurately depicts the scenario where activity Act1 is carried out first, followed by activity Act2, and then Act1 is performed again.

Here's why the other options are incorrect:

• Option A: This diagram shows Act1 followed by Act2, but Act1 is not repeated.
• Option C: Similar to Option A, this diagram depicts Act1 followed by Act2, without a repetition of Act1.
• Option D: This diagram has conditional branches, which is not part of the given scenario where the activities are carried out sequentially.

Following the logic from the prompt: Act1 -> Act2 -> Act1, Option B visually represents this sequence with arrows connecting the activities in the specified order.

In UML, an initial node is the starting point of an activity thread and represents the start of the flow in an activity diagram. According to the UML 2.5.1 specification, an initial node has no incoming edges and precisely one outgoing edge1. This means that onlyone activity can feed an initial node at the beginning of an activity thread, which aligns with option C.

The initial node is depicted as a filled circle and is used to show where the control starts within the activity. When the activity is invoked, control tokens are placed on the initial node and can then traverse the outgoing edge to the first action or activity node. The specification clearly states that there should be only one outgoing edge, ensuring that the flow of control is unambiguous at the start of the activity.

For further details and verification, you can refer to the UML 2.5.1 specification, particularly Chapter 15.7, which covers the Activity, ActivityFinalNode, InitialNode, and other related elements2. Additionally, the Object Management Group (OMG) provides resources and guidelines for the UML exams, including the types of questions that may appear and the knowledge areas covered3.

It’s important to note that while multiple initial nodes can exist within a single activity diagram, each initial node can only be the source of one outgoing edge, and thus, only one activity can feed each initial node.

In UML 2, the dashed arrow with an open arrowhead represents a dependency relationship. In the context of class diagrams, a dependency relationship indicates that changes to one class (the independent class) may cause changes in the other class (the dependent class). The direction of the arrow specifies which class is dependent on which. In the given diagram, the arrow points from class A to class B, which means that class A is dependent on class B. This could manifest as class A using some services or functions of class B, for example.

References:

• UML 2.5 Specification Document: The official document by the Object Management Group (OMG), which defines the syntax and semantics of UML.
• UML Distilled: A Brief Guide to the Standard Object Modeling Language, Third Edition by Martin Fowler: This book provides a clear guide to UML and includes examples of dependency relationships.

In UML modeling, a constraint is defined as:

A. a condition that must be satisfied when it is evaluated

A constraint is a semantic condition or restriction expressed in natural language text or a machine-readable language for expressing constraints, such as OCL (Object ConstraintLanguage). Constraints specify invariants that must hold for the system being modeled at all times. This means that whenever the constraint is evaluated, the condition it expresses must be satisfied (UML 2.5 specification, section 7.9).

The other options do not accurately define what a constraint is in the context of UML:

B. A condition that should be met depending on system operation – This is not precise as constraints are not optional and do not depend on system operation; they are always applicable.

C. A condition that causes the state of the objects to change over time – This describes a side effect, which is not the purpose of a constraint. A constraint is a condition that must always be met, not something that induces change.

D. A condition that constrains what can or cannot be put in a class diagram – This is too broad and imprecise. Constraints apply to elements within the class diagram and are not about the content of the diagram itself.

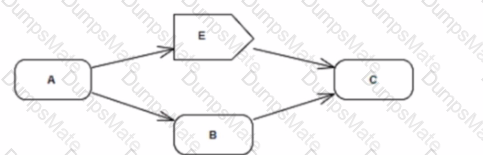

• The execution starts from activity A (as there's no incoming transition).
• From A, there's only one outgoing transition leading to activity E.
• Following the transition from E, the flow reaches activity C.
• There are no further outgoing transitions from C, signifying the end of the valid trace.

Explanation of Why Other Options are Incorrect:

• A. E waits for an Event: The diagram doesn't show an explicit wait event associated with activity E. While an event might trigger the initial start of the activity A, the provided trace (A, E, C) focuses on the control flow between the activities themselves.
• B. E is always executed faster than B: There's no basis to establish a timing relationship between E and B based solely on the structure of the diagram. The order of execution is A, E, C, but their relative speeds cannot be determined from this information.
• D. C waits for tokens on both incoming edges: Activity C has two incoming transitions, but the concept of waiting for tokens on both edges simultaneously doesn't apply here. Since the flow reaches C from activity E, only the transition from E provides the token needed to enable C's execution.

Trace vs. Path

It's important to distinguish between trace and path in an activity diagram:

• Trace: A specific sequence of activity executions along a feasible path.
• Path: A possible route through the activity diagram, which may or may not be a valid trace depending on the presence of decisions or loops.

In this case, the answer focuses on the valid trace A, E, C, which represents a confirmed sequence of activity executions based on the transitions in the diagram.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams https://www.omg.org/spec/UML/2.4/Superstructure/PDF

UML 2 Foundation concepts for activity diagrams, there are three valid action notations shown. Here's a breakdown of the elements and why answer D is the most accurate:

• The diagram displays an activity diagram with a main flow and a fork followed by a join.
• Main Flow: This starts with an action labeled "Fill Order".
• Fork: The path splits into two branches after "Fill Order".
• Branch 1: This branch leads to an action labeled "Print Paycheck".
• Branch 2: This branch leads to an action labeled "Send Invoice".
• Join: The two branches converge into a join element.
• Following the Join: An action labeled "End" is present after the join.

Explanation for Valid Actions:

• Fill Order: This clearly represents an action within the activity diagram.
• Print Paycheck: This is another valid action on a separate branch.
• Send Invoice: Similarly, this is an action on the other branch.

Explanation for Why Other Options are Incorrect:

• A. 0: There are clearly multiple actions depicted in the diagram.
• B. 1: There are more than one valid action shown.
• C. 2: While there are actions before the fork, there's also a valid action ("End") after the join.
• E. 4: Counting the join element as an action results in an overcount. Joins represent control flow elements to synchronize multiple paths, not actions themselves.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Actions https://www.omg.org/spec/UML/2.5.1/

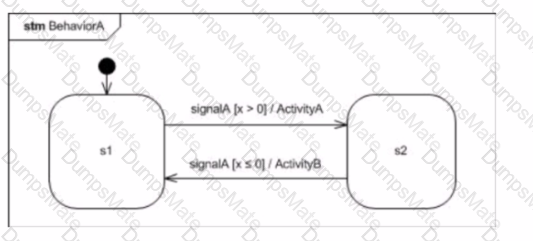

The image showcases a state machine named "BehaviorA". It consists of two states: s1 and s2. There's also a transition labeled "signalA" connecting these states. However, a guard condition, "[x > 0]" is placed on the transition. This indicates that the signalA event will only trigger the transition if the expressionx > 0evaluates to true.

In the scenario you described, the state machine is currently in state s1, and the value of x is 0. Since the guard condition "[x > 0]" is not satisfied (because x is 0), the signalA event will not trigger a transition to state s2.

Here's a breakdown of why other options are incorrect:

• Option A (The state machine will transition to state s2 and execute ActivityA during the transition) is not valid because the guard condition prevents the transition.
• Option B (The state machine will execute ActivityA and remain in state s1) is incorrect as ActivityA is only associated with the transition, which isn't happening in this case.
• Option D (The state machine will remain in state s1, and processing of the signalA event occurrence will be deferred until either the value of x changes or the state machine changes state) is not entirely accurate. While the state machine remains in s1, the processing of the signalA event is consumed immediately, not deferred.

Therefore, considering the state machine's visual representation and the guard condition, option C best describes the state machine's behavior. The signalA event is acknowledged but has no effect because the transition requirements aren't met.

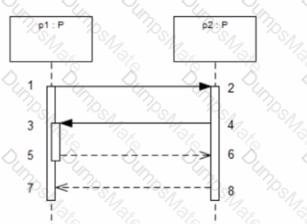

In UML sequence diagrams, an execution specification is represented by a thin rectangle along a lifeline. It shows where in time the execution takes place, starting with the initiation of an operation or process and ending when that process is complete.

In the interaction diagram provided, we can see an execution specification on the lifelinep1: Pthat starts after the message corresponding to point 3 is received and ends just before the message corresponding to point 5 is sent. This means the execution specification is bracketed by points 3 and 5.

Points 1 and 2 represent message sends, 1 and 4 could represent a message send and receive for the same message, which doesn't typically represent the full execution specification. Points 2 and 3 don't represent a logical start and end of an execution specification because they're on different lifelines.

Therefore, the correct answer is:

D. 3, 5

In UML, the aggregation kind 'composite' is one of the two types of aggregation, shared and composite. Composite aggregation, also known as composition, implies that the composed objects do not have a separate lifecycle from the owner object and are parts of the whole. This is in contrast to shared aggregation (aggregation), where the parts can be shared with different owners and have their own lifecycle.

Let's look at the options:

A. Composite aggregation implies ownership and is related to, but not equivalent to namespace containment. Namespace containment is more about the scope for named elements rather than lifecycle management.

B. While it's true that instances of the composed object's type are often associated only with the composite object, the key aspect of composite aggregation is not just the exclusive context but the lifecycle dependency, which is not captured in this option.

C. This option is correct because, in UML, composite aggregation (composition) implies that the parts are existentially dependent on the whole. When the composite (whole) object is destroyed, so are all of its parts, indicating a strong lifecycle dependency between the composite object and its composed parts.

D. This option describes a relationship more akin to set theory than UML composition. In UML, composite aggregation doesn't deal with subsets and unions in the context of set theory.

Thus, the most accurate answer, according to the UML specification regarding composite aggregation, isC: When the Property's composite object ceases to exist, all of its composed objects also cease to exist.

To represent an instance of a class in a UML Object Diagram, the standard notation is to specify the instance name followed by a colon and the class name, and then list the attribute values within the compartment.

The class definition forCompanyspecifies that there is one attribute,name, of typeString.

An instance ofCompanywhere thenameattribute has the value "OMG" would be shown as follows:

InstanceName :ClassNameattributeName=attributeValue

In the provided options, Option D correctly represents an instance of theCompanyclass with thenameattribute set to "OMG". The name of the instance is not specified, which is allowed in UML when the instance name is not important or is understood from the context.

Thus, the correct answer is:

D. Option D

For projects involving complex and strategic systems, a key advantage of developing models before starting implementation is that models help to establish a consensus among all the project stakeholders. Creating UML models in the early stages of a project provides a visual and conceptual representation of the system that can be easily understood by various stakeholders, including developers, managers, and clients. This facilitates discussions and negotiations about the system’s design and functionality, helping to ensure that all parties have a shared understanding and agreement on the project’s objectives and solutions before significant resources are invested in implementation.
