OMG-OCUP2-ADV300 OMG Certified UML Professional 2 (OCUP 2) - Advanced Level Questions and Answers

A stereotype in UML is a powerful extension mechanism that allows developers to tailor UML models for particular domains or platforms. Stereotypes can adapt UML model elements by adding constraints, changing notation, and adding attributes and operations. However, they cannot remove existing constraints from a model element12.

• Notation Change (A): Stereotypes can indeed change the notation of a model element to make it more expressive or domain-specific. For example, a stereotype could be used to visually distinguish between different kinds of classes in a class diagram1.
• Adding Constraints (B): Stereotypes can add new constraints to a model element to specify additional rules or requirements that are not defined by the standard UML1.
• Removing Constraints ©: This is not a capability of stereotypes. Constraints define rules that must be followed, and once they are part of a model element, they cannot be removed by a stereotype. Instead, they are an intrinsic part of the model’s definition1.
• Adding Attributes and Operations (D): Stereotypes can be used to add attributes and operations to a model element, which allows for the specification of additional properties or behaviors that are not part of the standard UML metamodel1.

In summary, while stereotypes are versatile and can extend the capabilities of UML model elements in various ways, they do not have the ability to remove constraints that are already applied to those elements. This is because constraints are consideredfundamental rules that govern the integrity of the model, and removing them would potentially violate the model’s correctness or completeness1.

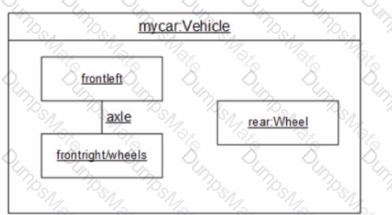

In the diagram, "mycarVehicle" represents a class that likely encapsulates the concept of a vehicle within the system being modeled. The elements within "mycarVehicle" are properties that represent different parts of the car. The term "wheels" is not explicitly shown in the diagram, but based on UML conventions and the context provided, it would be a property of the Vehicle class. This property would likely be associated with the "frontleft" and "frontrightwheels" parts of the car. In UML, properties represent structural features of a class that hold data values or references to other objects. The correctness of this answer is consistent with the principles found in the UML 2.x Superstructure Specification regarding the structural features of classes.

Protocol Conformance in UML is a relationship between protocol state machines that ensures consistency in behavior inheritance:

• A.Incorrect as it describes a general-to-inherited relationship, which is not the focus of protocol conformance.
• B.Incorrect, as it describes a relationship the wrong way around (general to nested).
• C.Correct. Protocol Conformance ensures that a specific Protocol State Machine conforms to the rules and constraints specified by a redefined, more general Protocol State Machine.
• D.Incorrect, because it generally describes conformance but does not specifically focus on the relationship between specific and general state machines in the context of protocols.

References:

• UML Specification: Protocol State Machines section.
• Specifics of protocol conformance are detailed under state machine and classifier behaviors in the UML 2.5 Documentation.

When extending a UML metaclass with a stereotype, it is critical to ensure that the metaclass and the stereotype are semantically related. This is because a stereotype is a way to extend the UML metamodel to create new kinds of model elements that can include additional semantics and constraints, but still adhere to the base behavior defined by the metaclass. The stereotype should be a meaningful specialization of the metaclass and not contradict its fundamental semantics. By keeping them semantically related, there is less need for additional constraints on the metamodel, and the resulting profile is more intuitive for users. This is consistent with the principles described in the UML 2 Specification, particularly in the sections on profiles and stereotypes.

The difference between ValueSpecificationAction and CreateObjectAction in UML is fundamental to the kinds of results they produce:

• A.Incorrect, as there is a fundamental difference between the outputs of these two actions.
• B.Correct. A ValueSpecificationAction evaluates to a value but does not produce instances of Classifiers, whereas a CreateObjectAction is specifically designed to instantiate classifiers.
• C.Incorrect, because it reverses the capabilities of the two actions.
• D.Also incorrect, because it provides the wrong association of features with actions.

References:

• UML Specification: Action section, where both ValueSpecificationAction and CreateObjectAction are defined.
• Further clarifications on these actions are provided in the UML 2.5 Documentation, especially in parts discussing Actions and Activities.

A coregion in a UML Sequence Diagram is a notation that:

• A.Incorrect, as interactions are behavioral units that can involve multiple lifelines and are not specific to a coregion.
• B.Incorrect, as combined fragments are constructs that control flow with interaction operands, not directly related to a coregion.
• C.Correct. A coregion is a shorthand notation for a parallel combined fragment on a single lifeline. It allows for the representation of parallel behavior within a single lifeline.
• D.Incorrect, as the area between lifelines for communication is not what defines a coregion.

References:

• UML Specification: Sequence Diagrams section, specifically about coregion and combined fragments.
• The concept and usage of coregions in sequence diagrams are further elaborated in the UML 2.5 Documentation, under the Sequence Diagrams section.

In UML, when an operation is marked with the term{guarded}, it means that the operation is subject to a concurrency constraint. It specifies that the operation cannot have overlapping executions; in other words, if the operation is already in execution, a new attempt to start it will have to wait until the current one completes. This prevents race conditions and ensures thread safety for that operation when dealing with concurrent accesses in multi-threaded environments. This interpretation is based on the UML 2.x Superstructure Specification, which describes how operations can be marked with constraints to define their behavioral features in terms of concurrency.

State Machine Events in UML are triggers for transitions and do not classify as objects or classifiers; thus they do not inherently have features:

• A.Incorrect, because State Machine Events are not treated as classifiers with features.
• B.Incorrect, though it hints at an extended use case, State Machine Events do not extend classifiers in standard UML usage.
• C.Correct, State Machine Events are not Classifiers and therefore cannot have features such as properties or operations.
• D.Incorrect, because UML State Machines certainly have an Event concept, but these Events are not classified as having features.

References:

• UML Specification: State Machine chapter, specifically sections discussing the nature of events and triggers.
• Further insights can be found in the event and trigger management sections of the UML 2.5 Documentation.

A MOF (Meta Object Facility) 2.x Model is not always a valid UML (Unified Modeling Language) 2.x Model. The MOF 2.x and UML 2.x serve different purposes and have different scopes of application. While UML is a general-purpose modeling language used to define software systems, MOF is a language for defining metamodels, which can include UML itself1.

The MOF 2.x specification provides the basis for metamodel definition in OMG’s (Object Management Group’s) family of modeling languages, which includes UML. However, it is based on a simplification of UML 2’s class modeling capabilities1. MOF is designed to be simpler, directly implementable, and provides a set of CORBA interfaces for manipulating meta objects2. In contrast, UML is used as a general-purpose modeling language with potentially many implementation targets2.

Therefore, a MOF 2.x Model can be a valid UML 2.x Model when certain limitations are observed, such as adhering to the simplified class modeling capabilities that MOF is based on. This means that while a MOF model can resemble a UML model in terms of visual representation, it is fundamentally a MOF model, and its validity as a UML model depends on the extent to which it conforms to the UML specifications

The value of Essential MOF (EMOF) lies in its ability to provide a straightforward framework for mapping MOF models to implementations such as XML Metadata Interchange (XMI) for simple metamodels2. This allows for easier integration and manipulation of MOF models in various platforms and tools.

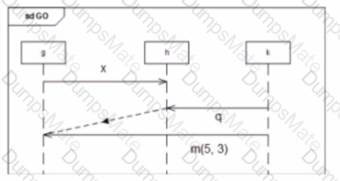

In the sequence diagram 'GO', the event 'h receives x' is depicted before 'k sends q', as indicated by the solid arrow from 'g' to 'h' labeled 'x' and the dashed arrow from 'k' labeled 'q'. Since messages are processed in the order they are depicted from top to bottom, 'h' must receive 'x' before 'k' can send 'q'.

The other options (B, C, and D) cannot be determined to be always true based on the information provided in the diagram alone. Especially with asynchronous messages, the send event may occur before the corresponding receive event, and the diagram does not contain sufficient information about timing constraints or message processing durations to ascertain the exact ordering of these events.

References include:

• UML 2.5 Specification (formal/2017-12-05), specifically the sections regarding message sends and receives, lifelines, and the semantics of sequence diagrams.
• Introduction to UML 2 Sequence Diagrams by Scott W. Ambler, which provides insights into the interpretation of sequence diagrams and the flow of messages.

The Profile mechanism in UML provides the capability to adapt existing metamodel elements for specific purposes. Profiles allow modelers to extend the standard UML metamodel with additional semantics by defining stereotypes, tagged values, and constraints that are specific to a particular domain, platform, or methodology. This means that profiles tailor the existing UML metamodel elements to create domain-specific models without changing the underlying metamodel itself. This adaptation mechanism is described in the UML 2.x Superstructure and Infrastructure Specifications, which detail how profiles can be used to customize the UML for particular domains or purposes.

During the lexical analysis of Action Language for Foundational UML (fUML) text, whitespace (such as spaces, tabs, and line breaks) is discarded. The lexical analysis focuses on identifying meaningful tokens (such as keywords, identifiers, and operators) while ignoring whitespace, which does not contribute to the semantics of the language2.

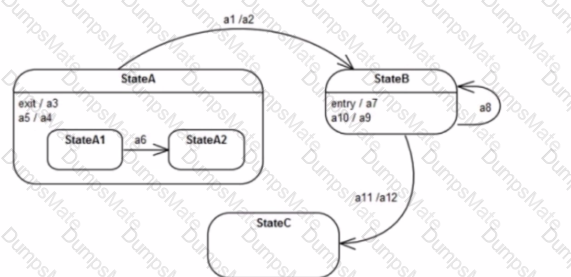

Assuming the system is inStateA1, the behaviors (or actions) executed when moving toStateCwould begin with any behaviors associated with internal transitions or exit actions withinStateA1. Transitiona6would be the trigger to go fromStateA1toStateA2, executinga4(the exit action ofStateA1) before the transition. Upon exitingStateAaltogether (a3is the exit action forStateA), the system would follow the transition labeleda1toStateB, executinga7as the entry action ofStateB. Then, the transition fromStateBtoStateCwould occur, likely with an internal trigger withinStateBor by completion, followed bya11to complete the transition intoStateC. The actions follow the flow of state transitions and the associated entry and exit actions as prescribed by UML state machine behavior specifications.

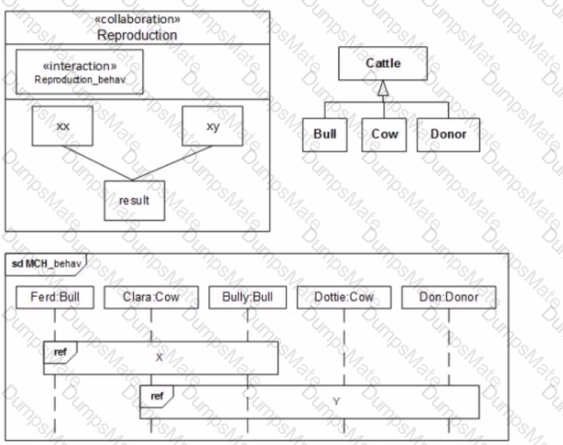

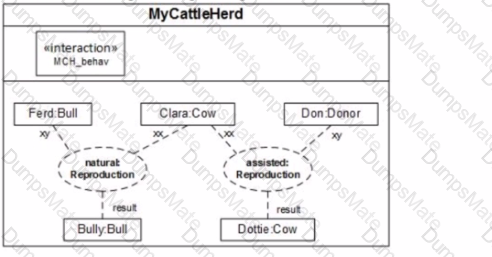

The question is about identifying the correct placeholders X and Y in a UML diagram fragment related to cattle reproduction behavior. The correct answer is option E, where X is “natural::Reproduction_behav” and Y is “assisted::Reproduction_behav”. In UML, the “::” notation is used to indicate a namespace or a package. In this context, it separates the types of reproduction behaviors (natural and assisted) from the behavior itself (Reproduction_behav). This naming convention aligns with UML naming standards for clarity and specificity.

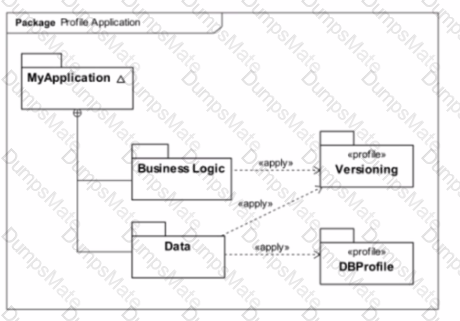

In UML, profiles are applied to specific model elements to adapt the UML metamodel to different domains or platforms. The provided diagram shows a UML package diagram within which the «Versioning» profile is applied to the "Business Logic" package, and the «DBProfile» is applied to the "Data" package. This is a correct use of profiles in UML as they allow the customization of parts of a model by applying additional constraints and stereotypes to specific packages or classes. There is no restriction in UML that a profile cannot be applied to multiple packages in the model simultaneously, and profiles do not necessarily need to be members of the namespace of the model they are applied to; they can be defined externally. Therefore, the scenario presented is a correct application of two different profiles to two distinct packages within the same model, conforming to the UML 2.x Superstructure Specification.

In UML, ValueSpecifications are used to specify the value of an element. The UML 2 Specification does not define a metaclass named StringExpression. Instead, it provides a metaclass named OpaqueExpression, which can be used when an expression is written in a language that is not directly interpretable by the model. Since there is no metaclass called StringExpression in the UML 2 Specification, there is no explicitly intended use for it within the UML metamodel. The absence of this metaclass suggests that any use of a concept called "StringExpression" would not conform to standard UML 2 practices and would likely be part of an extension or profile, not the core UML metamodel.

The compiled model resulting from the Action Language for Foundational UML (fUML) must have the equivalent effect as a model resulting from the mapping to fUML. In other words, the compiled model should behave in the same way as if it were directly executed using the fUML execution semantics

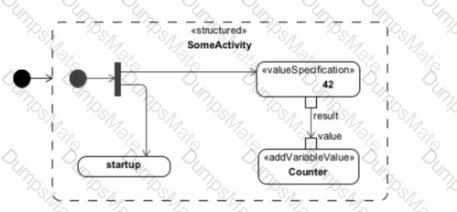

Before the SomeActivity action is executed, the value of "Counter" is not specified in the given diagram fragment; therefore, we cannot assume that it has a value. This leads to the answer C, "It is empty." In UML, unless an initial value is explicitly specified for a variable, it cannot be assumed to have a default value.

References:

• UML 2.5 Specification: The UML specification's section on variables and actions would explain that unless initialized, variables do not have a default value.

The execution semantics of Alf (Action Language for Foundational UML) are defined by mapping the concrete syntax of Alf to the abstract syntax of fUML3. Alf provides a textual surface representation for a subset of UML model elements, and its main benefit is an execution semantics that allows for the generation of executable code out of Alf specifications4. This mapping ensures that Alf can be used to specify behavior in a way that is directly executable in the context of an fUML model.

In UML, a template is a parameterizable element, and the parameters for a template are typically classes or other classifiers. According to the UML 2.x Superstructure Specification, all subclasses of Classifier can potentially be used as template parameters. This includes classes, components, datatypes, interfaces, signals, and more. The specification provides the flexibility to define template parameters that are specialized types, allowing for powerful and reusable designs. The ability to parameterize these elements is foundational to creating generic and reusable model elements, which is a core capability of the UML's templating mechanism.

The approach described in option B aligns with the concept of template classifiers in UML, which allows for the creation of parameterized elements that can be instantiated with different arguments. By modelingVehicleas a template classifier with a parameter namedThrustor, other modelers can instantiate this template with their chosen propulsion system, as long as it is a type that specializes thePropulsionSystemabstract class. This method provides the flexibility needed for modelers to tailor theVehicleclass to different propulsion systems while enforcing that only derivatives ofPropulsionSystemcan be used as the actual parameter forThrustor. This tactic of using template classifiers and class parameters is an application of UML's syntax and semantics for creating modular and customizable models. This practice is detailed in the UML 2.x Superstructure Specification, particularly in the sections describing template classifiers and their parameters.

In UML, the multiplicity of an association end specifies how many instances of the class at that end can participate in a single association. A lower multiplicity of one (1) at one end of an n-ary (where n > 2) association implies that there must be at least one link that combines the values of the other ends, but it doesn't require that a link exists for every possible combination. Therefore, it's possible for some combinations to exist as links, while others do not, which is indicated by the option that links combining the values of the other ends may exist or may not exist. This interpretation is consistent with the definition of multiplicity in associations as outlined in the UML 2.x Superstructure Specification.

A minimal reflexive metamodel is a metamodel that is expressed using itself, meaning it can be used to describe its own structure and semantics. This concept is akin to a self-describing system. In the domain of metamodeling, this allows for a consistent and coherent definition of the metamodel that is both the subject and the tool of its own description2. This reflexivity is a key property that enables the metamodel to be used in a variety of contexts, ensuring that it remains consistent with its own definitions.
