Diagnose NPU NP6 Port-list Disable Command:

Thediagnose npu np6 port-list disablecommand disables specific ports on the NP6 processor. This can help in cases where you need to analyze traffic and the hardware offloading is interfering.

Command:diagnose npu np6 port-list disable 5 17(as shown in Option A).

Diagnose NPU NP6 Fastpath Disable Command:

Disabling the fastpath feature on NP6 can also allow for better visibility into the traffic as it bypasses hardware acceleration, which might obscure traffic details.

Command:diagnose npu np6 fastpath disable 0(as shown in Option C).

References:

Fortinet Documentation on Troubleshooting BGP and NPU Settings​(Fortinet Docs)​.

Fortinet Community Technical Notes on NPU and Traffic Analysis​(Welcome to the Fortinet Community!)​.

The exhibit shows a sniffer capture where TCP port 8013 is being used for communication. The communication appears one-way, indicating potential issues with the upstream FortiGate receiving the necessary packets or being able to respond.

To ensure successful communication in a Security Fabric setup:

Ensure TCP port 8013 is not blocked along the way: Verify that no firewalls or network devices between the downstream and upstream FortiGates are blocking TCP port 8013. This port is crucial for Security Fabric communication.

Authorize the downstream FortiGate on the root FortiGate: In the Security Fabric, the root FortiGate must recognize and authorize the downstream FortiGate to allow proper communication and management.

Enable Security Fabric/Fortitelemetry on the receiving interface of the upstream FortiGate: The upstream FortiGate must have the Security Fabric or Fortitelemetry enabled on the interface that receives the communication from the downstream FortiGate. This enables proper data exchange and monitoring within the Security Fabric.

References

Fortinet Documentation on Security Fabric Configuration

Fortinet Community Discussion on Port Requirements

Understanding OSPF Roles:

In OSPF (Open Shortest Path First), routers can have different roles: Designated Router (DR), Backup Designated Router (BDR), and DROther. These roles help manage and optimize the OSPF network traffic.

DR and BDR are elected to minimize the number of adjacencies and reduce the amount of routing information exchange.

DROther routers are neither DR nor BDR but can still participate in the OSPF network by maintaining adjacencies with DR and BDR.

Analyzing the Exhibit:

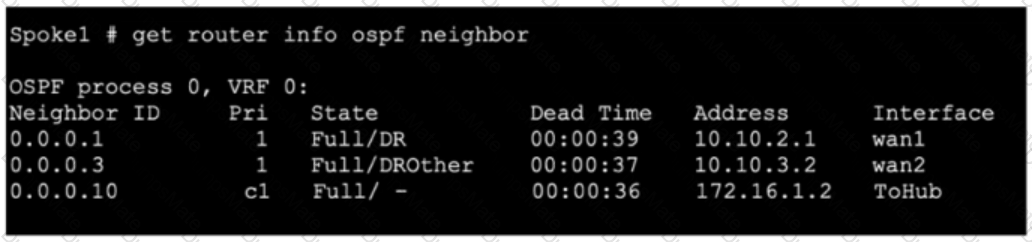

The exhibit shows the OSPF neighbor states for the local FortiGate.

Neighbor ID 0.0.0.1 is in the state Full/DR (Designated Router).

Neighbor ID 0.0.0.3 is in the state Full/DROther (DROther).

Neighbor ID 0.0.0.10 has no specific designation, implying it is neither DR nor BDR.

Conclusion:

Since the local FortiGate shows neighbors in Full/DR and Full/DROther states and itself does not have a state of DROther, it can be concluded that the local FortiGate is not a DROther.

References:

Fortinet Community: Understanding OSPF roles and states​(Welcome to the Fortinet Community!)​​(cyruslab)​.

Fortinet Documentation: OSPF neighbor states and elections​(Fortinet Docs)​.

LDAP Authentication Process:

The regular bind type for LDAP authentication involves multiple steps to verify user credentials.

Step 1: The client sends a bind request with the username to the LDAP server.

Step 2: The LDAP server responds to the bind request.

Step 3: The client sends a bind request with the password.

Step 4: The LDAP server responds, confirming or denying the authentication.

Explanation of Answer:

The regular bind type follows these four steps to authenticate a user, making it a comprehensive method but not necessarily the easiest to configure.

The statement regarding sAMAccountName and super_admin account requirements are not accurate in the context of regular bind type LDAP authentication on FortiOS.

References

Fortinet Network Security 7.2 Support Engineer Documentation

FortiOS LDAP Authentication Configuration Guides

Understanding protocol states:

proto_state=00: Indicates no traffic or a closed session.

proto_state=01: Typically indicates one-way ICMP traffic or a partially established TCP session.

proto_state=10: Indicates an established TCP session, where the session has completed the three-way handshake and both sides can send and receive data.

proto_state=11: Often indicates a fully established and active bidirectional session.

Explanation of correct answer:

proto_state=10is the correct indication for an established TCP session as it signifies that the session is fully established and active.

References

Fortinet Network Security 7.2 Support Engineer Documentation

Fortinet Firewall Protocol State Documentation

RADIUS Server IP Address:

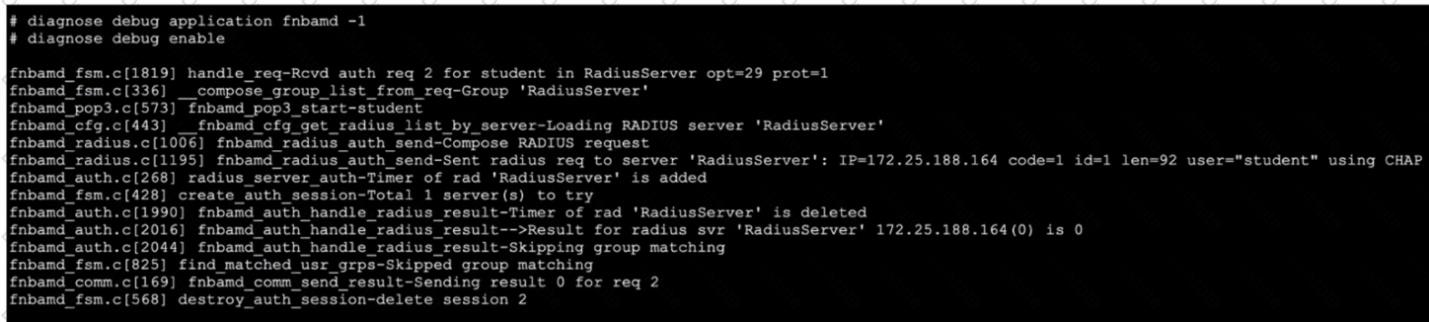

The debug output shows that the RADIUS request was sent to the server atIP=172.25.188.164. This indicates that the RADIUS server being queried for authentication is indeed located at this IP address.

Authentication Result:

The debug output includes a line indicating the result for the RADIUS server:Result for radius svr 'RadiusServer' 172.25.188.164(0) is 0. A result code of0typically signifies that the authentication attempt was unsuccessful.

Authentication Scheme:

The debug output does not indicate that the authentication scheme used was pop3; it mentions using CHAP (Challenge Handshake Authentication Protocol).

Two-factor Authentication:

There is no indication in the debug output that two-factor authentication was required for this session.

References

Fortinet Network Security 7.2 Support Engineer Documentation

RADIUS Authentication Configuration and Debugging Guides

Conserve Mode Activation:

FortiGate enters conserve mode to prevent system crashes when the memory usage reaches critical levels. The "red threshold" is the point at which FortiGate starts dropping new sessions to conserve memory.

When the system memory usage exceeds this threshold, the FortiGate will block new sessions that require significant memory resources, such as those needing content inspection.

Exiting Conserve Mode:

The "green threshold" is the memory usage level below which FortiGate exits conserve mode and resumes normal operation.

Once the system memory usage drops below this threshold, FortiGate will start allowing new sessions again.

References:

Fortinet Community: Understanding conserve mode and its thresholds​(Welcome to the Fortinet Community!)​​(Welcome to the Fortinet Community!)​.

Fortinet Documentation: Memory conserve mode and thresholds​(Welcome to the Fortinet Community!)​​(Fortinet GURU)​.

Session Synchronization:

FortiGate HA (High Availability) ensures that active sessions are synchronized between the primary and secondary devices. This synchronization allows for seamless failover and continuity of sessions.

Handling NAT Sessions:

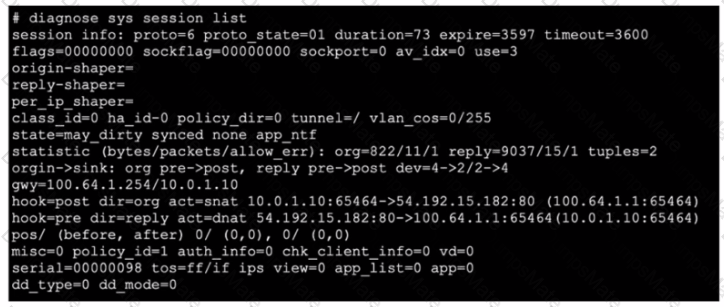

The session in the exhibit has NAT applied, as indicated by thehook=post dir=org act=snatentry. FortiGate's HA setup is designed to handle such sessions, ensuring that traffic continues without interruption during failover.

Session Preservation:

Even with the presence of NAT, the session state is preserved across the HA devices. This means that ongoing sessions do not require re-establishment by the client, thus providing a seamless experience.

References:

Fortinet Documentation: HA session synchronization and failover

Fortinet Community: Understanding session synchronization in FortiGate HA

Examine the OSPF debug output:

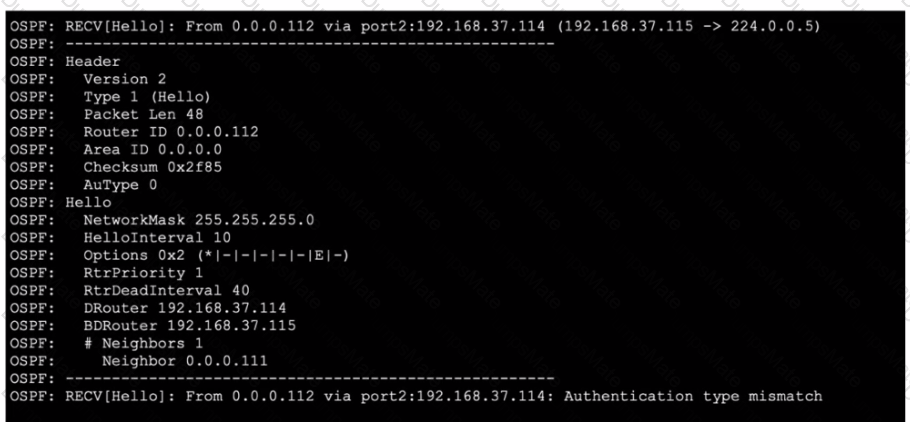

The OSPF Hello packet debug output shows the Router ID as0.0.0.112.

It shows that the OSPF packet is being sent from0.0.0.112viaport2:192.168.37.114.

The OSPF Hello packet contains information such as the network mask (255.255.255.0), hello interval (10), router priority (1), dead interval (40), and designated router (192.168.37.114) and backup designated router (192.168.37.115).

Check the area configuration:

The area ID is shown as0.0.0.0, indicating that the two devices attempting adjacency are in area0.0.0.0.

Authentication mismatch:

The debug output indicates an "Authentication type mismatch". This means one device is configured to require authentication while the other is not.

Password configuration:

The statement claiming that "A password has been configured on the local OSPF router but is not shown in the output" is false because the output indicates an authentication mismatch, not the presence or absence of a password. The other statements are true based on the provided debug output.

References

Fortinet Network Security 7.2 Support Engineer Documentation

OSPF Configuration Guides
