NS0-093 NetApp Accredited Hardware Support Engineer Questions and Answers

To reset environment variables to factory settings, the set-defaults command is used. This command clears all customizations and restores the environment variables to their default values.

Command Syntax:At the LOADER prompt, type:

Key Details:arduino

Copy code

set-defaults

Effect:This command resets all environment variables (e.g., boot arguments, diagnostic settings) to their original factory defaults.

B. unsetenv all:

This command clears all environment variables, but it does not restore them to factory defaults.

C. setenv factory:

This is not a valid command in NetApp systems.

D. wipeconfig:

This command is used to clear configuration and logs but does not reset environment variables.

Why Other Options Are Incorrect:

NetApp "System Configuration Guide" confirms the use of set-defaults for restoring environment variables to factory settings.

References:

 Steps to Unfail a Disk in Maintenance Mode:

When a disk is marked as "failed," it is added to the Failed Disk Registry and marked as unusable by the system. Unfailing a disk involves removing it from this registry and resetting its state.

 Step 1: Remove the Disk from the Failed Disk Registry

Use the command: registry remove to delete the disk from the Failed Disk Registry. This clears its "failed" status.

 Step 2: Use the Disk Unfail Command

Execute the disk unfail command to reset the disk status and make it available for use.

 Key Notes:

After unfailing, the disk will be treated as a spare and must be reassigned or re-added to an aggregate.

If the disk remains failed after these steps, physical hardware issues may need to be addressed.

 NetApp Reference Documentation:

The "ONTAP Maintenance Mode Guide" and "Disk Management Guide" provide detailed instructions for handling failed disks and using the disk unfail command.

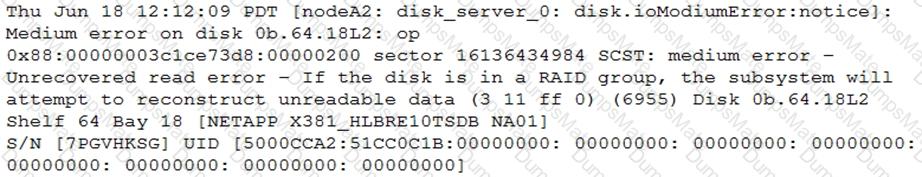

 Analyzing the Error in the Event Log:

The log entry indicates a medium error on a disk, suggesting an unrecoverable read issue.

While the RAID subsystem attempts to reconstruct unreadable data, this error might indicate a firmware issue or a compatibility problem with the disk.

 Why Reviewing Firmware and Known Issues Is Important:

Medium errors can sometimes result from outdated or incompatible firmware.

By reviewing firmware release notes and known issues for the disk model (NETAPP X381_HLBRE10TSDB in this case), you can identify if this is a known issue and resolve it by updating the firmware.

 Other Options:

Sanitize the disk (Option A): Not relevant here, as sanitization is used for secure data erasure.

Reseat the disk (Option B): Useful for addressing hardware seating issues, but not the first step here.

Diskcopy to a spare (Option D): This is a last-resort recovery step and not the primary action.

 NetApp Reference Documentation:

"ONTAP Disk Management Guide" and "Disk Firmware Release Notes" detail how to handle medium errors and update firmware.

If a node is not booting, the following methods can be used to access the system for troubleshooting:

What it does:The SP provides out-of-band management access to the node, even if the node is not booting.

How to use:

Connect to the SP using SSH or a direct console connection.

Use SP commands to gather logs or perform diagnostics.

1. Service Processor (SP)

What it does:The serial console provides direct access to the node's bootloader or maintenance mode.

How to use:

Connect to the serial port using a terminal emulator.

Use console commands to interact with the system.

2. Serial Console

A. node management port:

The node management interface is only accessible if the node is booted and ONTAP is running.

B. cluster management port:

The cluster management interface requires the cluster to be operational, which is not possible if the node is not booting.

Why Other Options Are Incorrect:

NetApp "Service Processor and Serial Console Guide" provides instructions for accessing a non-booting node.

References:

In a clustered ONTAP system, write requests are acknowledged to the client only after they are securely stored in NVRAM on both the local node and its HA (High Availability) partner.

This ensures redundancy and data protection in case of a node failure.

Write Acknowledgment in NetApp ONTAP:

A. when the write is present in the local node RAM and NVRAM:

Writes are not acknowledged until the HA partner also stores the data in its NVRAM.

B. when the write has been flushed to disk:

Writes are acknowledged before they are written to disk, as NVRAM ensures durability.

D. when the write has been flushed from NVRAM to RAM:

Data is not acknowledged based on RAM; NVRAM on both nodes is the requirement.

Why Other Options Are Incorrect:

NetApp’s "ONTAP Write I/O Processing Guide" explains the role of NVRAM and HA in write acknowledgment.

"Data Protection in ONTAP" highlights the synchronization of NVRAM between HA partners.

References:

When using wafliron to repair WAFL inconsistencies on an aggregate, the aggregate becomes available after Phase 4 of the wafliron process is complete.

Phase 1: Initial scan to identify inconsistencies.

Phase 2: Corrects directory and inode structure issues.

Phase 3: Repairs blocks and metadata.

Phase 4: Completes final repairs and verification, after which the aggregate can be made available.

Phases of wafliron:

A. when the administrator manually onlines the aggregate:

The aggregate cannot be manually brought online until wafliron completes Phase 4.

B. when wafliron is started:

Starting wafliron does not make the aggregate available; repairs need to be completed first.

D. after the mounting phase of wafliron is complete:

WAFLiron does not have a specific "mounting phase." Mounting happens after Phase 4 completes.

Why Other Options Are Incorrect:

"NetApp WAFLiron Troubleshooting Guide" explains the availability of the aggregate after Phase 4.

NetApp Support documentation outlines the phases of wafliron and aggregate recovery.

References:

 Upgrade Considerations for Disk and CPU Utilization:

During an ONTAP upgrade, it is critical to ensure the system has sufficient resources to handle the upgrade process without impacting normal operations.

 Recommended Threshold:

NetApp recommends that both disk and CPU utilization should be below 70% before initiating an upgrade. This ensures that there is enough headroom for the upgrade operations and avoids performance degradation.

 Steps to Verify Utilization:

Use the system node show -fields cpu command to check CPU usage.

Use the storage aggregate show -fields used command to check aggregate disk utilization.

 NetApp Reference Documentation:

"ONTAP Upgrade and Maintenance Guide" specifies the 70% threshold for disk and CPU usage during upgrade planning.

The "ONTAP Performance Management Guide" provides methods for monitoring system resource utilization.

The Upgrade Advisor is a NetApp tool that generates a detailed, step-by-step plan for upgrading an ONTAP system. This tool is available through the Active IQ portal and helps ensure a smooth and risk-free upgrade process.

Provides a tailored upgrade plan based on the current ONTAP version, cluster configuration, and desired target version.

Identifies potential risks, compatibility issues, and pre-requisite tasks for the upgrade.

Offers detailed instructions for each stage of the upgrade process.

Key Features of Upgrade Advisor:

A. ONTAP System Manager:

While System Manager can be used to initiate upgrades, it does not generate a detailed upgrade plan.

B. Active IQ Unified Manager:

Unified Manager focuses on monitoring and management but does not provide upgrade plans.

D. Active IQ Config Advisor:

Config Advisor checks for best practices and configuration issues but is not used for generating upgrade plans.

Why Other Options Are Incorrect:

NetApp’s "ONTAP Upgrade Guide" emphasizes the use of Upgrade Advisor for planning upgrades.

Active IQ documentation provides detailed instructions on accessing and using the Upgrade Advisor tool.

References:

When a volume is deleted in a NetApp ONTAP system, it is placed in the Volume Recovery Queue. By default, the volume remains in this recovery queue for 12 hours before being permanently deleted. This allows administrators to recover mistakenly deleted volumes within the set retention period.

Explanation of Default Behavior:

Volume Recovery Queue:

This is a feature in NetApp ONTAP that acts as a safety mechanism, providing a grace period for recovering deleted volumes.

The default retention period for volumes in the recovery queue is 12 hours, as confirmed by the NetApp KB: "How to use the Volume Recovery Queue."

How to Recover a Deleted Volume:

Administrators can recover a deleted volume as long as it remains in the recovery queue and the retention period has not expired.

Use the ONTAP CLI command:

arduino

Copy code

cluster::> volume recovery-queue recover -vserver -volume

This command restores the volume back to its original state.

How to Check the Volume Recovery Queue:

To view volumes in the recovery queue and their expiration times, use:

arduino

Copy code

cluster::> volume recovery-queue show

Changing the Default Retention Period:

While the default period is 12 hours, it can be adjusted by administrators to fit specific organizational requirements. This is done via system settings or policies.

Why the Other Options Are Incorrect:

B. 48 hours: Incorrect. The default retention period is not 48 hours; it is 12 hours by default.

C. 72 hours: Incorrect. While a custom configuration could allow this, it is not the default.

D. 24 hours: Incorrect. Although this was previously thought to be the default, NetApp documentation explicitly states it is 12 hours.

References:

NetApp Knowledge Base Article: "How to use the Volume Recovery Queue".

NetApp ONTAP Documentation: Volume Recovery and Data Management Procedures.

 Purpose of the -cfo-only true Option:

This option is used during the giveback process in a NetApp cluster to control which aggregates are returned to the original node.

By specifying -cfo-only true, only the data aggregates are given back to the original node, while the root aggregate remains with the takeover node.

 Use Case:

This command is helpful when you want to test the aggregate giveback functionality or if the root aggregate requires further investigation or maintenance before returning it to the original node.

 NetApp Reference Documentation:

The "ONTAP High-Availability Configuration Guide" and "Cluster Failover Management Guide" detail the behavior of the -cfo-only option during giveback scenarios.

Reverting to a previous ONTAP version requires careful preparation because ONTAP upgrades often introduce irreversible changes. To successfully revert, the following actions are needed:

C. Reinstall your boot media and install ONTAP 9.5 software

Explanation:You need to reinstall the older version of ONTAP (9.5) on the boot media because the current version (9.7) has been installed as part of the upgrade. The reinstallation ensures that the system boots with ONTAP 9.5.

Steps:

Boot the node into maintenance mode.

Perform the reinstallation using the appropriate ONTAP 9.5 image.

D. Wipe your config and restore from backup

Explanation:A revert requires wiping the configuration because ONTAP upgrades may have made changes to the cluster configuration or WAFL metadata. Restoring the configuration from a backup ensures consistency with the older ONTAP version.

Steps:

Back up the current cluster configuration before proceeding.

Use the restored backup after the revert is complete to reconfigure the system.

Why the Other Options Are Incorrect:

A. Revert from ONTAP 9.7 software to ONTAP 9.6 software and then to ONTAP 9.5 software:

Incorrect. ONTAP reverts must directly target the desired version. You cannot perform multi-step reverts.

B. Delete all Snapshot copies from the past two days:

Incorrect. Deleting Snapshot copies is not a prerequisite for reverting ONTAP. While older Snapshot copies might not be compatible with the reverted version, they do not need to be deleted before the revert.

References:

NetApp Documentation: ONTAP Upgrade and Revert Procedures.

NetApp Knowledge Base: Steps for reinstallation and configuration restoration during a revert.

 Understanding "Container Type: Unknown" in Disk Show Output:

The "unknown" container type typically indicates that the disk is not properly configured or recognized by ONTAP.

This status often occurs when a disk does not have an owner assigned.

 Root Cause:

For a disk to be used in an ONTAP system, it must be owned by a member of the high-availability (HA) pair.

If no ownership is assigned, the disk will not be initialized, resulting in an "unknown" container type.

 Steps to Resolve:

Use the disk assign command to manually assign ownership of the disk.

Example: storage disk assign -disk -owner

 NetApp Reference Documentation:

"ONTAP Disk Management Guide" explicitly states that unowned disks report "unknown" container type until they are assigned to a node.

This is further detailed in the "ONTAP Troubleshooting Guide" under disk configuration issues.

 RAID-TEC Overview:

RAID-TEC (Triple Erasure Coding) is a NetApp RAID technology designed to protect against up to three simultaneous disk failures.

It is ideal for systems with high-density disks or workloads requiring extreme fault tolerance.

 Why RAID-TEC Is Correct:

RAID-TEC uses triple-parity protection, which provides redundancy against three disk failures, making it more resilient than RAID-DP or RAID 5.

RAID-DP only protects against two disk failures, while RAID 4 and RAID 5 protect against a single failure.

 NetApp Reference Documentation:

"NetApp RAID and Data Protection Guide" details the differences between RAID-DP and RAID-TEC, highlighting RAID-TEC's ability to tolerate three failures.

To troubleshoot the root cause of an unexpected controller reboot, the following tools are commonly used:

What it does:Provides monitoring and performance data for the ONTAP cluster, including historical event logs that may help identify the root cause of a reboot.

1. Active IQ Unified Manager

What it does:The CLI allows you to gather logs and status information directly from the affected node. Commands like event log show and system core are essential for identifying the reason behind the reboot.

2. ONTAP CLI

B. Active IQ Digital Advisor:

This tool focuses on predictive analytics and proactive recommendations, not troubleshooting unexpected reboots.

D. ONTAP Mediator:

This tool is used for managing MetroCluster configurations, not for troubleshooting reboots.

E. Active IQ Config Advisor:

This tool checks for configuration best practices but does not provide detailed logs or reboot diagnostics.

Why Other Options Are Incorrect:

NetApp "ONTAP System Management Guide" emphasizes the use of Unified Manager and CLI for troubleshooting system issues.

References:

 Possible Causes for "No Disks" Error:

A (Incorrect SAS Cabling): If the SAS cables are incorrectly reconnected or swapped after replacing the boot device, the disks may not be detected because the physical connection to the shelves is compromised. Verifying and reseating the SAS cables is essential.

C (Lower ONTAP Version): If the node boots into an ONTAP version that is lower than the version previously used, it might not recognize the RAID labels or disk metadata created by the higher ONTAP version.

 Why Other Options Are Incorrect:

B (Disks Marked as Failed): Disks that are marked as failed would still be visible in the system, though unusable.

D (Interconnect Down): An interconnect failure affects HA functionality but does not prevent a node from detecting its own disks.

 NetApp Reference Documentation:

Refer to the "ONTAP Boot Recovery Guide" and "SAS Cabling Guide" for steps to resolve disk detection issu
