NCS-Core Nutanix Certified Services Core Infrastructure Professional Questions and Answers

The alert for Protection Policy PP-BCA-1HR indicating critical availability issues is most likely due to the workloads included in the policy no longer meeting their intended Recovery Point Objective (RPO). A 1-hour snapshot frequency implies a stringent RPO, which if not maintained, could result in data loss beyond acceptable business limits. This scenario typically generates a critical alert in Prism Central, especially when the snapshots required to meet the RPO are not completed as scheduled due to any number of issues such as resource constraints or network issues.References: Nutanix Prism User Guide, Nutanix Data Protection Best Practices.

The document that needs to be completed with the customer to collect configuration items such as IP addresses, Gateway, DNS servers, and NTP Servers is the Technical Checklist. This checklist is designed to ensure all necessary technical information is gathered prior to the installation, enabling a smooth and efficient setup process.References: Nutanix Cluster Deployment Guide, Pre-installation Planning Documentation.

Ref: https://support-portal.nutanix.com/page/documents/details?targetId=Web-Console-Guide-Prism-v5_10:wc-prote ction-domain-wc-c.html

Ref: https://portal.nutanix.com/page/documents/details?targetId=Prism-Central-Guide-Prism-v55:mul-security-ssl-certifi cate-pc-t.html

The CVM IP address is a hard requirement for deploying a Nutanix cluster. Each CVM must have a unique IP address assigned to it as this IP address is critical for cluster operations, including data replication, management activities, and communication between CVMs and hypervisors. The other options, while important for various functionalities, do not represent a hard requirement for initial deployment.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Cluster Configuration chapter (https://www.nutanixbible.com/)

The Foundation version included with an AOS bundle can be found in the AOS Release Notes. These release notes typically provide detailed information about all components and versions included in the bundle, ensuring that users are aware of compatibility and new features.

References:

• Nutanix Bible (https://www.nutanixbible.com), where reference to locating AOS bundle details is mentioned.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), providing instructions on how to access and interpret AOS release notes.

In a Nutanix Files deployment within a 20-node AHV cluster, the consultant can deploy a maximum of 16 FSVMs (File Server Virtual Machines). This limitation is based on Nutanix's best practices and design considerations for scalability and performance. The number of FSVMs that can be effectively managed and maintained without degrading the performance of the file-serving operations or the underlying storage infrastructure dictates this maximum.

References:

• Nutanix Certified Services - Core (NCS-Core) Learning Documents
• Nutanix Bible: https://www.nutanixbible.com
• Nutanix University Videos: https://www.youtube.com/playlist?list=PLAHgaS9IrJecs_AcQT3Y7vSsKT2mjz3Iu

The "Advertised Capacity" parameter in the context of creating a storage container in Nutanix systems is used to cap the usage of storage containers to be smaller than the limit of a storage pool's capacity. This feature allows administrators to set a maximum storage limit for a container, preventing it from using the entire storage pool's capacity and ensuring that resources are allocated based on planned capacity requirements. This helps in maintaining predictable storage management and allocation within a Nutanix environment.References: Nutanix Storage Container Management Documentation, Nutanix Best Practices for Storage Configuration.

https://next.nutanix.com/how-it-works-22/recommended-maximum-storage-utilization-3723 4

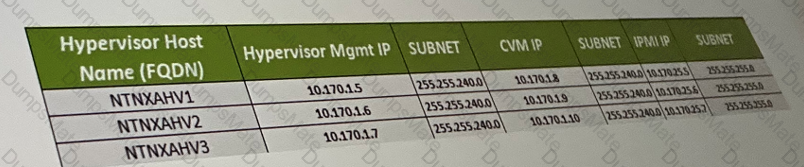

Based on the subnet assignments from the exhibit provided, the Hypervisor Management IP addresses fall within the 10.170.0.5, 10.170.0.6, 10.170.0.7 range with a subnet mask of 255.255.240.0, indicating a /20 subnet. However, the Foundation VM (FVM) and the Consultant Laptop should ideally be on the same subnet as the Controller Virtual Machine (CVM) to facilitate easy access and management. The CVM IP addresses indicated are 10.170.0.4, 10.170.0.9, and 10.170.0.10 with subnet 255.255.240.0 (/20). Thus, the appropriate choice for the FVM and Laptop that matches the subnet without overlapping with existing IPs and allows network configuration without conflicts would be in the same /24 range as suggested in option D, i.e., FVM: 10.170.25.2/24, Laptop: 10.170.25.12/24.

References:

• Nutanix Networking and Foundation Setup Guidelines

The error during LCM pre-checks in an ESXi-based Nutanix cluster with HA enabled is most likely due to the ESXi cluster admission control being enabled. Admission control is a feature in VMware ESXi that reserves resources for HA purposes to ensure that sufficient resources are available in the event of host failures. When admission control is enabled, it can interfere with Nutanix LCM operations, which may require resource reallocation or reconfiguration that conflicts with the reserved capacities set by admission control. Disabling admission control during LCM updates would typically resolve this issue.References: VMware documentation on HA and Admission Control, Nutanix LCM documentation.

Ref: https://portal.nutanix.com/#page/kbs/ details?targetId=kA00e000000Cr7GCAS

In the scenario where the Foundation VM on a laptop is used for a cluster deployment, and an error indicating a failure to connect to the IPMIs is shown, the first troubleshooting step should be to disable the local machine's firewall to ensure it is not blocking traffic necessary for the Foundation VM to communicate with the IPMIs. Firewalls can often block essential ports or IP addresses needed for deployment operations, hindering the Foundation process.References: Nutanix Foundation Tool Troubleshooting Guide, Nutanix Deployment Common Issues.

Ref: https://portal.nutanix.com/page/documents/details?targetId=Web-Console-Guide-Prism-v510:wc-protection-domain-failover-wc-t.html

To safely and successfully unregister the customer's former cluster from Prism Central (PC), the consultant should take the following steps as outlined in option D:

• Login to the Prism Central Web UI, which provides a user-friendly interface for managing multiple clusters.
• Navigate to the "Cluster Registrations" section found under the "Settings" in the "Admin Center" of the Prism Central interface.
• Check the box next to the desired Prism Element (PE) cluster that needs to be unregistered.
• Click the "Remove" button to unregister the cluster.

This method allows the consultant to cleanly and directly manage the cluster registration without needing to interact with command-line tools or scripts, making it a straightforward process that minimizes the risk of errors and ensures that the operation can be tracked and audited through the UI.

References: Nutanix Prism Central Guide, Nutanix Administration Documentation.

For ensuring that Nutanix storage containers can be mounted on non-Nutanix hosts for data migration workflows, the consultant should validate the configuration under: A. Prism Element - Settings - Filesystem Whitelist. This setting allows specific non-Nutanix hosts to access the Nutanix storage containers, which is essential for environments where data must be accessible to systems outside the Nutanix cluster. By whitelisting the IP addresses or hostnames of these external systems, they are granted the necessary permissions to mount and interact with the Nutanix file systems.References: Nutanix Prism Element User Guide, Nutanix Storage and Filesystem Configuration Best Practices.

When deploying the latest AOS along with the latest Nutanix hardware, it is essential for the consultant to review multiple sources of information to ensure a successful installation. Release Notes provide details about new features, improvements, and known issues in the latest version of AOS. Software Product Interoperability outlines compatibility between different software versions, ensuring that the AOS and any integrated applications or environments will function correctly. Field & Security Advisories inform about potential security issues and recommended practices to avoid common pitfalls or security risks.

References:

• Nutanix Bible: Documentation and Release Information
• Nutanix University: Installation and Security Best Practices

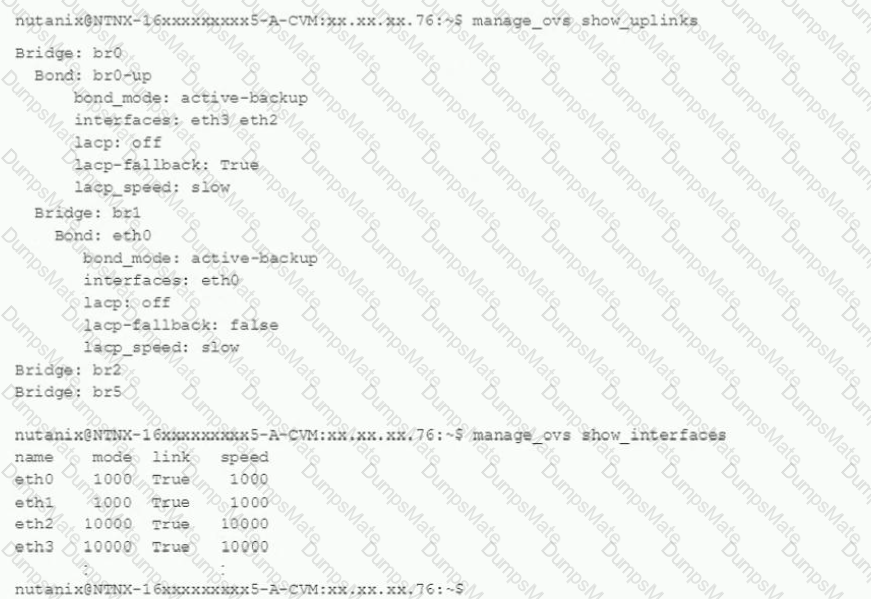

For a configuration that aims to utilize all available 10G links, achieve maximum throughput per VM, and ensure redundancy with fast reconvergence during link failure, the optimal setting would be to configure Balance-TCP on bridge br0. This setting distributes the load across all available network paths based on the TCP session, maximizing the utilization of network interfaces and ensuring redundancy. This approach is particularly effective in environments with multiple network paths and ensures efficient network traffic management.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

In the scenario where a consultant observes ping timeouts after shutting down one of the links during a port failover test, the issue is likely due to a Native VLAN mismatch on the switchport. The configuration settings shown in the second exhibit indicate different native VLANs for the switch ports connected to the Nutanix node. This mismatch can cause connectivity issues when one of the links is down, as VLAN tagging inconsistencies prevent proper fallback and routing of traffic.References: Cisco Networking Troubleshooting Guide, Nutanix Network Configuration Best Practices.

To manually create a cluster after the nodes have been successfully imaged but the automated cluster creation fails, the correct command to use is:

cluster create -s IP_CVM_A, IP_CVM_B, IP_CVM_n

This command specifies the -s option to include the IP addresses of the Controller Virtual Machines (CVMs) on the nodes, initiating the manual cluster creation process.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections on manual cluster operations.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), with detailed instructions on manual cluster commands.

The error encountered during the LCM inventory process, which mentions "Could not find a module for entity with reference name nutanix.ncc.update," typically indicates that the cluster has not yet been licensed. The Life Cycle Management (LCM) functionality in Nutanix systems requires a valid license to perform operations such as inventory checks and updates. Without this license, LCM cannot retrieve or update the necessary software modules, leading to the stated error. Licensing the cluster would resolve this issue and allow the LCM processes to proceed normally.References: Nutanix LCM Documentation, Nutanix Licensing Guidelines.

For the Exchange VM experiencing I/O performance issues, the recommended storage optimization change is Option A, "No data reduction." Exchange, as an application, is highly sensitive to latency and typically does not benefit significantly from data reduction technologies like deduplication or compression, which can introduce additional processing overhead and potentially worsen performance issues.

By configuring the container for Exchange with no data reduction, the system maximizes I/O performance by eliminating any additional processing that could delay data access. This setup ensures that Exchange has the fastest possible access to its data, which is crucial for its performance.

References:This recommendation aligns with best practices for Exchange storage on Nutanix, as detailed in the Nutanix best practices guide for deploying Microsoft Exchange, where it advises against using data reduction features for databases requiring high I/O throughput.

In preparing for the VMware NSX security project, the administrator should consider the network infrastructure and how the NSX will interact with the existing Nutanix environment. VMware NSX requires the use of VMware Distributed Virtual Switches. In the given scenario, where the CVM (Controller Virtual Machine) network is segmented and storage-only nodes are not present, the key step is to ensure that the network settings are compatible with NSX. Disabling the CVM network segmentation allows for a unified network that supports the requirements of NSX for network virtualization and security, making it the crucial first step before any further NSX-specific configurations are applied.References: Nutanix Bible, Nutanix Community discussions, VMware NSX documentation.

For adding a new cluster to an existing set of production clusters using AHV and wanting to manage the setup remotely via Prism Central, the most appropriate and efficient method is to use Foundation Central. Foundation Central allows for the remote deployment and configuration of Nutanix clusters through Prism Central, facilitating the foundation process without needing physical access or separate foundational utilities like the Foundation VM or Applet. It uses the factory image on the nodes and is designed to streamline cluster expansions and deployments in enterprise environments.References: Nutanix Foundation Central User Guide, Nutanix Prism Central documentation.

Top of Form

To satisfy the customer's request for additional performance and resiliency tests on a cluster, deploying Nutanix X-Ray is the best option. X-Ray is a performance testing and benchmarking tool specifically designed for hyper-converged infrastructures and provides a range of tests that simulate real-world scenarios, stress tests, and resiliency tests. This tool allows the consultant to comprehensively assess the performance, fault tolerance, and operational resilience of the Nutanix cluster, meeting the customer's testing requirements effectively.References: Nutanix X-Ray Documentation, Nutanix Performance Testing Best Practices.

When facing issues with network communication over 10GbE links, the first command to troubleshoot is manage_ovs show_interfaces. This command allows the consultant to review the operational status and settings of each network interface, including those connected via Twinax cables to the top of rack switch. This will show whether the interfaces are correctly configured and functioning, which is essential for establishing a successful network link.

References:

• Nutanix Command Reference Guide: https://portal.nutanix.com
• Nutanix Community Network Troubleshooting Tips: Nutanix Community

To ensure additional resiliency in a 20-node ESXi deployment capable of surviving the concurrent loss of two nodes, the consultant should configure the system with a storage reservation and HA (High Availability) admission control each set to 5%, combined with a cluster redundancy factor (RF) of 3. RF3 provides the capability to tolerate the failure of up to two nodes without data loss, thus enhancing the cluster's resilience. This configuration is optimal for maintaining cluster availability and integrity during multiple node failures.References: Nutanix Bible, Nutanix University

Ref https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LIelCAG

To validate the peak performance of a deployed Nutanix cluster, the consultant can use:

• A. Nutanix X-Ray: X-Ray is a performance testing tool specifically designed for Nutanix environments, capable of simulating a variety of workloads and scenarios to measure and report on the cluster's performance capabilities.

References:

• Nutanix Bible (https://www.nutanixbible.com), where X-Ray and its capabilities are detailed.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers performance testing and validation using X-Ray.

Ref: https://portal.nutan ix.com/page/documents/details?targetId=Prism-Central-Guide-Prism-v510:mul-security-authentication-pc-t.html

To meet the customer requirements for automatic failover and resource balancing in a vSphere environment, two specific features need to be enabled: vSphere High Availability (HA) and Distributed Resource Scheduler (DRS). vSphere HA ensures that VMs automatically restart on other hosts in the event of a host failure, providing high availability. vSphere DRS balances computing workloads with available resources in a vSphere environment, ensuring that resources are used efficiently and that new VMs are placed on hosts with the most available resources.

References:

• Nutanix Bible: vSphere Integration
• Nutanix University: Configuring vSphere Features

The Test Plan is the most appropriate resource for detailed information on network validation testing. This document typically outlines the specific tests to be conducted to ensure the network meets the required specifications and performance standards necessary for a stable and efficient Nutanix environment. The Test Plan provides a structured approach to validate each network component and interaction, ensuring all aspects are tested and meet design and operational requirements. References: Nutanix Installation and validation procedures as described in Nutanix official documentation and training modules from Nutanix University.

Ref: https://portal.nu tanix.com/page/documents/details?targetId=Files-v3_6:fil-files-high-availability-c.html

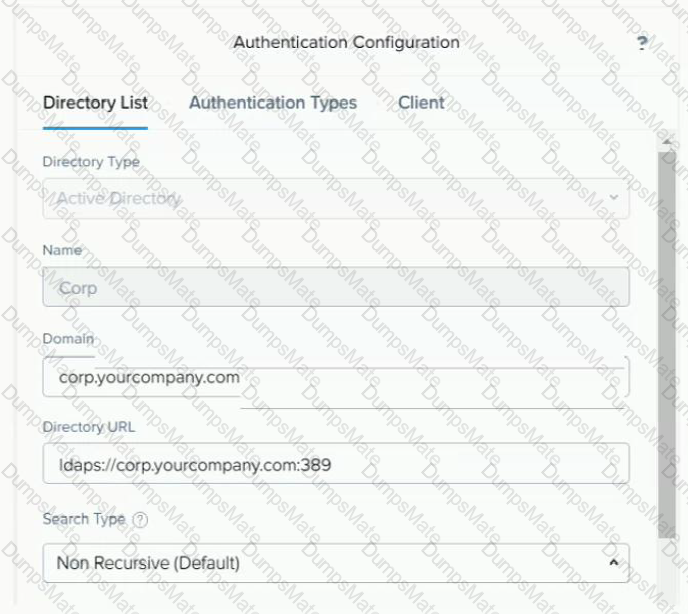

In a Nutanix environment, if the login process using an Active Directory (AD) user account takes more than a minute to complete, it could be due to the configuration of the AD lookups.

Active Directory lookups can be configured to use either Recursive or Non-Recursive mode. In Recursive mode, the system will look up each group that a user is a member of, then each group that those groups are members of, and so on. This can lead to a large number of lookups and potentially slow down the login process1.

On the other hand, in Non-Recursive mode, the system only looks up the direct groups that a user is a member of. This can significantly reduce the number of lookups and speed up the login process1.

Therefore, the administrator should confirm that Active Directory lookups are configured to use Non-Recursive mode to resolve this issue.

References:

• Active Directory Authentication is slow - Takes minutes to Logon | Nutanix Community
• Configuring Authentication | Nutanix Community
• Solving Slow Logon Issues in Active Directory Environments

When Foundation VM and a laptop can ping each other but nodes are not being discovered, it suggests a network protocol issue. The consultant should enable IPv6 and multicast on the switch. Multicast is required for node discovery in many environments, especially when using Nutanix Foundation, as it helps in the detection and communication between nodes and the Foundation VM.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

When installing a Nutanix cluster on hardware servers pre-loaded with an existing operating system such as DiscoverOS, the best approach is to re-image the bare metal nodes. This process involves using the Nutanix Foundation tool to install the required Nutanix software (such as AOS and Hypervisor) onto the nodes, replacing any pre-existing software. This ensures that the hardware is properly configured and optimized for the Nutanix environment.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

When preparing the cluster offsite in a safe room, the consultant should ensure that the Foundation VM is correctly configured to handle IPMI networking. Implementing a virtual switch dedicated to the IPMI network within the Foundation VM environment ensures that there is a segregated and controlled network path for IPMI traffic, which is crucial for initial hardware configuration and management. This setup facilitates the secure and efficient foundation process before the cluster is moved to the data center.References: Nutanix Foundation Tool Guide, Nutanix Network Configuration Best Practices.

In the scenario described, the configuration shown in the exhibit indicates that there is an "active-backup" bond mode. If a shut command is executed on the switchport that connects the node to the 5k1 switch (assuming it's the active link), the passive link should take over. This response ensures no loss of connectivity as the passive link becomes active in the absence of the primary (active) link.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

The requirements specify the use of LACP with multiple VLANs and without the use of a native VLAN. Trunk ports must be configured to carry multiple VLANs, which is necessary for scenarios involving LACP across multiple switches (MLAG or vPC). Setting the native VLAN to default and not using it in traffic management while trunking the ports meets these needs effectively. References: Nutanix Bible (https://www.nutanixbible.com/ ), Nutanix Official YouTube Training Series

For troubleshooting issues with Foundation Portable on Mac not locating new nodes, the consultant should check the ~/data/logs/foundation.out log. This log file contains detailed operational entries that describe the activities of the Foundation tool, including any errors encountered during the node discovery process. This can provide insights into why the nodes are not being detected and guide the consultant on the necessary corrective actions.

References:

• Nutanix Bible: Foundation Deployment and Troubleshooting
• Nutanix University: Foundation Tool Usage

When encountering an error related to unsupported ISO media during the imaging process, and the ISO version is not listed in the whitelist file, the consultant should take several steps to resolve the issue. Replacing and saving the whitelist file in Foundation ensures that the latest compatibility data is used. Downloading the iso_whitelist.json from the Support portal provides the most recent and comprehensive list of supported ISO versions. Editing the whitelist file in Foundation allows the consultant to manually add or update entries to include the ISO in question, ensuring the imaging process can proceed.

References:

• Nutanix Bible: Foundation Imaging and Compatibility
• Nutanix University: Handling Foundation Errors

Considering the equipment setup with one Out-of-Band Management (OOBM) Ethernet switch and two 10GbE SFP+ Top of Rack (ToR) switches, the consultant should recommend six DAC (Direct Attach Cable) 10GbE cables and three Ethernet cables. The DAC 10GbE cables are suitable for connecting the nodes to the ToR switches to handle high-speed data transfers, while the Ethernet cables are necessary for connections related to management purposes, such as connecting to the OOBM switch for remote management tasks. This recommendation ensures adequate connectivity for both data and management networks.References: Nutanix Hardware and Installation Guide, Best Practices for Network Cable Management.

In scenarios where a software-only installation is planned on Dell servers without pre-configured IP addresses for out-of-band management interfaces, the iDRAC MAC addresses are crucial. Using iDRAC (Integrated Dell Remote Access Controller), a consultant can perform a bare metal installation remotely and manage the servers effectively. This method is preferable when IP addresses are not initially available, allowing the consultant to utilize the out-of-band management network for setup. References: Nutanix Installation and Configuration guides, especially those pertaining to Dell hardware, available through the Nutanix Bible and official Nutanix training materials.

During the closeout of a cluster imaging engagement, a key action to include in the Closeout Checklist is:

• Provide an overview of Nutanix Prism Central: This is crucial as Prism Central is the management and operations platform for Nutanix environments, providing visibility and control over clusters and workloads. Giving an overview of this tool is essential for the customer to manage their newly imaged clusters effectively.

References:

• Nutanix Bible (https://www.nutanixbible.com), where management tools like Prism Central are discussed.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which includes training on using Prism Central for cluster management.

For expanding a Nutanix cluster with software-less Dell PowerEdge servers, the consultant should: A. Image nodes using Foundation VM/App. This tool is designed for initial imaging and configuration of Nutanix nodes, including software installation, which is necessary since the nodes arrived without any software. B. Use the Expand cluster functionality within the existing Nutanix environment once the nodes are imaged. This feature will integrate the newly imaged nodes into the existing cluster, enhancing the cluster's capacity and performance. Options C and D are not applicable as returning nodes to the factory for imaging is unnecessary with the availability of the Foundation tool, and "Expand cluster to image the nodes" is not a correct procedure as imaging must be completed before expansion.References: Nutanix Foundation Tool Documentation, Nutanix Cluster Expansion Guide.

For a multi-tier application where traffic must be limited to specific services and ports across web, application, and database VMs, the optimal approach is to use microsegmentation features provided by Nutanix. Option D, "Categorize the VMs in Prism Central and utilize Flow to set a security policy," is the correct choice.

Nutanix Flow allows for detailed security policies that control VM-to-VM traffic within the same cluster, effectively managing access and communication based on specified criteria like VM category, service, or application type. This solution enables precise control over traffic flows, enhancing security without requiring additional physical or virtual network segmentation.

References:Nutanix Flow capabilities are detailed in Nutanix Prism Central's documentation, which explains how to implement microsegmentation and security policies for application-specific traffic management.

If link aggregation is failing to pass traffic and is only showing a status of "configured," the most likely cause is a failed negotiation due to a misconfiguration on the Top-of-Rack (ToR) switches. This typically occurs when the aggregation protocols (like LACP) or the settings on the ToR switches do not match the configuration on the hosts. Ensuring that both ends of the aggregated links are configured identically and properly for the expected protocols is critical for successful link aggregation.References: Nutanix Network Configuration Guide, Best Practices for Network Aggregation.

The correct container advanced setting to configure in order to prevent ISO container images from exceeding a 100GB limit is "Advertised Capacity." This setting allows administrators to set a maximum storage capacity that is visible and available to the user, irrespective of the actual physical capacity available, thereby preventing over-allocation and management issues in environments where strict capacity limits are required.

References:

• Nutanix Certified Services - Core (NCS-Core) Learning Documents
• Nutanix Bible: https://www.nutanixbible.com

In scenarios where VMs have been migrated to a new cluster and they were previously on VLAN 10 but can no longer communicate, the most likely cause is that the VLAN ID setting on the virtual network interface cards (VNICs) of the VMs does not match the VLAN configuration of the new network. Ensuring that the VLAN IDs are correctly set to match the network configuration of the new cluster is essential for proper network communication.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Networking chapter (https://www.nutanixbible.com/)

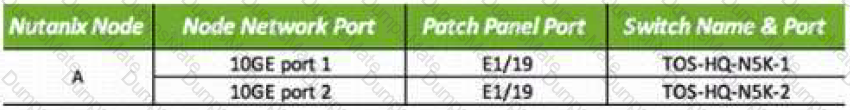

After an onsite cluster deployment, the As-Built Guide is a crucial document that provides detailed information about the final configuration of the system. However, certain data in the As-Built Guide might require adjustment or might be missing completely.

In this case, the Nutanix Node Port Layout (Option A) and the Physical Rack Layout (Option C) are two data that might require adjustment or might be missing completely. The Nutanix Node Port Layout provides a visual representation of the network connections for each node in the cluster, while the Physical Rack Layout provides a visual representation of the physical arrangement of the nodes in the rack. Both of these data are crucial for understanding the physical and network configuration of the cluster, and any inaccuracies or omissions in these data could lead to confusion or issues in the future.

Therefore, the consultant should ensure that the Nutanix Node Port Layout and the Physical Rack Layout in the As-Built Guide are accurate and complete.

References:

• [Nutanix Support & Insights]
• [Nutanix Community]
• [Nutanix Documentation]
• [Nutanix Certified services - core (NCS-Core) 6.8 - Nutanix University]
• [Nutanix Bible]
• [Nutanix Certified services - core (NCS-Core) 6.8 Playlist - YouTube]

Ref: https://portal.nutanix.com/page/documents/details?targetId=Web-Console-Guide-Prism-v5_10:sto-pd-guidelines-r.html

If after performing a failover operation the virtual machines have no network access despite the network administrator confirming the correct subnets at both sites, the likely issue is:

• A. Network mappings are not configured for the Remote Site: This configuration oversight means that although the VMs are online, they do not have appropriate network settings that correspond to the network environment at the failover site, resulting in connectivity issues.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on disaster recovery and network configurations in failover scenarios.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering Data Protection and failover operations.

The error encountered during the LCM operation suggests a failure in reading a file, which might be linked to the foundational services of the cluster. The genesis.out log file is essential for troubleshooting issues related to cluster initialization and fundamental operations. This file logs the activities of the Genesis service, which is responsible for managing and monitoring the lifecycle of cluster services, including LCM tasks. In case of errors during LCM operations, the genesis.out log provides detailed insight into what might have gone wrong during the process, making it the appropriate log to check in this scenario.

References:

• Nutanix Bible: https://www.nutanixbible.com/
• Nutanix University Videos on LCM and Genesis service: Nutanix Official YouTube Playlist

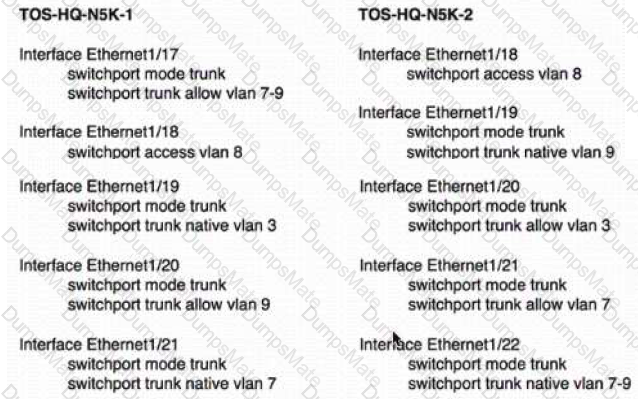

The inability of CVMs and hypervisors to communicate after moving a cluster to the production network typically points to a VLAN configuration issue. The correct action is to confirm that the VLAN designated for hypervisor/CVM communication is set as the Native VLAN on the switch ports to which the nodes are connected. This setting ensures that traffic from these VLANs is properly prioritized and handled by the network, thereby restoring communication between CVMs and hypervisors and allowing the cluster to start.References: Nutanix Bible, NCS-Core 6.8 official documentation on networking configurations, and troubleshooting VLAN issues.

When a NearSync Replication window is missed due to high write volume during nightly backups, the expected behavior of the system is to adjust the replication schedule temporarily and continuously attempt to return to the configured NearSync schedule. The correct answers are:

Option B, "Protection Domain transitions back to the hourly schedule." If the NearSync cannot maintain the 15-minute schedule due to excessive write volume, it may temporarily fall back to a less frequent schedule, such as hourly, to stabilize.

Option D, "The system continuously tries to get to the NearSync schedule." NearSync is designed to handle transient high-load situations by trying to catch up and revert to the pre-set NearSync schedule as conditions allow.

References:These behaviors are outlined in the Nutanix documentation for NearSync, which describes how the system manages periods of high I/O and missed replication windows.

For a configuration where a single VM should not exceed the bandwidth of a single 10G uplink and both uplinks need to be utilized, the correct bonding mode is balance-slb (Source Load Balancing). This mode allows both uplinks to be utilized while ensuring that a single VM will not exceed the capacity of one uplink, as traffic from each VM or "source" is assigned to one of the links in the bond. The other_config: bond-rebalance-interval=30000 command is used to set the interval at which the bonding driver will rebalance the assignment of sources to links in the bond. This helps in maintaining optimal distribution of load across the links as network conditions change.

References:

• Nutanix Bible: Network Configuration
• Nutanix University: Advanced Network Configuration

To execute the command manage_ovs --bridge_name br0 show_uplinks in a Nutanix cluster, the appropriate prompt is:

• A. nutanix@CVM-$: This command is intended for execution within the Controller Virtual Machine (CVM) environment, and "nutanix@CVM-$" is the standard user prompt in the CVM where such network commands are run.

References:

• Nutanix Bible (https://www.nutanixbible.com), especially sections on managing virtual bridges and networking commands.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which includes details on command-line operations within the CVM.

The proper network configuration to solve the described issue involves using tagged VLANs for the CVM (Controller Virtual Machine) and host, allowing these components to correctly interact with the customer's VLAN-configured network. For the IPMI (Intelligent Platform Management Interface), which is used for out-of-band management and does not require connectivity to multiple VLANs, setting it to access mode is appropriate. This configuration ensures that the IPMI only communicates over a single, untagged VLAN, effectively isolating its traffic from the production network.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections on networking and VLAN configurations.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), where VLAN and network settings are covered.

In the As-Built Guide for an AHV cluster deployment with each node configured with four NICs, the consultant should manually update:

• A. Node Port Layout Diagram: To reflect the physical connectivity and usage of each NIC on the nodes.
• B. Network Cabling Diagram: To accurately document how each node is connected to the network infrastructure, ensuring clarity on physical network setup.

References:

• Nutanix Bible (https://www.nutanixbible.com), where documentation standards and diagrams are emphasized.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering the importance of accurate network and port documentation in deployment guides.

To validate the performance of a Microsoft SQL workload for a CRM application, using X-Ray with an OLTP (Online Transaction Processing) Workload is most suitable. OLTP workloads simulate typical transactional database operations which are representative of CRM application usage, providing accurate insights into expected performance on the Nutanix platform.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on performance testing tools and methodologies.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), detailing how to use X-Ray for specific application testing.

Ref: https://next.nutanix.com/community-blog-40/nutanix-just-made-ahv-image-management-painless-33144

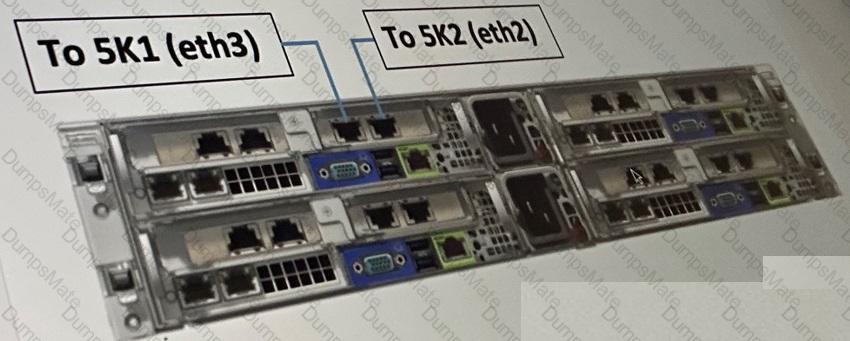

Given the reported RX errors on eth2 and the intermittent ping loss as observed from the CVM logs, the best initial troubleshooting step that avoids VM disruption is to inspect the switch port for errors. Option C, "Check the port on the switch side for any errors," is the most direct and non-invasive approach to determining if the issue lies with the network infrastructure rather than the server hardware itself or the configuration.

This action helps identify whether the problem is related to the physical connection (e.g., port issues, switch configuration errors) without altering the current active network setup on the Nutanix node. If errors are found on the switch port, adjustments or repairs can be made accordingly, potentially resolving the RX errors without impacting the running VMs.

References:This recommendation follows Nutanix's best practices for network troubleshooting, focusing first on external network components before altering host configurations.

To troubleshoot physical network mis-cabling without physical access to the data center and connected to Cisco Nexus 9k switches, the appropriate command to run from the Nutanix AHV host is lldpctl. This command allows the consultant to view the Link Layer Discovery Protocol (LLDP) information about directly connected devices. LLDP is supported on Nexus switches and provides detailed network topology information, which is crucial for identifying how the AHV nodes are connected to the switches, and to verify correct physical connections.References: Nutanix Command Reference Guide, Cisco Nexus 9000 Series documentation.

The optimal sequence for deploying a Nutanix AHV cluster with built-in software encryption involves the following steps:

• Create Cluster: Establish the cluster foundation, which sets up the basic network and cluster configurations.
• Install License Key: The ultimate licensing must be applied before enabling encryption because the feature depends on this license.
• Encrypt Cluster: Once the cluster is created and licensed, enable encryption to secure the data at rest. This step should be done before creating storage containers to ensure that all data written to the containers is encrypted from the outset.
• Create Storage Containers: Finally, create the storage containers. With encryption already enabled, any data written to these containers will be automatically encrypted.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on licensing and data encryption.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering deployment and configuration best practices.

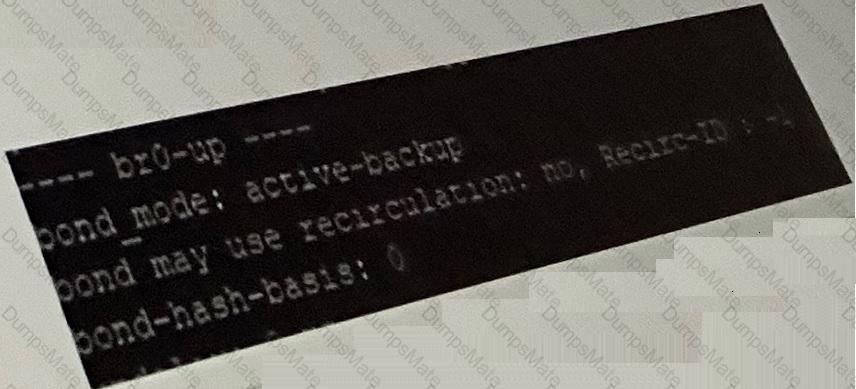

Upon reviewing the network configuration in the provided image and considering the setup in a Nutanix environment, the best action to improve network performance is to adjust the bonding mode for the bridge that includes multiple high-bandwidth interfaces.

Option C, "Configure balance-sib or balance-tcp mode for br0-up if switch configuration allows," is the most effective choice. The bonding mode "balance-sib" (source IP-based load balancing) or "balance-tcp" (TCP/IP layer balancing) can optimize the distribution of network traffic across multiple interfaces, thereby enhancing throughput and redundancy.

This approach utilizes the capabilities of multiple network interfaces more efficiently, distributing the load to prevent any one interface from becoming a bottleneck while providing failover redundancy.

References:This configuration strategy aligns with best practices for network setup in high-performance virtualized environments, as detailed in Nutanix’s networking configuration guides and the Nutanix Bible, ensuring optimal performance and reliability.

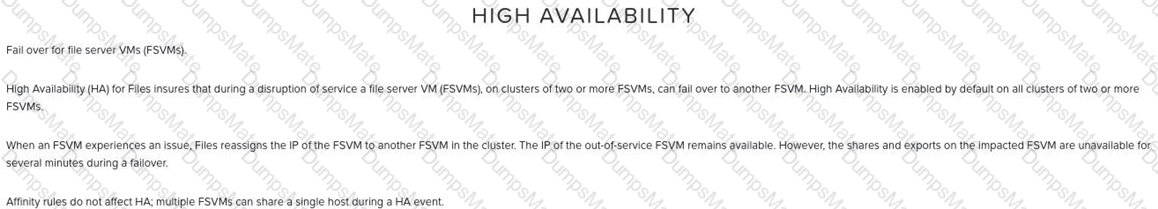

An alert of this nature in the file server dashboard usually indicates issues related to node availability within a cluster. Specifically, the failure of a node in a three-node cluster (Option B) can lead to insufficient resources to handle all tasks, which might trigger such an alert. Additionally, setting a node to maintenance mode in a three-node cluster (Option D) also disrupts service availability and could generate a similar alert, as the remaining nodes might struggle to handle the load or maintain data redundancy.References: Nutanix AOS User Guide, Nutanix Files Documentation.

When migrating an ESXi host to a vSphere Distributed Switch (vDS), it's crucial to correctly configure network adapters, including those for the Controller Virtual Machine (CVM). If the consultant migrated both the CVM backplane and the VM network adapter to the vDS, this could disrupt host-to-CVM connectivity if not configured correctly on the vDS. Such a setup requires precise configuration of network settings and VLAN tags to maintain seamless connectivity and avoid communication alerts in Prism Element.

After a failed bare metal Foundation imaging process, the consultant can find relevant logs in two primary locations: on the Foundation VM at "/home/nutanix/foundation/logs" and via the "View Logs" link available on the Foundation Imaging progress screen. These logs are crucial for diagnosing issues during the imaging process as they provide detailed error messages and operational data.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

When using the Foundation VM in a desktop virtualization environment and nodes are not being discovered, the first setting that the consultant should verify is the network adapter configuration, specifically ensuring it is set to a Bridged Adapter. This setting allows the virtual machine hosting the Foundation VM to connect directly to the physical network, making other network nodes visible and reachable during the discovery process. This direct network connection is critical for the Foundation tool to function correctly and discover other nodes.References: Nutanix Bible, Nutanix University

If a VM deployed on the storage network cannot access a SMB standard share, the likely issue is that:

• Clients on the same subnet as the storage network cannot access the shares: This scenario typically occurs due to network segmentation policies or firewall rules that restrict access to the storage network from clients within the same subnet, intended to segregate traffic types for security and performance reasons.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically sections on network segmentation and Nutanix Files configurations.
• Nutanix Technical Documentation on Nutanix Files, which covers network configuration and troubleshooting issues related to file access.

Ref: https://next.nutanix.com/installation-configuration-23/convert-existing-nutanix-vmware-cluster-to-nutanix- only-37600

When changing VLAN configurations for hosts and Controller Virtual Machines (CVMs) in a Nutanix cluster, doing so while the cluster is running can result in temporary communication losses, leading to alerts such as a node appearing down. To avoid these disruptions and ensure a smooth reconfiguration process, it is advisable to stop the cluster services before making VLAN changes. This prevents the cluster from detecting intermittent connectivity as node failures, thereby avoiding false alerts in Prism Element.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections discussing cluster operations and network reconfiguration.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which includes best practices for network configuration.

Before starting the Foundation process, the consultant should prepare the network by:

• On Nutanix NX Series, connect the IPMI port and any one of the data ports to the switch: This ensures that the IPMI (for management and remote access) and at least one data port (for cluster communication and data traffic) are connected and operational, facilitating a smooth foundation process.

References:

• Nutanix Bible (https://www.nutanixbible.com), especially sections on initial hardware setup and network preparations.
• Nutanix Hardware Setup Guide from Nutanix University (https://university.nutanix.com), detailing the specific steps for networking configurations during initial setup.

The failure to discover nodes during installation can often be attributed to the lack of IPv6 support on the network, especially if the Foundation process relies on IPv6 for node discovery. If IPv6 is not enabled on the customer’s switch, the discovery packets may not be properly routed, resulting in the nodes not being discovered. Enabling IPv6 on the switch could resolve this discovery issue.

References:

• Nutanix Foundation Troubleshooting Guide: Nutanix Support Portal
• Network Configuration and Troubleshooting Documentation

Erasure coding is a method of data protection in which data is broken into fragments, expanded and encoded with redundant data pieces, and stored across a set of different locations or storage media. The goal of erasure coding is to enable data that becomes corrupted at some point in the disk storage process to be reconstructed by using information about the data that’s stored elsewhere in the array1.

In the context of Nutanix, erasure coding increases the usable capacity on a cluster. Instead of replicating data, erasure coding uses parity information to rebuild data in the event of a disk failure1. The capacity savings of erasure coding is in addition to deduplication and compression savings1.

Given the characteristics of the VM in the question (large/sequential writes, data kept for years, data accessed only at the end of the year), Post-Process Compression would be the most suitable feature to utilize to save space. This is because Post-Process Compression, as the name suggests, compresses data after it has been written to the storage, which is suitable for data that is not accessed frequently2.

References:

• Erasure Coding | Nutanix Community
• Nutanix Support & Insights
• Introducing AOS 6.6: Enhanced data services and simplified … - Nutanix

For a customer to use NIC teaming with the "Route based on physical NIC load" load balancing option on an ESXi host using a vSphere Standard Switch, they need vCenter Server. This specific load balancing method is not available on a vSphere Standard Switch without vCenter management, as it requires vSphere Distributed Switch capabilities that are managed via vCenter Server. By installing a vCenter server, the customer can upgrade from vSphere Standard to Distributed Switches and access more advanced features including the desired NIC teaming option.References: VMware vSphere Documentation, Nutanix Bible.

To troubleshoot storage latency issues in a Nutanix cluster, it is vital to examine the state and performance of the network interfaces. The command manage_ovs show_interfaces provides comprehensive details about each interface's status, including any errors or drops that could contribute to network-related latency. This information is crucial for identifying problematic nodes or interfaces that may be causing storage access delays. This command effectively presents the operational status of network interfaces, which can help pinpoint issues directly affecting storage performance.

References:

• Nutanix Command Reference Guide: https://portal.nutanix.com
• Nutanix University Troubleshooting Network Issues: https://www.nutanix.com/support-services/training-certification

When Foundation reports an error indicating the ISO is not supported:

• Option B: Checking the MD5 checksum of the ISO file ensures that it matches the expected value listed by Nutanix, confirming the file's integrity and compatibility.
• Option D: Downloading and updating the iso whitelist.json from the Nutanix Support Portal ensures that Foundation has the latest information on supported ISO files, potentially resolving compatibility issues.

References:

• Nutanix Bible (https://www.nutanixbible.com), especially sections on Foundation and ISO troubleshooting.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers the setup and troubleshooting of Foundation.

Given that the customer’s security policy prohibits connecting a consultant’s laptop within the corporate datacenter, the consultant can complete the deployment using: A. The Controller VM-based Foundation process, which allows the consultant to configure and deploy the cluster using the software tools provided within the Controller VM itself. This method does not require direct laptop connection to the network. C. Run the Network Crashcart Script to manually configure IP addresses on the hosts and then proceed to create the cluster manually. This approach involves using available scripts and utilities that can be executed from within the data center's management interfaces without needing direct laptop access. Options B and D would typically require direct network connection capabilities not permissible under the security constraints.References: Nutanix Foundation Documentation, Nutanix Deployment Best Practices.

To find the correct VLAN ID to use during the Foundation of a new 3-node cluster, the consultant should refer to the:

• Deployment Questionnaire: This document typically contains detailed pre-engagement information gathered from the customer, including network specifications such as VLAN IDs. It provides the necessary context and configurations needed for a successful deployment.

References:

• Nutanix Bible (https://www.nutanixbible.com), where the importance of pre-deployment planning and documentation is highlighted.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers the process of gathering and using deployment information.
