MCIA-Level-1 MuleSoft Certified Integration Architect - Level 1 Questions and Answers

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

• NIST Definition of Cloud Computing
• Hybrid Cloud Overview and Benefits

The described approach of gathering all requirements upfront and proceeding through sequential, non-repeating phases is characteristic of the Waterfall methodology. Waterfall is a linear project management approach where each phase must be completed before the next one begins, and there is typically no going back to a previous phase once it is completed. This methodology is well-suited for projects with well-defined requirements and deliverables, but it can be inflexible if changes or new requirements arise during the project.

References:

• Waterfall Model
• Waterfall vs. Agile: Which is the Right Development Methodology for Your Project?

• Mocking REST API Invocations:
• Achieving Test Coverage:
• Execution of MUnit Tests:

References:

• MuleSoft Documentation on MUnit Testing
• Best practices for Mocking in MUnit

• Dealer D1 - AUTO Acknowledgment:
• Dealer D2 - Manual Acknowledgment:
• Ensuring Message Delivery:

References:

• MuleSoft Documentation on JMS Acknowledgment
• Best practices for Reliable Messaging

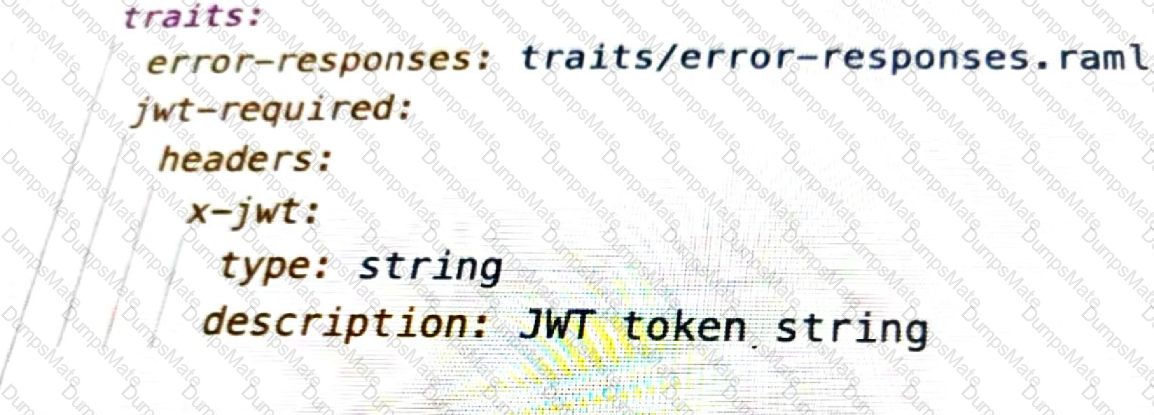

The data format shown in the exhibit is YAML (YAML Ain't Markup Language). YAML is a human-readable data serialization standard that is commonly used for configuration files and data exchange between languages with different data structures. In the exhibit, the indentation and the use of colons to define key-value pairs are characteristic of YAML.

JSON (JavaScript Object Notation) and XML (eXtensible Markup Language) have different syntax structures, and CSV (Comma-Separated Values) is a flat file format that uses commas to separate values. The format shown in the exhibit fits the structure and style of YAML.

References

• YAML Specification Documentation
• MuleSoft Documentation on Supported Data Formats

Explanation

Correct answer is: Add a Mulesoft hosted Anypoint VPC configured and with VPC Peering to the AWS VPC * Connecting to your Anypoint VPC extends your corporate network and allows CloudHub workers to access resources behind your corporate firewall.

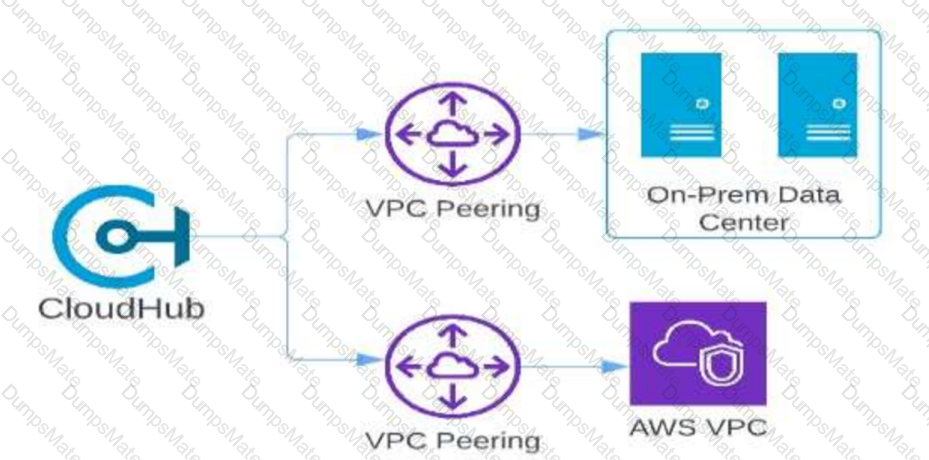

* You can connect on-premises data centers through a secured VPN tunnel, or a private AWS VPC through VPC peering, or by using AWS Direct Connect.

MuleSoft Doc Reference : https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

Explanation

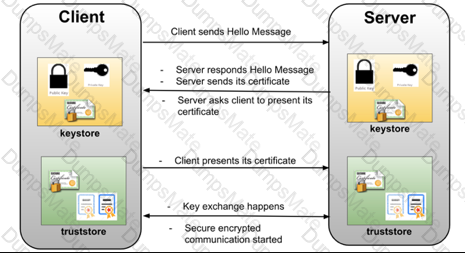

1 way SSL : The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.

2-way SSL:  The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.

* TLS is a cryptographic protocol that provides communications security for your Mule app.

* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:

For servers: the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server. For clients: the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.

Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.

* in this case, correct answer is Support for TLS mutual (two-way) authentication with HTTP clients.

Explanation

Types of logging:

A) Synchronous: The execution of thread that is processing messages is interrupted to wait for the log message to be fully handled before it can continue.

● The execution of the thread that is processing your message is interrupted to wait for the log message to be fully output before it can continue

● Performance degrades because of synchronous logging

● Used when the log is used as an audit trail or when logging ERROR/CRITICAL messages

● If the logger fails to write to disk, the exception would raise on the same thread that's currently processing the Mule event. If logging is critical for you, then you can rollback the transaction.

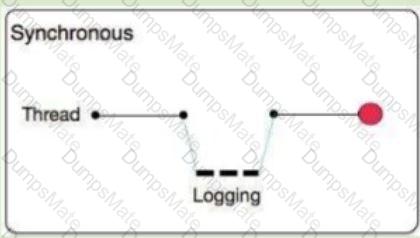

Chart, diagram Description automatically generated

Chart, diagram, box and whisker chart Description automatically generated

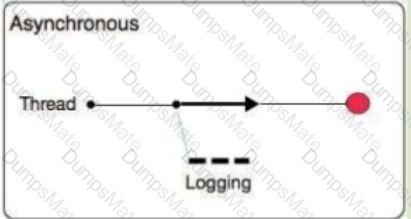

B) Asynchronous:

● The logging operation occurs in a separate thread, so the actual processing of your message won’t be delayed to wait for the logging to complete

● Substantial improvement in throughput and latency of message processing

● Mule runtime engine (Mule) 4 uses Log4j 2 asynchronous logging by default

● The disadvantage of asynchronous logging is error handling.

● If the logger fails to write to disk, the thread doing the processing won't be aware of any issues writing to the disk, so you won't be able to rollback anything. Because the actual writing of the log gets differed, there's a chance that log messages might never make it to disk and get lost, if Mule were to crash before the buffers are flushed.

------------------------------------------------------------------------------------------------------------------

So Correct answer is: Asynchronous logging can improve Mule event processing throughput while also reducing the processing time for each Mule event

Explanation

CloudHub supports updating your applications at runtime so end users of your HTTP APIs experience zero downtime. While your application update is deploying, CloudHub keeps the old version of your application running. Your domain points to the old version of your application until the newly uploaded version is fully started. This allows you to keep servicing requests from your old application while the new version of your application is starting.

Explanation

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.

Explanation

3xx HTTP status codes indicate a redirection that the user agent (a web browser or a crawler) needs to take further action when trying to access a particular resource.

Explanation

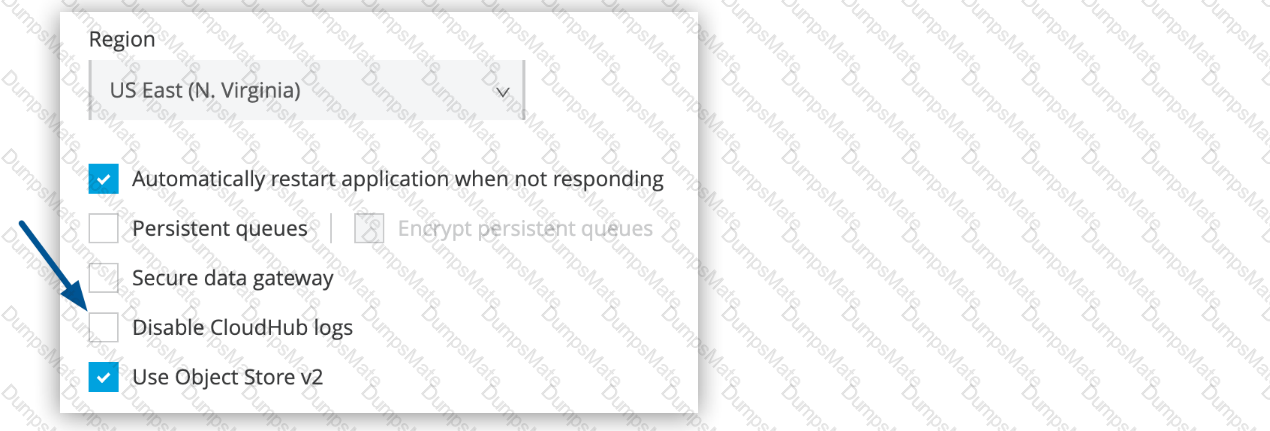

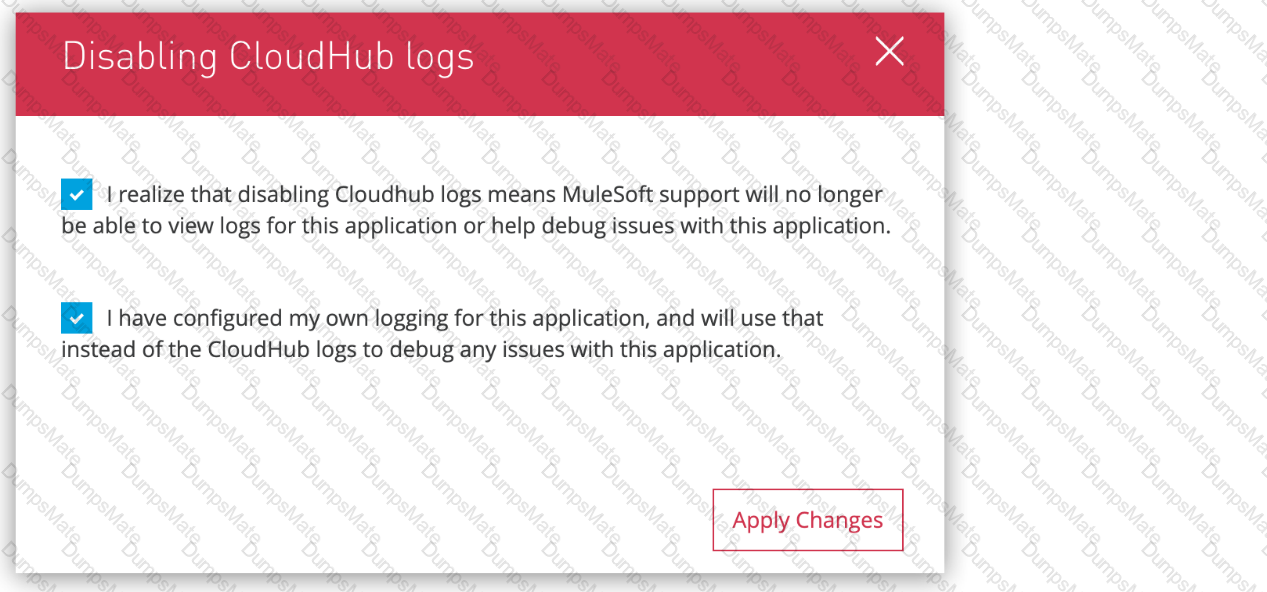

By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. In CloudHub, you can disable the CloudHub provided Mule application log4j2 file. This allows integrating Mule application logs with custom or third-party log management systems

To close the IT delivery gap, MuleSoft recommends that IT organizations make their technology assets easily discoverable via a central repository. This approach ensures that existing assets, such as APIs, connectors, templates, and other reusable components, are accessible to all teams within the organization. By having a central repository, teams can quickly find and leverage these assets, reducing duplication of effort, speeding up project delivery, and fostering a culture of reuse and collaboration. This strategy aligns with the principles of an API-led connectivity approach, where reusable assets and APIs form the foundation for scalable and efficient IT delivery.

References

• MuleSoft Documentation on API-led Connectivity
• Anypoint Platform Best Practices for Asset Management

The File Transfer Protocol (FTP) uses the Transmission Control Protocol (TCP) for reliable communication. TCP is one of the core protocols of the Internet Protocol Suite and provides reliable, ordered, and error-checked delivery of a stream of data between applications running on hosts communicating via an IP network. FTP relies on TCP to ensure that all data packets are delivered accurately and in the correct sequence, which is essential for the reliable transfer of files between a client and server.

References

• IETF RFC 959 - File Transfer Protocol (FTP)
• TCP/IP Protocol Suite Documentation

• MUnit and Test Recorder:
• Core Consideration:
• Error Handling in MUnit:

References:

• MuleSoft Documentation on MUnit: MUnit Documentation
• MuleSoft Blog on MUnit Test Recorder: MUnit Test Recorder

Explanation

Correct answer is using below set of activities Until Successful component ActiveMQ long retry Queue ActiveMQ Dead Letter Queue for manual processing We will see why this is correct answer but before that lets understand few of the concepts which we need to know. Until Successful Scope The Until Successful scope processes messages through its processors until the entire operation succeeds. Until Successful repeatedly retries to process a message that is attempting to complete an activity such as: - Dispatching to outbound endpoints, for example, when calling a remote web service that may have availability issues. - Executing a component method, for example, when executing on a Spring bean that may depend on unreliable resources. - A sub-flow execution, to keep re-executing several actions until they all succeed, - Any other message processor execution, to allow more complex scenarios. How this will help requirement : Using Until Successful Scope we can retry sending the order to backend systems in case of error to avoid manual processing later. Retry values can be configured in Until Successful Scope Apache ActiveMQ It is an open source message broker written in Java together with a full Java Message Service client ActiveMQ has the ability to deliver messages with delays thanks to its scheduler. This functionality is the base for the broker redelivery plug-in. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Rather than being delivered to a DLQ, a failing message is scheduled to go to the tail of the original queue and redelivered to a message consumer. How this will help requirement : If backend application is down for a longer duration where Until Successful Scope wont work, then we can make use of ActiveMQ long retry Queue. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Mule Reference: https://docs.mulesoft.com/mule-runtime/4.3/migration-core-until-successful

To ensure the high availability and reliability of critical APIs, it is essential to monitor their liveliness and readiness. Anypoint Monitoring provides comprehensive monitoring capabilities for Mule applications. Here’s how it can be implemented:

• Application Monitoring: Enable monitoring for each individual Mule application. This allows for real-time visibility into the performance and health of each API.
• Custom Dashboards: Create custom dashboards in Anypoint Monitoring to track key metrics such as response time, error rates, and throughput.
• Alerts and Notifications: Configure alerts based on specific failure conditions or performance thresholds. These alerts can notify the Ops team immediately when an outage or performance degradation is detected.
• Proactive Management: With detailed insights and proactive alerts, the Ops team can quickly respond to issues, ensuring that the APIs remain available and meet the defined SLAs.

References:

• Anypoint Monitoring
• Configuring Alerts

Anypoint Platform provides the productivity advantage of automatic API proxy generation. This feature enables developers to quickly create proxies for their APIs, which act as intermediaries that forward requests to the appropriate backend services. Automatic proxy generation simplifies the process of securing and managing APIs, allowing developers to enforce policies, monitor traffic, and analyze usage without having to manually configure these aspects.

References:

• API Proxies on Anypoint Platform
• Improving API Productivity with Anypoint Platform

Explanation

* Setting a transaction timeout for the Bitronix transaction manager

● Set the transaction timeout either

– In wrapper.conf

– In CloudHub in the Properties tab of the Mule application deployment

● The default is 60 secs. It is defined as

mule.bitronix.transactiontimeout = 120

* This property defines the timeout for each transaction created for this manager.

If the transaction has not terminated before the timeout expires it will be automatically rolled back.

---------------------------------------------------------------------------------------------------------------------

Additional Info around Transaction Management:

Bitronix is available as the XA transaction manager for Mule applications

● To use Bitronix, declare it as a global configuration element in the Mule application

● Each Mule runtime can have only one instance of a Bitronix transaction manager, which is shared by all Mule applications

● For customer-hosted deployments, define the XA transaction manager in a Mule domain

– Then share this global element among all Mule applications in the Mule runtime

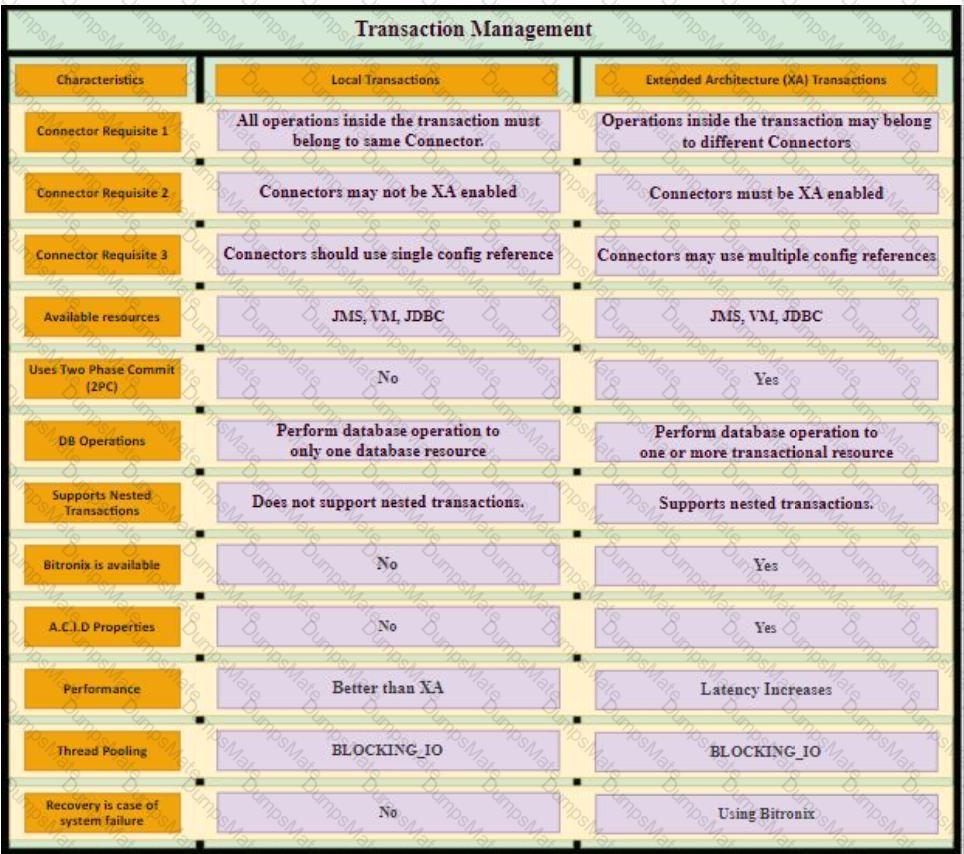

Graphical user interface, table Description automatically generated with medium confidence

Explanation

* Mule High Availability Clustering provides basic failover capability for Mule. * When the primary Mule Runtime becomes unavailable, for example, because of a fatal JVM or hardware failure or it’s taken offline for maintenance, a backup Mule Runtime immediately becomes the primary node and resumes processing where the failed instance left off. * After a system administrator recovers a failed Mule Runtime server and puts it back online, that server automatically becomes the backup node. In this case, Alice, once up, will become backup ---------------------------------------------------------------------------------------------------------------------------------------------- Reference: https://docs.mulesoft.com/mule-runtime/4.3/hadr-guide So correct choice is : Files are polled form Bob node Bob is now the primary node

To ensure that data is encrypted both in-transit and at-rest, and to validate incoming requests to the Payment Processing API, the following approach is recommended:

• TLS Inbound Policy: Apply a Transport Layer Security (TLS) - Inbound policy in API Manager. This policy ensures that the data is encrypted during transmission and can be decrypted by the API Manager before it reaches the Mule application.
• Decryption: With the TLS policy applied, the message payload is decrypted when it is received by the API Manager.
• JSON Validation: After decryption, the Mule application can use the JSON Validation module to validate the structure and content of the JSON data. This ensures that the payload conforms to the specified format and contains valid data.

This approach ensures that data is securely transmitted and properly validated upon receipt.

References:

• Transport Layer Security (TLS) Policies
• JSON Validation Module

A design-first approach in API development focuses on creating a detailed API specification before any implementation begins. This specification acts as a contract that defines the API's endpoints, request/response formats, and error codes. By developing this specification early, potential consumers can provide feedback, and testing can be conducted against mock implementations to ensure the API meets their needs. This approach helps identify issues early in the development process, improving the likelihood of successful implementation and adoption.

References:

• API Design Best Practices
• Design-First API Development

Explanation

Correct answer is IBM: CICS CRM: SOAP

* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.

* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

According to MuleSoft, the term "interface" describes the method, format, and protocol used for communication between two systems. An interface defines how systems interact, specifying the data formats (e.g., JSON, XML), protocols (e.g., HTTP, FTP), and methods (e.g., GET, POST) that are used to exchange information. Properly designed interfaces ensure compatibility and seamless communication between integrated systems.

References:

• MuleSoft Glossary of Integration Terms
• System Interfaces and APIs

To convey the necessary non-functional requirement (NFR) related to protecting backend services from a high rate of requests according to SLAs, the following steps should be taken:

• Create a Shared RAML Fragment: Develop a RAML fragment that defines the NFR, including the SLAs for different subscription levels ("Gold", "Silver", "Platinum"). This fragment should include the details on rate limiting and throttling based on the new parameter added to the Accounts object.
• Update API Specifications: Integrate the shared RAML fragment into each API specification. This ensures that the NFR is consistently applied across all relevant APIs.
• Publish to Exchange: Publish the updated API specifications and the shared RAML fragment to Anypoint Exchange. This makes the NFR visible and accessible to all stakeholders and developers, ensuring compliance and implementation consistency.

This approach ensures that the NFR is clearly communicated and applied uniformly across all API implementations.

References

• MuleSoft Documentation on RAML and API Specifications
• Best Practices for API Design and Documentation

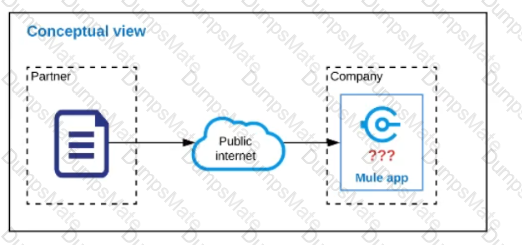

To securely consume compressed and digitally signed files from a partner's FTPS server, the following inputs are required:

• PGP Public Key of the Partner:
• PGP Private Key for the Company:
• FTP Username and Password:

By using these inputs, the Mule application can securely connect to the FTPS server, verify the integrity and authenticity of the files using PGP, and decrypt the contents for further processing.

References

• MuleSoft FTPS Connector
• MuleSoft PGP Module

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

References:

• MuleSoft Documentation on JMS

Explanation

* Object Store and VM Store is used for sharing data inter or intra mule applications in same setup. Can't be used with external Business Partner

* Also File connector will not be useful as the two companies currently have no shared IT infrastructure. It's specific for local use.

* Correct answer is SFTP connector. The SFTP Connector implements a secure file transport channel so that your Mule application can exchange files with external resources. SFTP uses the SSH security protocol to transfer messages. You can implement the SFTP endpoint as an inbound endpoint with a one-way exchange pattern, or as an outbound endpoint configured for either a one-way or request-response exchange pattern.

Explanation

Correct answer is Use a Batch job scope to bulk insert records into the database

* Batch Job is most efficient way to manage millions of records.

A few points to note here are as follows :

Reliability: If you want reliabilty while processing the records, i.e should the processing survive a runtime crash or other unhappy scenarios, and when restarted process all the remaining records, if yes then go for batch as it uses persistent queues.

Error Handling: In Parallel for each an error in a particular route will stop processing the remaining records in that route and in such case you'd need to handle it using on error continue, batch process does not stop during such error instead you can have a step for failures and have a dedicated handling in it.

Memory footprint: Since question said that there are millions of records to process, parallel for each will aggregate all the processed records at the end and can possibly cause Out Of Memory.

Batch job instead provides a BatchResult in the on complete phase where you can get the count of failures and success. For huge file processing if order is not a concern definitely go ahead with Batch Job

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

• MuleSoft Documentation on MUnit
• Best Practices for Automated Testing with MUnit

Explanation

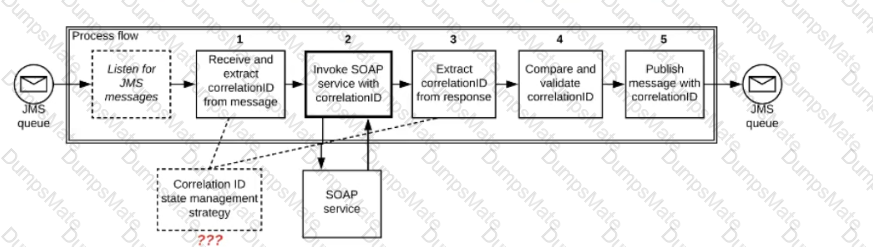

* If we store Correlation id value in step 1 as Mule event variables/attributes, the values will be cleared after server restart and we want system to be fault tolerant.

* The Correlation ID value in Step 1 should be stored in a persistent object store.

* We don't need to store Correlation ID value in Step 3 to persistent object store. We can store it but as we also need to make application performant. We can avoid this step of accessing persistent object store.

*  Accessing persistent object stores slow down the performance as persistent object stores are by default stored in shared file systems.

*  As the SOAP service is idempotent in nature. In case of any failures , using this Correlation ID saved in first step we can make call to SOAP service and validate the Correlation ID.

Top of Form

Additional Information:

* Competing Consumers are multiple consumers that are all created to receive messages from a single Point-to-Point Channel. When the channel delivers a message, any of the consumers could potentially receive it. The messaging system's implementation determines which consumer actually receives the message, but in effect the consumers compete with each other to be the receiver. Once a consumer receives a message, it can delegate to the rest of its application to help process the message.

Diagram Description automatically generated

* In case you are unaware about term idempotent re is more info:

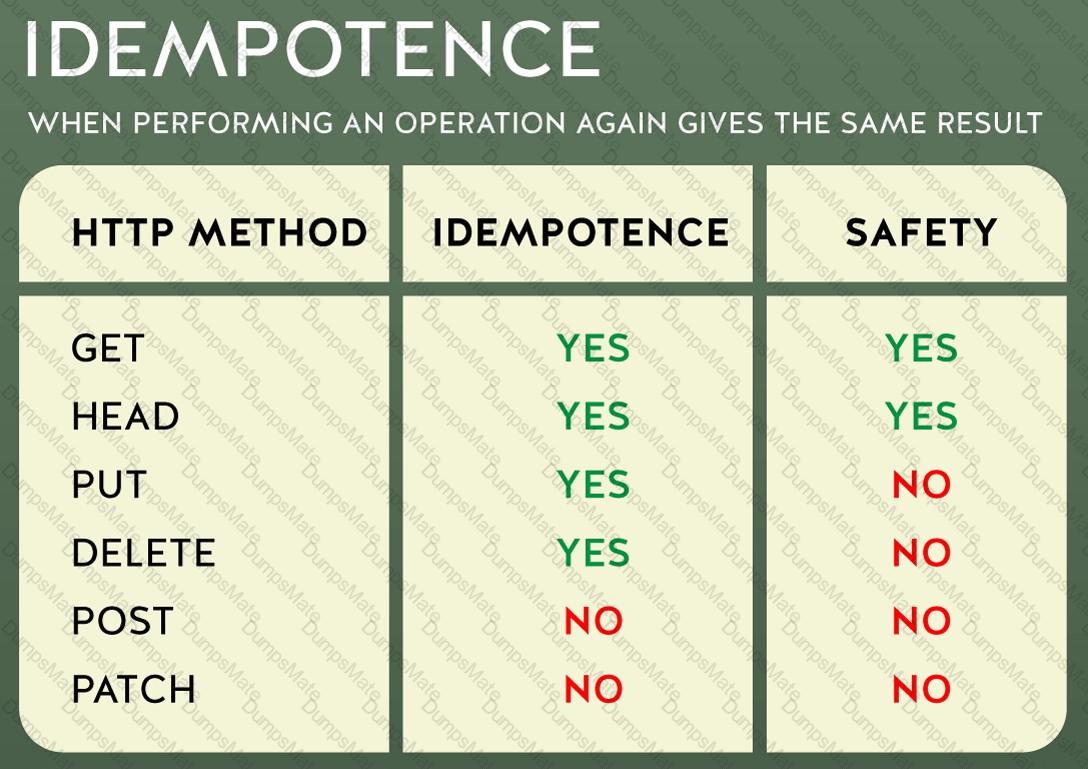

Idempotent operations means their result will always same no matter how many times these operations are invoked.

Table Description automatically generated

Bottom of Form

Explanation

* XA transaction add tremendous latency so "Reduce Latency" is incorrect option XA transactions define "All or No" commit protocol.

* Each local XA resource manager supports the A.C.I.D properties (Atomicity, Consistency, Isolation, and Durability).

---------------------------------------------------------------------------------------------------------------------

So correct choice is "Ensure consistency"

To meet the requirements of enriching logging with more context and improving throughput while reducing latency, the customer should use an asynchronous logging approach. Here's why option B is correct:

• Async Logger: Asynchronous logging helps in improving the performance by decoupling the logging from the main thread of execution. This reduces the latency of message processing since logging operations are offloaded to a separate thread.
• Logging Level Greater than INFO: Logging at levels such as WARN, ERROR, or FATAL ensures that only essential logs are written asynchronously, further enhancing performance. Avoiding DEBUG or TRACE levels unless necessary reduces the overhead of logging.
• Pattern Layout with [%MDC]: Using the pattern layout with [%MDC] in the log4j2.xml configuration file allows the inclusion of mapped diagnostic context in the logs. MDC is a feature that provides context-specific information, such as transaction IDs or user IDs, which helps in tracing and debugging.

Example configuration in log4j2.xml:

This configuration ensures that the logs are enriched with context information provided by MDC and processed asynchronously to maintain high throughput and low latency.

References

• Log4j2 Asynchronous Logging
• Mapped Diagnostic Context (MDC) in Log4j2

Explanation

* Any change in the application will require a restart except when the issue outside the app. For below situations , you would need to redeploy the code after doing necessary changes

-- One of the stored procedures being called by the Mule application has been renamed. In this case, in the Mule application you will have to do changes to accommodate the new stored procedure name.

-- Required redesign of Mule applications to follow microservice architecture principles. As code is changed, deployment is must

-- If the credentials changed and you need to update the connector or the properties.

-- The credentials for accessing the database have been updated and the previous credentials are no longer valid. In this situation you need to restart or redeploy depending on how credentials are configured in Mule application.

* So Correct answer is The database server was unavailable for four hours due to a major outage but is now fully operational again as this is the only external issue to application.

When multiple Mule applications need to listen on the same port (e.g., port 443), configuring them individually will cause a conflict because only one application can bind to a specific port on a server at a time. To resolve this, you can use a Mule domain project, which allows multiple Mule applications to share configurations, including HTTP listeners. Here’s how you can do it:

• Create a Mule Domain Project:
• Configure the Shared HTTP Listener:

• Reference the Shared HTTP Listener in Mule Applications:

• Deploy the Domain Project and Applications:

By using a domain project to centralize the HTTP listener configuration, you ensure that both APIs can listen on port 443 without conflicts, allowing customers to access both APIs through the same port.

References

• MuleSoft Documentation: Domain Projects
• MuleSoft Documentation: HTTP Listener Configuration

In a microservices architecture, a service mesh manages the communication between microservices. This involves handling service discovery, load balancing, failure recovery, metrics, and monitoring. Service meshes also provide more complex operational requirements like A/B testing, canary releases, rate limiting, access control, and end-to-end authentication. By abstracting these functionalities away from individual microservices, a service mesh allows developers to focus on business logic while ensuring reliable and secure inter-service communication.

References:

• Understanding Service Mesh
• Service Mesh for Microservices

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

• Create a Mule domain project.
• Add the Database connector and its configuration to the domain project.
• Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

• MuleSoft Documentation on Domain Projects
• Best Practices for Reusable Configuration in MuleSoft

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

If the size of the stream exceeds the maximum, a STREAM_MAXIMUM_SIZE_EXCEEDED error is raised.

In an HTTP/1.1-compliant web service, the class of HTTP response status codes that indicates successful client requests is the 2xx class. These status codes signify that the client's request was successfully received, understood, and accepted by the web service. Common 2xx status codes include:

• 200 OK: The request was successful.
• 201 Created: The request was successful and a new resource was created.
• 202 Accepted: The request has been accepted for processing, but the processing is not yet complete.

Other status code classes like 3xx (redirection), 4xx (client errors), and 5xx (server errors) indicate different types of responses and do not signify successful request processing.

References

• IETF RFC 2616: HTTP/1.1 Specification
• HTTP Status Code Definitions

• Digital Transformation Goals:
• CloudHub Runtimes:
• Suitability for Digital Transformation:

References:

• MuleSoft Documentation on CloudHub: CloudHub
• MuleSoft Digital Transformation Insights: MuleSoft Digital Transformation

Explanation

Correct answer is Only MuleSoft provided certificates can be used for server side certificate

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* You would need to use dedicated load balancer which can enable you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

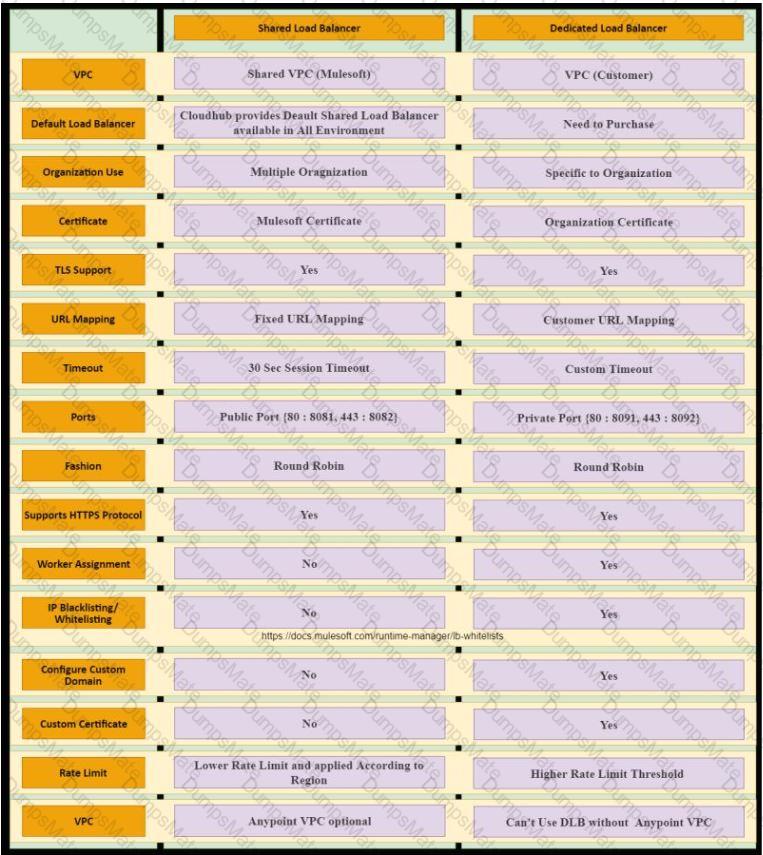

Additional Info on SLB Vs DLB:

Table Description automatically generated

Explanation

Correct answer is Federated Identity Management As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). Configure identity management using one of the following single sign-on standards: OpenID Connect: End user identity verification by an authorization server including SSO SAML 2.0: Web-based authorization including cross-domain SSO Where as Client Management is where Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications. As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

References:

• API-led Connectivity Best Practices
• API Lifecycle Management

In a hybrid, load-balanced, single cluster production environment running Mule applications in an active-active multi-node configuration, several considerations are critical for ensuring performance and reliability. The key consideration is the use of an external load balancer:

• Active-Active Multi-Node Cluster Configuration:
• External Load Balancer Requirement:
• Load Balancer Configuration:
• Mule Application Isolation:
• Handling Requests:
• Benefits:

References:

• MuleSoft Documentation on Mule Clustering
• Best Practices for Load Balancing

• Understanding the Operations:
• Parallel For-Each Scope:
• Async Scope:
• Performance Optimization:

References:

• MuleSoft Documentation on Scopes: Mule Scopes
• MuleSoft Best Practices for Performance: Performance Best Practices

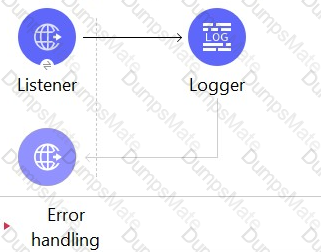

In Mule applications, different components are handled by specific thread pools to optimize performance and resource utilization.

• HTTP Listener: This component handles incoming HTTP requests and is managed by the Shared Selector Pool. The Shared Selector Pool is responsible for handling non-blocking IO operations efficiently.
• Logger: The Logger component is lightweight and does not perform CPU-intensive operations. It is managed by the CPU_LITE thread pool, which is designed for lightweight CPU operations.

This separation ensures that IO-bound operations do not block CPU-bound operations, maintaining optimal performance and responsiveness in the application.

References:

• MuleSoft Threading and Thread Pools
• MuleSoft HTTP Listener Documentation

=========================

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

Explanation

Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU Explanation : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don’t guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don’t guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU

Explanation

Correct answer is Application A accesses the persistent object store via the Object Store REST API Application B uses the Object Store connector to access a persistent object * Object Store v2 lets CloudHub applications store data and states across batch processes, Mule components and applications, from within an application or by using the Object Store REST API. * On-premise Mule applications cannot use Object Store v2. * You can select Object Store v2 as the implementation for Mule 3 and Mule 4 in CloudHub by checking the Object Store V2 checkbox in Runtime Manager at deployment time. * CloudHub Mule applications can use Object Store connector to write to the object store * The only way on-premises Mule applications can access Object Store v2 is via the Object Store REST API. * You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

SLAs and non-functional requirements to access the backend systems. Only this option actually speaks to design parameters and reqs. * Below two are technical implementations and not the part of design: - Snapshots of the Mule application’s flows, including their error handling - The credentials to access the backend systems and contact details for the administrator of each system * List of consumers is not relevant to the design

Explanation

Below Anypoint Connectors support transactions ● JMS – Publish – Consume ● VM – Publish – Consume ● Database – All operations

Explanation

* Option B shouldn't be used unless extremely needed, if RAML is changed, client needs to accommodate changes. Question is about minimizing impact on Client. So this is not a valid choice.

* Option C isn't valid as Business can't stop for consumers acknowledgment.

* Option D again needs Client to accommodate changes and isn't viable option.

* Best choice is A where RAML definition isn't changed and underlined functionality is changed without any dependency on client and without impacting client.

In the given scenario, a rate limiting policy has been applied to the SOAP API and a global error handler is configured to handle HTTP:RETRY_EXHAUSTED errors with a 429 status code. The rate limiting policy will trigger when the client exceeds the allowed quota of API calls. Since the HTTP:RETRY_EXHAUSTED error specifically catches quota exhaustion errors and the error handler is configured to return a 429 status code, the expected HTTP status returned to the client when the quota is exceeded will be 429. This error code indicates that the user has sent too many requests in a given amount of time ("rate limiting").

References:

• MuleSoft Documentation on Error Handling
• HTTP Status Codes

Explanation

Correct answer is An HTTP Load Balancer.

Key thing to note here is that we are deploying application to customer hosted Mule runtime. This means we will need load balancer to route the requests to different instances of the cluster.

Rest all options are distractors and their requirement depends on project use case.

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

In a distributed application architecture, a service mesh typically manages communication between services within the application. A service mesh provides a dedicated infrastructure layer that handles service-to-service communication, including service discovery, load balancing, failure recovery, metrics, and monitoring. This allows developers to offload these operational concerns from individual services, ensuring consistent and reliable inter-service communication.

References:

• Understanding Service Mesh
• Service Mesh for Microservices

Explanation

Anypoint Platform provides a scripting and command-line tool for both Anypoint Platform and Anypoint Platform Private Cloud Edition (Anypoint Platform PCE). The command-line interface (CLI) supports both the interactive shell and standard CLI modes and works with: Anypoint Exchange Access management Anypoint Runtime Manager

Explanation

Correct answer is Client Management

* Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications.

* As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy.

* You can configure more than one client provider and associate the client providers with different environments. If you configure multiple client providers after you have already created environments, you can associate the new client providers with the environment.

* You should review the existing client configuration before reassigning client providers to avoid any downtime with existing assets or APIs.

* When you delete a client provider from your master organization, the client provider is no longer available in environments that used it.

* Also, assets or APIs that used the client provider can no longer authorize users who want to access them.

-------------------------------------------------------------------------------------------------------------MuleSoft Reference: https://docs.mulesoft.com/access-management/managing-api-clients

https://www.folkstalk.com/2019/11/mulesoft-integration-and-platform.html

To enable the API to securely connect from its CloudHub 2.0 private space to both the on-premises mainframe application and the Kafka cluster in an Amazon AWS VPC, the following approach is recommended:

• AWS Transit Gateway: In the AWS account, attach the CloudHub 2.0 private space to an AWS Transit Gateway. This gateway facilitates routing between the CloudHub private space and the on-premises data center.
• Routing to On-Premises: The AWS Transit Gateway will route traffic from the CloudHub 2.0 private space to the on-premises data center, enabling secure and efficient communication.
• Anypoint VPN: In MuleSoft Runtime Manager, configure an Anypoint VPN to establish a secure connection from the CloudHub 2.0 private space to the AWS VPC where the Kafka cluster is hosted. This VPN ensures encrypted and secure communication between CloudHub and AWS VPC.

This method uses both AWS Transit Gateway and Anypoint VPN to create a secure and efficient network setup, allowing the API to connect to both on-premises and AWS resources.

References:

• AWS Transit Gateway Documentation
• Anypoint VPN Configuration

Explanation

Correct answer is When a Mule runtime on a given customer-hosted server is experiencing high memory consumption during certain periods Using Anypoint Monitoring, you can configure two different types of alerts: Basic alerts for servers and Mule apps Limit per organization: Up to 50 basic alerts for users who do not have a Titanium subscription to Anypoint Platform You can set up basic alerts to trigger email notifications when a metric you are measuring passes a specified threshold. You can create basic alerts for the following metrics for servers or Mule apps: For on-premises servers and CloudHub apps: * CPU utilization * Memory utilization * Thread count Advanced alerts for graphs in custom dashboards in Anypoint Monitoring. You must have a Titanium subscription to use this feature. Limit per organization: Up to 20 advanced alerts

Explanation

Correct approach is to use Mixed configuration of asynchronous or synchronous loggers shoud be used to log exceptions via synchronous way Asynchronous logging poses a performance-reliability trade-off. You may lose some messages if Mule crashes before the logging buffers flush to the disk. In this case, consider that you can have a mixed configuration of asynchronous or synchronous loggers in your app. Best practice is to use asynchronous logging over synchronous with a minimum logging level of WARN for a production application. In some cases, enable INFO logging level when you need to confirm events such as successful policy installation or to perform troubleshooting. Configure your logging strategy by editing your application’s src/main/resources/log4j2.xml file

Explanation

Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.

A MuleSoft developer should use API Designer to create an API specification prior to building the API implementation. API Designer is a component of Anypoint Platform that provides a web-based interface for designing and documenting APIs. It supports API modeling languages such as RAML and OAS, enabling developers to define the structure, resources, and operations of an API before proceeding with implementation. This approach aligns with the design-first methodology, ensuring a well-defined contract for the API.

References:

• Anypoint API Designer
• API Design Best Practices

The most performant way to handle intermittent network issues with vendor applications and ensure successful transaction reprocessing is to use a combination of the Scatter-Gather scope and the Until-Successful scope. Here’s how it works:

• Scatter-Gather Scope: This scope allows you to send requests to multiple endpoints (in this case, the two vendor applications) simultaneously. This ensures that both vendors are queried at the same time, reducing overall processing time.
• Until-Successful Scope: This scope is used to implement a retry mechanism. By wrapping each route to the vendor applications with an Until-Successful scope, the flow can automatically retry the request if a timeout error occurs. This scope retries the request until it succeeds or until a specified number of retries is reached.

Implementation Steps:

• Configure a Scatter-Gather scope in your Mule application.
• Inside each route of the Scatter-Gather scope, place an Until-Successful scope.
• Configure the Until-Successful scope with appropriate retry policies, such as retry count and delay between retries.
• Inside the Until-Successful scope, configure the HTTP request to the vendor application.

This approach ensures that:

• Both vendor applications are queried in parallel.
• Each request is retried upon timeout errors, ensuring eventual success without manual intervention.

References:

• MuleSoft Documentation: Scatter-Gather
• MuleSoft Documentation: Until-Successful Scope

Anypoint MQ is a cloud-based messaging service provided by MuleSoft. It is designed to work within MuleSoft's cloud ecosystem, which can impose certain limitations that might prevent its use in some scenarios:

• Message Broker Must Be Hosted On-Premises:
• Ability for a Third Party Outside the Company's Network to Consume Events from the Queue:

References

• MuleSoft Documentation: Anypoint MQ
• MuleSoft Anypoint MQ Overview

An Enterprise Architect would use a single enterprise-wide canonical data model (CDM) when designing an integration solution to achieve the following benefits:

• Reduced Dependencies: By standardizing on a single data model, it simplifies the integration process between multiple systems that may use different data formats. This eliminates the need for numerous point-to-point transformations.
• Consistency and Reusability: A CDM ensures consistent data representation across the enterprise, which promotes data integrity and reusability of integration components.
• Simplified Maintenance: Having a single data model reduces the complexity of maintaining and updating integration solutions, as changes need to be made in only one place.

The CDM acts as an abstraction layer that decouples systems, facilitating easier integration and reducing the potential for errors.

References

• MuleSoft Documentation on Canonical Data Models
• Best Practices for Data Integration with MuleSoft

Explanation

Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application"

Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user’s request, and not with the server.

Such cases usually arise when a user’s access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public’s view.

In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user — either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are

400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT —> MuleSoft API - HTTP request “Hey, API.. process this” —> External API API CLIENT <– MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <– (4XX) External API

Explanation

As the question says that data needs to be sent across multiple sftp serves , we cannot use non-repeatable streams. The non-repeatable strategy disables repeatable streams, which enables you to read an input stream only once.

You cant use in memory storage because with 0.2 vcore you will get only 1 GB of heap memory. Hence application will error out for file more than 1 GB.

Hence the correct option is file base repeatable stream

A canonical data model is used in integration projects to provide a standard way of representing data across different systems and applications. The two main reasons for using a canonical data model are:

A. To have a consistent data structure aligned in processes: By using a canonical data model, you ensure that data is represented uniformly across all processes and systems. This consistency simplifies data integration, reduces transformation logic, and minimizes errors.

E. Because the model isolates the back-end systems and supports Mule applications from change: A canonical data model abstracts the underlying data structures of the back-end systems. This isolation means that changes in the back-end systems do not directly affect the Mule applications. The applications interact with the canonical model, and any required transformations are handled centrally, making the system more adaptable to changes.

Implementation Steps:

• Design the Canonical Data Model:
• Implement Data Transformation Logic:
• Integrate with Mule Applications:

Using a canonical data model improves data consistency and system flexibility, making it a valuable approach in integration projects.

References:

• MuleSoft Documentation: DataWeave
• MuleSoft Documentation: Integration Best Practices

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

Explanation

Correct answer is Anypoint Runtime Manager

MuleSoft Anypoint Runtime Manager (ARM) provides connectivity to Mule Runtime engines deployed across your organization to provide centralized management, monitoring and analytics reporting. However, most enterprise customers find it necessary for these on-premises runtimes to integrate with their existing non MuleSoft analytics / monitoring systems such as Splunk and ELK to support a single pane of glass view across the infrastructure.

* You can configure the Runtime Manager agent to export data to external analytics tools.

Using either the Runtime Manager cloud console or Anypoint Platform Private Cloud Edition, you can:

--> Send Mule event notifications, including flow executions and exceptions, to Splunk or ELK.

--> Send API Analytics to Splunk or ELK. Sending data to third-party tools is not supported for applications deployed on CloudHub.

You can use the CloudHub custom log appender to integrate with your logging system. Reference: https://docs.mulesoft.com/runtime-manager/ https://docs.mulesoft.com/release-notes/runtime-manager-agent/runtime-manager-agent-release-notes

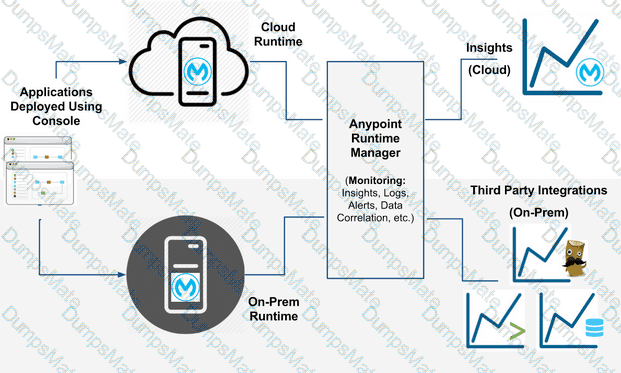

Diagram Description automatically generated

Additional Info:

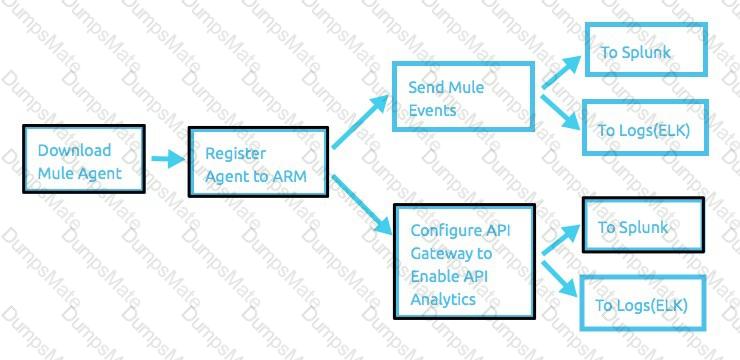

It can be achieved in 3 steps:

1) register an agent to a runtime manager,

2) configure a gateway to enable API analytics to be sent to non MuleSoft analytics platform (Splunk for ex.) – as highlighted in the following diagram and

3) setup dashboards.

Diagram Description automatically generated

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender
