MCD-Level-1 MuleSoft Certified Developer - Level 1 (Mule 4) Questions and Answers

Choice router finds the FIRST true condition, then distribute the event to the ONE matched route.

MuleSoft Doc Ref : https://docs.mulesoft.com/mule-runtime/4.1/choice-router-concept

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route’s execution and the others are not checked. If none of the expressions are true, then the default route executes.

Diagram Description automatically generated

Lets revise few concepts RAML which can help us to find the answer of this question.

URI Parameters

Lets have a look at below example.

• /foos:
• /{id}:
• /name/{name}:

Here, the braces { } around property names define URI parameters. They represent placeholders in each URI and do not reference root-level RAML file properties as we saw above in the baseUri declaration. The added lines represent the resources /foos/{id} and /foos/name/{name}.

Query Parameters

Now we'll define a way to query the foos collection using query parameters. Note that query parameters are defined using the same syntax that we used above for data types:

• /foos:
• get:
• description: List all Foos matching query criteria, if provided;
• otherwise list all Foos
• queryParameters:
• name?: string
• ownerName?: string

Based on the above information , below is the only option which defines storeid as uri parameter and department as query parameter.

• /{storeId}:
• get:
• queryParameter:
• department:

PUT replaces the original version of the resource, whereas the PATCH method supplies a set of instructions to modify the resource

Correct answer is MAJOR

MAJOR version when you make incompatible API changes, MINOR version when you add functionality in a backwards compatible manner, and PATCH version when you make backwards compatible bug fixes.

For details refer to this documentation : https://semver.org/

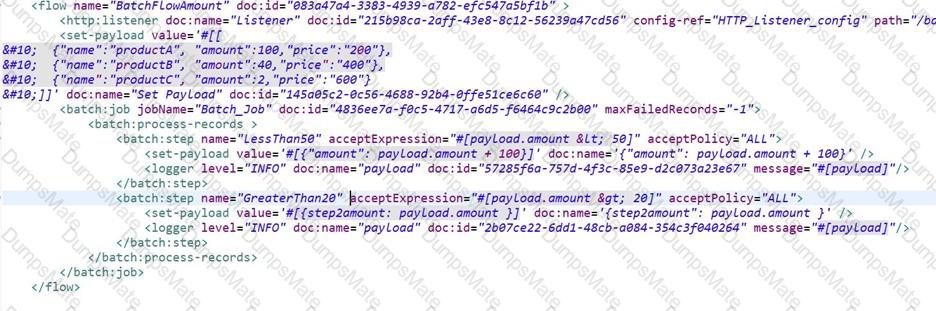

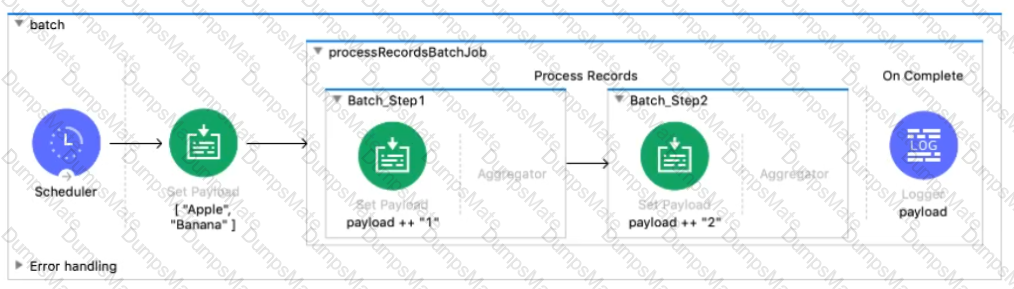

This is a trcik question. On complete phase pyalod consists of summary of records processed which gives insight on which records failed or passed. Hence option 4 is correct answer

MuleSoft Documentation Reference : https://docs.mulesoft.com/mule-runtime/4.3/batch-processing-concept#on-complete

Correct answer is Subflow has no error handling implementation where as sync flow has.

Subflow

A subflow processes messages synchronously (relative to the flow that triggered its execution) and always inherits both the processing strategy and exception strategy employed by the triggering flow. While a subflow is running, processing on the triggering flow pauses, then resumes only after the subflow completes its processing and hands the message back to the triggering flow.

Synchronous Flow

A synchronous flow, like a subflow, processes messages synchronously (relative to the flow that triggered its execution). While a synchronous flow is running, processing on the triggering flow pauses, then resumes only after the synchronous flow completes its processing and hands the message back to the triggering flow. However, unlike a subflow, this type of flow does not inherit processing or exception strategies from the triggering flow.

This type of flow processes messages along a single thread, which is ideally suited to transactional processing

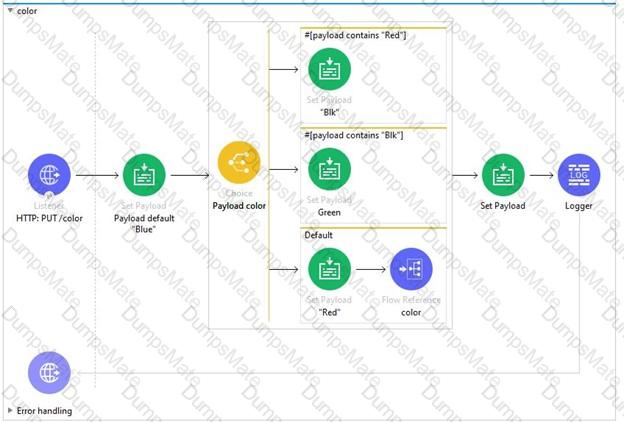

Sequence can be described as follows.

* When web client sends the request , it sends payload as Blue (mentioned in question)

* In first iteration this will go to default choice , which sets payload to Red

* Via default route , flow will call itself with payload as Red

* In second iteration , as payload is Red , it will go to first route in choice router which will set payload to Blk and second iteration will end returning back payload as Blk to first iteration.

* This Blk will be again set to payload and first iteration will end returning back response as Blk

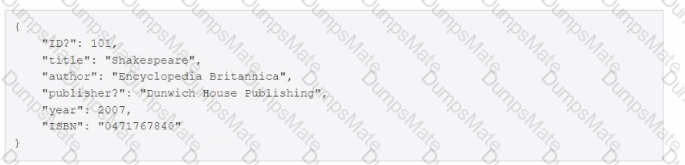

To include property. To keep the API definition concise, you can include external content, such as documentation, schemas, and frequently used patterns outside the definition itself. The parser interprets !include as if the content of the externally-hosted file or a URL were declared in-line.

To use the fragments in RAML you have to include the exact path(copy the path) of that fragment you want to use as shown below

Option 3 is the correct as correct syntax is

examples: !include examples/StudentExample.raml

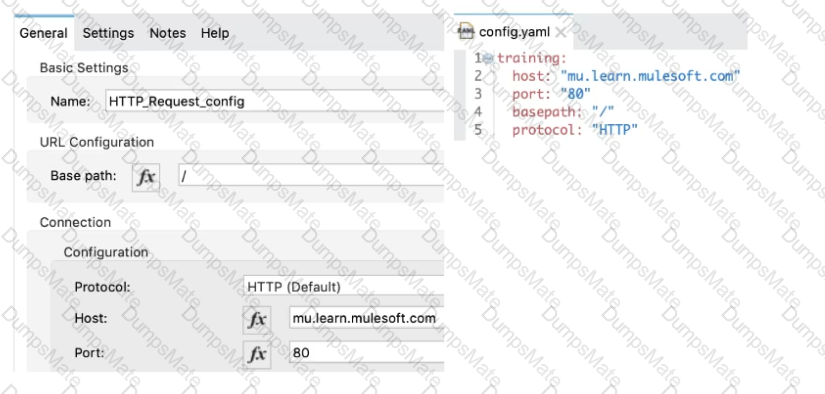

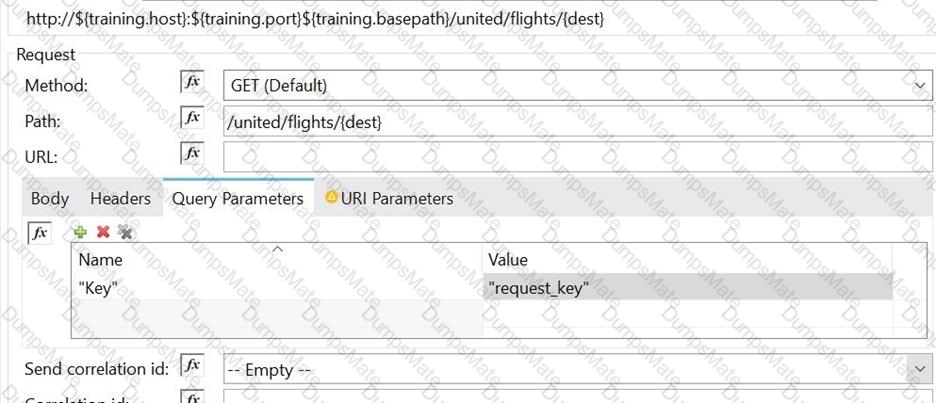

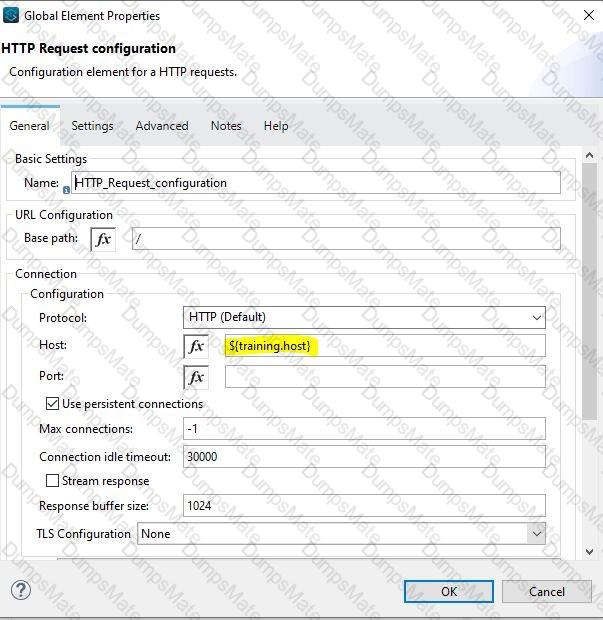

Correct answer is ${training.host}

--------------------------------------------------------------------------------------------------------------------------------------------------

How to Configure Properties to Mule 4.X Platform?

1) Go to /src/main/resources project directory.

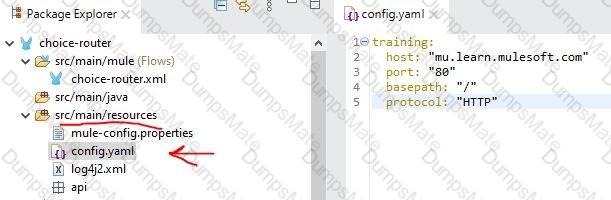

2) Create a configuration file with the name configuration.yaml inside the newly created config folder.

                                          Graphical user interface, application, Word Description automatically generated

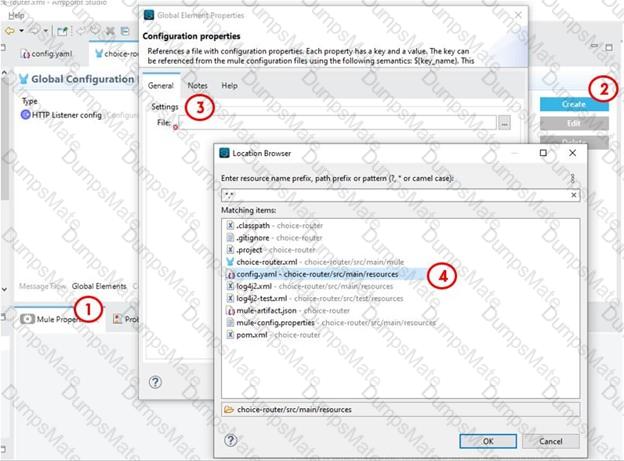

3) Go To Project > Global Element > Create > General >select the configuration.yaml file create in step- 2)

                                             Graphical user interface, application Description automatically generated

4) To verify develop a simple flow with HTTP listener which has above entries. Put the logger that prints the values on console.

                                              Graphical user interface, application Description automatically generated

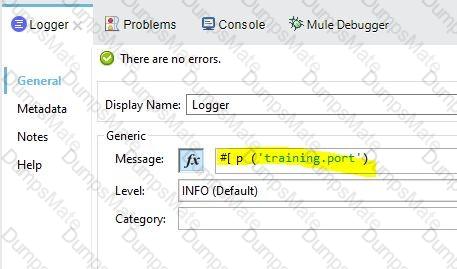

5) Additional info: Similarly, when you want to access this port in DataWeave you need to use p function

                                             Graphical user interface, text, application, email Description automatically generated

Correct answer is 0.1 vCores

MuleSoft Doc Ref : https://docs.mulesoft.com/runtime-manager/cloudhub-architecture#cloudhub-workers

CloudHub Workers

Workers are dedicated instances of Mule runtime engine that run your integration applications on CloudHub. The memory capacity and processing power of a worker depends on how you configure it at the application level.

Worker sizes have different compute, memory, and storage capacities. You can scale workers vertically by selecting one of the available worker sizes:

Table Description automatically generated

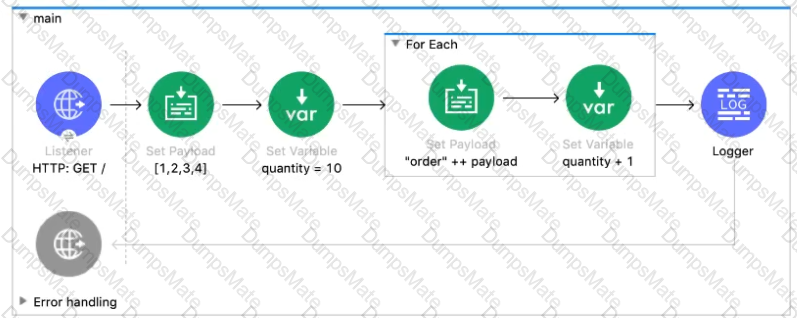

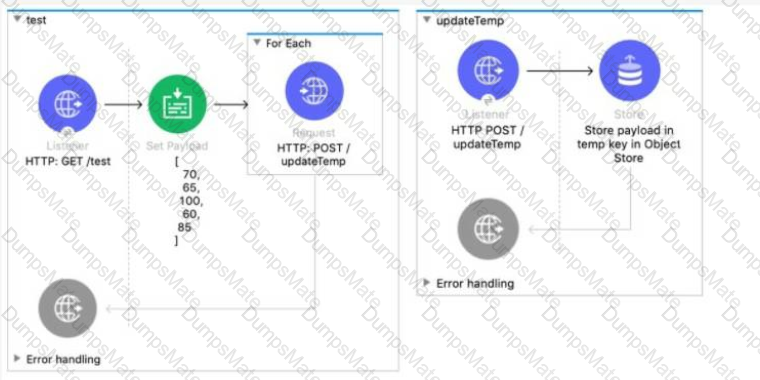

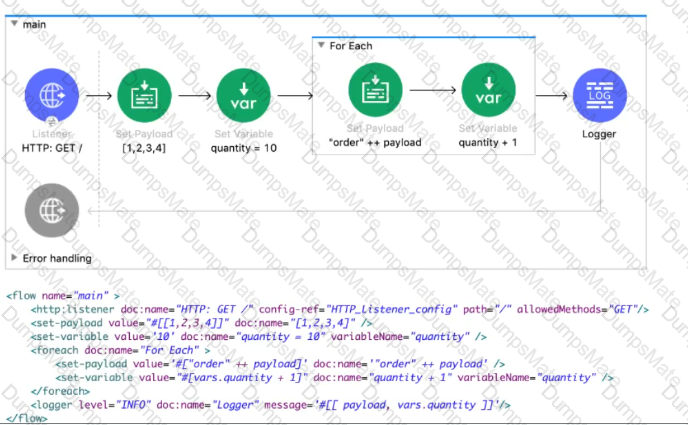

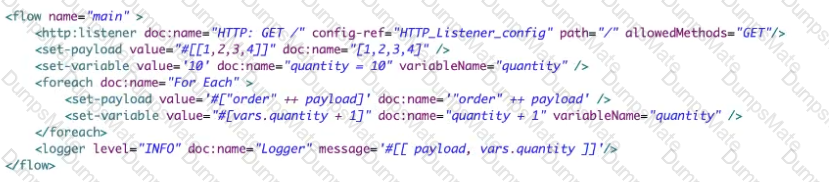

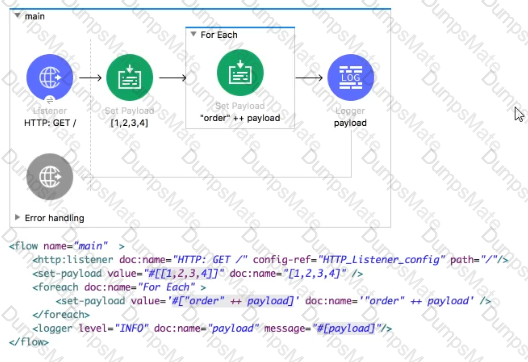

For Each Scope

The For Each scope splits a payload into elements and processes them one by one through the components that you place in the scope. It is similar to a for-each/for loop code block in most programming languages and can process any collection, including lists and arrays. The collection can be any supported content type, such as application/json, application/java, or application/xml.

General considerations about the For Each scope:

By default, For Each tries to split the payload. If the payload is a simple Java collection, the For Each scope can split it without any configuration. The payload inside the For Each scope is each of the split elements. Attributes within the original message are ignored because they are related to the entire message.

For Each does not modify the current payload. The output payload is the same as the input.

Mule Doc Reference : https://docs.mulesoft.com/mule-runtime/4.3/for-each-scope-concept

Core (dw::Core) This module contains core DataWeave functions for data transformations. It is automatically imported into any DataWeave script.

Option 1 is the correct syntax

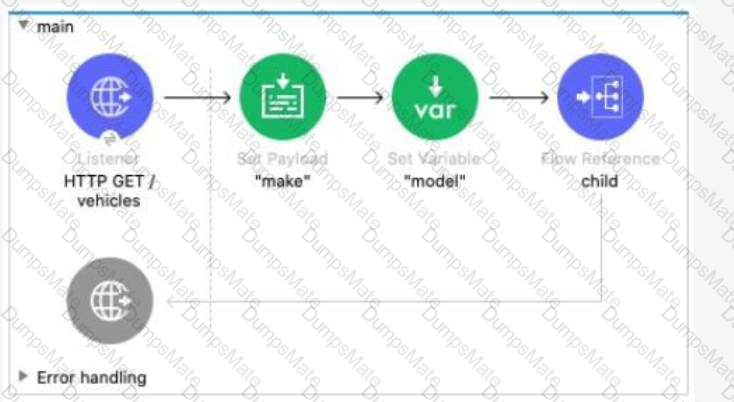

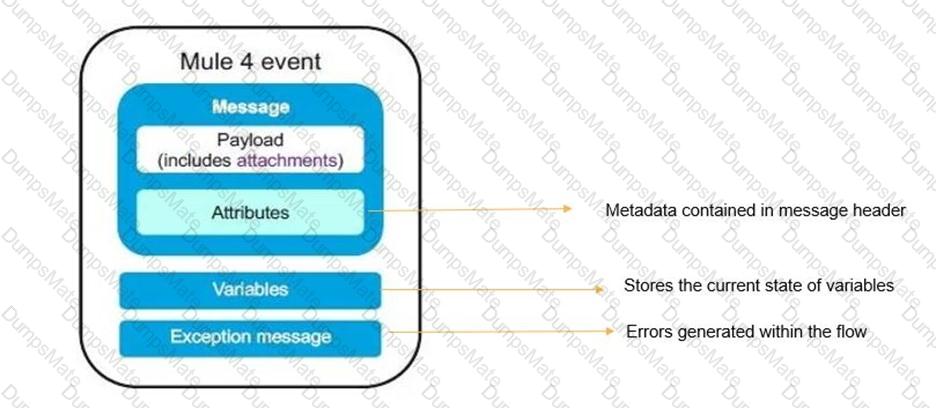

Mule event is correct answer. Mule event has two parts which are as follows

1) Message (which contains payload and attributes like headers and query/uri parameters

2) Variables

Diagram Description automatically generated

Correct answer is Mule runtime

DataWeave is the MuleSoft expression language for accessing and transforming data that travels through a Mule app. DataWeave is tightly integrated with the Mule runtime engine, which runs the scripts and expressions in your Mule app.

Mule Doc Reference : https://docs.mulesoft.com/mule-runtime/4.3/dataweave

Correct answer is Modify the API implementation to use auto-discovery to register with API Manager

API Autodiscovery

Configuring autodiscovery allows a deployed Mule runtime engine (Mule) application to connect with API Manager to download and manage policies and to generate analytics data. Additionally, with autodiscovery, you can configure your Mule applications to act as their own API proxy.

When autodiscovery is correctly configured in your Mule application, you can say that your application’s API is tracked by (green dot) or paired to API Manager. You can associate an API in a Mule setup with only one autodiscovery instance at a given time.

MuleSoft Doc Ref : https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-concept

* When a client application is registered in Anypoint Platform, a pair of credentials consisting of a client ID and client secret is generated.

* When the client application requests access to an API, a contract is created between the application and that API.

* An API that is protected with a Client ID Enforcement policy is accessible only to applications that have an approved contract.

---------------------------------------------------------------------------------------------------------------------------------------------

Correct Answer: In the organization's public API portal in Anypoint Exchange, from an approved client application for the API proxy

The First Successful router iterates through a list of configured processing routes until one of the routes executes successfully. This is sequential execution. In all other options mentioned in the question ,we can achieve parallel execution.

Metadata is stored in application-types.xml flle located under src/main/resources.

Mule 4 applications contain an application-types.xml file, which is where metadata around your data types is stored. For example, if you create a new CSV type, that metadata will be added to this file. This new file is easy to share, commit, and merge when conflicts arise, which enables you to do more metadata-driven development.

MuleSoft Doc Ref : https://docs.mulesoft.com/mule-runtime/4.3/intro-studio#metadata-storage

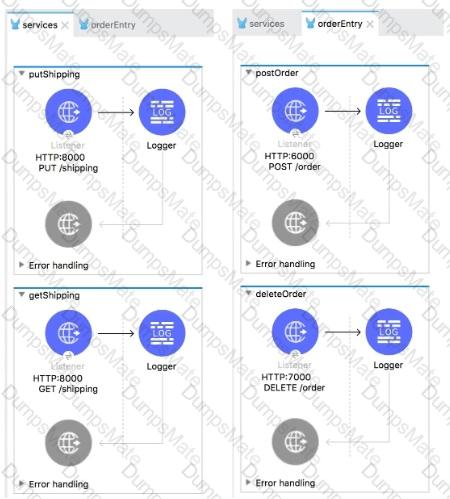

In this case three configurations will be required each for port 8000, 6000 and 7000.

There would be three global elements defined for HTTP connections.

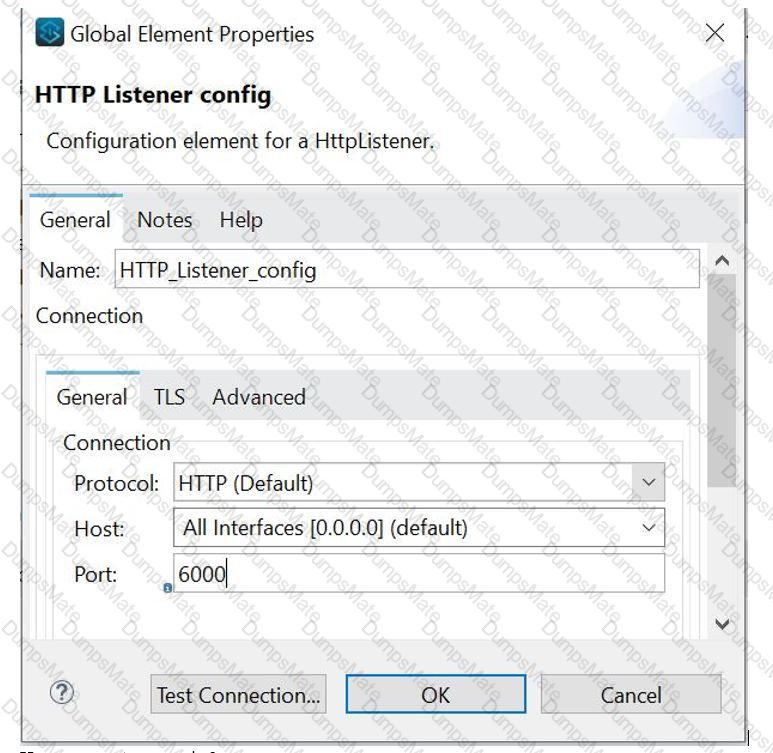

Each HTTP connection will have host and port. One example shown below with host as localhost and port 6000

Graphical user interface, application Description automatically generated

To use an HTTP listener, you need to declare a configuration with a corresponding connection. This declaration establishes the HTTP server that will listen to requests.

Additionally, you can configure a base path that applies to all listeners using the configuration.

https://docs.mulesoft.com/http-connector/1.6/http-listener-ref#http-listener-configuration

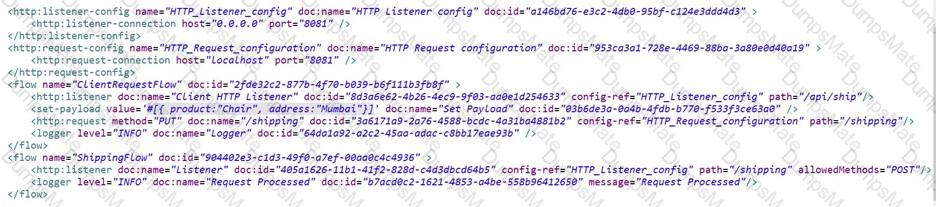

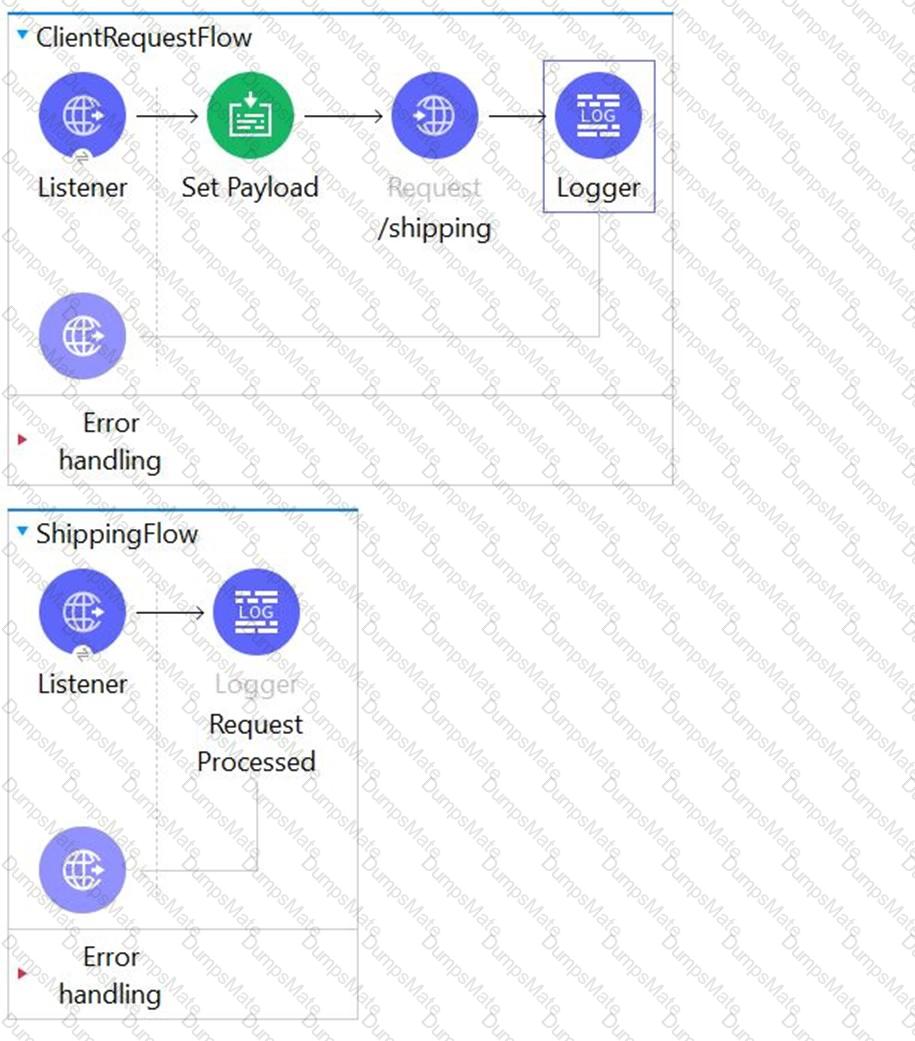

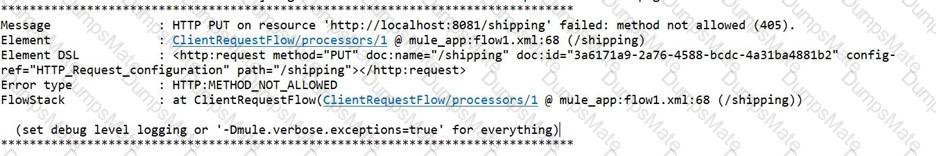

Correct answer is Change the method attributes value to "POST".

It can be fixed in either of the two ways as below.

1) Changing method attribute to POST in ClientRequestFlow

2) Setting allowedMethods as PUT in ShippingFlow (but doesn't fit as question mentions about changing ClientRequestFlow)

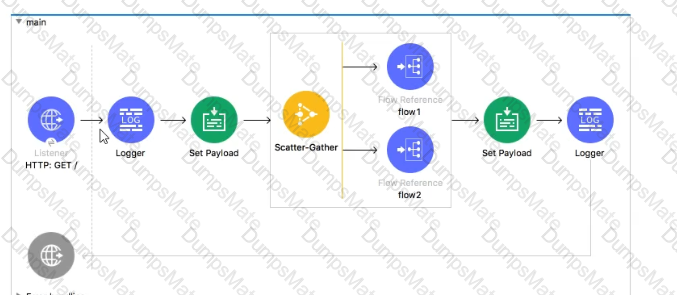

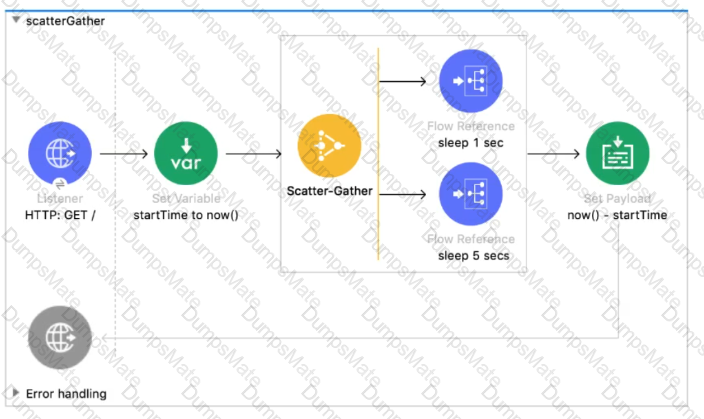

Entire event would be sent to each route in parallel.

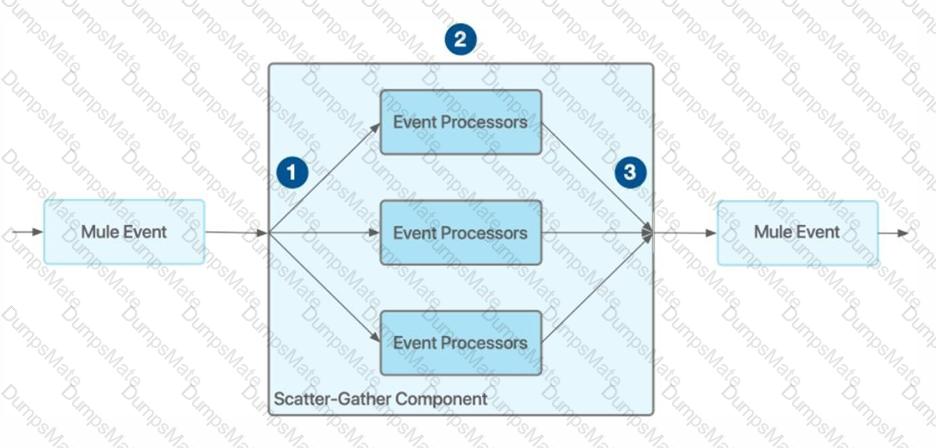

Scatter-Gather works as follows :

- The Scatter-Gather component receives a Mule event and sends a reference of this Mule event to each processing route.

- Each of the processing routes starts executing in parallel. After all processors inside a route finish processing, the route returns a Mule event, which can be either the same Mule event without modifications or a new Mule event created by the processors in the route as a result of the modifications applied.

- After all processing routes have finished execution, the Scatter-Gather component creates a new Mule event that combines all resulting Mule events from each route, and then passes the new Mule event to the next component in the flow.

Diagram Description automatically generated
