JN0-280 Data Center, Associate (JNCIA-DC) Questions and Answers

MACsec (Media Access Control Security)provides data confidentiality, integrity, and origin authenticity at Layer 2, protecting against several types of threats.

Step-by-Step Breakdown:

Man-in-the-Middle Attack Protection:MACsec encrypts traffic at Layer 2, preventingman-in-the-middle attackswhere an attacker intercepts and manipulates traffic between two communicating devices. Since the data is encrypted, any intercepted packets are unreadable.

Protection Against Playback Attacks:MACsec also protects againstplayback attacksby using sequence numbers and timestamps to ensure that old, replayed packets are not accepted by the receiver.

Juniper Reference:

MACsec Configuration: Juniper devices support MACsec for securing Layer 2 communications, ensuring protection against replay and man-in-the-middle attacks in sensitive environments.

In athree-stage IP fabric(also known as a Clos fabric), traffic between any two points (ingress to egress) in the fabric isonly two hops away.

Step-by-Step Breakdown:

Three-Stage IP Fabric:

Leaf Layer: Leaf switches connect directly to servers and edge devices.

Spine Layer: Spine switches provide connectivity between leaf switches but do not connect to each other directly.

Two-Hop Communication:In this architecture, every leaf switch is connected to every spine switch. Therefore, when a packet enters the fabric via an ingress leaf switch, it is forwarded to a spine switch, which then directs the packet to the correct egress leaf switch. This path always involves exactly two hops:

Ingress leaf → Spine → Egress leaf.

Benefits:This consistent two-hop path ensures predictable latency and makes the network highly scalable while maintaining low complexity.

Juniper Reference:

IP Fabric Architecture: This two-hop property of Clos fabrics is a hallmark of spine-leaf designs, as supported by Juniper's QFX and EX switches in data centers.

In the exhibit, we see a static route configuration with two possible next hops for the default route (0.0.0.0/0):

next-hop 172.25.20.254with the default preference of 7.

qualified-next-hop 172.25.20.200with a preference of 6.

Step-by-Step Breakdown:

Preference Value:In Junos OS, thepreferencevalue is used to determine which route should be preferred in the routing table. The lower the preference value, the higher the priority for the route.

Comparison:In this case:

The next hop172.25.20.254has a preference of7.

Thequalified-next-hop 172.25.20.200has a preference of6.

Preferred Next Hop:Since172.25.20.200has a lower preference (6) compared to172.25.20.254(7), it will be the preferred next hop in the routing table, assuming both next hops are reachable.

Juniper Reference:

Qualified Next Hop: In Junos, static routes with multiple next-hop options are selected based on thepreference value, with the lower value being preferred.

InIBGP (Internal Border Gateway Protocol), all routers within the same AS (Autonomous System) must have a logical full-mesh topology. This means that every IBGP router must be able to communicate with every other IBGP router directly or indirectly to ensure proper route propagation.

Step-by-Step Breakdown:

Logical Full Mesh:

In an IBGP setup, routers do not re-advertise routes learned from one IBGP peer to another IBGP peer. This rule is in place to prevent routing loops within the AS.

To ensure full route propagation, alogical full meshis required, meaning every IBGP router must peer with every other IBGP router in the AS. This can be done either directly or via route reflection or confederation.

Physical Full Mesh Not Required:The physical topology does not need to be a full mesh, but the BGP peering relationships must form a logical full mesh. Techniques like route reflectors or BGP confederations can reduce the need for manual full-mesh peering.

Juniper Reference:

IBGP Configuration: IBGP logical full mesh requirements can be simplified usingroute reflectorsto avoid the complexity of manually configuring many IBGP peers.

Acollision domainis a network segment where data packets can "collide" with one another when being sent on the same network medium.

Step-by-Step Breakdown:

Increased Collision Probability:If all devices are in asingle collision domain, the likelihood of packet collisions increases as more devices attempt to send packets simultaneously, leading to network inefficiencies.

Increased Resource Consumption:More collisions result inincreased network resource consumptionas devices need to retransmit packets, causing higher utilization of bandwidth and slowing down network performance.

Juniper Reference:

Collision Domains: Proper network segmentation using switches reduces collision domains, thereby improving network performance and reducing packet collisions.

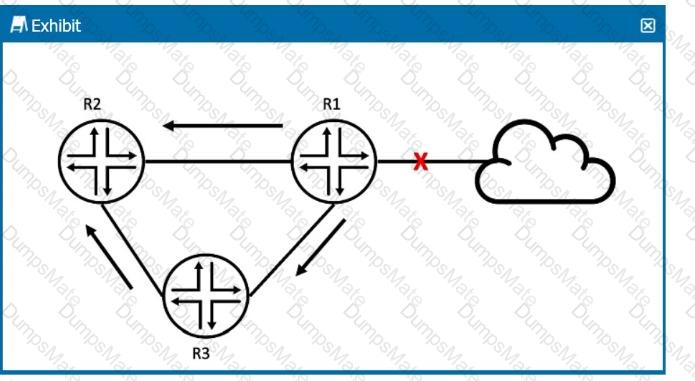

In the exhibit, R2 receives the same OSPF update from both R1 and R3. OSPF has mechanisms toprevent unnecessary processing of duplicate LSAs (Link-State Advertisements).

Step-by-Step Breakdown:

OSPF LSA Processing:

OSPF uses LSAs to exchange link-state information between routers. When a router receives an LSA, it checks if it already has a copy of the LSA in its Link-State Database (LSDB).

Duplicate LSAs:If R2 has already received and processed the update from R1, it willignore the update from R3because it already has the same LSA in its database. OSPF uses the concept of flooding, but it does not reprocess LSAs that it already knows about.

R2 Behavior:R2 will keep the update from R1 (the first one it received) and will ignore the same LSA from R3, as it is already in the LSDB.

Juniper Reference:

OSPF LSA Processing: Junos adheres to OSPF standards, ensuring that duplicate LSAs are not processed multiple times to avoid unnecessary recalculations.

In Junos OS, routing information is stored in different routing tables depending on the protocol and address family. For IPv6 addresses, the routing table used isinet6.0.

Step-by-Step Explanation:

Routing Tables in Junos:

inet.0: This is the primary routing table for IPv4 unicast routes.

inet6.0: This is the primary routing table for IPv6 unicast routes.

inet.3: This routing table is used for MPLS-related routing.

Other routing tables, like inet.1, inet.2, are used for multicast and other specific purposes.

inet6.0 Routing Table:When IPv6 is enabled on a Juniper router, all the IPv6 routes are stored in theinet6.0table. This includes both direct routes (connected networks) and learned routes (from dynamic routing protocols like OSPFv3, BGP, etc.).

Verification:To view IPv6 routes, the command show route table inet6.0 is used. This will display the contents of the IPv6 routing table, showing the network prefixes, next-hop addresses, and protocol information for each route.

Juniper Reference:

Junos Command: Use show route table inet6.0 to check IPv6 routing entries.

IPv6 Routing: Ensure that the IPv6 protocol is enabled on interfaces and that routingprotocols like OSPFv3 or BGP are properly configured for IPv6 traffic handling.

EVPN (Ethernet Virtual Private Network)is a standard protocol used for building Layer 2 and Layer 3 VPNs over an IP or MPLS network. Thesignaling protocolused for EVPN isBGP(Border Gateway Protocol).

Step-by-Step Breakdown:

BGP as the EVPN Signaling Protocol:EVPN uses BGP to exchange MAC address reachability information between routers (PE devices). This enables devices to learn which MAC addresses are reachable through which PE devices, facilitating Layer 2 forwarding across an IP or MPLS core.

BGP Extensions for EVPN:BGP is extended with new address families (e.g., EVPN NLRI) to carry both MAC and IP address information, allowing for scalable and efficient multi-tenant network solutions.

Juniper Reference:

Junos EVPN Configuration: Juniper uses BGP as the control plane for EVPN to exchange MAC and IP route information between different data center devices.

In Junos OS,direct routesare the most preferred routes in the routing table, having the highest priority.

Step-by-Step Breakdown:

Direct Routes:

Direct routes represent networks that are directly connected to the router's interfaces. Since these routes are directly accessible, they are assigned the highest priority and always take precedence over other types of routes.

Preference Values:

Direct routes have apreference of 0, which is the most preferred in Junos. Static routes, OSPF routes, and BGP routes have higher preference values and will only be used if there are no direct routes to the destination.

Juniper Reference:

Direct Route Preference: In Junos,direct routesare always preferred over other routes, ensuring that the router forwards traffic through locally connected networks.

BGP (Border Gateway Protocol)has specific rules for route advertisement between peers.

Step-by-Step Breakdown:

EBGP to IBGP Route Propagation:

BGP peers advertise routes learned fromEBGP peerstoIBGP peerswithin the same AS. This ensures that routes learned from external networks are propagated internally within the AS.

IBGP to EBGP Route Propagation:

Routes learned fromIBGP peerscan be advertised toEBGP peers, but when advertising these routes, the router uses its own IP address as thenext hop.

IBGP Split Horizon:

By default, IBGP peers do not advertise routes learned from one IBGP peer to another IBGP peer. This rule (IBGP split horizon) prevents routing loops within an AS.

Juniper Reference:

BGP Advertisement Rules: Junos adheres to BGP standards, where IBGP peers do not propagate routes to other IBGP peers, but EBGP peers receive IBGP routes with the advertising router as the next hop.

IBGP (Internal Border Gateway Protocol)is used to exchange routing information betweenrouters within the same AS (Autonomous System).

Step-by-Step Breakdown:

TTL of 255:

By default, IBGP sessions are established with aTTL (Time to Live)value of255. This allows IBGP neighbors to communicate over multiple hops within the AS without requiring any additional configuration.

Full Mesh Requirement:

IBGP requires alogical full meshbetween all IBGP routers to ensure that routing information is fully distributed within the AS. Since IBGP does not propagate routes learned from one IBGP peer to another by default, a full mesh topology is needed unlessroute reflectorsorBGP confederationsare used.

Juniper Reference:

IBGP Full Mesh: Juniper recommends using route reflectors in large networks to simplify IBGP full-mesh requirements.

In Junos OS, thequalified-next-hopfeature is used to specify an alternate next hop for a static route, along with a unique preference value.

Step-by-Step Breakdown:

Qualified-Next-Hop:Aqualified-next-hopallows you to define multiple next hops for a static route, each with its own preference. This provides flexibility by allowing the router to choose the best available next hop based on reachability and preference.

Use Case:If the primary next hop becomes unreachable, the router can automatically switch to the alternate next hop defined by thequalified-next-hopwith a higher preference value.

Command Example:

set routing-options static route 10.10.10.0/24 qualified-next-hop 192.168.1.1 preference 5

set routing-options static route 10.10.10.0/24 qualified-next-hop 192.168.1.2 preference 10

Preference:The next hop with the lowest preference is chosen first. If it becomes unavailable, the router will use the higher preference next hop.

Juniper Reference:

Qualified-Next-Hop: This feature is used to configure backup or alternate next hops for static routes in Juniper devices.

InOSPF (Open Shortest Path First), areas are used to segment a network into smaller, more manageable pieces to improve scalability. By dividing a network into areas, OSPF can reduce the size of thelink-state database (LSDB), which helps routers process updates more efficiently.

Step-by-Step Breakdown:

Purpose of OSPF Areas:OSPF areas allow for hierarchical routing within the OSPF domain. Routers in the same area have identical LSDBs, but routers in different areas do not exchange full link-state information. Instead, they exchange summarized routes, which reduces the LSDB size and CPU/memory usage.

Benefits:Reducing the LSDB size improves scalability and ensures faster convergence in larger networks. Area 0 is the backbone area, and all other areas must connect to it, forming a hierarchical structure.

Juniper Reference:

OSPF Configuration: Areas in OSPF are configured to optimize network performance by limiting the scope of link-state advertisements (LSAs) to within an area.

In Junos, thedefault export policyforOSPFis toreject all routesfrom being exported.

Step-by-Step Breakdown:

Default Export Policy:By default,OSPFin Junos does not export any routes to other routing protocols or neighbors. This is a safety mechanism to prevent unintended route advertisements.

Custom Export Policies:

If you need to export routes, you must create a customexport policythat explicitly defines which routes to advertise.

Example: You can create an export policy to redistribute static or connected routes into OSPF.

Juniper Reference:

OSPF Export Behavior: In Juniper devices, the default policy for OSPF is to reject route advertisements unless explicitly configured otherwise through custom policies.

Per-flow load balancingensures that packets within the same flow are always forwarded over the same path, ensuring that packet order is preserved.

Step-by-Step Breakdown:

Flow Definition:A flow is typically defined by a combination of packet attributes like source/destination IP, source/destination port, and protocol type. Packets that belong to the same flow are routed over the same path to avoid reordering.

Per-Flow Behavior:Inper-flow load balancing, the hashing algorithm ensures that all packets in a particular flow use thesame egress port, maintaining order across the network.

Juniper Reference:

Load Balancing in Juniper: This method ensures that flows are balanced across multiple paths while preventing packet reordering within a single flow.

Graceful Restart (GR)is a feature that allows a router to maintain forwarding even when the routing process (e.g., the rpd process in Junos) is restarting, minimizing disruption to the network.

Step-by-Step Breakdown:

Graceful Restart Function:During aGR event, the forwarding plane continues to forward packets based on existing routes, while the control plane (rpd process) is restarting. This prevents traffic loss and maintains routing stability.

Minimizing Disruptions:GR is particularly useful in ensuring continuous packet forwarding during software upgrades or routing protocol process restarts.

Juniper Reference:

Graceful Restart in Junos: GR ensures high availability by maintaining forwarding continuity during control plane restarts, enhancing network reliability.
