JN0-231 Security-Associate (JNCIA-SEC) Questions and Answers

"Local Authentication—In local authentication, the SRX Series device validates the user credentials by checking them in the local database. In this method, the administrator handles change of password or resetting of forgotten password. Here, it requires that an user must remember a new password. This option is not much preferred from a security standpoint.

• External Authentication—In external authentication, you can allow the users to use the same user credentials they use when accessing other resources on the network. In many cases, user credentials are domain logon used for Active Directory or any other LDAP authorization system. This method simplifies user experience and improves the organization’s security posture; because you can maintain the authorization system with the regular security policy used by your organization."

https://www.juniper.net/documentation/us/en/software/secure-connect/secure-connect-administrator-guide/topics/topic-map/secure-connect-getting-started.html

Web filtering is a feature that allows administrators to control access to websites by categorizing URLs into different categories such as gambling, social networking, or adult content. The decision to permit or deny access to a website is based on the category to which a URL belongs. This is done by comparing the URL against a database of categorized websites and making a decision based on the policy defined by the administrator.

Junos-host and null are two non-configurable zones that exist by default on an SRX Series device. Junos-host is the default zone for all internal interfaces and services, such as management and other loopback interfaces. The null zone is used to accept all traffic that is not explicitly accepted by other security policies, and is the default zone for all unclassified traffic. Both zones cannot be modified or deleted.

References: https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/security-zones-overview.html https://www.juniper.net/documentation/en_US/junos/topics/reference/configuration-statement/security-zones-default-zone-configuration.html

A screen option in the SRX Series device can be used to protect clients connected to the device from a SYN flood attack. Screens are security measures that you can use to protect your network from various types of attacks, including SYN floods. A screen option specifies a set of rules to match against incoming packets, and it can take specific actions such as discarding, logging, or allowing the packets based on the rules.

The number of concurrent Secure Connect user licenses that an SRX Series device has by default is 2. Secure Connect is a feature of Juniper SRX Series devices that allows you to securely connect to remote networks via IPsec VPN tunnels. Each SRX Series device comes with two concurrent Secure Connect user licenses by default, meaning that it can support up to two simultaneous IPsec VPN connections. For more information, please refer to the Juniper Networks SRX Series Services Gateways Security Configuration Guide, which can be found on Juniper's website.

"Service objects represent applications and services that can be assigned to a security policy rule. Applications and services can either be predefined by Junos software or custom defined by the administrator."

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References:

Understanding UTM (Unified Threat Management) Features on SRX Devices:UTM is a security framework available on Juniper SRX Series devices that integrates multiple security features to protect against various threats. UTM functionalities are focused on advanced traffic inspection, content management, and threat prevention.

Explanation of Each Option:

Option A: Antivirus

UTM on SRX Series devices includes an antivirus feature that scans traffic for malware and viruses.

This feature is implemented using either:

Sophos Antivirus: A cloud-based solution.

Kaspersky Antivirus: A local database-based solution.

The antivirus feature detects and blocks malicious files, providing robust malware protection.

Correct.

Option B: NAT

Network Address Translation (NAT) is a fundamental networking feature on SRX devices but is not part of the UTM suite.

NAT is used to translate private IP addresses to public IP addresses and does not provide traffic filtering or threat management.

Incorrect.

Option C: IDP (Intrusion Detection and Prevention)

IDP is a separate feature on SRX devices for detecting and mitigating intrusions, but it is not part of the UTM framework.

IDP focuses on identifying malicious traffic patterns and blocking threats at the network level, whereas UTM focuses on content inspection and filtering.

Incorrect.

Option D: Content Filtering

Content filtering is a key UTM feature that blocks or allows traffic based on URL categories, keywords, and custom filtering rules.

This feature is used to restrict access to inappropriate or harmful websites and manage user behavior.

Correct.

UTM Features on SRX Devices Include:

Antivirus: Scans and blocks malware in real time.

Content Filtering: Manages access to websites and controls internet usage.

Web Filtering: Enforces policies on web content based on URL categories.

Spam Filtering: Blocks spam emails.

Juniper Security Reference:

Refer to the Juniper UTM Documentation for detailed configuration and feature details.

J-Web is a web-based interface for configuring and managing Juniper devices. The management and loopback address configuration option in J-Web allows you to configure the IP address of the device management port, which is used to remotely access and manage the device.

A security policy is a set of statements that controls traffic from a specified source to a specified destination using a specified service. A policy permits, denies, or tunnels specified types of traffic unidirectionally between two points.

Each policy consists of:

A unique name for the policy.

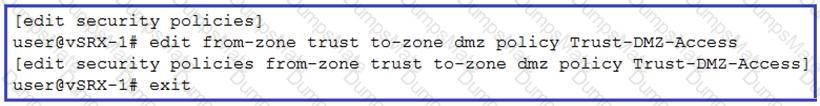

A from-zone and a to-zone, for example: user@host# set security policies from-zone untrust to-zone untrust

A set of match criteria defining the conditions that must be satisfied to apply the policy rule. The match criteria are based on a source IP address, destination IP address, and applications. The user identity firewall provides greater granularity by including an additional tuple, source-identity, as part of the policy statement.

A set of actions to be performed in case of a match—permit, deny, or reject.

Accounting and auditing elements—counting, logging, or structured system logging.

https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/topic-map/security-policy-configuration.html

The proxy ID is used as a final check to verify the peer before IPsec tunnel establishment. The proxy ID is a combination of local and remote subnet and protocol, and it is used to match the traffic that is to be encrypted. If the proxy IDs match between the two IPsec peers, the IPsec tunnel is established, and the traffic is encrypted.

According to the Juniper SRX Series Services Guide, the null zone is a predefined security zone that is created on the SRX Series device when it is booted. Traffic that is sent to or received on an interface in the null zone is discarded. The null zone is not a functional security zone, so you cannot enable or disable it.

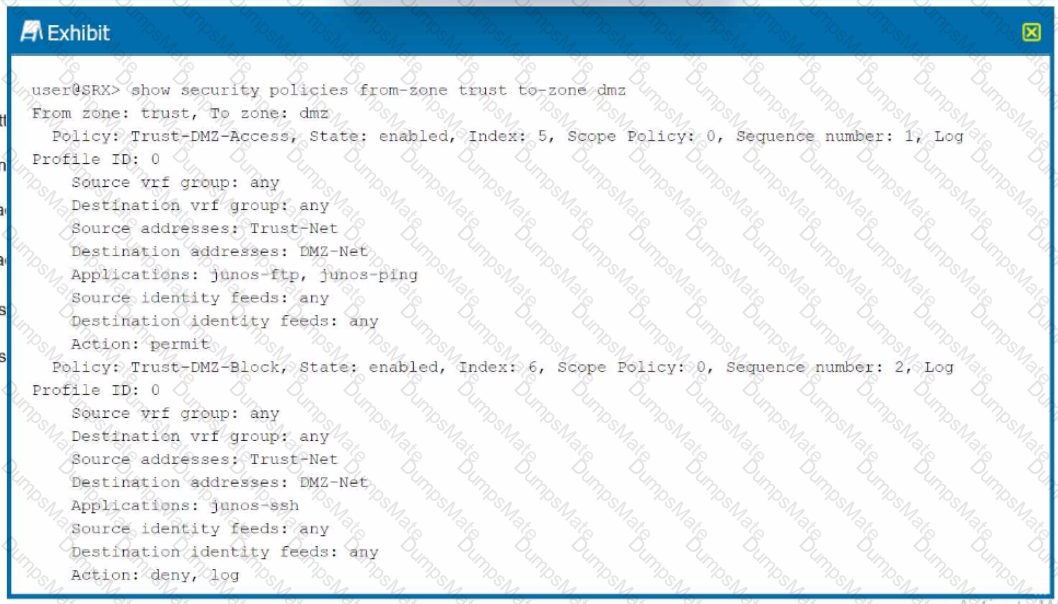

Understanding the Policies in the Exhibit:The exhibit displays two policies configured on the Juniper SRX device for traffic between the trust zone and the dmz zone.

Policy 1:

Name: Trust-DMZ-Access

State: Enabled

Source Address: Trust-Net

Destination Address: DMZ-Net

Applications: junos-ftp, junos-ping

Action: permit

Log: Enabled

Policy 2:

Name: Trust-DMZ-Block

State: Enabled

Source Address: Trust-Net

Destination Address: DMZ-Net

Applications: junos-ssh

Action: deny, log

Analysis of Each Option:

Option A:

The Trust-DMZ-Access policy explicitly permits traffic for the junos-ftp and junos-ping applications.

This is validated by the action permit in the policy configuration.

Correct.

Option B:

This is incorrect because the Trust-DMZ-Access policy permits FTP and ping traffic rather than denying it.

Incorrect.

Option C:

The Trust-DMZ-Block policy explicitly denies traffic for the junos-ssh application.

Therefore, SSH access is not permitted.

Incorrect.

Option D:

The Trust-DMZ-Block policy denies SSH traffic from the Trust-Net to the DMZ-Net.

This is validated by the action deny.

Correct.

Juniper Security References:

Security Policy Overview:Security policies in Junos OS are used to control and filter traffic between security zones. Each policy defines:

Source and destination zones

Source and destination addresses

Applications or services

Action: permit, deny

Logging options

Policy Action Details:

permit: Allows the specified traffic.

deny: Blocks the specified traffic.

Application Identification:

Juniper SRX uses predefined application identifiers (junos-ftp, junos-ping, junos-ssh) for traffic matching.

Policy Evaluation Order:Policies are evaluated in sequence by their index number or sequence number. In this exhibit:

Trust-DMZ-Access is evaluated first (Sequence number: 1).

Trust-DMZ-Block is evaluated next (Sequence number: 2).

Conclusion:Based on the exhibit, FTP and ping traffic is permitted under Trust-DMZ-Access, and SSH traffic is denied under Trust-DMZ-Block. The answers to the question are therefore:

A. Correct

D. Correct

Refer to the Juniper Security Policy Documentation for more details on configuring and managing policies.

For the UTM feature profile to take effect, it must be associated with a security policy and a UTM policy. The security policy defines the traffic flow and the actions that should be taken on the traffic, while the UTM policy defines the security features to be applied to the traffic, such as antivirus, intrusion prevention, and web filtering. The UTM feature profile provides the necessary configuration for the security features defined in the UTM policy.

The correct statement about Junos security policies is that they enforce rules that should be applied to traffic transiting an SRX Series device. Security policies control the flow of traffic between different zones on the SRX Series device, and dictate which traffic is allowed or denied. They can also specify which application and service requests are allowed or blocked. More information about Junos security policies can be found in the Juniper Networks technical documentation here: https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/security-policies-overview.html.
