HPE7-A02 Aruba Certified Network Security Professional Exam Questions and Answers

Zero Trust Security is a security model that operates on the principle that no entity, whether inside or outside the network, should be trusted by default. Instead, every access request is thoroughly verified before granting access to resources. This model emphasizes protecting resources rather than merely securing the network perimeter, acknowledging that threats can originate both inside and outside the network.

1.Resource Protection: Zero Trust focuses on securing individual resources, assuming that threats can bypass traditional perimeter defenses.

2.Verification: Every access request is authenticated and authorized regardless of the source, ensuring that only legitimate users can access sensitive resources.

3.Modern Security Approach: This model aligns with the evolving threat landscape where insider threats and advanced persistent threats are common.

Comprehensive Detailed Explanation

HPE Aruba Networking ClearPass Device Insight (CPDI) uses machine learning to assign endpoints to clusters and provide classification recommendations. For CPDI to automatically classify endpoints, specific thresholds of confidence and supporting classified devices must be met.

The generally required thresholds are:

Minimum Confidence Level: Typically, CPDI requires a recommendation confidence level of at least 95%.

Minimum Supporting Devices: CPDI needs a cluster to include at least 10 classified devices to ensure the recommendation is statistically meaningful.

Analysis of Each Option:

A. 96% confidence with 13 classified devices: Meets both thresholds (confidence > 95% and ≥ 10 devices). CPDI will automatically classify endpoints in this scenario.

B. 98% confidence with 5 classified devices: Confidence level is sufficient, but the cluster lacks the minimum required 10 classified devices. Automatic classification does not occur.

C. 93% confidence with 36 classified devices: The confidence level is below the required 95%. Automatic classification does not occur.

D. 100% confidence with 4 classified devices: Confidence is ideal, but there are insufficient supporting classified devices. Automatic classification does not occur.

References

HPE Aruba ClearPass Device Insight Deployment Guide.

Aruba ClearPass Machine Learning and Device Classification Thresholds.

Wireshark: Follow TCP Stream:

Wireshark provides an intuitive feature to filter and display a complete TCP conversation.

By right-clicking any packet within the conversation and selecting "Follow → TCP Stream", Wireshark isolates and displays the entire conversation.

This feature allows you to view the communication in a simplified, sequential manner, including requests and responses.

Option Analysis:

Option A: Incorrect. Capture filters only apply during packet capturing, not for analyzing already saved packet captures.

Option B: Incorrect. Sorting packets helps with organizing data but does not isolate a complete conversation.

Option C: Incorrect. A capture filter for TCP port 5448 would have to be applied before capturing; it does not work for saved data.

Option D: Correct. Right-clicking a packet and choosing "Follow TCP Stream" is the simplest way to display the full conversation between 10.1.70.90 and 10.1.79.11 on port 5448.

Steps in Wireshark to Follow a TCP Stream:

Locate any packet within the desired conversation (e.g., between 10.1.70.90 and 10.1.79.11 on TCP port 5448).

Right-click on the packet.

Choose "Follow" → "TCP Stream".

Wireshark will display the entire TCP conversation, including both directions of communication.

This feature is especially useful when troubleshooting or analyzing detailed interactions between hosts.

Traffic Forwarding for APs:

In AOS-10, AP traffic forwarding can happen locally (bridged) or through tunnels to a gateway.

The VLAN settings on the "APs" role depend on whether the APs bridge the SSID traffic locally or forward it through a tunnel.

Option B: Correct. You need to know whether the traffic is bridged or tunneled to determine the VLAN assignments.

Option A: Incorrect. LURs/DURs affect role assignment but not VLAN settings for traffic forwarding.

Option C: Incorrect. Establishing tunnels with gateways is relevant to centralized traffic forwarding, not VLANs for bridged traffic.

Option D: Incorrect. AP IP addressing (static or DHCP) does not impact the VLAN for forwarded SSID traffic.

Internet Key Exchange (IKE)/IKEv2 plays a crucial role in an HPE Aruba Networking client-to-site VPN by helping to negotiate the IPsec Security Association (SA) automatically and securely. IKE/IKEv2 handles the authentication and key exchange processes, ensuring that both the client and the VPN gateway can establish a secure IPsec tunnel.

1.SA Negotiation: IKE/IKEv2 automates the negotiation of the Security Association, which defines the parameters for the secure IPsec tunnel.

2.Secure Authentication: It provides a secure method for authenticating the communicating parties and exchanging cryptographic keys.

3.Efficiency: Using IKE/IKEv2 simplifies the setup and maintenance of secure VPN connections, enhancing the overall security and reliability of the VPN.

RADIUS Change of Authorization (CoA):

CoA is triggered when ClearPass determines that a client’s posture status has changed (e.g., Healthy, Quarantine).

The RADIUS enforcement policy is where you configure actions and enforcement profiles that respond to these posture changes.

Option Analysis:

Option A: Correct. RADIUS enforcement policies are used to configure actions, including triggering CoA.

Option B: Incorrect. OnGuard settings configure posture agent behavior, not enforcement rules.

Option C: Incorrect. The posture policy evaluates compliance but does not trigger CoA.

Option D: Incorrect. WEBAUTH enforcement policies are for web-based authentication, not posture-related CoA.

Dynamic Authorization for Enforcement Profile Updates:

When CPPM receives updated client posture or profile data, it can initiate a Change of Authorization (CoA) to update enforcement profiles dynamically.

To support this:

Dynamic Authorization must be enabled on the switches.

CPPM must be configured as a dynamic authorization client to send CoA requests.

Option C: Correct. Dynamic authorization ensures that the switch can apply updated enforcement profiles based on new information from CPPM.

Option A: Incorrect. RADIUS accounting provides session updates but does not enable dynamic changes to enforcement profiles.

Option B: Incorrect. RADIUS track is for monitoring RADIUS server availability, not dynamic enforcement updates.

Option D: Incorrect. TACACS is not used for dynamic authorization; RADIUS handles this functionality.

Voice Role VLAN Configuration:

When VoIP phones are authenticated and assigned to the "voice" role, VLAN 12 should be explicitly defined as an allowed trunk VLAN within the role configuration.

The VLAN configuration should be role-specific rather than on the edge port, as this ensures dynamic VLAN assignment based on authentication results.

Option Analysis:

Option A: Incorrect. Native VLANs are for untagged traffic, but VoIP traffic is tagged.

Option B: Correct. VLAN 12 must be configured as the allowed trunk VLAN in the "voice" role to tag VoIP traffic correctly.

Option C: Incorrect. Configuring VLAN 12 in both edge port and role settings is redundant and unnecessary.

Option D: Incorrect. Native VLANs do not handle tagged traffic like VLAN 12 for VoIP phones.

Why a Mirror Session Is the Correct Choice

To analyze a wired client’s traffic with Wireshark, you need the traffic mirrored to your management station where Wireshark is installed. The most effective way to achieve this is by configuring a mirror session on the AOS-CX switch, specifying the client port as the source and your management station as the destination.

Analysis of Each Option

A. Access the client's switch's CLI from your management station. Access the switch shell and run a TCP dump on the client port:

Incorrect:

AOS-CX switches do not natively support packet capture (e.g., tcpdump) directly on the switch CLI.

This approach is not feasible for capturing and analyzing live client traffic.

B. Go to the client's switch in HPE Aruba Networking Central. Use the "Security" page to run a packet capture:

Incorrect:

HPE Aruba Networking Central provides security insights but does not directly support initiating packet captures for detailed analysis.

Traffic analysis with tools like Wireshark requires local packet capture at the management station.

C. Set up a policy that implements a captive portal redirect to your management station. Apply that policy to the client's port:

Incorrect:

Captive portals are designed for user authentication and redirection, not traffic analysis.

This would disrupt the client’s network activity without enabling traffic analysis in Wireshark.

D. Set up a mirror session on the client's switch; set the client port as the source and your station IP address as the tunnel destination:

Correct:

Mirroring the client port to your management station is the standard method for analyzing live network traffic with Wireshark.

Steps include:

Configure a mirror session on the client’s AOS-CX switch.

Set the client’s port as the source.

Set your management station as the destination using its IP address (via GRE tunnel or physical interface).

Start capturing traffic with Wireshark on the management station.

Final Recommendation

To analyze the client's traffic, configure a mirror session on the switch, set the client port as the source, and direct the traffic to your management station where Wireshark is running.

References

AOS-CX Switch Port Mirroring Configuration Guide.

HPE Aruba Networking Central Monitoring and Troubleshooting Best Practices.

Wireshark Traffic Analysis and Capture Techniques.

Comprehensive Detailed Explanation

Virtual Network Based Tunneling (VNBT) is the appropriate technology for this use case because:

Traffic Steering: VNBT enables traffic from specific clients or devices to be tunneled through a predefined network path. This allows traffic to pass through intermediate devices such as third-party security appliances.

Policy Enforcement: VNBT can be configured to route traffic based on roles, VLANs, or other policy definitions, ensuring that only specified traffic flows are redirected to the security appliance.

Scalability: This approach simplifies the redirection of traffic without requiring complex physical rewiring or changes to the underlying network topology.

Other Options:

MC-LAG: Primarily used for high-availability and redundancy in multi-chassis link aggregation scenarios, not for traffic redirection through appliances.

Network Analytics Engine (NAE): Used for monitoring and analytics, not traffic steering or forwarding.

Device Profiles: Helps automate switch port configurations for specific device types but does not handle traffic redirection.

References

AOS-CX Virtual Network Based Tunneling (VNBT) documentation.

Aruba Switch Architecture and Traffic Flow Control Best Practices Guide.

Syslog Integration with CPPM:

ClearPass Policy Manager (CPPM) can integrate with third-party firewalls via Syslog messages to detect and respond to internal threats.

The Syslog integration enables CPPM to gather context on suspicious activity and enforce appropriate policies such as isolating attackers by working with network devices like Aruba switches and APs.

Option A: Correct. This method allows for dynamic response to threats and leverages existing infrastructure without requiring major reconfiguration.

Option B: Incorrect. CPDI is primarily used for profiling devices, not directly for threat response based on Syslog information.

Option C: Incorrect. While it is possible for CPPM to poll information, this approach is less dynamic and not focused on immediate threat response.

Option D: Incorrect. Tunnel mode SSIDs and UBT are designed for forwarding user traffic securely but do not directly enhance threat detection or mitigation.

Implementing user-based tunneling (UBT) on AOS-CX switches is beneficial for applying enhanced security features such as deep packet inspection (DPI) to wired traffic. UBT allows the traffic from specific users or devices to be tunneled to a central controller or security appliance where advanced security policies, including DPI, can be applied. This approach ensures that even wired traffic benefits from the same level of security and inspection typically available for wireless traffic, thus enhancing overall network security.

HPE Aruba Central Live Monitoring:

Aruba Central provides real-time Live Monitoring of network devices, including:

Application usage statistics.

Trends and changes over time for specific devices.

This information is presented in a clear and easy-to-read format, making it ideal for examining changes in application usage over different time ranges.

Option Analysis:

Option A: Incorrect. ClearPass OnGuard monitors endpoint compliance (e.g., antivirus, OS version) but does not analyze application usage.

Option B: Correct. Aruba Central's Live Monitoring page is specifically designed for this type of analysis.

Option C: Incorrect. ClearPass Insight generates endpoint security reports but does not track application usage.

Option D: Incorrect. ClearPass Device Insight (CPDI) focuses on device profiling and identification, not continuous application monitoring.

To tunnel VoIP phone traffic from AOS-CX switches to an HPE Aruba Networking gateway, you need to configure a User-Based Tunneling (UBT) reserved VLAN on the switches. This VLAN is dedicated for tunneling purposes and ensures that the VoIP traffic is correctly identified and tunneled to the gateway where security policies can be applied.

1.UBT Configuration: Setting a UBT reserved VLAN ensures that the switch knows which VLAN to use for tunneling traffic to the gateway.

2.Traffic Tunneling: The reserved VLAN helps in segregating the VoIP traffic, ensuring it is handled securely and according to the configured policies at the gateway.

3.Policy Application: By tunneling the traffic, the gateway can apply advanced security policies to the VoIP traffic.

Integration of CPDI and CPPM for Zero Trust:

CPDI (ClearPass Device Insight) identifies and profiles devices and applications on the network.

CPDI can tag devices based on their behavior or detected applications.

CPPM uses these tags to enforce policies, such as quarantining clients that violate security rules (e.g., using prohibited applications).

Option Analysis:

Option A: Incorrect. CPPM does not inform CPDI about role assignments; CPDI provides device context to CPPM.

Option B: Correct. CPDI tags clients, and CPPM uses those tags to enforce quarantine or other Zero Trust actions.

Option C: Incorrect. Custom fingerprint definitions are not part of this integration.

Option D: Incorrect. CPDI provides information about devices, not user identities.

For a company with AOS-CX switches and HPE Aruba Networking APs running AOS-10, where 802.1X authentication is required on all edge ports, you should configure all edge ports in client auth-mode. This mode ensures that each client connecting through the APs is authenticated individually, maintaining the security policy requirements for 802.1X authentication on all connections.

802.1X Service Rules:

Service rules define the criteria for when a specific service applies (e.g., wireless vs. wired authentication).

For wired 802.1X authentication to work properly, the service rules need to differentiate between wireless and wired connections.

If you copy the wireless service, the rules likely still match wireless-specific criteria. These must be updated to include wired-specific conditions (e.g., NAS IP or port types).

Option Analysis:

Option A (Role mapping policy): Role mapping policies determine user roles based on attributes but are not critical for differentiating wired vs. wireless.

Option B (Authentication methods): Authentication methods (e.g., EAP) remain the same for both wireless and wired 802.1X.

Option C (Authentication source): Authentication sources (like AD or internal database) do not need to change.

Option D (Service rules): Correct. Updating the service rules ensures the new 802.1X service applies specifically to wired connections.

To ensure that HPE Aruba Networking APs (AOS-10) properly interact with HPE Aruba Networking ClearPass Policy Manager (CPPM) and dynamically update a client's enforcement profile based on new profile and posture information, you should enable Dynamic Authorization in the RADIUS server settings for CPPM. This allows ClearPass to send Change of Authorization (CoA) requests to the APs, prompting them to reapply the appropriate enforcement profiles based on updated information.

1.Dynamic Authorization: Enabling this feature allows ClearPass to dynamically push changes to the APs whenever there is new relevant information about a client's profile or posture.

2.Change of Authorization (CoA): This mechanism ensures that clients are assigned the correct enforcement profiles in real-time, based on the latest data.

3.Enhanced Policy Enforcement: This setup helps in maintaining accurate and up-to-date policy enforcement for clients on the network.

802.1X Authentication Modes:

Client Auth-Mode: Requires each connected endpoint to authenticate individually using 802.1X.

Device Auth-Mode: Allows the port to authenticate a device, such as an AP, as a whole. This mode works when the device bridges traffic (e.g., AP bridging SSID traffic).

AP Role Configuration:

Since the AP bridges traffic from multiple clients, you must configure the AP role to use device auth-mode.

Meanwhile, the ports on edge switches can remain in client auth-mode to enforce 802.1X for individual client connections.

Option Analysis:

Option A: Correct. This ensures the AP itself authenticates with device auth-mode, while edge ports remain in client auth-mode.

Option B: Incorrect. APs require device auth-mode for bridging, not client auth-mode.

Option C: Incorrect. Device auth-mode on all ports would not meet the security policy for clients.

Option D: Incorrect. Leaving all ports in device auth-mode does not meet the policy for 802.1X on edge ports.

To ensure that HPE Aruba Networking ClearPass Policy Manager (CPPM) applies tag-based rules to a client immediately after learning the client has that tag, verify that both 802.1X services have the "Profile Endpoints" option enabled and an appropriate Change of Authorization (CoA) profile selected in the Profiler tab. This setup ensures that when a device is profiled and tagged, CPPM can immediately enforce the updated policies through CoA.

1.Profile Endpoints: Enabling this option ensures that endpoint profiling is active, allowing CPPM to gather and use device information dynamically.

2.CoA Profile: Selecting an appropriate CoA profile ensures that CPPM can push policy changes immediately to the network devices, applying the new rules without delay.

3.Real-Time Enforcement: This configuration allows for the immediate application of new tags and associated policies, ensuring compliance with security requirements.

Tagging Applications: In HPE Aruba Networking SSE (Secure Service Edge), tagging is an efficient way to group multiple applications together for simplified management and rule creation.

Tags can be applied to applications, and a single policy rule can be configured to use the tag as the destination.

This eliminates the need to create multiple rules for each individual application, streamlining policy configuration.

Option B: Correct. Applying the same tag to multiple applications allows you to select the tag as the destination in a single policy rule, meeting the requirement efficiently.

Option A: Incorrect. Associating applications with the IdP and selecting "any" for the destination lacks granularity and security.

Option C: Incorrect. Using connector zones is more appropriate for network-level segmentation rather than grouping application policies.

Option D: Incorrect. Web profiles are generally used for web-based traffic policies, not for grouping applications in general.

Centralized Role Configuration on CPPM:

CPPM can assign roles to clients dynamically during authentication.

However, the actual ACL policies (e.g., firewall policies) must already exist and be referenced locally on the switch.

CPPM cannot directly configure ACL details on AOS-CX switches.

Option Analysis:

Option A: Correct. The role is defined on CPPM, but it references a policy pre-configured on the switch.

Option B: Incorrect. This does not align with Aruba's centralized role-based access control design.

Option C: Incorrect. CPPM cannot configure the ACL policies and classes directly; they must exist locally.

Option D: Incorrect. Policies can be referenced centrally but not fully configured on CPPM.

When the Active Endpoint Security Report on HPE Aruba Networking ClearPass indicates that endpoints have MAC addresses but no known IP addresses, one effective step to address this issue is to add CPPM's (ClearPass Policy Manager) IP address to the IP helper list on routing switches. This configuration ensures that DHCP requests are forwarded to the ClearPass server, allowing it to track and report the IP addresses assigned to the endpoints. This helps ClearPass maintain an accurate mapping of MAC addresses to IP addresses, improving endpoint visibility and security management.

The benefit of the Online Certificate Status Protocol (OCSP) is that it allows a device to query whether a single certificate is revoked or not. OCSP provides a real-time mechanism for checking the revocation status of an individual certificate, enabling devices to verify the validity of certificates quickly and efficiently.

1.Certificate Status Query: OCSP enables devices to send a query to an OCSP responder to check the revocation status of a specific certificate.

2.Real-Time Verification: This protocol offers real-time responses, ensuring that the most up-to-date status of the certificate is obtained.

3.Efficiency: OCSP is more efficient than downloading an entire Certificate Revocation List (CRL), as it only queries the status of one certificate at a time.

Comprehensive Detailed Explanation

Traffic Match Evaluation Order:

The rules are processed in sequential order, and the first rule that matches is applied.

The added rule only denies SSH traffic to 10.1.4.0/23. Since 10.1.11.42 is not within the 10.1.4.0/23 subnet, this rule does not apply.

Next Matching Rule:

Rule 2 permits traffic to the 10.1.6.0/23 network, but this does not include 10.1.11.42.

Rule 3 denies traffic to the broader 10.1.0.0/16 network and logs it. Since 10.1.11.42 falls under this range, this rule applies, and the traffic would be logged and dropped.

Logging and Denylist Actions:

The denylist action in the new rule only applies to SSH traffic to 10.1.4.0/23. Since the destination is outside that range, the denylist is not triggered.

References

Aruba AOS-10 Role and Firewall Rules Documentation.

HPE Aruba Central Configuration Best Practices Guide.

The use case for the HPE Aruba Networking ClearPass OnGuard dissolvable agent is implementing a one-time compliance scan. The dissolvable agent is designed to perform a compliance check without requiring a permanent installation on the client device. This is ideal for environments where a quick, temporary assessment of the device's security posture is needed without the overhead of a persistent agent.

1.Dissolvable Agent: The dissolvable agent is downloaded and executed on the client device for a single session, performing the necessary compliance checks before being removed automatically.

2.One-time Compliance Scan: This method is particularly useful for guest or unmanaged devices where a temporary compliance scan is sufficient to ensure security standards are met.

3.Minimal Impact: Since the agent does not persist on the client device, it minimizes the impact on the user's system and does not require ongoing maintenance or updates.

When Wireless IDS/IPS infrastructure detection reports RTS (Request to Send) and CTS (Clear to Send) rate anomalies triggered by neighboring APs, it is often an indication of unusual, but not necessarily malicious, behavior. These anomalies can be caused by neighboring APs operating normally but under specific conditions that trigger the alerts. Before assuming a security threat, it is recommended to tune the event thresholds to better match the environment and reduce false positives. This approach helps to distinguish between normal operations and potential DoS attacks.

Comprehensive Detailed Explanation

In a user-based tunneling (UBT) setup with reserved VLAN mode, VLAN 64 is used for routing traffic at the gateways. Since the IoT traffic is tunneled to the AOS-10 gateway:

On the gateways:

VLAN 64 must be configured in the iot-wired role for routing purposes.

On the switches:

VLAN 64 does not need to be configured on the access switch physical uplinks because the IoT traffic is tunneled directly to the gateway and does not rely on VLAN configurations at the access layer switches.

Reserved VLAN mode:

Ensures that traffic is encapsulated within the UBT tunnel, and VLANs like 64 are only relevant at the gateway for routing and enforcement.

Therefore, the correct configuration is to define VLAN 64 in the iot-wired role on the AOS-10 gateways and not on any physical interfaces.

References

Aruba AOS-CX UBT configuration guide.

Aruba AOS-10 Gateway Role and VLAN Management documentation.

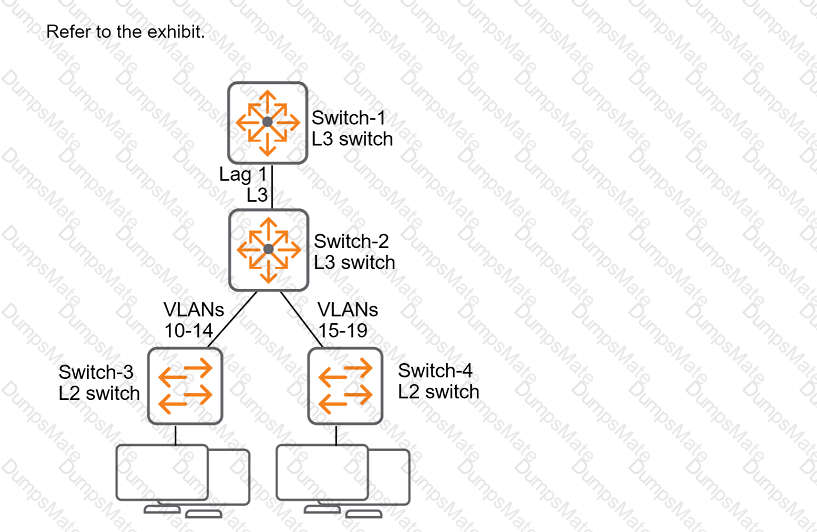

To prevent rogue OSPF routers in the network shown in the exhibit, the preferred configuration on Switch-2 is to configure OSPF authentication on Lag 1 in MD5 mode. This setup enhances security by ensuring that only routers with the correct MD5 authentication credentials can participate in the OSPF routing process. This method protects the OSPF sessions against unauthorized devices that might attempt to introduce rogue routing information into the network.

1.OSPF Authentication: Implementing MD5 authentication on Lag 1 ensures that OSPF updates are secured with a cryptographic hash. This prevents unauthorized OSPF routers from establishing peering sessions and injecting potentially malicious routing information.

2.Secure Communication: MD5 authentication provides a higher level of security compared to simple password authentication, as it uses a more robust hashing algorithm.

3.Applicability: Lag 1 is the primary link between Switch-1 and Switch-2, and securing this link helps protect the integrity of the OSPF routing domain.

When establishing a cluster of HPE Aruba Networking ClearPass servers, it is recommended to install a CA-signed certificate for HTTPS on the Subscriber before it joins the cluster. This ensures secure communication between the servers in the cluster and provides a trusted certificate for client connections.

1.HTTPS Security: A CA-signed certificate for HTTPS ensures that all web-based communication to and from the ClearPass server is encrypted and secure.

2.Cluster Communication: Secure communication between ClearPass nodes in the cluster is essential for synchronization and data integrity.

3.Client Trust: Clients accessing the ClearPass server will trust the CA-signed certificate, avoiding security warnings and ensuring smooth operations.

When integrating ClearPass Policy Manager (CPPM) with ClearPass Device Insight (CPDI), it is important to understand how device profiling and classification work between the two solutions:

1. CPPM and CPDI Integration Overview

CPPM is primarily used for access control and policy enforcement, while CPDI specializes in device profiling and classification through advanced analytics and machine learning.

Integration allows CPPM to leverage CPDI's enhanced profiling capabilities for more accurate device identification and policy enforcement.

2. Detailed Analysis of Each Option

A. CPPM no longer supports any Device Profiler features and relies on CPDI for this profile information:

Incorrect: CPPM still supports its own basic device profiling features and can operate independently. However, when integrated with CPDI, CPPM can use CPDI’s advanced profiling capabilities as a supplement.

B. CPDI must be configured as an audit server on CPPM for the integration to be successful:

Incorrect: CPDI is not configured as an audit server on CPPM. Integration is achieved via API integration and communication between the two solutions, not through audit server settings.

C. CPDI must have security analysis disabled on it for the integration to be successful:

Incorrect: Security analysis does not need to be disabled for integration. In fact, CPDI’s security analysis enhances the classification process by identifying anomalous behaviors.

D. CPPM can submit profile information to CPDI, but if CPDI derives a different classification, CPDI takes precedence:

Correct:

CPPM and CPDI exchange profile data, but CPDI has more advanced device classification capabilities due to its machine learning-based engine.

When CPDI derives a different classification than CPPM, CPDI's classification is considered more accurate and takes precedence.

This ensures that policies are based on the most reliable device classification.

References

Aruba ClearPass Policy Manager and Device Insight Integration Guide.

ClearPass Device Profiling and Classification Documentation.

Best Practices for CPPM and CPDI Integration in Network Security.

To assign managers to groups on the AOS-CX switch by name using HPE Aruba Networking ClearPass Policy Manager (CPPM) as a TACACS+ server, you should add the Aruba

service to the TACACS+ enforcement profile and set the Aruba-Admin-Role to the group name. This configuration ensures that the appropriate administrative roles are assigned to managers based on their group membership, allowing for role-based access control on the AOS-CX switches.

To ensure that HPE Aruba Networking ClearPass Policy Manager (CPPM) responds correctly to Syslog messages from a Check Point firewall, you need to check that the Ingress Event Dictionaries for Check Point messages are enabled. These dictionaries are necessary for CPPM to properly interpret and respond to the Syslog messages received from the firewall.

1.Event Dictionaries: Ingress Event Dictionaries allow CPPM to understand the specific format and content of Syslog messages from various sources, such as Check Point firewalls.

2.Message Interpretation: Without these dictionaries enabled, CPPM may not correctly interpret the Syslog messages, leading to a failure in triggering the expected actions.

3.Configuration Check: Ensuring that the dictionaries are enabled is crucial for the proper functioning of the event service and accurate response to security events.

After installing an HPE Aruba Networking Network Analytic Engine (NAE) script on an AOS-CX switch, the additional step required to start the monitoring is to create an agent from the script. The agent is responsible for executing the script and collecting the monitoring data as defined by the script parameters.

1.Script Installation: Installing the script provides the logic and parameters for monitoring.

2.Agent Creation: Creating an agent from the script activates the monitoring process, allowing the NAE to begin tracking the specified function.

3.Operational Step: This step ensures that the monitoring logic is applied and the data collection starts as per the script’s configuration.

For a company that lacks visibility into various types of user and IoT devices on its internal network, HPE Aruba Networking ClearPass Device Insight (CPDI) is the recommended solution. CPDI provides comprehensive visibility and profiling of all devices connected to the network. It uses machine learning and AI to identify and classify devices, offering detailed insights into their behavior and characteristics. This enhanced visibility enables the security team to effectively monitor and manage network devices, improving overall network security and compliance.

Policy Analysis:

Rule Evaluation Order: Rules are applied in sequential order until a match is found.

Key Points:

DHCP traffic (UDP 67) is permitted.

DNS traffic (UDP 53) is permitted.

Traffic to 10.5.5.0/24 is explicitly denied.

HTTP traffic (TCP 80) is allowed only to 10.5.0.0/16.

HTTPS traffic (TCP 443) is allowed only to 10.5.0.0/16.

All other traffic to 10.5.0.0/16 is denied.

Any other traffic not matching the above rules is permitted.

Scenario Analysis:

The client IP 10.2.2.2 does not fall within the 10.5.0.0/16 subnet.

Rule 3 denies traffic to 10.5.5.5, regardless of the source IP.

Option A: Correct. HTTPS traffic to 10.5.5.5 is explicitly denied by Rule 3.

Option B: Incorrect. Traffic to 203.0.113.12 is permitted due to the final "permit any" rule.

Option C: Incorrect. The client (10.2.2.2) does not belong to the subnet 10.5.0.0/16, so traffic to 10.5.3.3 is not permitted by Rule 5.

Option D: Incorrect. HTTP traffic to 198.51.100.12 is allowed by the last "permit any" rule.
