Refer to the exhibit.
A network administrator needs to alter myACL so that it permits all traffic that arrives in VLAN 2 and is destined to 10.1.10.0/24. Besides this change, the ACL must continue to act as it does now. The administrator plans this new rule:
permit ip any 10.1.10.0/24
How should the administrator apply this rule to meet all requirements?
A network administrator needs to configure an AOS-Switch to classify traffic. Comparing QoS policy and global policy, what is one function that only a class-based QoS policy can fulfill?
Refer to the exhibits
Exhibit 1
Exhibit 2

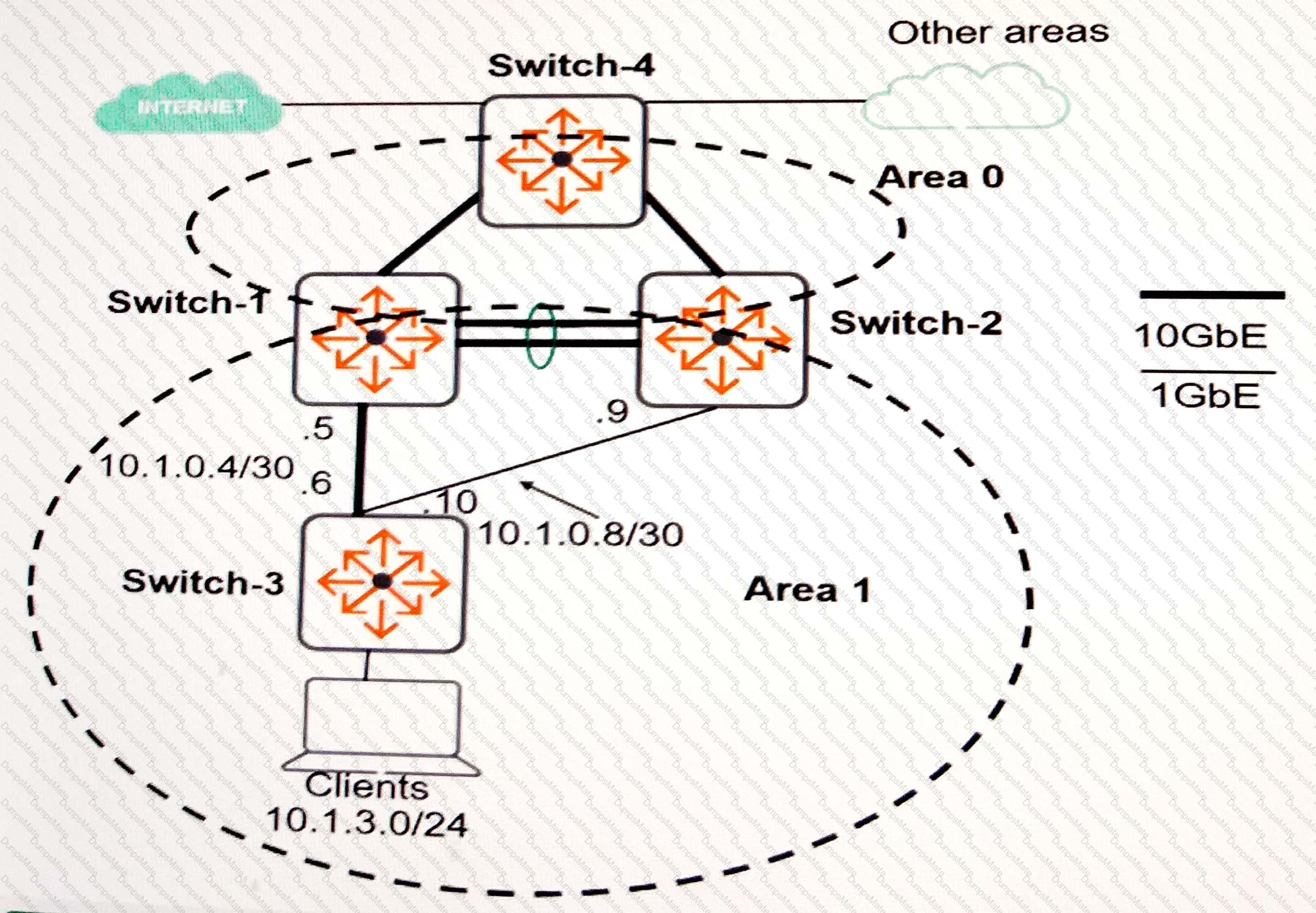

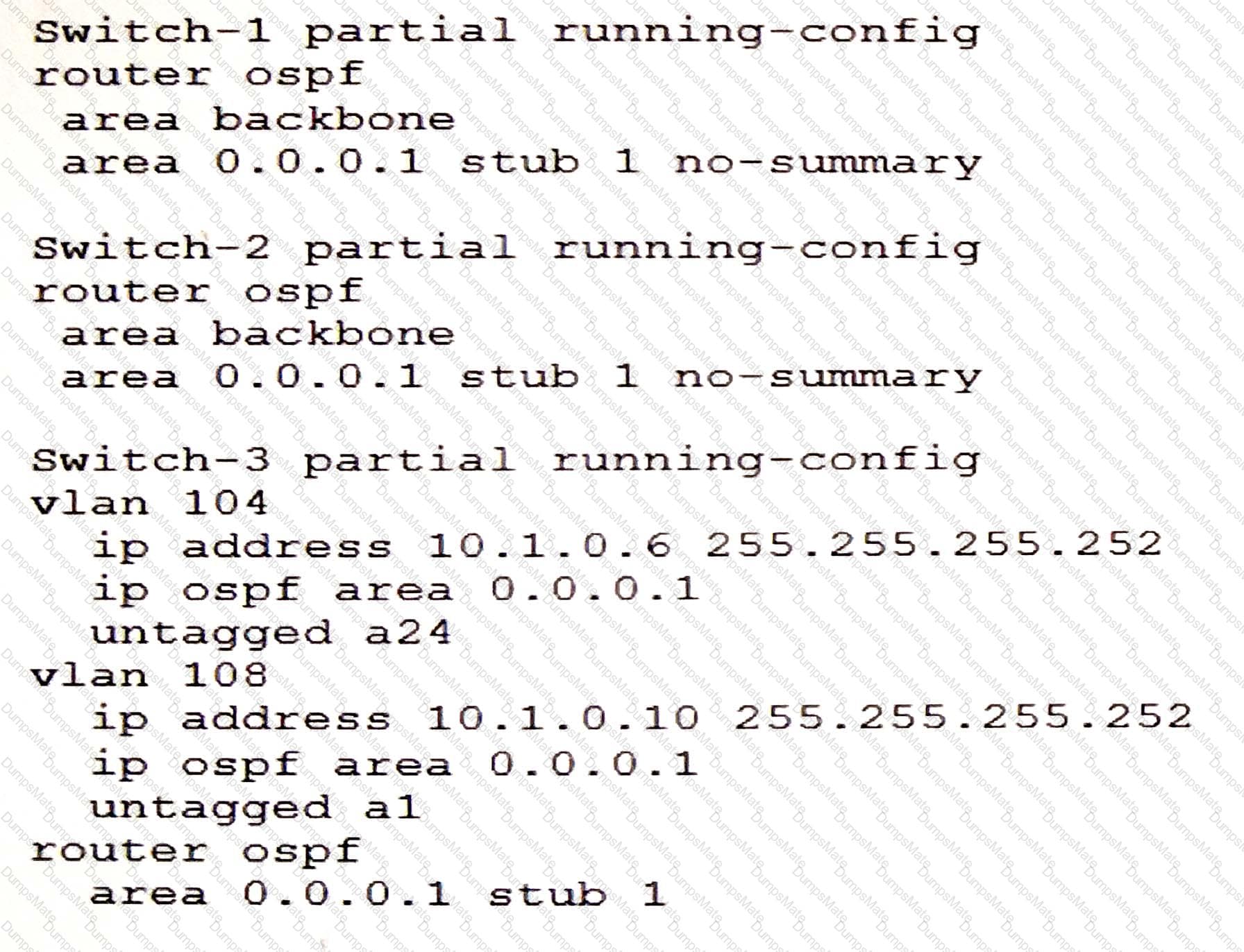

Both Switch-1 and Switch-2 have an OSPF inter-area route to 10.2.0.0/16 with metric 10 in their IP routing table. Switch-3 has the default setting for ECMP. Based on the exhibits, what should the Switch-3 routing table display if the network operates as normal?
A network uses MSTP and has AOS-Switches at the access layer. The company wants edge ports on the access layer switches to meet these criteria:
How should the network administrator set up the edge ports to meet these requirements?
Refer to the exhibits.
Exhibit 1
Exhibit 2

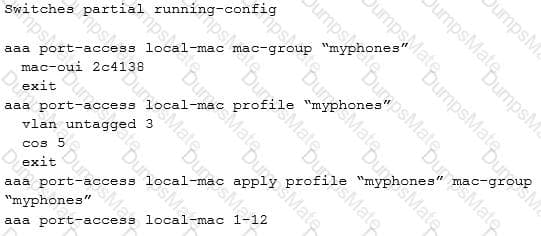

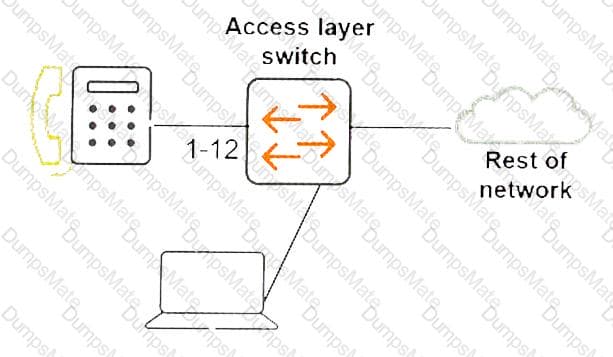

A company does not require authentication for security, but AOS-Switches are set up to use local MAC authentication (LMA) to assign the correct VLAN and priority to IP phones. IP phones and computers belong to different VLANs. Each device is supposed to connect to a specific port, but sometimes users connect their devices to the wrong ports and cannot receive access without help from IT.
How can a network administrator configure the switches to eliminate this issue?
A company has AOS-Switches deployed at sites with inexperienced IT staff. The main office network administrators want to track if configurations change on branch switches.
What should be set up for this purpose?
Refer to the exhibit.
AOS-Switches will enforce 802.1X authentication on edge ports. The company has two RADIUS servers, which are meant to provide redundancy and load sharing of requests. The exhibit shows the planned RADIUS settings to deploy to the switches.
What should customers understand about this plan?
An AOS-Switch enforces 802.1X. It receives an Access-Accept with this HPE VSA from its Radius server:
Attribute Name and ID = HPE-User-Role (25) Value = contractor
The switch then rejects the client. What is one requirement for the switch to accept the message and authorize the client?
Refer to the exhibit.
A known unicast packet is received from Switch-1 on the standby and must be forwarded to Switch-2. How does the VSF fabric decide which port in the aggregated link should forward the packet?
A company has a mixed wireless and wired Aruba solution. It wants to encrypt messages used to send configurations and other important messages to the APs carried outside the GRE tunnels. What can the company do to meet these goals?
An AOS-Switch needs to be configured to support tunneled node in role-based mode. The Mobility Controller administrators tell the switch administrators that the AOS-Switch will integrate with a cluster of Mobility Controllers. The cluster virtual IP address is 10.1.1.10.
How should switch administrator integrate the AOS-Switch with the cluster?
Refer to the exhibits.
Exhibit 1
Exhibit 2
A network administrator sets up PIM-DM to route traffic from the multicast source to clients in VLAN 24. The server begins to forward multicasts, and the clients are set up to receive them. However, the multicasts do not reach the clients.
Based on the output, what should the administrator verify?
Refer to the exhibit.
An AOS-Switch has the ACL shown in the exhibit. A network administrator then enters these commands:
Switch(config)# mac-access-list standard myACL
Switch(config-std-macl)# deny 007d.45cc.0000 0000.0000.ffff
How does this ACL treat these frames:
1 = 007d.45cc.ffff 2 = 007d.45cc.0000
Network administrators decide to change OSPF Area 1 to a stub area in order to solve some performance issues. No routes are redistributed into area 1.
What is one implication of making this change?
Refer to the exhibit.

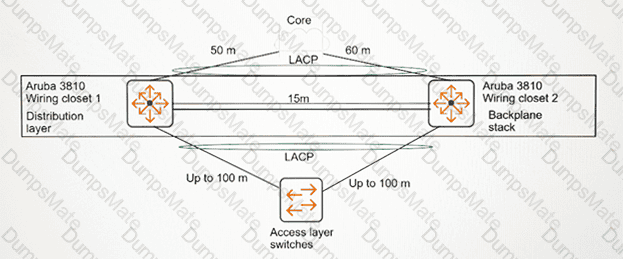

A company requires distribution layer switches that can provide Layer 2 and Layer 3 redundancy. The exhibit shows the proposal for these switches. Which change to the proposal will help meet the company’s requirements?
A network administrator wants to prevent changes in the spanning tree topology if a rogue switch connects to interface 1 on an AOSSwitch. The interface should NOT shut down because it receives BPDUs, but it should shut down if it receives superior BPDUs. Which feature should the administratorconfigure on interface 1?
Refer to the exhibits.
Exhibit 1
Exhibit 2

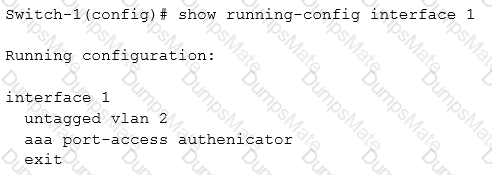

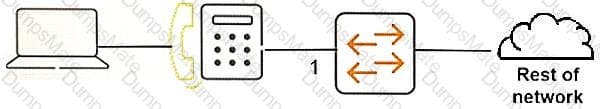

The IP phone in the exhibit is set up to complete 802.1x authentication to the network. How can the netwotk administrator prevent a user on the computer from receiving network access without authentication?
A customer wants to authenticate AOS-Switch managers to a RADIUS server. The CIO wants to assign different rights to different management users for granular control over their rights and privileges. What must the network administrator enable on the AOS-Switches to ensure they comply with this plan?
What must an OSPF router do to ensure nonstop routing should a standby member take over as commander when the original VSF commander fails?
An AOS-Switch runs IGMP on A VLAN.
What is a requirement for the switch to be a potential IGMP querier on that VLAN?
Refer to the exhibit.

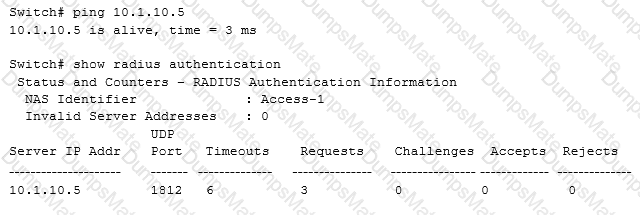

A network administrator sets up 802.1X authentication to a RADIUS server on an AOS-Switch. The RADIUS server and user devices are both set up to use PEAP MSCHAPv2. The administrator tests the authentication and sees the output shown in the exhibit. Which issue could cause this output?
A company starts to have issues with too many rules in the dynamic ACLs applied to AOS-Switch ports. Administrators decide to remove some of the common rules from the dynamic ACLs and enforce them in an ACL applied to the users’ VLAN instead.
What is one rule that administrators should keep in mind to ensure that the new ACLs control traffic as they expect?
