HPE0-J68 HPE Storage Solutions Questions and Answers

HPE StoreVirtual VSA’s Adaptive Optimization feature is ideal for addressing the challenge of intermittent heavy disk I/O in mission-critical applications. Adaptive Optimization dynamically adjusts the storage tiering based on real-time workloads, ensuring that the most frequently accessed data is moved to faster storage tiers like SSDs, without the need for manual intervention. This feature allows the customer to benefit from SSD performance when needed, without permanently dedicating SSD resources, thus optimizing both performance and cost.

References:

HPE StoreVirtual VSA Adaptive Optimization

HPE Storage Performance Features

RMC (Recovery Manager Central) Express Protect is the most suitable HPE storage solution for addressing the customer's concerns about backup windows, recovery time objectives (RTOs), and data corruption risks in their primary storage environment. RMC Express Protect integrates with HPE 3PAR StoreServ and HPE StoreOnce systems, allowing direct backup of Oracle databases from primary storage to the StoreOnce appliance. This reduces backup windows and ensures fast, efficient, and reliable recovery, mitigating the risks associated with data growth and corruption.

HPE Storage References:

HPE RMC Express Protect Overview

HPE 3PAR and StoreOnce Integration

The customer's current environment consists of HPE 3PAR, Nimble, and MSA arrays, all providing file services through multiple virtual machines. The key issues presented are the need to increase performance, enhance availability, and reduce management overhead.

HPE 3PAR File Persona is the best solution among the given options because it integrates file and block services natively within the 3PAR system. This solution offers several advantages:

Performance: 3PAR File Persona is designed to handle high-performance workloads by utilizing the 3PAR architecture, which is known for its efficiency and speed. This will significantly increase the overall performance of file services compared to traditional virtual machine-based file services.

Availability: HPE 3PAR File Persona benefits from the robust, high-availability architecture of the 3PAR system, which includes features like advanced data protection, automated failover, and seamless data mobility. These features enhance the availability of the file services provided by the system.

Reduced Management Overhead: By integrating file services directly into the 3PAR array, File Persona reduces the complexity associated with managing multiple virtual machines for file serving. It simplifies management through a unified interface that handles both block and file services, reducing the need for separate management tools or additional hardware like gateways.

In contrast:

StoreEasy 3850 Gateway and StoreEasy 5000 are dedicated NAS appliances designed for file storage. However, they would add additional hardware and management complexity to the environment.

Simplivity 380 is a hyper-converged solution focused on virtualized environments but would not directly address the file serving needs in the way 3PAR File Persona does.

HPE Storage References:

HPE 3PAR File Persona Overview

HPE 3PAR Storage Systems

HPE 3PAR Architecture

HPE StoreOnce VSA (Virtual Storage Appliance) can be deployed on various cloud platforms, with Amazon AWS being one of the supported cloud/object-storage providers. AWS offers a robust and scalable infrastructure that integrates well with HPE StoreOnce VSA, enabling users to efficiently manage their backup and data protection needs in the cloud. The combination of HPE StoreOnce VSA and Amazon AWS provides flexibility in deployment and helps organizations leverage the cloud for their backup and recovery operations.

References:

HPE StoreOnce VSA Overview

Amazon AWS Integration with HPE StoreOnce

HPE GreenLake Backup and Recovery is the recommended software stack for a backup platform that includes a pay-per-use model, supports virtualized workloads, and integrates with the HPE Data Services Cloud Console (DSCC). This solution offers low Recovery Point Objectives (RPOs) in minutes, supports HPE Alletra 9000, and provides the flexibility and scalability needed for modern backup environments. It is part of the HPE GreenLake ecosystem, which provides cloud-like agility and economics with on-premises control.

References:

HPE GreenLake Backup and Recovery

HPE Alletra 9000 Integration

When defining a Protection Policy in the HPE GreenLake Data Services console for HPE GreenLake for Backup & Recovery, you must define the name of the policy, scheduling, and destination. This process involves specifying how and when backups should occur and where the backed-up data should be stored. The flexibility in setting these parameters allows for tailored backup solutions that meet specific recovery objectives and compliance requirements.

For more details, refer to:

HPE GreenLake Data Services

When users experience poor performance with their Data Warehouse applications, HPE 3PAR Adaptive Optimization is an effective solution to enhance performance at minimal cost. Adaptive Optimization dynamically moves data between different tiers of storage based on usage patterns, ensuring that the most frequently accessed data resides on the fastest storage media (such as SSDs), while less frequently accessed data is stored on slower, more cost-effective media.

This approach optimizes storage resources, delivering improved performance for high-demand applications like Data Warehouses without requiring significant additional investment.

For further details, refer to:

HPE 3PAR StoreServ

In an iSCSI-based SAN, the IQN (iSCSI Qualified Name) is used for host identification. IQNs uniquely identify iSCSI initiators and targets within a network, enabling proper connection and communication in an iSCSI storage environment. This identification is crucial for establishing and managing iSCSI sessions between hosts and storage arrays.

For more information, refer to:

HPE Storage Networking Solutions

In HPE StoreOnce environments, the two most commonly used file protocols are CIFS (Common Internet File System) and NFS (Network File System).

CIFS: This protocol is widely used in Windows environments for file sharing. It enables users and applications to access files on remote servers as if they were local, making it ideal for integration with Windows-based systems.

NFS: This protocol is commonly used in Unix and Linux environments for file sharing. It allows a user on a client computer to access files over a network much like local storage is accessed.

These protocols are integral to HPE StoreOnce's capability to provide flexible and efficient file-based backup and recovery solutions across different operating environments.

References:

HPE StoreOnce Overview

HPE File Protocols

An IT administrator can access the HPE Alletra dHCI Stack Manager for managing their HPE Alletra dHCI solution via the HTML5 VMware vSphere client. The integration with VMware vSphere allows administrators to manage the dHCI environment directly within a familiar interface, streamlining operations and simplifying the management of compute, storage, and network resources.

For further details, refer to:

HPE Alletra dHCI Overview

Synchronous replication is the data protection technology that offers the lowest possible Recovery Point Objective (RPO) and can protect against an entire array failure. Synchronous replication ensures that data is simultaneously written to both the primary and secondary storage sites, providing real-time data protection. This approach minimizes data loss in the event of a disaster, as both sites contain identical data, making it the best choice for environments where data integrity and minimal RPO are critical.

References:

HPE Synchronous Replication Solutions

HPE Data Protection Overview

The HPE Alletra 9000 allows the configuration of up to 64 performance alerts. These alerts are crucial for monitoring the performance of the storage system, ensuring that administrators are notified of any performance issues or anomalies. The ability to configure multiple alerts provides flexibility in managing different aspects of the system's performance, enabling proactive management and optimization of the storage environment.

References:

HPE Alletra 9000 Management Features

HPE Storage Performance Monitoring

HPE StoreVirtual Network RAID provides redundancy by managing it on a per-volume basis. This means that the level of RAID protection (e.g., Network RAID 0, 10, 10+1, etc.) is set individually for each volume, allowing flexibility in how data protection is applied depending on the importance and performance requirements of the data stored. Unlike traditional RAID, which is managed at the disk level, Network RAID in StoreVirtual VSA allows for more granular control and can be tailored to the specific needs of different workloads.

In HPE GreenLake for Block Storage, VV (Virtual Volumes) and LD (Logical Devices) are owned by a single node. This ownership model is critical for ensuring data consistency and managing the resources effectively across the storage array. By having a single node own the VV LDs, the system can maintain optimal performance and reliability, especially in clustered environments where multiple nodes are involved.

For more information, refer to:

HPE GreenLake Block Storage

For a customer seeking a centralized file-sharing solution that also provides print services and 15TB of storage, the ideal recommendation is NAS (Network Attached Storage).

NAS systems are specifically designed for file sharing and often come with integrated print server capabilities. They provide centralized storage that can be accessed by multiple clients over a network, making them suitable for environments requiring both file sharing and print services. NAS devices are scalable, making it easy to add additional storage capacity as needed, and they support a variety of file-sharing protocols, ensuring compatibility with different client operating systems.

References:

HPE NAS Solutions

HPE Storage Overview

The HPE Alletra 6000 system can benefit from storage class memory (SCM) cards. SCM provides faster access times and lower latency compared to traditional flash storage, significantly improving the performance of applications that require high-speed data access. The integration of SCM into the HPE Alletra 6000 allows for better performance in latency-sensitive workloads, making it an ideal choice for demanding enterprise applications.

References:

HPE Alletra 6000 Overview

HPE Storage Class Memory

A very low deduplication ratio in a Linux VM farm hosted on an HPE Alletra 9000 could be caused by the use of the XFS filesystem. XFS is known for its performance and scalability but is less effective in environments where deduplication is critical because of its data layout and file handling characteristics. This can lead to reduced deduplication efficiency compared to other filesystems like EXT4 or Btrfs.

For more information, refer to:

HPE Alletra 9000 Documentation

For a Virtual Desktop Infrastructure (VDI) environment where rapid provisioning of new desktops is a key requirement, HPE StoreVirtual VSA's SmartClone technology is an ideal solution. SmartClone allows for the creation of space-efficient clones of existing volumes, which can significantly reduce the time and storage space needed to provision new desktops. This technology creates clones that only use additional space for changes made to the cloned data, making it highly efficient in environments with many similar or identical data sets, like VDI.

For more details, refer to the following HPE Storage references:

HPE StoreVirtual VSA

CloudPhysics is the tool recommended for creating a sizing based on an existing VMware legacy configuration for a new HPE SimpliVity setup. CloudPhysics provides in-depth analytics and simulation capabilities that can assess the current environment, including resource utilization, and generate an optimized configuration for HPE SimpliVity based on the collected data.

This tool helps solution architects and IT professionals make informed decisions by providing a clear understanding of the resource requirements and ensuring that the new HPE SimpliVity solution is properly sized.

References:

HPE SimpliVity Overview

HPE CloudPhysics

The Unified API that is part of HPE’s composable strategy provides the advantage of managing the entire infrastructure lifecycle using standard programming code. This approach allows IT administrators to automate and streamline operations, enabling them to define infrastructure as code, which can be easily integrated into DevOps workflows. This API-driven approach is central to HPE's composable infrastructure strategy, providing flexibility, efficiency, and ease of management.

References:

HPE Composable Infrastructure

HPE Unified API

To receive emails about important storage system events and alerts in an HPE 3PAR StoreServ system, the Local Notification Service (LNS) needs to be configured. LNS allows administrators to set up email notifications for various events and alerts, ensuring that they are promptly informed of any critical issues that may arise. This feature is essential for maintaining the health and performance of the storage system by enabling proactive management.

For more information, refer to:

HPE 3PAR StoreServ Management

VMvision is a feature within HPE InfoSight that provides deep visibility into the performance and resource utilization of virtual machines (VMs) running on HPE Nimble Storage arrays. It offers an agentless approach, meaning it does not require any additional software or agents to be installed on the VMs or hosts. Instead, VMvision leverages the vCenter server appliance credentials to directly gather data from the VMware environment.

Once integrated with vCenter, VMvision can collect and analyze VM-level performance data, such as latency, IOPS, and throughput, in real-time. This data is then correlated with storage performance metrics, allowing administrators to easily identify bottlenecks and optimize VM performance. The agentless nature of VMvision simplifies the deployment process and reduces the management overhead associated with performance monitoring.

Unlike traditional performance monitoring tools that may require configuring SNMP traps or deploying agents on each VM, VMvision’s integration with InfoSight streamlines the process by using existing vCenter APIs to gather the necessary data. This approach not only ensures a seamless integration but also enhances the accuracy of the performance insights provided by InfoSight.

For more details, refer to the following HPE Storage references:

HPE Nimble Storage

HPE InfoSight for Storage

HPE Flash and Hybrid Storage

========================

When using HPE InfoSight with VMVision to analyze end-to-end latency in a VMware vSphere environment connected to HPE storage solutions, the following components are displayed:

iSCSI network (SAN): InfoSight with VMVision provides insights into the performance of the storage area network (SAN) layer, specifically the iSCSI connections that are used for data transfer between the storage array and the compute infrastructure.

Storage: The storage component of the stack, which includes the HPE Nimble HF-series array, is monitored for performance metrics such as latency, throughput, and IOPS. InfoSight analyzes these metrics to identify potential bottlenecks and optimize storage performance.

Host: The host component refers to the VMware vSphere hosts running on the HPE Synergy frames. InfoSight provides detailed visibility into the performance of these hosts, including CPU, memory, and I/O operations, helping administrators to identify and resolve performance issues at the host level.

These components are critical for comprehensive performance management and troubleshooting, ensuring optimal operation of the entire solution stack.

References:

HPE InfoSight Overview

HPE Nimble Storage with InfoSight

HPE CloudBank is a feature of the HPE StoreOnce system that enables cloud-based backup and disaster recovery (DR) solutions. It integrates with HPE 3PAR StoreServ and HPE StoreOnce systems to send backups securely to public cloud services like AWS, Azure, or private cloud environments. The primary benefit of CloudBank in the context of disaster recovery is that it ensures off-site storage of backups, protecting against site disasters by storing data in geographically dispersed locations.

By sending backups regularly to the cloud, CloudBank ensures that data is protected and can be restored in the event of a disaster, minimizing potential data loss and downtime.

References:

HPE StoreOnce with CloudBank

HPE StoreOnce Overview

For a cloud service provider using HPE 3PAR StoreServ 9000, Priority Optimization is the recommended solution to ensure the quality of service (QoS) and protect tenants from unpredictable bursts of I/O from other tenants. Priority Optimization allows administrators to set service levels for different workloads, ensuring that critical workloads receive the necessary resources while maintaining overall system performance. This feature helps manage and enforce QoS in a multi-tenant environment, providing predictable performance and preventing noisy neighbors from impacting other tenants.

References:

HPE 3PAR Priority Optimization

HPE 3PAR StoreServ 9000 Overview

When using a federated storage approach with HPE 3PAR StoreServ systems, customers can benefit from:

Load Balancing: Federated storage enables the distribution of workloads across multiple storage systems, optimizing resource utilization and ensuring that no single system becomes a bottleneck. This load balancing improves performance and enhances overall system efficiency.

Easier Migration: Federation simplifies the process of migrating data between storage systems. With features like Peer Motion, data can be moved between systems non-disruptively, allowing for seamless upgrades or expansions without impacting ongoing operations. This capability is particularly beneficial in reducing downtime and maintaining business continuity during migrations.

References:

HPE 3PAR StoreServ Federation

HPE Peer Motion Technology

The HPE XP storage array offers advanced data protection capabilities, including the ability to survive the failure of any three disks simultaneously. This is possible due to its high availability design and advanced RAID configurations, such as RAID 6, which provides dual-parity protection, and additional data protection schemes that ensure data integrity even in the event of multiple disk failures. The XP series is designed for mission-critical environments where maximum data protection and uptime are essential.

References:

HPE XP Storage Overview

HPE High Availability Solutions

In the HPE Alletra 9000 series, each controller node can connect to all 48 drives in the enclosure. This design allows for flexible and efficient access to storage resources by each controller node, optimizing performance and ensuring that the full capacity of the enclosure is accessible. This architecture is crucial for the high-performance demands of mission-critical workloads typically run on Alletra 9000 systems.

For further details, refer to:

HPE Alletra 9000 Documentation

When integrating a new storage array into an existing SAN infrastructure with HPE C-Class blade enclosures and a mix of ProLiant G7, Gen8, and Gen9 servers, it is essential to ensure firmware compatibility across all components. The best approach is to document all relevant details about the existing servers and SAN environment, including firmware versions, hardware configurations, and any specific SAN components. Then, consult the HPE SPOCK (Single Point of Connectivity Knowledge) database, which is the authoritative source for compatibility and support information regarding firmware, drivers, and hardware in HPE environments. This ensures that the new storage array will be fully compatible with the existing infrastructure, preventing potential issues related to firmware mismatches.

References:

HPE SPOCK

HPE SAN Compatibility

The capacity of an HPE StoreOnce 3620 can be expanded by adding disk enclosures. This method allows the system to scale its storage capacity by adding additional disk shelves to the existing configuration, providing more storage space for backups. The StoreOnce 3620 is designed to support this expansion, enabling businesses to meet growing data protection needs without replacing the entire system.

For more information, refer to:

HPE StoreOnce 3620 Documentation

The SimpliVity 380 is the recommended solution for a customer who has acquired another company with an outdated and costly infrastructure. This hyper-converged infrastructure solution minimizes the footprint in the data center by combining compute, storage, and networking into a single, integrated system. SimpliVity 380 offers quick deployment, simplified management, and reduced operational costs, making it ideal for modernizing IT environments rapidly and efficiently.

HPE Storage References:

HPE SimpliVity 380 Overview

HPE Converged and Hyper-Converged Solutions

To calculate the required capacity for snapshots after one week for an HPE Alletra 9000, we start by understanding the customer’s requirements:

Base volume size: 100TB

Snapshots: 168 snapshots per week

Daily change rate: 15%

The snapshot capacity requirement can be calculated by taking 15% of the base volume size per day, and multiplying it by the number of days (7 days in a week) and the number of snapshots per day.

Daily change: 15% of 100TB = 15TBTotal change over a week: 15TB * 7 days = 105TB

Thus, the capacity needed for snapshots after one week is 105TB.

References:

HPE Alletra 9000 Overview

HPE Storage Snapshots

When proposing a StoreOnce solution to a customer transitioning from tape backups, it’s crucial to correctly size the deduplication requirements. OCA (Outcome-based Capacity Analyzer) is the recommended tool for this purpose. OCA helps to predict and size the deduplication storage needs by analyzing the data types and patterns, ensuring that the StoreOnce system is correctly configured to handle the customer’s backup workloads efficiently.

The HPE MSA 2050 comes with a base set of features, including the ability to create up to 64 snapshots. However, for customers who require more extensive snapshot capabilities as their data services grow, the Advanced Data Services Suite license is the appropriate solution. This license extends the functionality of the MSA, including an increase in the number of snapshots that can be created and managed, thus addressing the customer's concerns about future growth.

References:

HPE MSA 2050 Storage

HPE MSA Advanced Data Services

For identifying the latest firmware and compatibility information, especially in a VMware environment with HPE hardware, the SPOCK (Single Point of Connectivity Knowledge) tool (Option B) is the recommended resource. SPOCK provides detailed compatibility matrices, firmware recommendations, and interoperability guidelines, ensuring that all components in the storage and server environment are compatible and supported by HPE.

Using SPOCK ensures that the customer’s upgrade process is smooth and that all hardware and software components are correctly aligned.

References:

HPE SPOCK Compatibility Tool

HPE Firmware and Compatibility Resources

Given the customer's requirements for a storage solution in a VMware environment, with 20 TB of standard business data, 400 TB of video archive files, and a concern for cost, HPE MSA is the most cost-effective solution that meets these needs. HPE MSA offers affordable storage with enterprise features such as snapshots and replication. It supports iSCSI connectivity, which aligns with the customer’s 10 GB iSCSI requirements. Additionally, MSA provides a balance of performance and capacity, making it a suitable choice for environments where budget is a primary concern.

When deploying a new StoreOnce VSA (Virtual Storage Appliance), expanding storage capacity can be done by the following methods:

Verify sufficient capacity LTUs are available: License to Use (LTU) is required to allocate more storage to the VSA. Ensuring that there are sufficient LTUs available is essential before increasing capacity.

Add a new virtual hard disk to the virtual machine: This is the process of physically increasing the storage allocated to the VSA. By adding a new virtual hard disk to the virtual machine, you expand the storage capacity that the VSA can utilize.

These steps are critical for correctly scaling the storage capacity of a StoreOnce VSA solution.

References:

HPE StoreOnce VSA Deployment

HPE StoreOnce Capacity Licensing

For a customer looking for a cost-effective storage solution with good performance, while also having a limited IT staff concerned about learning new technologies, recommending Ethernet switches, a Nimble iSCSI card, and dedicated NICs for servers (Option C) is the most appropriate choice.

This configuration is cost-effective and simplifies management by using familiar Ethernet networking technology, which most IT staff are already familiar with. The Nimble iSCSI card provides the necessary storage connectivity while leveraging Ethernet infrastructure, making it easier to deploy and manage compared to Fibre Channel solutions.

References:

HPE Nimble Storage Connectivity Options

HPE Networking Solutions

When designing an HPE MSA iSCSI storage solution, two critical components that are typically part of the solution are Drives (Option A) and SFPs (Small Form-factor Pluggables) (Option B).

Drives: These are the storage devices (e.g., SSDs or HDDs) that provide the necessary capacity and performance for the MSA array. The choice of drives can be tailored based on the performance and capacity needs of the customer.

SFPs: These are essential for establishing iSCSI or Fibre Channel connectivity between the storage array and the network switches. They play a crucial role in ensuring that the storage solution can be integrated into the customer's existing network infrastructure.

The inclusion of these components ensures that the HPE MSA solution is fully functional and can meet the performance and connectivity requirements of the customer's environment.

References:

HPE MSA Storage Overview

HPE Storage Components

The issue of seeing multiple volumes after creating just a single volume on the MSA is likely due to a lack of zoning on the Fibre Channel switches. Zoning is a method used in Fibre Channel networks to segment a fabric into smaller, manageable zones, which helps in controlling access between devices. By enabling zoning on the SN3000B switches, the customer can isolate the connections and ensure that only the desired host can see specific volumes. This prevents the scenario where multiple volumes are visible to a host that should only have access to one.

References:

HPE MSA Storage Overview

HPE B-series SN3000B Switches

For a high-performance database environment, scale-out storage (Option A) is the recommended solution. Scale-out storage architectures allow for the expansion of storage capacity and performance by adding more nodes to the storage cluster. This approach provides linear scalability, enabling the environment to grow as the database's demands increase. It is particularly effective for high-performance workloads because it balances the load across multiple nodes, reducing bottlenecks and ensuring consistent performance.

Scale-out storage also supports high availability and resilience, which are critical for maintaining uptime and reliability in database environments that require rapid data access and processing.

References:

HPE Scale-Out Storage Solutions

HPE Storage Overview

==================

The exhibit refers to a configuration scenario where properties of a volume set, specifically VMwareDatastores-GF, are being verified. The question focuses on identifying the RAID level used on this volume.

RAID 5 is a common configuration in many storage arrays because it provides a balance of performance, capacity, and data protection. In RAID 5, data is striped across multiple disks with parity information distributed among the disks. This parity allows for the recovery of data in the event of a single disk failure, making it a preferred choice for environments that require efficient storage utilization with a degree of fault tolerance.

HPE storage solutions, such as HPE Nimble Storage and HPE 3PAR, often employ RAID 5 for use cases involving virtualized environments like VMware datastores. These solutions are optimized for high performance and data protection, ensuring that even with a single drive failure, the data remains accessible and the system can continue to operate without significant performance degradation.

References:

HPE Storage Products

HPE Flash and Hybrid Storage

HPE Nimble Storage

These resources provide comprehensive information on HPE's RAID configurations, data protection mechanisms, and how they integrate with enterprise storage environments.

When replacing an existing LTO-6 tape library with a new HPE StoreEver MSL2024 tape library, and the customer wants to reuse their LTO-6 tape cartridges, LTO7 (Option D) is the latest tape drive technology that provides backward compatibility with LTO-6 tapes.

LTO7 drives can read and write to LTO-6 cartridges, making them the optimal choice for ensuring the customer's existing media can be utilized effectively while also providing the benefits of newer tape technology, such as higher capacity and faster data transfer rates.

References:

HPE StoreEver Tape Solutions

HPE LTO Tape Technology

HPE InfoSight Cross-Stack Analytics for VMware and Hyper-V provides a comprehensive view of the virtual environment, allowing users to monitor and analyze various aspects of their infrastructure. Two key actions that can be performed within this tool are finding noisy neighbors (Option B) and locating inactive VMs (Option C).

Find noisy neighbors: This feature helps identify virtual machines (VMs) that are consuming excessive resources and negatively impacting the performance of other VMs within the environment. By identifying these "noisy neighbors," administrators can take corrective action to optimize resource allocation and improve overall system performance.

Locate inactive VMs: This functionality allows administrators to detect VMs that are consuming resources but are not actively in use. Identifying and addressing these inactive VMs can help free up resources and improve the efficiency of the virtual environment.

These capabilities make InfoSight Cross-Stack Analytics a powerful tool for maintaining optimal performance in VMware and Hyper-V environments.

References:

HPE InfoSight for Servers

HPE Cross-Stack Analytics Overview

Graphical user interface, website, timeline Description automatically generated

Given that the customer's core application requires 100% availability, the HPE Primera (Option C) is the best storage solution to recommend. HPE Primera is designed for mission-critical applications that demand the highest levels of availability, performance, and resilience. It offers advanced data services, AI-driven predictive analytics, and a 100% availability guarantee, making it the ideal choice for environments where downtime is not an option.

Primera's architecture is built to ensure continuous availability, even in the face of hardware failures or other unexpected issues, which makes it superior to other options like Nimble or MSA for this specific requirement.

References:

HPE Primera Overview

HPE Mission-Critical Storage Solutions

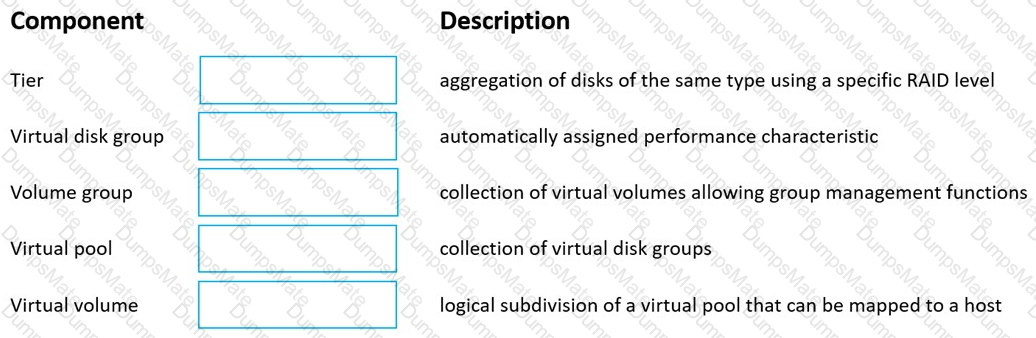

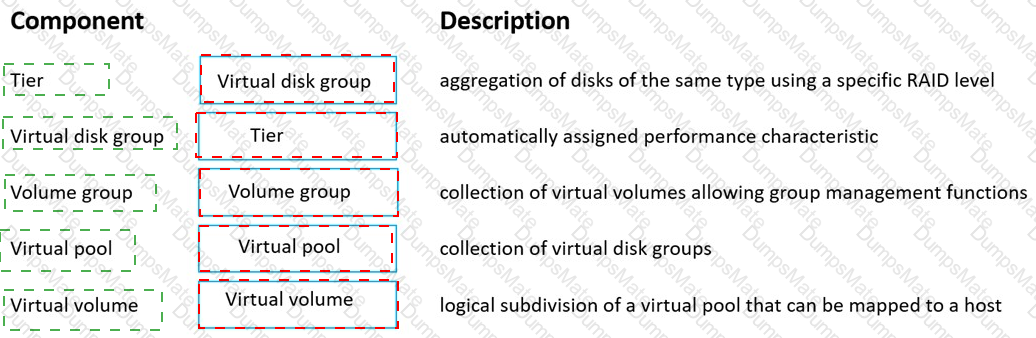

Virtual Disk group

Tier

Volume Group

Virtual pool

Virtual Volume

A picture containing diagram Description automatically generated

When reviewing an installation plan for a new Primera storage array in an existing environment, the best resource to find appropriate installation and planning guides is SPOCK (Option D). SPOCK (Single Point of Connectivity Knowledge) provides detailed interoperability and configuration guides, ensuring that all components in the existing infrastructure (such as C7000s, Brocade switches, and 3PAR 7400) are compatible with the new Primera array.

SPOCK is an essential tool for ensuring that the installation process is seamless and that the environment will support the new storage solution without any compatibility issues.

References:

HPE SPOCK Compatibility Tool

HPE Installation and Planning Guides

In a Fibre Channel (FC) SAN, the World Wide Name (WWN) serves as a unique identifier for devices within the network. The WWN is used in several critical functions:

Identification of zone members (Option A): WWNs are used to define and manage zones within a SAN. Zoning is a method of grouping devices, such as servers and storage arrays, to control access and ensure data security. By identifying zone members via their WWNs, administrators can control which devices can communicate within the SAN.

Identification of entities via Storage Name Server (SNS) (Option C): The WWN is registered with the Storage Name Server (SNS) in the SAN fabric. The SNS maintains a database of all devices within the SAN and their associated WWNs, enabling efficient routing of data frames to the correct destination.

These features make the WWN a fundamental element in the operation and management of a Fibre Channel SAN.

References:

HPE SAN and Zoning Overview

HPE Fibre Channel Networking Solutions

Veeam's integration with HPE storage solutions, particularly in backup and recovery scenarios, includes features that allow granular recovery of data, such as individual emails.

Explorer for Storage Snapshots is a feature within Veeam that enables customers to perform granular recovery from storage snapshots, including individual items such as emails from an Exchange server. This feature is crucial for minimizing downtime and ensuring quick recovery of specific data without the need to restore entire databases or systems.

This capability provides an efficient and user-friendly way to handle data recovery tasks, which is particularly valuable in environments where data availability and quick recovery are critical.

References:

Veeam and HPE Integration

Veeam Explorer for Storage Snapshots

For a customer needing a centralized storage solution accessible by Windows-based laptops and other personal devices, file-oriented storage accessed over SMB (Option D) is the most appropriate recommendation. SMB (Server Message Block) is a network file sharing protocol that allows files to be shared among devices running on a Windows network.

File-oriented storage solutions, like HPE's StoreEasy or Nimble with file services, are designed to serve files over the network using SMB, providing easy and secure access to departmental data.

References:

HPE File Storage Solutions

HPE SMB File Sharing

When configuring high availability with HPE Primera and 3PAR arrays using RMC (Recovery Manager Central) Peer Copy, there are specific prerequisites that must be met:

2-port 10 Gb Ethernet Adapter (NIC): Each array must be equipped with a 2-port 10 Gb Ethernet Adapter to support the high-speed data transfer required for Peer Copy operations.

RMC 6.2: The customer must have RMC version 6.2 or later installed, as this version includes the necessary features and enhancements to support Peer Copy between Primera and 3PAR arrays.

These prerequisites are crucial to ensure seamless integration and optimal performance when setting up high availability between the two storage arrays.

References:

HPE Primera and 3PAR Integration

HPE RMC Overview

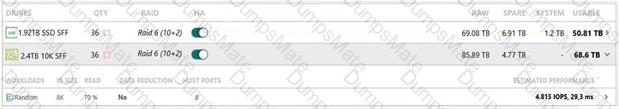

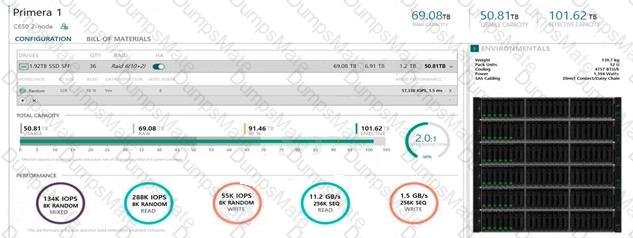

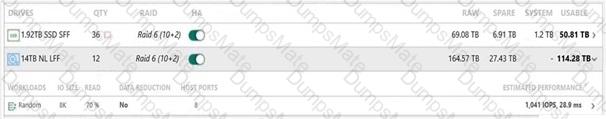

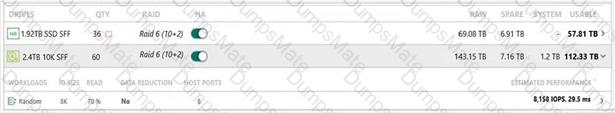

The exhibit shows various configurations for expanding an HPE Primera C6S0 array. The customer is planning to upgrade the system as older 3PAR arrays come off lease. Since the next 3PAR system to be replaced holds 100TB of VDI boot images for thousands of users, the recommended addition to the Primera array should focus on providing the necessary performance and capacity for VDI workloads.

Option A in the exhibit appears to include a configuration that balances SSD storage with high performance, making it suitable for VDI environments. This option would allow the customer to maintain a high level of performance while migrating and consolidating their VDI workloads onto the new Primera system.

References:

HPE Primera Storage Overview

HPE Storage for VDI

After implementing an HPE Primera solution, the most appropriate tool to verify performance counters such as IOPS (Input/Output Operations Per Second) is the Primera on-node management GUI. This GUI provides real-time monitoring and detailed performance analytics directly from the Primera storage system itself. It allows users to track various performance metrics and ensure they align with the customer's requirements.

References:

HPE Primera Management

HPE Primera Performance Tools

Graphical user interface, text Description automatically generated

When a customer needs to create a full copy replica of a database for performance testing, the best technology to use is a clone. A clone creates an exact, independent copy of a volume, which can be used separately from the original. This is particularly useful for scenarios such as testing, development, or backup, where an exact copy of the data is required without affecting the production environment.

References:

HPE 3PAR and Primera Clone Technology

HPE Data Protection and Replication

Graphical user interface, application Description automatically generated

The HPE MSA 2052 storage array is typically configured using the Storage Management Utility (SMU) (Option B). SMU is a web-based interface that allows administrators to manage and configure their MSA storage arrays. It provides an intuitive platform for setting up volumes, managing RAID levels, and configuring network settings.

This tool is essential for efficiently managing the storage environment and ensuring that the system is optimized for the specific needs of the customer.

References:

HPE MSA 2052 Configuration

HPE Storage Management Tools

When setting up a new HPE StoreOnce appliance for a customer who is using NetBackup and requires the highest performance setup, the best backup target type to recommend is VTL (Virtual Tape Library). VTLs are optimized for high-performance environments, particularly when connected via Fibre Channel (FC), which the customer has in their local setup. VTLs provide the speed and reliability of disk-based storage while emulating the tape systems that many backup solutions, like NetBackup, are designed to work with. This setup will ensure the highest throughput and performance for backup operations over FC.

References:

HPE StoreOnce Overview

HPE VTL Solutions

The HPE SimpliVity Data Virtualization Platform is designed with a modular architecture that includes several key layers. Among these, the Presentation Layer and the Data Management Layer are fundamental components (Options A and D).

The Presentation Layer is responsible for the user interface and the interaction between the user and the system. It provides the tools necessary for administrators to manage and monitor the storage environment efficiently.

The Data Management Layer handles the core functions of the SimpliVity platform, including data deduplication, compression, and optimization. This layer ensures that data is stored and managed efficiently, reducing storage costs and improving performance.

These layers work together to deliver the full capabilities of the SimpliVity platform, enabling simplified management and robust data services in a hyper-converged infrastructure environment.

References:

HPE SimpliVity Overview

HPE SimpliVity Data Virtualization

When upgrading from an MSA 2040 to an MSA 2050, the customer can physically move the existing SFF drives to the new MSA 2050 system. However, both systems need to be offline during the process to ensure data integrity and a smooth migration. This approach is efficient for customers using virtual pools, as it allows them to transition to the new hardware without complex data migration processes.

References:

HPE MSA 2050 Overview

HPE MSA Data Migration Guide

Recovery Manager Central (RMC) is a powerful tool that integrates with HPE storage solutions to provide efficient and effective data protection. When deploying RMC in a customer environment, there are multiple options available depending on the infrastructure:

Installing RMC on RHEL Systems: RMC can be installed on top of a virtual or physical Red Hat Enterprise Linux (RHEL) system using the GUI wizard. This method is user-friendly and offers flexibility in deployment across different types of RHEL environments.

Deploying RMC on VMware ESXi: Another common deployment method is to deploy the RMC as a virtual appliance on a VMware ESXi hypervisor. This allows for seamless integration with virtualized environments, providing comprehensive data protection capabilities.

These deployment options provide flexibility for various customer environments, ensuring that RMC can be effectively integrated into their existing infrastructure.

References:

HPE Recovery Manager Central (RMC)

HPE RMC Deployment Guide

Graphical user interface, application Description automatically generated

The REST API (Option A) is a critical feature that allows HPE Primera, HPE Nimble, and HPE XP arrays to work with third-party management tools. REST APIs provide a standardized interface for programmatically accessing and controlling the storage arrays. This enables integration with various management platforms, automation scripts, and orchestration tools, allowing for greater flexibility and streamlined management in diverse IT environments.

By using REST API, organizations can integrate their HPE storage systems with existing management frameworks, ensuring a cohesive and efficient infrastructure management approach.

References:

HPE REST API for Storage

HPE Storage Management

When managing HPE Primera arrays, it's important to assess the current compaction ratios to understand how effectively data is being stored.

NinjaStars is an HPE tool specifically designed to analyze and report on data reduction technologies, including deduplication and compression, on HPE storage arrays like Primera. It helps in determining the compaction ratios, providing insights into how efficiently the storage capacity is being utilized.

References:

HPE Primera Storage

HPE NinjaTools Suite

In StoreOnce Gen4 systems, certain features are included with the system software without requiring additional licenses:

Catalyst: HPE StoreOnce Catalyst is included and provides advanced data reduction and deduplication capabilities, as well as integration with backup software.

VTL/NAS replication: This feature allows replication of Virtual Tape Libraries (VTL) and NAS shares between StoreOnce systems, ensuring data protection and disaster recovery, and it comes standard with the system software.

These features enhance the StoreOnce system's functionality, providing value without additional costs.

References:

HPE StoreOnce Features

StoreOnce Gen4 Technical Specifications

Graphical user interface, text, application Description automatically generated

To integrate an HPE 3PAR StoreServ array with a third-party monitoring application, SNMPv3 (Simple Network Management Protocol version 3) can be configured. SNMPv3 is a protocol that supports the forwarding of events from the array to external monitoring tools. It is a secure and standardized method for managing and monitoring network devices, including storage arrays like HPE 3PAR StoreServ.

References:

HPE 3PAR StoreServ Management

HPE 3PAR SNMP Configuration
