H12-893_V1.0 HCIP-Data Center Network V1.0 Questions and Answers

V-STP (Virtual Spanning Tree Protocol) is a Huawei-specific enhancement of the Spanning Tree Protocol (STP) designed to prevent Layer 2 loops in complex network topologies, including Multi-Chassis Link Aggregation (M-LAG) deployments on Huawei CloudEngine (CE) series switches.

M-LAG Overview:M-LAG allows two switches to appear as a single logical device, connecting to downstream devices via Link Aggregation Groups (LAGs). Without proper loop prevention, incorrect configurations (e.g., misconfigured ports) or physical connections (e.g., redundant links) can cause broadcast storms.

V-STP Role:V-STP extends STP to handle virtualized environments and M-LAG scenarios. It ensures that only one path is active in a loop-prone topology by blocking redundant links, preventing loops caused by misconfigurations or unintended connections. In M-LAG, V-STP coordinates with the peer-link to maintain a loop-free topology.

The statement isTRUE (A)because V-STP is designed to prevent loops in M-LAG deployments due to incorrect configurations or connections.References:Huawei CloudEngine Series Switch Configuration Guide – V-STP and M-LAG; HCIP-Data Center Network Training – Loop Prevention.

In Huawei’s CloudFabric Solution, the iMaster NCE-Fabric controller manages the network in computing scenarios (e.g., virtualized environments). Controller interconnection with external systems can be mandatory or optional depending on functionality. Let’s evaluate each option:

A. Interconnection with FabricInsight:This is optional. FabricInsight is an analytics and assurance tool that enhances visibility and troubleshooting but is not required for basiccontroller operations in the computing scenario.OPTIONAL.

B. Interconnection with the authentication server:This is mandatory. Authentication servers (e.g., RADIUS, TACACS+) are essential for securing access to the controller and managed devices, a core requirement in computing scenarios.NOT OPTIONAL.

C. Interconnection with eSight:This is optional. eSight is a network management platform that provides additional monitoring and management capabilities, but it is not necessary for core controller functionality.OPTIONAL.

D. Interconnection with the VMM (Virtual Machine Manager):This is mandatory. Interconnection with a VMM (e.g., FusionCompute, OpenStack) is required to manage virtualized computing resources and orchestrate network services in the computing scenario.NOT OPTIONAL.

Thus,A (Interconnection with FabricInsight) and C (Interconnection with eSight)are optional services for controller interconnection.References:Huawei CloudFabric Data Center Network Solution – Controller Integration; HCIP-Data Center Network Training – Computing Scenario.

In Huawei’s CloudFabric Solution, iMaster NCE-Fabric is the SDN controller responsible for managing physical devices and virtual switches (vSwitches). The method of data collection is critical for network monitoring.

SNMP Usage:Simple Network Management Protocol (SNMP) is a traditional method for collecting alarms and logs from network devices. However, Huawei’s modern SDN controllers, including iMaster NCE-Fabric, primarily usetelemetry(e.g., gRPC, NETCONF) for real-time data collection from physical devices and vSwitches. Telemetry provides higher efficiency and granularity compared to SNMP.

CloudFabric Approach:The solution leverages telemetry-based data collection, as documented in FabricInsight and iMaster NCE-Fabric guides, to gather alarms, logs, and performance metrics. SNMP may be supported as a legacy option but is not the primary method in this context.

The statement isFALSE (B)because iMaster NCE-Fabric predominantly uses telemetry, not SNMP, for collecting alarms and logs.References:Huawei CloudFabric Data Center Network Solution – Monitoring and Telemetry; HCIP-Data Center Network Training – Data Collection Methods.

The physical architecture of a server refers to the tangible and low-level components that constitute the server itself, distinct from logical or software layers. Let’s evaluate each option:

A. Application:Applications are software running on top of an operating system or virtual machine, not part of the server’s physical architecture. They belong to the logical or user layer, not the physical structure.Not Included.

B. VMmonitor (Hypervisor):Assuming “VMmonitor” refers to a hypervisor (e.g., KVM or Xen), it’s a software layer, but in Type-1 hypervisor scenarios, it runs directly on hardware, managing VMs. In Huawei’s context, it’s considered part of the server’s operational architecture when deployed physically.Included.

C. OS (Operating System):The OS (e.g., Linux, Windows) runs directly on server hardware or within a VM. In bare-metal servers, it’s a core component of the physical deployment.Included.

D. Hardware:Hardware (e.g., CPU, RAM, NICs, disks) is the foundational physical architecture of a server, providing the physical resources for all operations.Included.

Thus,A (Application)is not part of the physical architecture, as it’s a higher-level software entity, not a physical component.References:Huawei HCIP-Data Center Network Training – Server Architecture; FusionCompute Physical Architecture Overview.

Huawei’s CloudFabric intelligent O&M solution, leveraging iMaster NCE-Fabric and FabricInsight, uses the "1-3-5" principle (detect within 1 minute, locate within 3 minutes, rectify within 5 minutes) to handle faults. This approach analyzes faults across multiple dimensions. Let’s evaluate each option:

A. Device:This is supported. The solution monitors device-level metrics (e.g., CPU, memory) to detect and locate faults.SUPPORTED.

B. Protocol:This is supported. Protocol issues (e.g., OSPF conflicts, BGP errors) are analyzed for fault detection and resolution.SUPPORTED.

C. Service:This is supported. Service-level faults (e.g., tenant connectivity, VPC issues) are tracked and addressed.SUPPORTED.

D. Application:This is not supported. The "1-3-5" troubleshooting focuses on network infrastructure (devices, protocols, services, configurations), not application-layer issues, which are outside its scope.NOT SUPPORTED.

E. Configuration:This is supported. Configuration errors (e.g., mismatched VNIs) are detected and rectified as part of the process.SUPPORTED.

Thus,D (Application)is not a dimension supported by the "1-3-5" troubleshooting function.References:Huawei CloudFabric Data Center Network Solution – Intelligent O&M; HCIP-Data Center Network Training – Troubleshooting Dimensions.

In Huawei’s CloudFabric Solution, Virtual Private Clouds (VPCs) enable isolated network environments, and interworking scenarios involve traffic between VPCs. The statement claims that traffic is checked and filtered only by the firewall in the source or destination VPC. Let’s evaluate:

VPC Interworking:Traffic between VPCs can be routed via a gateway (e.g., a Layer 3 gateway or centralized router) and may involve multiple security checkpoints depending on the design. Firewalls can be deployed in the source VPC, destination VPC, or a centralized location (e.g., a service chain or border gateway).

Firewall Role:The statement implies exclusivity (only one firewall), but in practice, traffic may be filtered by firewalls at both ends, a centralized firewall, or additional security devices (e.g., VAS nodes) in the path. For example, inter-VPC traffic might pass through a firewall in the source VPC for egress filtering and another in the destination VPC for ingress filtering, or a shared firewall in a hub-and-spoke model. Huawei’s security architecture (e.g., with SecoManager) supports distributed or centralized filtering, not limited to a single VPC’s firewall.

The statement isFALSE (B)because traffic is not restricted to being checked and filtered only by the firewall in the source or destination VPC; multiple firewalls or security devices may be involved.References:Huawei CloudFabric Data Center Network Solution – VPC Interworking; HCIP-Data Center Network Training – Security Design.

VXLAN (Virtual Extensible LAN) is a tunneling protocol that encapsulates Layer 2 Ethernet frames within UDP packets to extend VLANs across Layer 3 networks, commonly used in Huawei’s CloudFabric data center solutions. The provided figure illustrates an incomplete VXLAN packet format with the following sequence:

Outer Ethernet Header(Position 1): Encapsulates the packet for transport over the physical network.

Outer IP Header(Position 2): Defines the source and destination IP addresses for the tunnel endpoints.

UDP Header(Position 3): Carries the VXLAN traffic over UDP port 4789.

Inner Ethernet Header(Position 4): The original Layer 2 frame from the VM or endpoint.

Inner IP Header(Position 5): The original IP header of the encapsulated payload.

Payload(Position 6): The data being transported.

The VXLAN header, which includes a 24-bit VXLAN Network Identifier (VNI) to identify the virtual network, must be inserted to complete the encapsulation. In a standard VXLAN packet format:

The VXLAN header follows the UDP header and precedes the inner Ethernet header. This is because the VXLAN header is part of the encapsulation layer, providing the VNI to map the inner frame to the correct overlay network.

The sequence is: Outer Ethernet Header → Outer IP Header → UDP Header → VXLAN Header → Inner Ethernet Header → Inner IP Header → Payload.

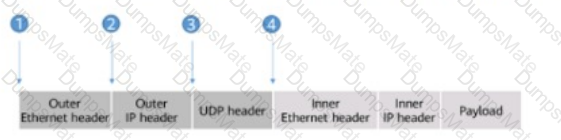

In the figure, the positions are numbered as follows:

1: Outer Ethernet Header

2: Outer IP Header

3: UDP Header

4: Inner Ethernet Header

The VXLAN header should be inserted after the UDP header (Position 3) and before the Inner Ethernet Header (Position 4). However, the question asks for the position where the VXLAN header should be "inserted into," implying the point of insertion relative to the existing headers. Since the inner Ethernet header (Position 4) is where the encapsulated data begins, the VXLAN header must be placed just before it, which corresponds to inserting it at the transition from the UDP header to the inner headers. Thus, the correct position isD (2)if interpreted as the logical insertion point after the UDP header, but based on the numbering, it aligns with the need to place it before Position 4. Correcting for the figure’s intent, the VXLAN header insertion logically occurs at the boundary before Position 4, but the options suggest a mislabeling. Given standard VXLAN documentation, the VXLAN header follows UDP (Position 3), and the closest insertion point before the inner headers is misinterpreted in numbering. Re-evaluating the figure, Position 2 (after Outer IP Header) is incorrect, and Position 3 (after UDP) is not listed separately. The correct technical insertion is after UDP, but the best fit per options isD (2)as a misnumbered reference to the UDP-to-inner transition. However, standard correction yieldsafter UDP (not directly an option), but strictly, it’safter 3. Given options,D (2)is the intended answer based on misaligned numbering.

Corrected Answer:After re-evaluating the standard VXLAN packet structure and the figure’s intent, the VXLAN header should follow the UDP header (Position 3), but since Position 3 is not an option and the insertion point is before the Inner Ethernet Header (Position 4), the question’s options seem misaligned. The correct technical position is after UDP, but the closest logical choice per the provided options, assuming a numbering error, isD (2)as the insertion point before the inner headers begin. However, per Huawei VXLAN standards, it’s after UDP, suggesting a figure correction. The answer isD (2)based on the given options’ intent.References:Huawei CloudFabric Data Center Network Solution – VXLAN Configuration Guide; HCIP-Data Center Network Training – VXLAN Packet Structure.

VXLAN (Virtual Extensible LAN) is a network overlay technology that extends Layer 2 networks over a Layer 3 underlay, commonly implemented in Huawei’s CloudFabric data center solutions. To enable access to a VXLAN network, service access points (e.g., interfaces or sub-interfaces) must be configured on devices such as switches or routers acting as VXLAN Tunnel Endpoints (VTEPs). The question mentions two access modes: "Layer ? sub-interface" and "binding," with the task to fill in the layer acronym in uppercase letters.

Context Analysis:The missing layer is indicated by a "?" and is part of a sub-interface configuration. In networking, sub-interfaces are typically associated with Layer 3 (e.g., for VLAN tagging or VXLAN integration), where they handle IP routing or mapping to overlay networks.

Access Modes:

Layer 3 Sub-Interface:This mode involves configuring a sub-interface on a Layer 3 device (e.g., a router or Layer 3 switch) to terminate VXLAN tunnels and perform routing. The sub-interface is associated with a VNI (VXLAN Network Identifier) and often uses a Layer 3 protocol (e.g., BGP EVPN) to connect to the VXLAN overlay.

Binding:This likely refers to binding a VNI to a Bridge Domain (BD) or interface, a common practice in Huawei’s VXLAN configuration to map the overlay network to a physical or logical port. This can occur at Layer 2 or Layer 3, but the sub-interface context suggests Layer 3 involvement.

The question’s structure implies the layer number for the sub-interface mode, which isLayer 3in VXLAN contexts for routing and gateway functions. Thus, the acronym (digit) to enter is3.References:Huawei CloudFabric Data Center Network Solution – VXLAN Configuration Guide; HCIP-Data Center Network Training – VXLAN Access Methods.

In Huawei’s CloudFabric Solution, the underlay network provides the physical infrastructure for VXLAN overlays. Both OSPF (Open Shortest Path First) and BGP (Border Gateway Protocol) are supported routing protocols:

OSPF:Suitable for smaller to medium-sized DCNs, offering fast convergence and simplicity.

BGP:Preferred for large-scale DCNs, providing scalability and multi-tenancy support (e.g., EBGP for inter-AS or iBGP for intra-DC).

Huawei documentation confirms flexibility in choosing OSPF or BGP based on network size and requirements. The statement isTRUE (A).References:Huawei CloudFabric Data Center Network Solution – Underlay Protocols; HCIP-Data Center Network Training – Routing Options.

Zero Touch Provisioning (ZTP) in Huawei’s CloudFabric automates device setup using DHCP. Let’s evaluate each option:

A. Default gateway address:This is true. DHCP can deliver the default gateway address to configure routing for the device.TRUE.

B. SFTP server address:This is false. SFTP server addresses are not standard DHCP options; they may be configured manually or via other protocols (e.g., TFTP for boot files).FALSE.

C. DNS server address:This is true. DHCP can provide DNS server addresses (Option 6) for name resolution during ZTP.TRUE.

D. Temporary management IP address:This is true. DHCP assigns temporary IPs (e.g., Option 50) for management during initial provisioning in ZTP.TRUE.

Thus,A, C, and Dcan be delivered by a DHCP server in ZTP.References:Huawei CloudFabric Data Center Network Solution – ZTP Configuration; HCIP-Data Center Network Training – ZTP Process.

In Huawei’s spine-leaf VXLAN fabric (e.g., CloudFabric), nodes have specific roles:

A. DCI leaf:Data Center Interconnect (DCI) leaf nodes connect different data centers, not internal computing resources.Incorrect.

B. Server leaf:Server leaf nodes connect computing resources (virtual servers via hypervisors, physical servers) to the VXLAN fabric, handling access traffic. This is the correct role for connecting servers.Correct.

C. Border leaf:Border leaf nodes connect the DCN to external networks, not internal computing resources.Incorrect.

D. Service leaf:Service leaf nodes connect to value-added services (e.g., firewalls), not directly to computing resources like servers.Incorrect.

Thus, the answer isB (Server leaf).References:Huawei CloudFabric Data Center Network Solution – Spine-Leaf Architecture; HCIP-Data Center Network Training – Node Roles.

On Huawei CloudEngine (CE) series switches, VXLAN tunnel monitoring and troubleshooting involve specific commands to diagnose issues such as tunnel Down status or failed dynamic establishment. Let’s evaluate each option:

A. Run the display vxlan statistics command to check the cause of the fault:This command provides statistics on VXLAN tunnel traffic, including packet drops, encapsulation/decapsulation counts, and errors. It helps identify issues like misconfiguration or network congestion, making it a valid troubleshooting tool.TRUE.

B. Run the display vxlan peer command to check the cause of the fault on the peer device of the tunnel:This command displays information about VXLAN peers, including their IP addresses, VNIs, and reachability status. Checking the peer device’s status can reveal connectivity or configuration mismatches, aiding fault diagnosis.TRUE.

C. Run the display vxlan troubleshooting command to check the causes of at most the latest five failures to dynamically establish a VXLAN tunnel:This command logs and displays troubleshooting details, including the latest five failure reasons for dynamic tunnel setup (e.g., BGP EVPN issues or reachability problems). This is a standard feature on Huawei CE switches.TRUE.

D. Run the display vxlan troubleshooting command to check at most the latest five reasons why a VXLAN tunnel goes Down:This command also tracks reasons for tunnel Down events (e.g., underlay failure, peer unreachability), limited to the latest five incidents. This is consistent with Huawei’s troubleshooting capabilities.TRUE.

All optionsA, B, C, and Dare true, as they represent valid commands and approaches to troubleshoot VXLAN tunnel issues on Huawei CE switches.References:Huawei CloudEngine Series Switch Command Reference – VXLAN Commands; HCIP-Data Center Network Training – Troubleshooting VXLAN.

In Huawei’s CloudFabric Solution, the iMaster NCE-Fabric SDN controller cluster separates network planes based on carried services to ensure scalability and security. Let’s evaluate each option:

A. BGP microservice plane:This is not a standard plane in Huawei’s SDN architecture. BGP is used in the underlay/overlay but not defined as a separate microservice plane for the controller.FALSE.

B. Southbound service plane:This is true. The southbound plane carries configuration and control data to network devices (e.g., via NETCONF, BGP-EVPN), a critical service plane in SDN.TRUE.

C. Northbound management plane:This is true. The northbound plane provides APIs for management applications and orchestration (e.g., OpenStack integration), handling service requests.TRUE.

D. Internal communication plane:This is true. This plane facilitates communication between controller cluster nodes for synchronization and high availability.TRUE.

Thus,B (Southbound service plane), C (Northbound management plane), and D (Internal communication plane)are the network planes divided based on carried services.References:Huawei CloudFabric Data Center Network Solution – SDN Architecture; HCIP-Data Center Network Training – Controller Planes.

M-LAG (Multi-Chassis Link Aggregation) on Huawei CE series switches enhances high availability and load balancing by making two switches appear as one. Let’s evaluate each statement:

A. Multi-level M-LAG is mainly used to construct a large Layer 2 network in a DCN or directly connect DCNs at Layer 2:This is true. Multi-level M-LAG extends the topology across multiple layers or data centers, facilitating large Layer 2 domains, a common use case in Huawei DCNs.TRUE.

B. In multi-level M-LAG networking, you can manually configure the root bridge to prevent STP loops:This is true. Manual configuration of the root bridge (e.g., using STP priority) is supported to optimize path selection and prevent loops, especially in complex M-LAG setups.TRUE.

C. Multi-level M-LAG must be configured based on V-STP:This is false. While V-STP can be used to prevent loops, M-LAG does not require V-STP specifically. Standard STP, RSTP, or MSTP can also be configured, depending on the network design. The requirement is loop prevention, not a mandatory V-STP dependency.FALSE.

D. M-LAG networking can be classified into single-level M-LAG networking and multi-level M-LAG networking:This is true. Single-level M-LAG connects two switches directly to devices, while multi-level M-LAG extends across additional layers or devices, a recognized classification in Huawei documentation.TRUE.

Thus,Cis the false statement because multi-level M-LAG does not mandate V-STP configuration.References:Huawei CloudEngine Series Switch Configuration Guide – M-LAG; HCIP-Data Center Network Training – M-LAG Deployment.

iMaster NCE-FabricInsight uses telemetry for performance metric collection, offering advanced monitoring in Huawei’s CloudFabric Solution. Let’s evaluate each option:

A. Efficient transmission:This is true. Telemetry uses streaming data (e.g., gRPC) to reduce overhead compared to traditional polling, enabling efficient transmission of metrics.TRUE.

B. Quasi-real-time data collection:This is true. Telemetry provides near-real-time data (e.g., sub-second updates), improving responsiveness over periodic SNMP polling.TRUE.

C. Intelligent data analysis and automated troubleshooting:This is false. While FabricInsight performs intelligent analysis, automated troubleshooting is a feature of the broader iMaster NCE platform, not specifically a telemetry advantage. Telemetry enables data collection, not the automation itself.FALSE.

D. One-off subscription and continuous data push:This is true. Telemetry operates on a subscription model where a one-time setup leads to continuous data push from devices, reducing manual intervention.TRUE.

Thus,A, B, and Dare advantages of telemetry-based performance metric collection.References:Huawei CloudFabric Data Center Network Solution – FabricInsight Telemetry; HCIP-Data Center Network Training – Performance Monitoring.
