H12-821_V1.0 HCIP-Datacom-Core Technology V1.0 Questions and Answers

 GRE Characteristics

GRE does not inherently support encryption or authentication. It is a tunneling protocol for encapsulating packets, and data security features must be implemented using other protocols such as IPsec.

Other correct attributes of GRE include:

B. Supports multicast transmission.

C. Acts as a Layer 3 VPN encapsulation technology.

D. Can work with VPN protocols like IPsec for better security.

 HCIP-Datacom-Core Reference

GRE features and limitations are discussed in VPN encapsulation technology chapters​​.

Comprehensive and Detailed In-Depth Explanation:

Source-Specific Multicast (SSM) uses (S, G) addressing instead of the traditional (*, G) used in Any-Source Multicast (ASM).

IGMP SSM Mapping is used to enable IGMPv1 and IGMPv2 hosts (which do not support explicit source selection) to work in an SSM environment by mapping (*, G) to (S, G).

A. TRUE → The mapping allows IGMPv1/v2 to function in an SSM network.

B. TRUE → IGMPv3 natively supports SSM, so SSM mapping is not needed for IGMPv3.

C. FALSE → The SSM address range is 232.0.0.0/8 in IPv4, but this is not the only range used for SSM globally.

D. TRUE → If IGMP SSM mapping is disabled, IGMPv1/v2 cannot work in an SSM network because they do not support explicit source selection.

???? Reference: Huawei HCIA-Datacom Study Guide, IGMP Versions and SSM Mapping.

In inter-AC roaming scenarios, an AC (Access Controller) can serve as the mobility server for multiple mobility groups, enabling it to manage roaming among multiple groups. However, an AC can only belong to one specific mobility group. This constraint ensures that mobility management remains streamlined and avoids conflicts. Huawei WLAN mobility configuration guides validate this setup ​.

Comprehensive and Detailed Step-by-Step Explanation:

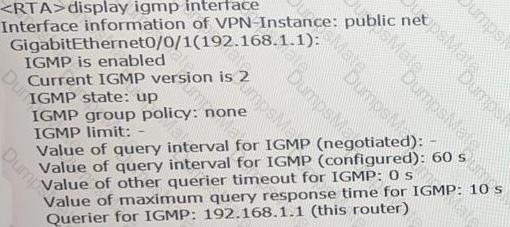

1. Understanding IGMP (Internet Group Management Protocol):

IGMP is used in multicast networking to manage membership of devices in multicast groups.

Key parameters in the configuration provided:

Interface IP Address: 192.168.1.1

IGMP Version: 2

Query Interval (Configured): 60 seconds

Maximum Query Response Time: 10 seconds

Querier Address: 192.168.1.1

2. Analysis of Each Statement:

Option A: The IP address of the interface is 192.168.1.1.

Correct (True Statement).

The configuration clearly shows that the IP address of the interface is 192.168.1.1.

Option B: The maximum response time to Query messages is 10s.

Correct (True Statement).

The configuration explicitly mentions: Value of maximum query response time for IGMP: 10 s.

Option C: The interval for sending Group-Specific Query messages is 60s.

Incorrect (False Statement).

The 60-second value refers to the query interval, which is the time interval between general queries sent by the querier.

The interval for group-specific queries is not specified in this configuration. It is determined dynamically based on the multicast environment and is usually shorter than the general query interval.

Option D: The IGMP version is IGMPv2.

Correct (True Statement).

The configuration specifies: Current IGMP version is 2.

3. Why Option C is False:

The 60-second value is for general query interval, not group-specific query interval.

The statement misinterprets the configuration, making it false.

4. Summary:

Correct Answer: C (The interval for sending Group-Specific Query messages is 60s).

Comprehensive and Detailed in-depth Step-by-Step Explanation:To answer this question, it is essential to distinguish between the roles of ABRs and ASBRs in OSPF and the function of route summarization:

Route Summarization on ABRs:

Route summarization in OSPF can reduce the number of inter-area Type 3 LSAs that ABRs propagate between areas.

ABRs perform route summarization to reduce the amount of routing information exchanged between areas, thereby decreasing the size of the routing table and improving resource utilization.

Route Summarization on ASBRs:

ASBRs summarize external routes (from outside OSPF) into Type 5 LSAs or Type 7 LSAs (in NSSAs).

ASBR route summarization does not impact inter-area Type 3 LSAs because ASBRs are responsible for importing and summarizing external routes, not summarizing routes between OSPF areas.

Since the statement refers to configuring route summarization on ASBRs to reduce inter-area Type 3 LSAs, it is incorrect. Route summarization for inter-area Type 3 LSAs must be configured on ABRs, not ASBRs.

Correct Statement: Route summarization on ABRs reduces the number of inter-area Type 3 LSAs.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "OSPF Route Summarization".

RFC 2328 – OSPF Version 2.

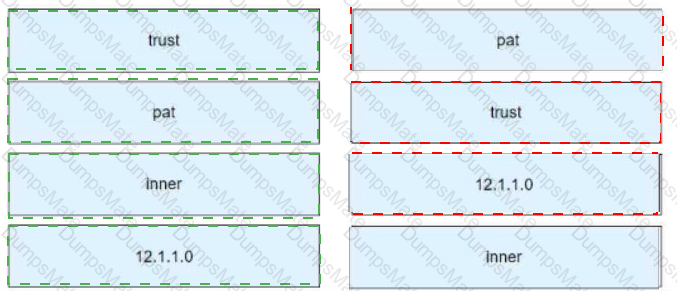

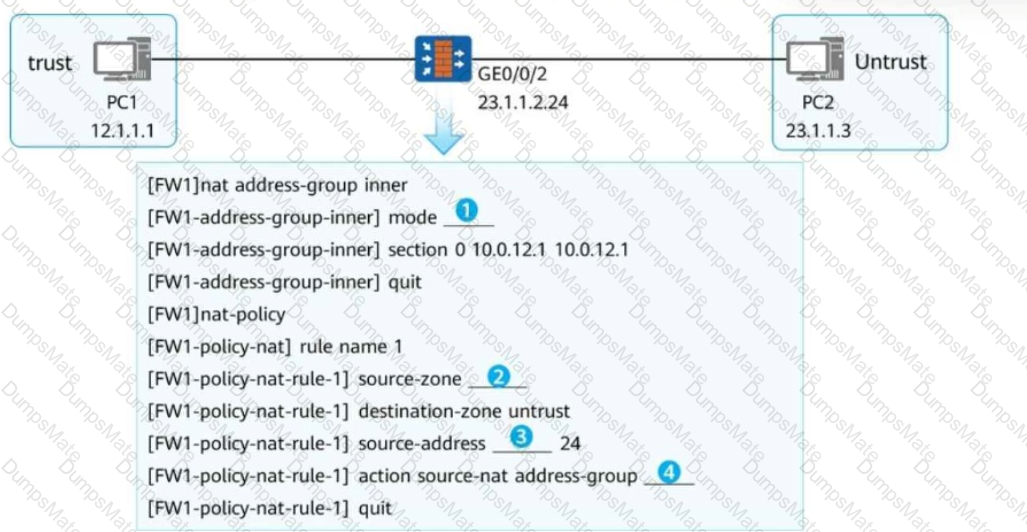

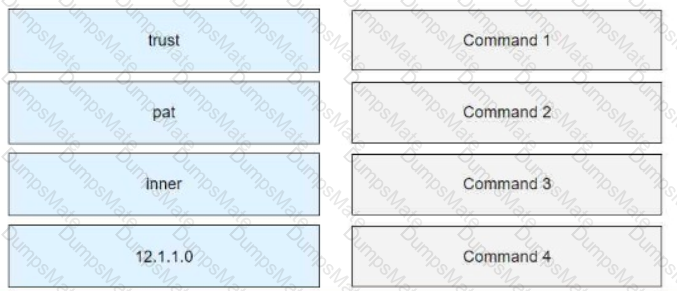

 pat

 trust

 12.1.1.0

 inner

 Notification Message Purpose

BGP Notification messages are used to report errors or terminate a connection. They do not request peers to resend routing information after routing policies are changed.

Routing updates following policy changes require manual resynchronization, not Notification messages.

 HCIP-Datacom-Core Reference

The purpose and usage of Notification messages are discussed in the BGP operation chapters​​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Single-Hop BFD Session:

A single-hop BFD session is used to detect link failures between directly connected devices.

It is bound to the local IP address and the peer IP address, and the session relies on these parameters to establish connectivity.

2. Why Modifications Require Deletion:

BFD sessions are tightly bound to their configuration parameters (e.g., local and peer IP addresses).

Modifying these parameters is not supported for an existing session. Instead, you must delete the session and recreate it with the updated parameters.

3. Why the Statement is TRUE:

The statement correctly describes the behavior of BFD sessions, where modifying an existing session is not possible without deleting it first.

 OSPF Authentication Overview

The Auth Type field in the OSPF packet header determines the authentication mode. If the Auth Type is 1, plaintext authentication is used.

Plaintext authentication involves transmitting the password in an easily readable format, which is less secure compared to MD5.

 HCIP-Datacom-Core Reference

Authentication mechanisms, including plaintext authentication, are detailed in the OSPF security configuration chapter, confirming that Auth Type = 1 corresponds to plaintext​​.

Comprehensive and Detailed In-Depth Explanation:

SNMP (Simple Network Management Protocol) v3 is a more secure version of SNMP, supporting authentication and encryption.

If the NMS is not receiving SNMPv3 traps, possible causes include:

A. FALSE → The SNMP version mismatch does not affect traps; devices can send SNMPv2 traps even when using SNMPv3.

B. TRUE → If the SNMPv3 password is incorrect, authentication will fail, and traps will not be processed by the NMS.

C. FALSE → The size of packets sent by the NMS does not affect incoming SNMP traps from the router.

D. TRUE → The community name must match on both the NMS and the router, or traps will be ignored.

???? Reference: Huawei HCIA-Datacom Study Guide, SNMPv3 Configuration and Authentication.

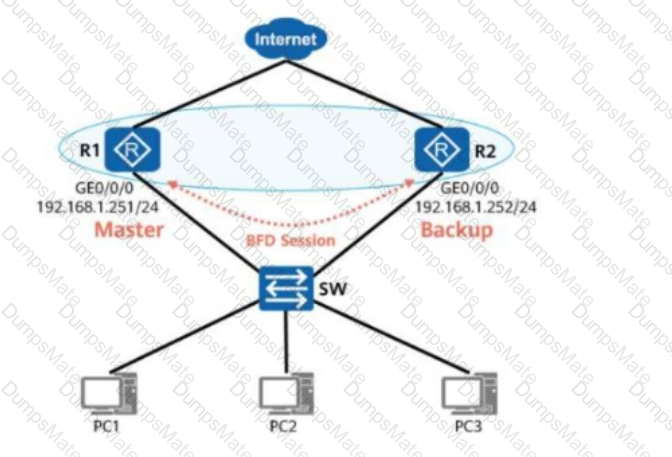

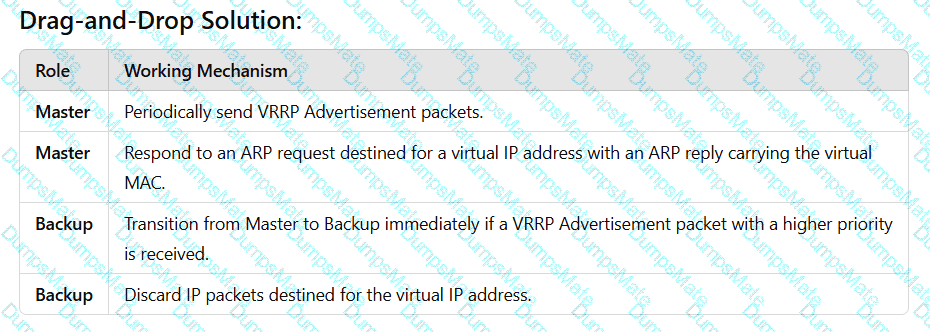

 VRRP and BFD Association:

VRRP (Virtual Router Redundancy Protocol) is used to provide gateway redundancy by electing a master and backup router.

Associating VRRP with BFD (Bidirectional Forwarding Detection) allows faster detection of faults on the master device or the link between the master and the backup.

Comprehensive and Detailed Step-by-Step Explanation:

Understanding the ACL Configuration:

ACL Number: 3001 is an advanced ACL.

Rule Description: The rule permits ICMP packets with the following criteria:

Source IP: 192.168.1.3 (host-specific).

Destination IP: 192.168.2.0/24 (entire subnet).

Analysis of Each Option:

Option A: True. ICMP packets from 192.168.1.3 to 192.168.2.200 (within the subnet) are permitted.

Option B: True. Packets from 192.168.1.2 (not matching the source) are denied by default.

Option C: False. The ACL only permits ICMP packets, not general IP packets.

Option D: True. The ACL is identified by the number 3001.

References:

HCIA-Datacom Study Guide, Chapter: ACL Filtering Rules

Huawei Advanced ACL Configuration

Comprehensive and Detailed Step-by-Step Explanation:

1. BGP Attributes Overview:

BGP uses attributes to describe the properties of routes. These attributes are classified into the following categories:

Well-Known Mandatory: Attributes that must be recognized and included in every BGP update. Examples: AS_PATH, ORIGIN, NEXT_HOP.

Well-Known Discretionary: Attributes that must be recognized but are not required in every BGP update. Examples: LOCAL_PREF, ATOMIC_AGGREGATE.

Optional Transitive: Attributes that may or may not be recognized, but must be passed along to other BGP peers. Examples: COMMUNITY.

Optional Non-Transitive: Attributes that may or may not be recognized, and are not passed along to other BGP peers. Examples: MED (Multi-Exit Discriminator).

2. Analysis of Each Option:

Option A: Atomic_Aggregate

Correct.

This is a well-known discretionary attribute. It indicates that the advertised route is an aggregate route that summarizes multiple specific routes.

Option B: Local-Preference

Correct.

This is a well-known discretionary attribute. It is used within an AS to prioritize routes, with higher values being preferred.

Option C: Community

Incorrect.

The COMMUNITY attribute is an optional transitive attribute. It is used to tag routes with specific labels to apply routing policies.

Option D: MED (Multi-Exit Discriminator)

Incorrect.

The MED attribute is an optional non-transitive attribute. It is used to influence the choice of the preferred path when there are multiple entry points into an AS.

3. Summary:

Well-Known Discretionary Attributes: Atomic_Aggregate and Local-Preference.

 DIS and DR Election

The IS-IS Designated Intermediate System (DIS) is responsible for generating and updating pseudonode LSPs on a broadcast network.

Unlike OSPF DR, the IS-IS DIS does not preempt by default. This behavior avoids unnecessary flapping in the network due to frequent DIS re-elections.

 HCIP-Datacom-Core Reference

The characteristics of DIS and DR behavior are explained in IS-IS network operation chapters​​.

 GMP Snooping Proxy

IGMP snooping proxy allows the switch to substitute for upstream Layer 3 devices and downstream hosts, reducing unnecessary bandwidth consumption by consolidating IGMP messages.

 HCIP-Datacom-Core Reference

The IGMP snooping proxy functionality is described in multicast optimization and IGMP configuration chapters​​

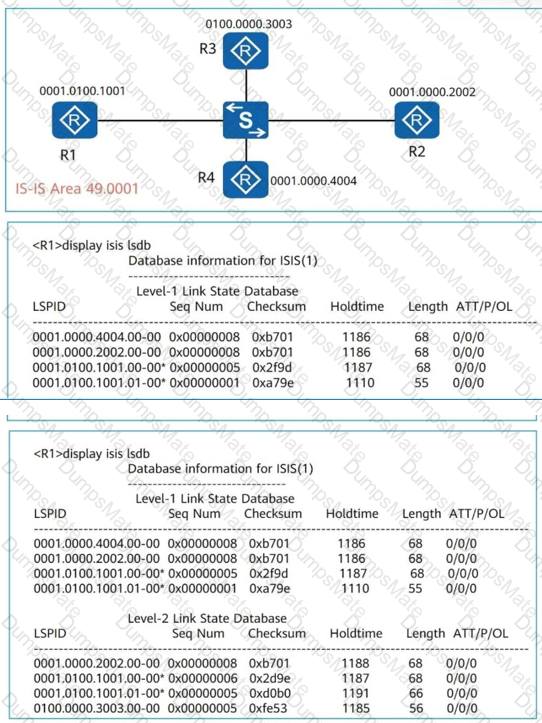

Understanding the LSDB and Level-2 DIS Election in IS-IS:

In IS-IS, the Designated Intermediate System (DIS) is elected for both Level-1 and Level-2 on broadcast networks to manage the link-state database (LSDB) and reduce the number of LSAs exchanged.

The election of the DIS is based on the highest priority. If the priority is the same, the router with the highest System ID becomes the DIS.

Comprehensive and Detailed Step-by-Step Explanation:

1. Overview of IP Multicast:

IP multicast is a method of delivering data from one source to multiple destinations simultaneously.

Unlike unicast (one-to-one communication) or broadcast (one-to-all communication), multicast is one-to-many, allowing data to be sent only to subscribers (multicast group members).

This significantly conserves bandwidth and reduces the load on the network because the source only sends a single stream of data, which is replicated by multicast routers as needed.

2. Use Cases for IP Multicast:

IP multicast is widely used in network services that involve real-time or large-scale data delivery, such as:

IPTV (Internet Protocol Television): Broadcasting live TV streams.

Real-Time Data Transmission: Delivering stock market data, sensor updates, etc.

Multimedia Conferencing: Supporting group calls, webinars, and online meetings.

3. Why the Statement is TRUE:

IP multicast reduces unnecessary traffic and maximizes efficiency, making it ideal for these types of network services.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is First-Time Authentication in SSH?

When an SSH client connects to an SSH server for the first time, the server's public key is not yet known to the client.

Enabling first-time authentication allows the SSH client to accept the server's public key and save it for future connections. This feature eliminates the need for manual configuration of the server's public key on the client.

2. Process Explanation:

The SSH client connects to the server and receives the server's public key.

The client accepts the key and saves it in its local key database (e.g., known_hosts file).

For subsequent connections, the client uses the saved public key to authenticate the server.

3. Why the Statement is TRUE:

First-time authentication simplifies SSH setup and is a commonly used method when connecting to new servers. It ensures that future connections are authenticated using the saved public key.

The Local-Preference attribute is used within an AS to influence outbound traffic paths. The default value is 100, and it is a well-known discretionary attribute, meaning it is not mandatory and does not travel across AS boundaries ​.

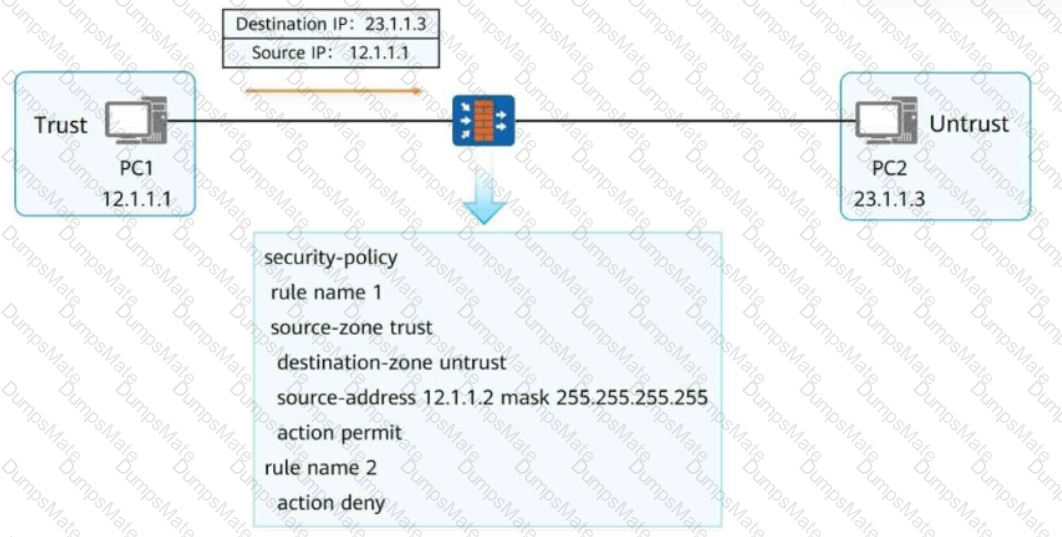

The security policy specifies that traffic originating from 12.1.1.2 and destined for the untrust zone is permitted. Since the source address of the packet (12.1.1.1) does not match this rule, the packet matches the default implicit deny rule. However, rule 1 does not deny all other traffic explicitly, so the packet is forwarded based on further configurations ​.

BGP does not advertise all routes learned from peers to other peers. By default, only the best (optimal) routes selected by BGP are advertised to other peers. Additionally, routes learned from IBGP peers are not forwarded to other IBGP peers unless a route reflector or confederation setup is used. The statement claiming all learned routes are advertised is false ​.

An OSPF AS-external LSA is used to describe routes to networks that are external to the OSPF Autonomous System (AS). This external route information is typically imported into OSPF by an Autonomous System Boundary Router (ASBR).

If the Forwarding Address field in the AS-external LSA is set to 0.0.0.0, this indicates that traffic destined for the external network should be forwarded directly to the ASBR that advertised the external route.

The specific context mentioned here relates to the Not-So-Stubby Area (NSSA), a type of OSPF area designed to handle AS-external routes in a more controlled way. In NSSAs:

Type 7 LSAs are used to describe AS-external routes.

The ASBR within the NSSA converts the Type 7 LSA to a Type 5 LSA before advertising it to the backbone area.

Hence, the correct acronym for the described functionality is NSSA.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "OSPF Area Types".

RFC 3101 – OSPF Not-So-Stubby Area (NSSA) Option.

Comprehensive and Detailed Step-by-Step Explanation:

Multi-Channel Protocols:

Multi-channel protocols use separate channels for control and data communication, requiring application-specific packet filtering (ASPF) to track sessions.

Examples:

FTP (A): Uses separate control and data channels.

SIP (B): Uses multiple ports for signaling and media.

H.323 (D): A VoIP protocol using multiple channels.

Single-Channel Protocol:

SMTP (C): A single-channel protocol for email communication, which does not require ASPF.

References:

HCIA-Datacom Study Guide, Chapter: Firewall ASPF Configuration

Huawei Multi-Channel Protocol Handling

ARP spoofing is a Layer 2 attack, as it targets ARP tables in switches or end devices. All other attacks, including IP spoofing, ICMP attacks, and Smurf attacks, are network layer (Layer 3) attacks ​.

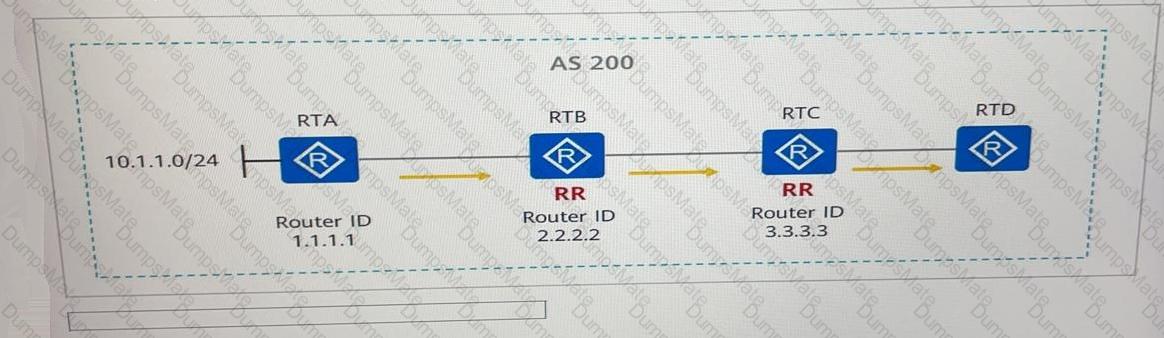

The Originator ID in a BGP route represents the Router ID of the device that originally advertised the route into the BGP domain. Since RTA originates the route 10.1.1.0/24 into the BGP process, the Originator ID in the route received by RTD will be set to 1.1.1.1 ​.

The Forwarding Information Base (FIB) is derived from the router's routing table and contains the exact forwarding entries used to route packets. It directly guides packet forwarding decisions by matching incoming packets with the correct output interface or next-hop address ​.

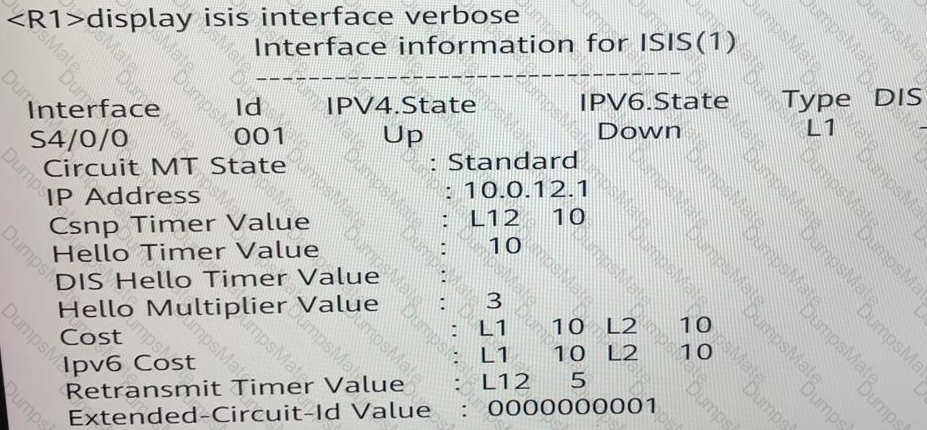

Comprehensive and Detailed in-depth Step-by-Step Explanation:In IS-IS, the interface cost is a metric used to determine the best path to a destination. Lower-cost paths are preferred over higher-cost paths. By default, IS-IS interface costs can range from 1 to 63.

Default Cost Range:

IS-IS allows the configuration of interface costs within the range of 1–63 by default. This range is sufficient for most networks.

Maximum Configurable Cost:

The maximum value that can be configured by default is 63. If there is a requirement for a higher cost range, the metric-style can be changed to wide, which allows the cost range to extend beyond 63.

Option A (67): Incorrect. 67 is not the maximum default value.

Option B (63): Correct. This is the maximum default cost value.

Option C (64): Incorrect. This is beyond the default range.

Option D (68): Incorrect. This is beyond the default range.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "IS-IS Cost and Route Selection".

RFC 5308 – Routing IPv6 with IS-IS.

BFD operates at the network layer, providing rapid fault detection for forwarding paths, such as IP routing and MPLS tunnels. It interacts closely with network protocols (e.g., OSPF, BGP) to ensure high reliability and quick response to faults. BFD does not belong to the application, data link, or physical layers but functions as a network layer diagnostic tool as confirmed in Huawei's network protocol training ​.

 Non-Client Definition in IBGP

In an IBGP setup with a Route Reflector (RR), a non-client is an IBGP peer that is neither the RR itself nor its client.

Non-clients must establish fully meshed IBGP connections with all other non-clients and the RR because IBGP rules prohibit route propagation between non-clients without a direct connection.

 HCIP-Datacom-Core Reference

The behavior of non-clients in an RR topology is clearly outlined in the BGP implementation chapters​​.

Comprehensive and Detailed Step-by-Step Explanation:

IS-IS Three-Way Handshake:

IS-IS uses a three-way handshake to establish neighbor relationships.

This process is applied on both point-to-point (P2P) and broadcast network types to confirm bidirectional communication.

P2P Networks:

Routers directly exchange IS-IS Hello (IIH) packets to establish adjacency.

Broadcast Networks:

IS-IS also uses the three-way handshake on broadcast networks to ensure that the Designated Intermediate System (DIS) election and adjacency formation are correct.

References:

HCIA-Datacom Study Guide, Chapter: IS-IS Adjacency Establishment

Huawei IS-IS Network Configuration

Comprehensive and Detailed Step-by-Step Explanation:

OSPF Route Summarization:

Route summarization combines multiple specific routes into a single summary route. This reduces the number of LSAs advertised between OSPF areas, especially Type 3 LSAs.

Benefits of Route Summarization:

Reduces the size of the OSPF database and routing table.

Minimizes the processing overhead on routers by decreasing the number of routing entries.

Improves the scalability of the OSPF network.

ASBR Function:

The ASBR advertises external routes into OSPF and can summarize routes at area boundaries or during redistribution.

References:

HCIA-Datacom Study Guide, Chapter: OSPF Route Summarization

Huawei Routing Protocol Optimization

When OSPF routers have interfaces on different network segments with different subnet masks, the network type can be adjusted to establish adjacency. A point-to-point (P2P) network type eliminates the requirement for matching subnet masks by treating the link as directly connected without intermediate devices.

P2P Network Characteristics

OSPF treats the link as a direct connection between two routers.

No DR/BDR election occurs, simplifying adjacency establishment.

Subnet mask differences do not hinder neighbor relationships as the link is viewed as a logical tunnel.

HCIP-Datacom-Core Reference

The OSPF configuration section explicitly mentions P2P as a suitable network type for resolving adjacency issues caused by mismatched subnet masks​​.

Comprehensive and Detailed In-Depth Explanation:

OSPF-to-BGP route redistribution does not allow modification of MED values directly using a route-policy in Huawei devices.

Instead, MED can be set using a BGP attribute policy, not through the import command.

All other options (B, C, D) are correct:

B → Route-policy can filter imported direct routes.

C → network command does not modify attributes, only announces existing routes.

D → peer command can set Local Preference via route-policy.

???? Reference: Huawei HCIA-Datacom Study Guide, BGP Route Policy and Attribute Modification.

Comprehensive and Detailed In-Depth Explanation:

IPsec (IP Security Protocol) establishes Security Associations (SAs) for encrypted communication.

An SA is uniquely identified by a 3-tuple:

SPI (Security Parameter Index) → Identifies the SA.

Destination IP Address → Specifies the receiving device.

Security Protocol ID → Indicates whether AH (Authentication Header) or ESP (Encapsulating Security Payload) is used.

A. Key exchange protocol is not part of the SA 3-tuple. It is used during IKE (Internet Key Exchange) but is not part of the SA itself.

???? Reference: Huawei HCIA-Datacom Study Guide, IPsec Security Association and SA Identification.

Application Specific Packet Filtering (ASPF) is a feature that allows the firewall to understand and handle multi-channel protocols such as FTP, H.323, and SIP. ASPF inspects the control channel to dynamically create temporary rules for the data channels, enabling the firewall to secure and manage complex application protocols. This feature ensures that appropriate security policies are applied to these multi-channel applications ​.

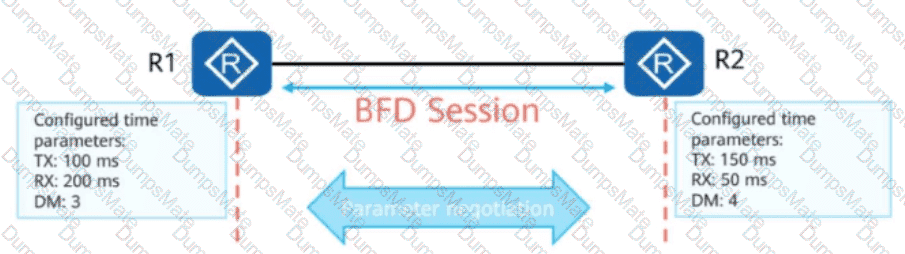

In asynchronous mode, the local device sends BFD control packets at predefined intervals, and the remote device monitors the receipt of these packets to detect connectivity issues. This is one of the two operating modes in BFD, the other being demand mode ​.

Comprehensive and Detailed Step-by-Step Explanation:

Firewall Session Table:

A session table is used to track active sessions. If a session remains idle for longer than the configured aging time, it is removed to free resources and enhance security.

TCP Session Timeout:

If the interval between two packets exceeds the session timeout, the firewall deletes the session information, requiring the session to be re-established.

References:

HCIA-Datacom Study Guide, Chapter: Firewall Session Management

Huawei Firewall TCP Session Timeout Configuration

Comprehensive and Detailed In-Depth Explanation:

STP Port Roles:

Root Port (RP) → Connects directly to the Root Bridge.

Designated Port (DP) → Forwards traffic for a given segment.

RSTP introduces two additional roles to improve redundancy:

Backup Port → A redundant Designated Port (on the same switch).

Alternate Port → A backup Root Port (path to the Root Bridge).

All four roles exist in RSTP, making the correct answer A, B, C, D.

???? Reference: Huawei HCIA-Datacom Study Guide, RSTP Port Roles and Rapid Convergence.

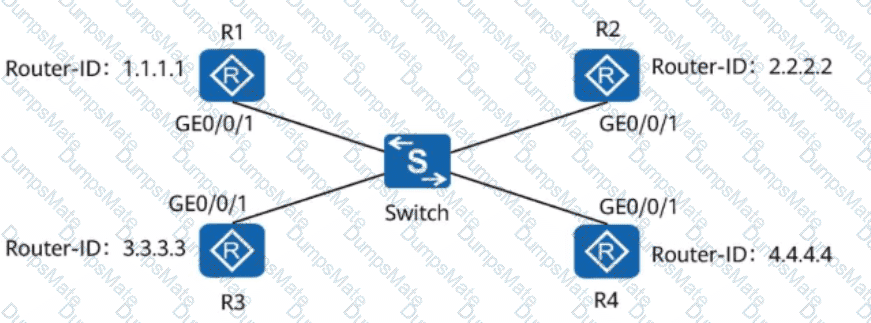

 Understanding Router ID and Its Role in OSPF:In OSPF, the Router ID uniquely identifies a router within the OSPF domain. If two routers are configured with the same Router ID, it can lead to issues such as LSA conflicts and flapping. This is because the Router ID is used as a key in OSPF operations, including LSA generation and database synchronization.

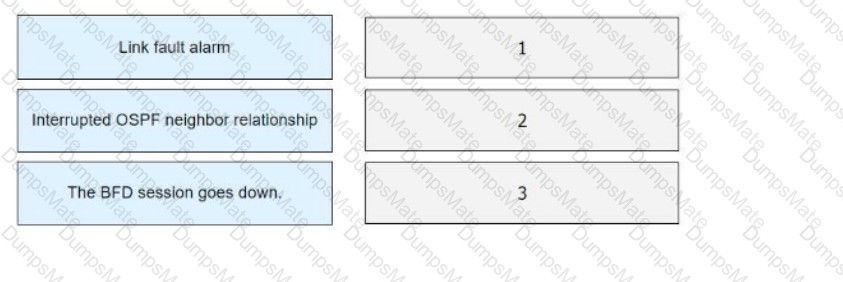

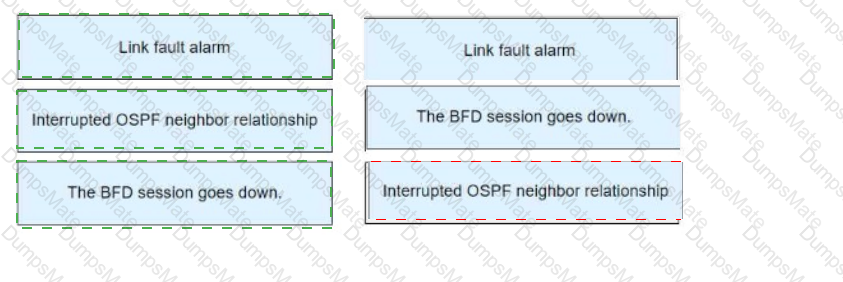

 Link fault alarm

 The BFD session goes down.

 Interrupted OSPF neighbor relationship

Comprehensive and Detailed Step-by-Step Explanation:

Analysis of BGP Attributes:

Original Next Hop: The output shows that the original next hop of the route is 172.16.1.2. (A is correct).

Local Router ID: The local BGP router ID is 10.1.1.1, as displayed. (B is correct).

Local AS Number: The local AS number is 100, as displayed. (C is correct).

Incorrect Option:

Local_Pref: Although Local_Pref is an important attribute, this route is marked as invalid due to "IP unreachable" and thus cannot be preferentially selected.

References:

HCIA-Datacom Study Guide, Chapter: BGP Routing Attributes

Huawei BGP Routing Table Analysis

Comprehensive and Detailed Step-by-Step Explanation:

Route Policy Overview:

A route-policy is a policy-based routing tool that filters and modifies routing information.

It consists of one or more nodes, and each node can specify match conditions and apply actions to routes.

Maximum Number of Nodes:

The maximum number of nodes supported in a route-policy is 1024, allowing flexibility in route filtering and control.

References:

HCIA-Datacom Study Guide, Chapter: Route-Policy Configuration

Huawei Route-Policy Configuration Guidelines

 IP Prefix List Matching Conditions

An IP prefix list matches based on:

Mask: Specifies the subnet mask length.

Action: Specifies whether to permit or deny.

Index: Orders the rules within the prefix list.

Port numbers are not applicable as matching conditions in an IP prefix list.

 HCIP-Datacom-Core Reference

IP prefix list configurations are detailed in the routing policy and route filtering chapters​​.

Comprehensive and Detailed In-Depth Explanation:

OSPF network types affect how protocol packets (Hello, LSA updates) are transmitted:

NBMA (Non-Broadcast Multi-Access) networks (e.g., Frame Relay) do not support multicast, so routers must unicast OSPF packets to neighbors.

Broadcast networks (e.g., Ethernet) support multicast and use 224.0.0.5 for Hello packets and 224.0.0.6 for DR/BDR communication.

The statement is false because:

NBMA does not unicast all packets—only Hello packets must be manually configured to be unicast.

LSAs and routing updates can still be multicast if an NBMA network is configured as point-to-multipoint.

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Network Types and Packet Transmission.

IGMP Version Mismatch

If the IGMP snooping version on the device is earlier than the IGMP version on user hosts, the device may fail to parse IGMP Report messages correctly. As a result, the device forwards these messages only to router ports without generating group member ports or forwarding entries.

Consequently, users cannot receive multicast data.

HCIP-Datacom-Core Reference

Multicast and IGMP snooping behaviors under mismatched conditions are described in the multicast configuration chapters​​.

 BGP Keepalive Message Behavior

Keepalive messages are used to maintain the Established state of a BGP peer relationship.

The Keepalive timer determines the frequency of these messages and defaults to 60 seconds, as per the BGP specification.

 HCIP-Datacom-Core Reference

The Keepalive timer default value is covered in the BGP configuration and operational principles​​.

RSTP improves convergence by introducing changes to the BPDU handling mechanism and port roles. However, RSTP does not rely on a fixed timeout of four Hello intervals for negotiation failure. Instead, RSTP uses a more dynamic mechanism to detect topology changes. The other options describe valid RSTP improvements ​.

In a route-policy, attributes such as MED (Multi-Exit Discriminator) and Local-Preference can be used in apply clauses to influence BGP route selection. Attributes like AS_Path and Tag are typically matched or filtered but not directly applied in the apply clause ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is NETCONF?

NETCONF (Network Configuration Protocol) is an XML-based protocol used for network device configuration and management.

It enables reading, modifying, deleting, and restoring configurations programmatically.

2. Supported Operations:

Option A: Modifying configurations

Correct.

NETCONF allows you to modify existing configurations on network devices.

Option B: Deleting configurations

Correct.

Configurations can be deleted using NETCONF operations.

Option C: Restoring configurations

Correct.

NETCONF can restore configurations by applying previously saved configuration data.

Option D: Backing up configurations

Correct.

NETCONF can retrieve and save the current configuration as a backup.

3. Summary:

NETCONF supports all listed operations: modifying, deleting, restoring, and backing up configurations.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the AS-Path Filter:

The as-path-filter command is used in BGP to filter routes based on the AS_PATH attribute.

In this configuration:

The filter si is defined with the regular expression _65500$.

The _65500$ expression specifies that the AS_PATH must end with 65500, meaning that the route's last hop must have passed through AS 65500.

2. Option Analysis:

Option A: It accepts only the routes whose AS_Path contains AS 65500.

Incorrect.

The _65500$ filter specifically matches routes where AS 65500 is the last AS in the AS_PATH. A route may contain AS 65500 somewhere in the middle of the AS_PATH but will not match this filter unless it is the last AS.

Option B: It accepts only the routes originated from AS 65500.

Incorrect.

Routes that originate from AS 65500 have an AS_PATH that starts with 65500. However, the filter _65500$ only matches routes where AS 65500 is the last AS, not the first AS.

Option C: It accepts only the routes that last pass through AS 65500.

Correct.

The _65500$ filter ensures that the AS_PATH ends with 65500. This means that the route must have last passed through AS 65500 before being received by the local BGP router.

Option D: It accepts only the routes forwarded by AS 65500.

Incorrect.

While AS 65500 may forward the route, this is not what the filter _65500$ specifically checks for. It only ensures that AS 65500 is the last AS in the AS_PATH.

3. Summary:

The as-path-filter with _65500$ accepts only the routes where AS 65500 is the last AS in the AS_PATH.

From the command output, the interface S4/0/0 has its cost value explicitly listed under the Cost section as 20 for Level-1 circuits. This means that all traffic routed through this interface will incur this cost in the IS-IS metric calculation. The other options (such as circuit level and IPv6 support) are either not correct or not supported by the provided output ​.

 ACL Matching in Huawei Routers:

Access Control Lists (ACLs) are used to filter packets based on specific criteria, such as source/destination IP, ports, or protocols.

When a packet arrives, the Huawei router processes it against the configured ACL rules to decide whether to permit or deny the packet.

 ACL in Routing Policies

ACLs are frequently used in routing policies to match specific routes based on criteria such as source IP, destination IP, and more. This allows ACLs to influence route redistribution, filtering, and forwarding decisions.

 HCIP-Datacom-Core Reference

ACL applications in routing policies are discussed in the routing policy chapters​​.

After Layer 3 roaming, the STA’s traffic is forwarded from the Foreign AP (FAP) to the Foreign AC (FAC), and then to the Home AC (HAC) before reaching the upper-layer network. This ensures that the STA remains on the same subnet without breaking existing sessions ​.

Comprehensive and Detailed In-Depth Explanation:

SSH (Secure Shell) provides secure remote login and data encryption over insecure networks.

A. TRUE → SSH requires user authentication before access is granted.

B. TRUE → Enabling SSH opens listening ports, which could be scanned by attackers. Proper security measures (e.g., disabling unused SSH access) are recommended.

C. TRUE → ACLs can be applied to VTY (Virtual Terminal) lines to restrict SSH access based on IP addresses.

D. FALSE → The default SSH server port is 22, not 23. Port 23 is used for Telnet, which is less secure than SSH.

???? Reference: Huawei HCIA-Datacom Study Guide, SSH Configuration and Security Measures.

Comprehensive and Detailed Step-by-Step Explanation:

ACL Capabilities:

ACLs are versatile tools that can match:

Data packets: Using IP addresses, protocols, ports, etc.

Routes: ACLs can be used in route filtering, matching both IP prefix length and mask length.

Correct Statement:

ACLs can match both the IP address prefix length and mask length in route filtering applications.

References:

HCIA-Datacom Study Guide, Chapter: ACL Applications

Huawei Route Filtering Using ACLs

Comprehensive and Detailed Step-by-Step Explanation:

Analysis of the OSPF Neighbor State:

Router ID 10.0.5.5:

On interface 10.0.235.2 (GigabitEthernet0/0/1), the neighbor state is Full, indicating that adjacency is established.

The Designated Router (DR) is 10.0.235.5, which is the same as the neighbor's address.

Router ID 10.0.4.4:

On interface 10.0.24.2 (Serial1/0/1), the neighbor state is also Full, meaning adjacency is established.

The DR/BDR election status shows None, indicating that the interface is on a point-to-point link where DR/BDR election does not apply.

Validation of Each Option:

Option A: Correct. The DR IP address is explicitly shown as 10.0.235.5.

Option B: Correct. The neighbor state for both 10.0.5.5 and 10.0.4.4 is Full, confirming adjacency is established.

Option C: Incorrect. DR/BDR elections are irrelevant on point-to-point links like Serial1/0/1.

Option D: Correct. The Router IDs of R2's neighbors are explicitly listed as 10.0.5.5 and 10.0.4.4.

References:

HCIA-Datacom Study Guide, Chapter: OSPF Neighbor Relationships

Huawei OSPF Neighbor and Adjacency Details

Comprehensive and Detailed Step-by-Step Explanation:

Overview of IGMP Versions:

IGMPv1: The simplest version, supports basic group membership management using Report messages but lacks Leave messages.

IGMPv2: Adds features like Leave messages and Group-Specific Queries.

IGMPv3: Supports specifying multicast sources for Source-Specific Multicast (SSM).

Feature Supported by All Versions:

Report messages are fundamental to IGMP functionality and are supported in all three versions.

Features Not Supported by All Versions:

Group-Specific Queries (A): Supported in IGMPv2 and IGMPv3.

Leave Messages (B): Introduced in IGMPv2.

Specifying Multicast Sources (D): Introduced in IGMPv3.

References:

HCIA-Datacom Study Guide, Chapter: IGMP Overview

Huawei Multicast Protocol Details

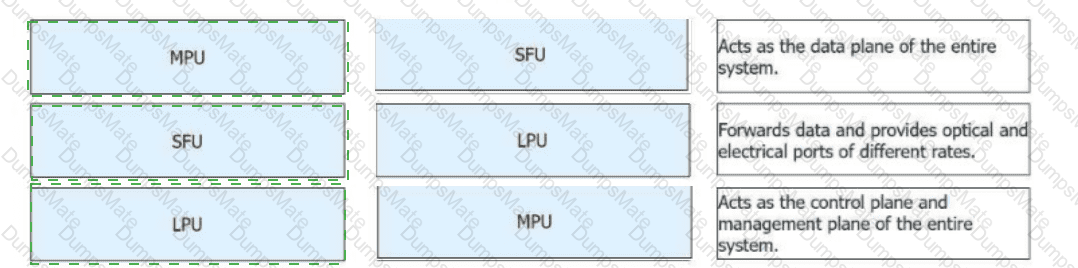

The forwarding plane of a switch consists of data forwarding hardware, such as line cards or forwarding engines, and is responsible for tasks like encapsulating/decapsulating packets, providing high-speed data channels, and collecting packet statistics. However, main control boards are part of the control plane, not the forwarding plane. This distinction ensures a separation of data forwarding and control functionalities ​.

The default sending interval for BFD (Bidirectional Forwarding Detection) control packets is 100 milliseconds. This interval ensures rapid detection of link faults, providing fast failover and minimizing downtime in network operations ​.

Routing Entries in PIM

(S, G) entries: Represent the shortest path tree (SPT) from a specific source (S) to a specific multicast group (G). These entries are created after data packets are transmitted directly from the source to the receivers.

(S, G) entries are used in both PIM-DM and PIM-SM modes.

PIM-DM and PIM-SM Modes

In PIM-DM, multicast traffic is initially flooded throughout the network and pruned where no receivers exist. (S, G) entries represent source-specific paths created after the flooding stage.

In PIM-SM, multicast traffic initially flows through a shared tree, but (S, G) entries are created when the network switches to the SPT for more efficient forwarding.

HCIP-Datacom-Core Reference

The functionality and application of (S, G) routing entries are detailed in multicast and PIM configuration chapters​​.

The provided BGP error display shows the error timestamp as 12:40:39 on March 22, 2010. The error message confirms a mismatch in the peer AS number, as indicated in the "Incorrect remote AS" error info. This eliminates options related to other causes, and the timestamp in Option A is incorrect ​.

In a stateful inspection firewall, if the status detection mechanism is enabled, it tracks and validates the state of connections using the session table. If there is no session table and a SYN+ACK packet reaches the firewall, it checks the security policy. If the policy explicitly permits the packet, it will pass through the firewall, but no session table will be created without the initial SYN packet. The other options are either incorrect or misrepresent the behavior of stateful inspection ​.

According to BGP route selection rules, a higher Local_Pref value indicates a more preferred route. This rule is used to influence traffic flow within an autonomous system (AS), giving preference to routes with a higher Local_Pref for outgoing traffic ​.

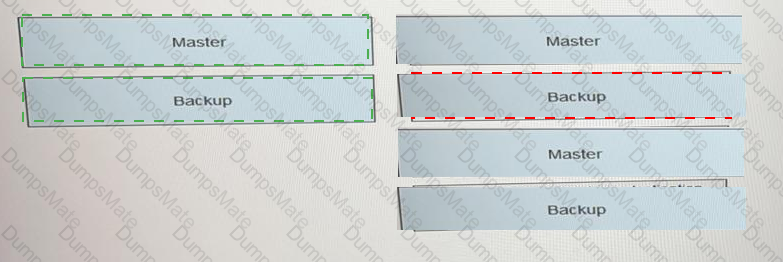

Master

Backup

Master

Backup

Route summarization in OSPF is restricted to specific routers: Area Border Routers (ABRs) and Autonomous System Boundary Routers (ASBRs). These devices perform summarization to reduce routing table size and minimize advertised routing information between areas or across AS boundaries. Regular routers cannot perform route summarization, making this statement false ​.

Comprehensive and Detailed In-Depth Explanation:

Wireless LAN (WLAN) roaming allows mobile devices (STAs) to move seamlessly between different APs without dropping connections.

Types of WLAN Roaming:

Layer 2 roaming → STAs move between APs in the same subnet without IP address changes.

Layer 3 roaming → STAs move across different subnets, requiring IP address reconfiguration (handled via DHCP or tunneling).

Since roaming prevents service interruption in large WLAN deployments, the statement is true.

???? Reference: Huawei HCIA-Datacom Study Guide, WLAN Roaming and Seamless Connectivity.

Comprehensive and Detailed in-depth Step-by-Step Explanation:OSPF routers establish neighbor relationships and progress through various states during the adjacency formation process. The ExStart state is where routers negotiate the master and slave roles. This negotiation is critical because the master initiates the Data Description (DD) packet exchange process.

Here’s a breakdown of the relevant OSPF states:

ExStart State:

This is the phase where the routers determine which one will act as the master and which will be the slave.

The decision is based on the Router IDs of the two routers. The router with the higher Router ID becomes the master.

Exchange State:

After the master-slave roles are established, the routers exchange DD packets. These packets contain summaries of the LSAs in their respective LSDBs.

2-way State:

This state indicates that bidirectional communication has been established between the two routers, but it occurs before master-slave negotiation.

Init State:

This is an early state where a router has sent a Hello packet to its neighbor but has not yet received a Hello packet in response.

Key Point:The negotiation of master and slave roles happens exclusively in the ExStart state, making D. ExStart the correct answer.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "OSPF Neighbor States".

RFC 2328 – OSPF Version 2 (Section 10.8).

Comprehensive and Detailed In-Depth Explanation:

AS_Path is a well-known mandatory attribute (not discretionary).

AS_Path characteristics:

A. TRUE → When advertising to IBGP peers, AS_Path remains unchanged to prevent routing loops.

B. TRUE → BGP uses AS_Path to detect loops (if a router sees its own AS in the path, it rejects the route).

C. FALSE → AS_Path is well-known mandatory, not discretionary.

D. TRUE → BGP ignores AS_Confed_Sequence and AS_Confed_Set when calculating the AS_Path length.

???? Reference: Huawei HCIA-Datacom Study Guide, BGP Path Attributes and Loop Prevention.

Comprehensive and Detailed Step-by-Step Explanation:

1. Overview of BGP:

BGP (Border Gateway Protocol) is an Exterior Gateway Protocol (EGP) designed to exchange routing information between different Autonomous Systems (ASs) on the internet. Unlike traditional distance-vector protocols (like RIP), BGP is considered a path-vector protocol, as it not only determines reachability but also ensures policy-based routing decisions and advanced path selection mechanisms.

2. Analysis of Each Option:

Option A: BGP does not support authentication. Therefore, it cannot ensure network security.

This statement is incorrect.

BGP supports authentication using mechanisms such as TCP MD5 (Message Digest 5) and TCP-AO (Authentication Option). These authentication mechanisms ensure that BGP messages are not tampered with or intercepted during transmission, enhancing network security.

Intra-area route calculation in OSPF involves only Router LSAs (Type 1) and Network LSAs (Type 2). Summary LSAs (Type 3) are used for inter-area routes and do not participate in intra-area route calculation. Therefore, the statement is false ​.

In BGP, the AS-Path attribute is mandatory and must be included in all UPDATE messages. It records the autonomous systems a route has traversed. Attributes like Local-Preference, MED, and Prefval are optional and may not always be included. The AS-Path is crucial for loop prevention and route selection ​.

OSPF supports both area-level and interface-level authentication. When both are configured, interface authentication takes precedence over area authentication. This hierarchy ensures that specific interface-level configurations override the broader area-level settings when applicable ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. IPv6 and Neighbor Discovery Protocol (NDP):

In IPv4, a host uses ARP (Address Resolution Protocol) to map an IP address to a MAC address for communication.

In IPv6, ARP is not used. Instead, IPv6 uses the Neighbor Discovery Protocol (NDP) for address resolution.

2. Why the Statement is FALSE:

IPv6 does not use ARP for resolving link-layer addresses.

IPv6 uses NDP, which operates through ICMPv6 messages to perform the equivalent function.

3. Summary:

The statement is FALSE because IPv6 uses NDP, not ARP, to obtain the link-layer address of the destination host.

The command output confirms that the VLANs with IDs 2 and 4 are part of the VLAN pool named "STA." The VLAN pool concept is used to allocate VLANs dynamically to devices or subnets, which reduces broadcast domain size and improves network efficiency. The total number of VLAN pools is unrelated to this output, and the assignment algorithm (hash or even) is not explicitly mentioned in the output. Huawei VLAN pool management references align with this analysis ​.

 IS-IS Overview: Intermediate System to Intermediate System (IS-IS) is a link-state routing protocol. Routers exchange Link State Packets (LSPs) to maintain a synchronized link-state database. These LSPs are categorized into Level-1 LSPs (intra-area routing) and Level-2 LSPs (inter-area routing). Both types share the same packet format.

In an OSPF broadcast or NBMA network with at least two routers, one router must act as the DR (Designated Router), and another as the BDR (Backup Designated Router) to ensure efficient communication and reduce the number of adjacencies. This is a requirement for OSPF operation in such network types ​.

ICMPv6 messages are classified into two types: error messages (e.g., Destination Unreachable, Time Exceeded) and informational messages (e.g., Echo Request, Echo Reply). This classification is fundamental to ICMPv6's operation ​.

Comprehensive and Detailed In-Depth Explanation:

Router LSAs (Type 1 LSAs) are generated by every OSPF router to describe its directly connected links and their states.

The E (External) bit in the Options field of a Type 1 LSA indicates whether the router is acting as an Autonomous System Boundary Router (ASBR).

If E = 1, it means that the router is an ASBR, which means it is redistributing external routes (e.g., BGP, static routes) into OSPF.

IR (Internal Router), ABR (Area Border Router), and DR (Designated Router) do not set the E-bit in their Router LSA unless they are also ASBRs.

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Router Types and LSA Options.

 BGP Next_Hop Attribute

Unlike IGP, the Next_Hop attribute in BGP does not necessarily have to be the IP address of a peer interface. For example, in multi-hop BGP configurations, the Next_Hop can point to a different router or interface within the network.

 HCIP-Datacom-Core Reference

Details of the Next_Hop attribute and its behavior are outlined in BGP path selection principles​​.

Comprehensive and Detailed Step-by-Step Explanation:

STP and RSTP Behavior:

STP: Only the designated port processes inferior BPDUs. Inferior BPDUs are received from downstream switches and typically indicate topology changes.

RSTP: All ports, regardless of role (root, designated, or alternate), process inferior BPDUs to ensure faster convergence.

Behavior Difference:

RSTP improves convergence by allowing any port to process inferior BPDUs, unlike STP, which restricts this function to designated ports.

References:

HCIA-Datacom Study Guide, Chapter: STP vs RSTP

Huawei STP and RSTP Configuration Comparison

Comprehensive and Detailed Step-by-Step Explanation:

1. Port Priority in RSTP:

RSTP (Rapid Spanning Tree Protocol) elects root and designated ports based on port priority and port ID.

Port priority is a configurable value that helps determine which port becomes the root or designated port when multiple ports are eligible.

The port ID consists of the port priority and port number. When priorities are equal, the port number is used as a tiebreaker.

2. Default Port Priority on Huawei Switches:

On Huawei switches, the default port priority is 128.

This value can be adjusted in increments of 16 using the command stp port priority.

3. Analysis of Options:

Option A: 1

Incorrect. This is not the default port priority value.

Option B: 128

Correct. This is the default port priority value on Huawei switches.

Option C: 4096

Incorrect. This is not a valid default port priority value.

Option D: 32768

Incorrect. This is the default bridge priority, not the port priority.

4. Summary:

The default port priority on Huawei switches is 128.

The MED (Multi-Exit Discriminator) is an optional, non-transitive attribute used to influence the exit path. MED is considered after attributes such as Local-Preference, AS-Path, and Origin during route selection. By default, if a MED value is missing, it is treated as 0 unless the bestroute med-none-as-maximum command is configured to treat it as 4294967295 ​.

 ACL Number Ranges

Basic ACLs: Numbered from 2000 to 2999.

Advanced ACLs: Numbered from 3000 to 3999.

Layer 2 ACLs: Numbered from 5000 to 5999.

User-defined ACLs: Numbered from 4000 to 4999.

 HCIP-Datacom-Core Reference

ACL classifications and their number ranges are covered in the ACL principles and configuration chapters​​.

Comprehensive and Detailed In-Depth Explanation:

OSPF uses Hello packets to establish and maintain neighbor relationships. The method of sending Hello packets depends on the network type:

Broadcast networks (e.g., Ethernet) use multicast (224.0.0.5) to discover and maintain OSPF neighbors.

Point-to-Point (P2P) networks (e.g., PPP links) also use multicast (224.0.0.5) for Hello packet exchange.

Non-Broadcast Multi-Access (NBMA) networks (e.g., Frame Relay) require manual neighbor configuration and use unicast Hello packets instead of multicast.

Point-to-Multipoint (P2MP) networks can send Hello packets either unicast or multicast, but it depends on configuration.

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Neighbor Discovery and Hello Packet Mechanism.

Comprehensive and Detailed In-Depth Explanation:

When a packet is checked against an Access Control List (ACL), it is processed based on rule matches.

"Unmatched" scenarios occur if:

A. TRUE → The packet does not match any ACL rule.

C. TRUE → No ACL is configured, so there are no rules to match.

D. TRUE → An empty ACL exists, meaning no rules are defined.

B is incorrect because if the packet matches a deny rule, it is "matched" and explicitly dropped, not "unmatched".

???? Reference: Huawei HCIA-Datacom Study Guide, ACL Rule Matching and Processing Logic.
