FCP_FGT_AD-7.4 FCP - FortiGate 7.4 Administrator Questions and Answers

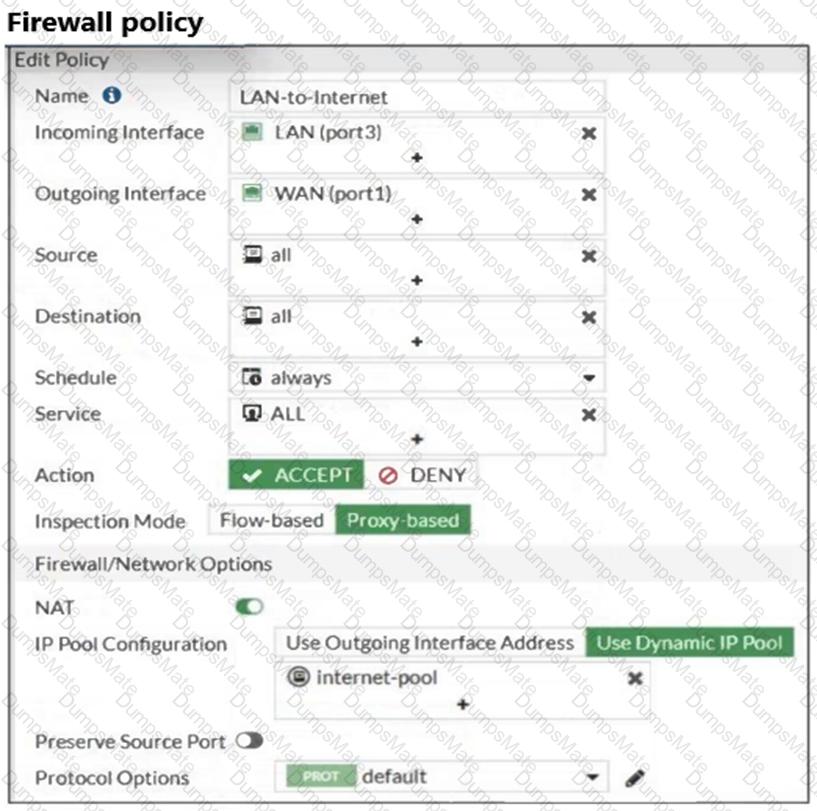

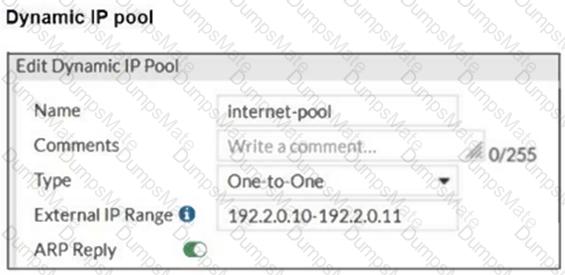

To resolve the issue of PC3 not being able to access the internet, the administrator needs to adjust the IP pool configuration or the firewall policy. The following two options will fix the connectivity issue:

B. In the IP pool configuration, set the ending IP to 192.2.0.12: The current IP pool range is 192.2.0.10-192.2.0.11, which only provides two IP addresses for network address translation (NAT). To allow PC3 to access the internet, the IP pool should be expanded to include an additional IP address by changing the end of the range to 192.2.0.12.

D. In the IP pool configuration, set type to overload: Instead of using a one-to-one NAT, changing the type to overload will allow multiple internal addresses (such as PC1, PC2, and PC3) to share a single external IP address. This will solve the issue without needing additional public IP addresses.

The other options are not suitable:

A. In the firewall policy configuration, add 10.0.1.3 as an address object in the source field: This option is unnecessary since the firewall policy already allows all addresses from the source (LAN port3).

C. Configure another firewall policy that matches only the address of PC3 as the source, and then place the policy on top of the list: This option is redundant and would not resolve the underlying issue with the IP pool configuration.

References

FortiOS 7.4.1 Administration Guide - Configuring Firewall Policies, page 512.

FortiOS 7.4.1 Administration Guide - Configuring NAT with IP Pools, page 518.

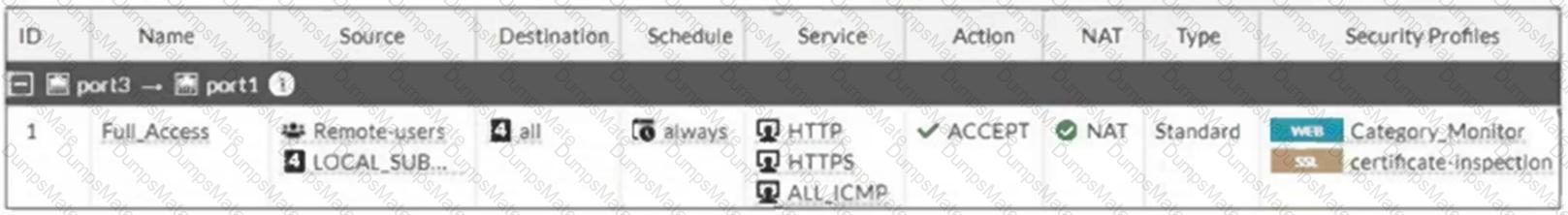

The selected SSL inspection profile has certificate inspection enabled

If the SSL inspection profile is set to certificate inspection instead of full SSL inspection, FortiGate will only inspect the certificate of the HTTPS connection but will not decrypt and inspect the actual traffic content, leading to a failure in virus detection.

The website is exempted from SSL inspection

If the website hosting the EICAR test file is exempt from SSL inspection, FortiGate will not decrypt the traffic, meaning it cannot inspect the file content for viruses, resulting in the file being downloaded without detection.

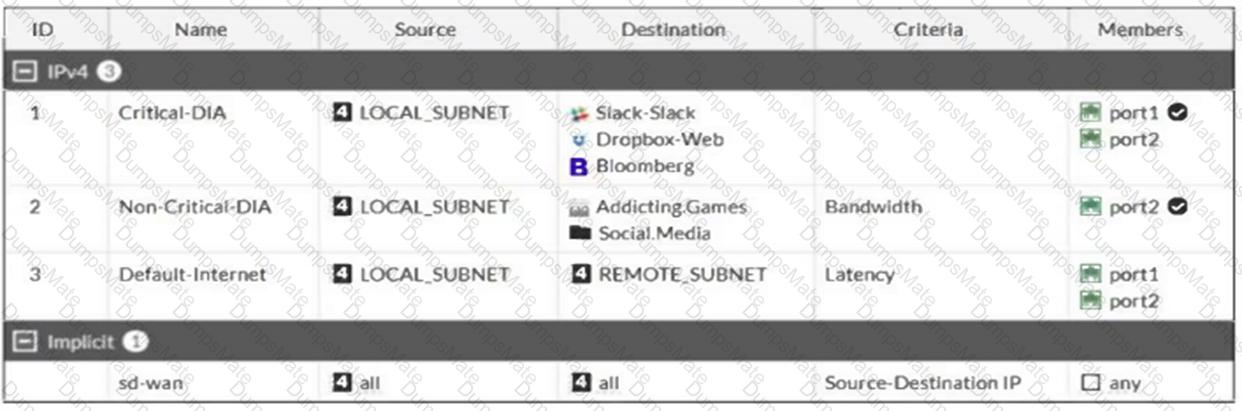

For traffic that does not match any of the defined SD-WAN rules, the default implicit SD-WAN rule is applied. By default, the FortiGate uses a "source-destination IP-based" algorithm, which means all traffic from a specific source IP to a specific destination IP is sent through the same interface. This ensures that a consistent path is used for traffic between the same source and destination IP addresses. Options B, C, and D do not apply because the default algorithm does not prioritize by latency, session count, or source IP alone.

References:

FortiOS 7.4.1 Administration Guide: SD-WAN Load Balancing Algorithms​

A session for denied traffic is created.

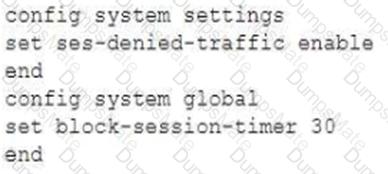

The command set ses-denied-traffic enable ensures that sessions for denied traffic are logged, meaning a session will be created for traffic that is denied by security policies.

The number of logs generated by denied traffic is reduced.

The set block-session-timer 30 command sets a timer to prevent excessive logging of denied traffic within a short period, which helps reduce the number of logs generated by repeated denied traffic sessions. This timer blocks sessions for a specified period (30 seconds in this case) to avoid overwhelming the log system with repetitive entries.

Both interfaces must have directly connected routes on the routing table

In NAT mode, each interface must have a corresponding entry in the routing table, typically as a directly connected route, to route traffic between them effectively.

Both interfaces must have IP addresses assigned

In NAT mode, each interface must have an IP address to participate in routing and NAT operations. The IP addresses allow the FortiGate to forward traffic between different network segments.

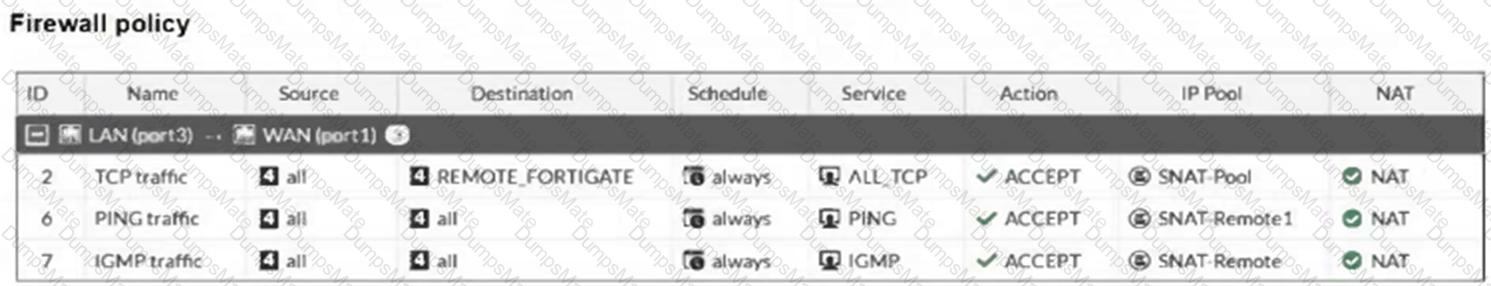

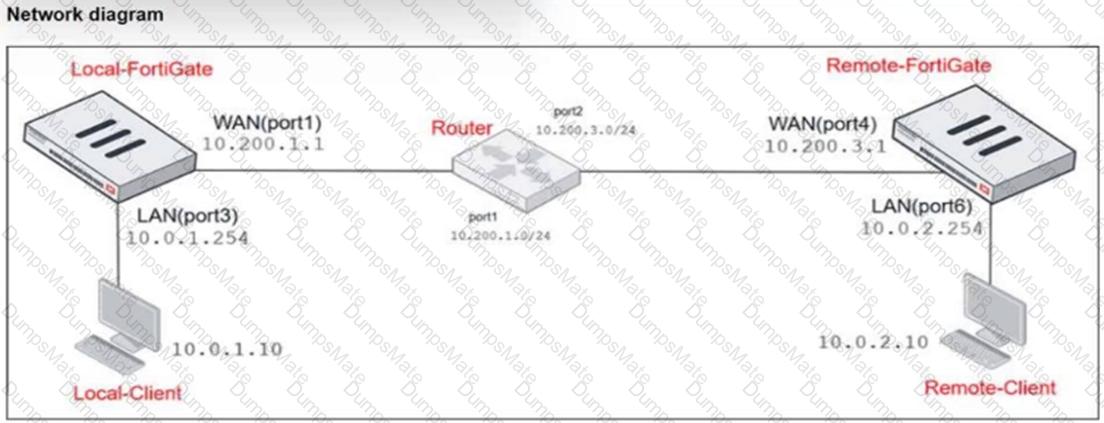

The traffic from the user on Local-Client (10.0.1.10) pinging the IP address of Remote-FortiGate (10.200.3.1) will match the firewall policy with the service "PING traffic". According to the firewall policy:

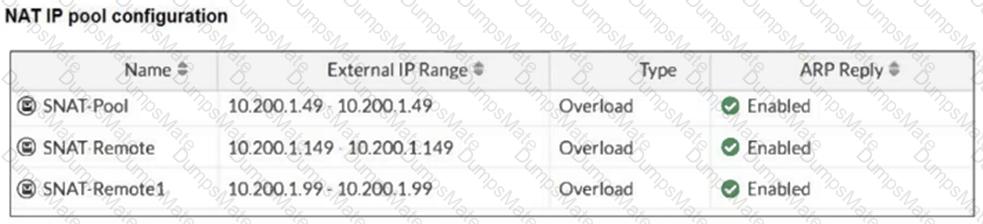

Policy ID 6 is set for PING traffic and uses the NAT IP pool "SNAT-Remote1", which is defined as 10.200.1.99.

For SSL VPN to function correctly between two FortiGate devices, the following settings are required:

B. The server FortiGate requires a CA certificate to verify the client FortiGate certificate: The server FortiGate must have a Certificate Authority (CA) certificate installed to authenticate and verify the certificate presented by the client FortiGate device.

C. The client FortiGate requires a client certificate signed by the CA on the server FortiGate: The client FortiGate must have a client certificate that is signed by the same CA that the server FortiGate uses for verification. This ensures a secure SSL VPN connection between the two devices.

The other options are not directly necessary for establishing SSL VPN:

A. The client FortiGate requires the SSL VPN tunnel interface type to connect SSL VPN: This is incorrect as SSL VPN does not require a specific tunnel interface type; it typically uses an SSL VPN client profile.

D. The client FortiGate requires a manually added route to remote subnets: While routing may be necessary, it is not specifically required for the SSL VPN functionality between two FortiGates.

References

FortiOS 7.4.1 Administration Guide - Configuring SSL VPN, page 1203.

FortiOS 7.4.1 Administration Guide - SSL VPN Authentication, page 1210.

Firewall authentication generally requires the DNS service to be enabled in the firewall policy to correctly resolve hostnames during the authentication process. If DNS is not allowed in the firewall policy, the FortiGate cannot resolve external domains, and as a result, the user may not be presented with the login prompt when attempting to access an external website.

References:

FortiOS 7.4.1 Administration Guide: Firewall Authentication Configuration

To disable RPF (Reverse Path Forwarding) checking on a FortiGate interface, you need to disable the src-check option in the interface settings. This action disables the RPF check, allowing traffic to bypass the verification that it is arriving on the correct interface based on the routing table.

To configure redundant IPsec VPN tunnels on FortiGate with failover capability, the following two key configuration changes are required:

A. Enable Dead Peer Detection (DPD): Dead Peer Detection is crucial for detecting if the remote peer is unreachable. By enabling DPD, FortiGate can quickly detect a dead tunnel, ensuring a faster failover to the secondary tunnel when the primary tunnel goes down.

C. Configure a lower distance on the static route for the primary tunnel and a higher distance on the static route for the secondary tunnel: The static route with the lower distance (higher priority) will be used when both tunnels are operational. If the primary tunnel fails, the higher distance (lower priority) route for the secondary tunnel will take over, ensuring traffic is routed correctly.

The other options are not suitable:

B. Enable Auto-negotiate and Autokey Keep Alive on the phase 2 configuration of both tunnels: This option is not directly related to the requirements of failover between two IPsec VPN tunnels.

D. Configure a higher distance on the static route for the primary tunnel and a lower distance on the static route for the secondary tunnel: This would prioritize the secondary tunnel over the primary tunnel, which is opposite to the desired configuration.

References

FortiOS 7.4.1 Administration Guide - Configuring IPsec VPN, page 1320.

FortiOS 7.4.1 Administration Guide - Redundant VPN Configuration, page 1335.

Strict RPF (Reverse Path Forwarding) check ensures that the packet is received on the same interface that the FortiGate device would use to send traffic back to the source. It verifies that the best route to the source of the packet is through the same interface it arrived on, enhancing security by preventing IP spoofing. If the check fails, the packet is dropped.

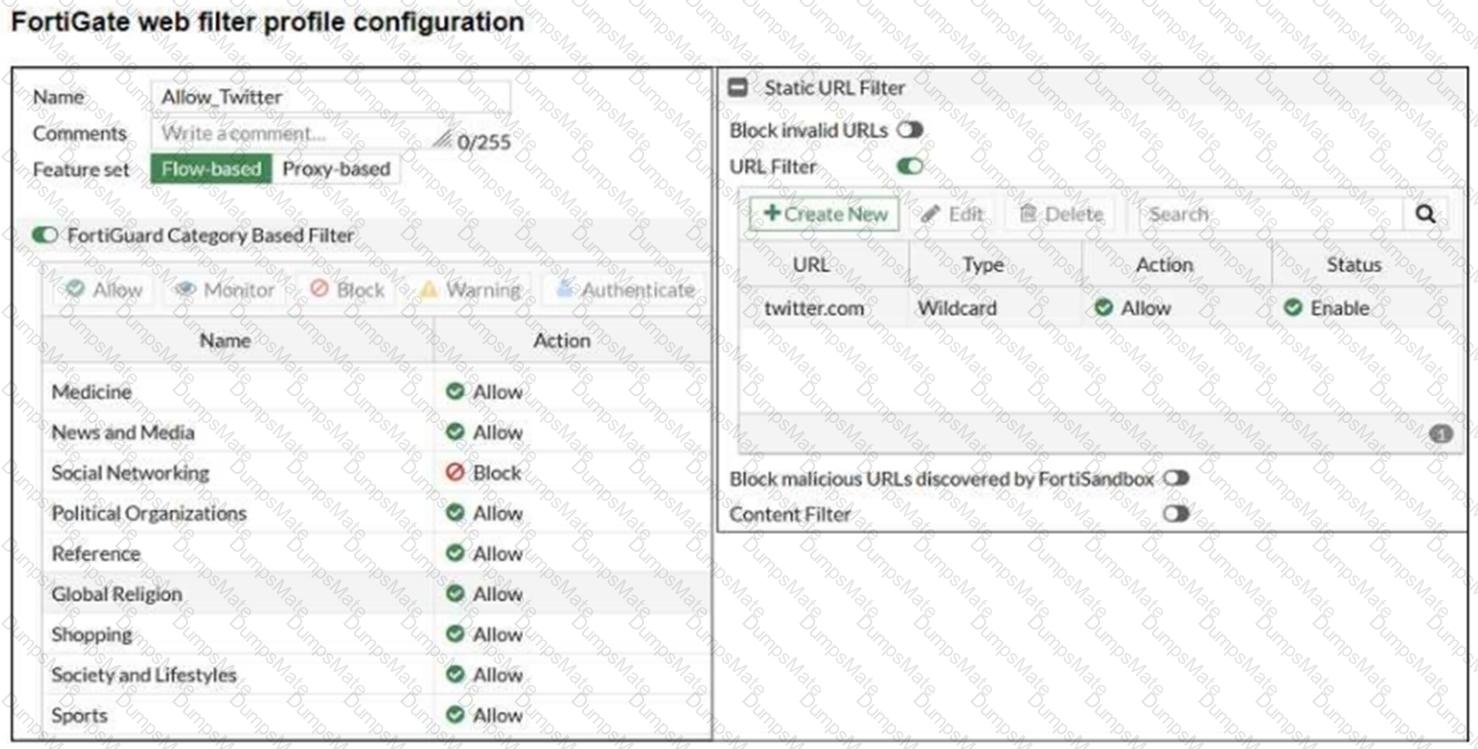

In the current configuration, although "twitter.com" is allowed in the Static URL Filter, the category "Social Networking" is set to "Block" under the FortiGuard Category Based Filter. To resolve the issue, setting the action to "Exempt" in the Static URL Filter for "twitter.com" will bypass the category-based block for this specific URL while still enforcing the block on other social networking sites.

For a high-latency internet connection, the SSL VPN setting that should be adjusted is:

C. SSL VPN dtls-hello-timeout: This setting determines how long the FortiGate will wait for a DTLS hello message from the client. For high-latency connections, increasing this timeout will prevent SSL VPN negotiation failures caused by delays in receiving the DTLS hello message.

The other options are not suitable:

A. SSL VPN idle-timeout: This setting controls the idle time allowed before a session is terminated, which is not relevant to the initial connection establishment.

B. SSL VPN login-timeout: This setting controls the maximum time allowed for a user to log in, but does not affect connection negotiation.

D. SSL VPN session-ttl: This setting controls the total time-to-live for an SSL VPN session but does not directly address issues caused by high latency.

References

FortiOS 7.4.1 Administration Guide - SSL VPN Configuration, page 1415.

In flow-based inspection mode, FortiGate sends a reset (RST) packet to the client instead of providing a replacement message, which causes the block message not to be displayed.

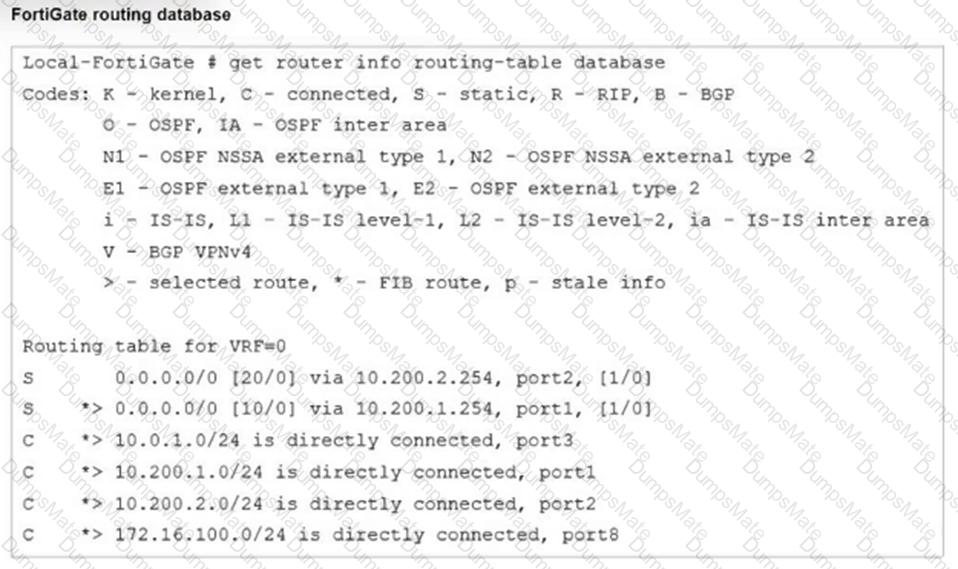

The routing table in the exhibit shows two default routes (0.0.0.0/0) with different administrative distances:

The default route through port2 has an administrative distance of 20.

The default route through port1 has an administrative distance of 10.

Administrative distance determines the priority of the route; a lower value is preferred. Here, the route through port1 with an administrative distance of 10 is the preferred route. The route through port2 with an administrative distance of 20 acts as a standby or backup route. If the primary route (port1) fails or is unavailable, traffic will then be routed through port2.

Regarding the statement that the port2 interface is marked as inactive, there is no indication in the routing table that port2 is inactive. Similarly, all the routes displayed are not necessarily installed in the FortiGate routing table, as the table could include both active and backup routes.

References:

FortiOS 7.4.1 Administration Guide: Default route configuration

FortiOS 7.4.1 Administration Guide: Routing table explanation

When a firewall policy is created in FortiGate integrated with FortiAnalyzer and FortiManager, a Universally Unique Identifier (UUID) is added to the policy to support logging and management​.

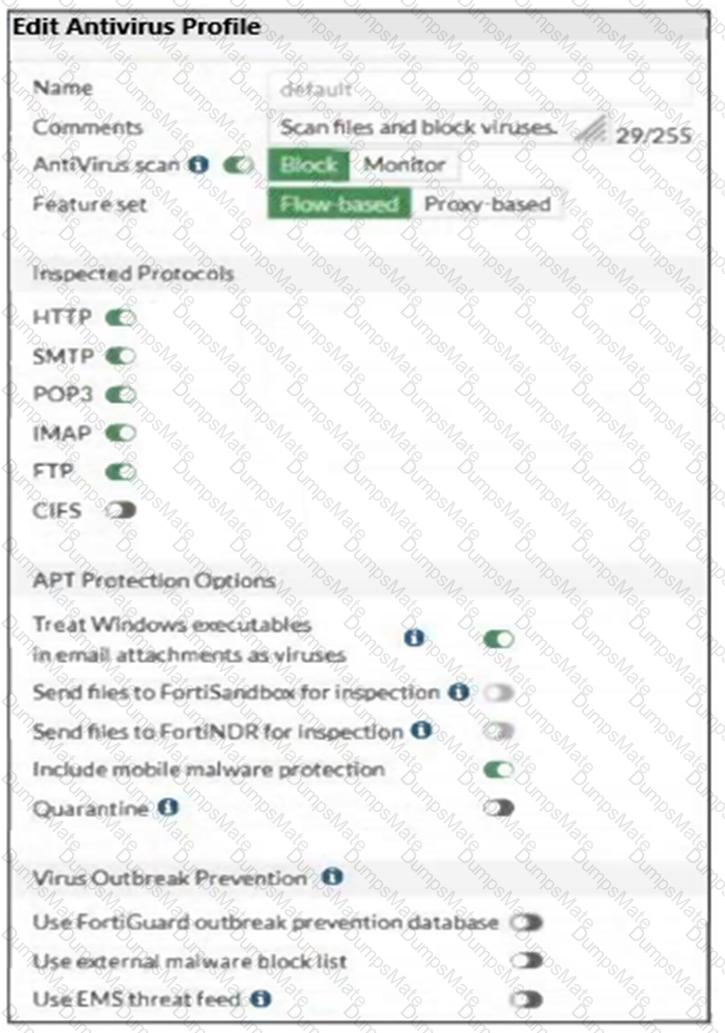

Flow-based inspection optimizes performance compared to proxy-based inspection.

Flow-based inspection scans traffic in real-time as it passes through, resulting in better performance compared to proxy-based inspection, which buffers traffic.

FortiGate buffers the whole file but transmits to the client at the same time.

In flow-based inspection, the file is scanned while it is being transmitted, improving speed and reducing latency.

The IPS engine handles the process as a standalone.

In flow-based antivirus inspection, the IPS engine is used to inspect traffic, making it more efficient and integrated within the broader security mechanisms.

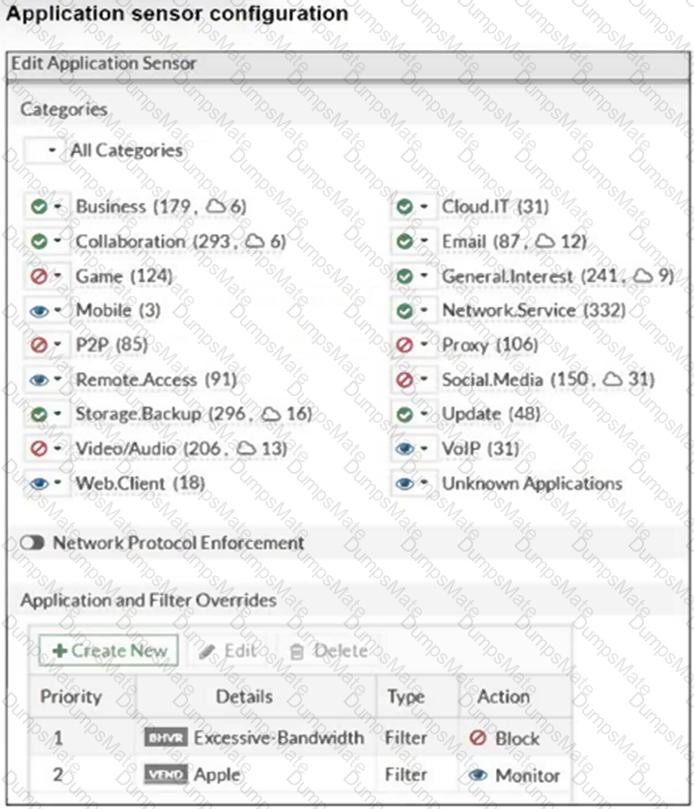

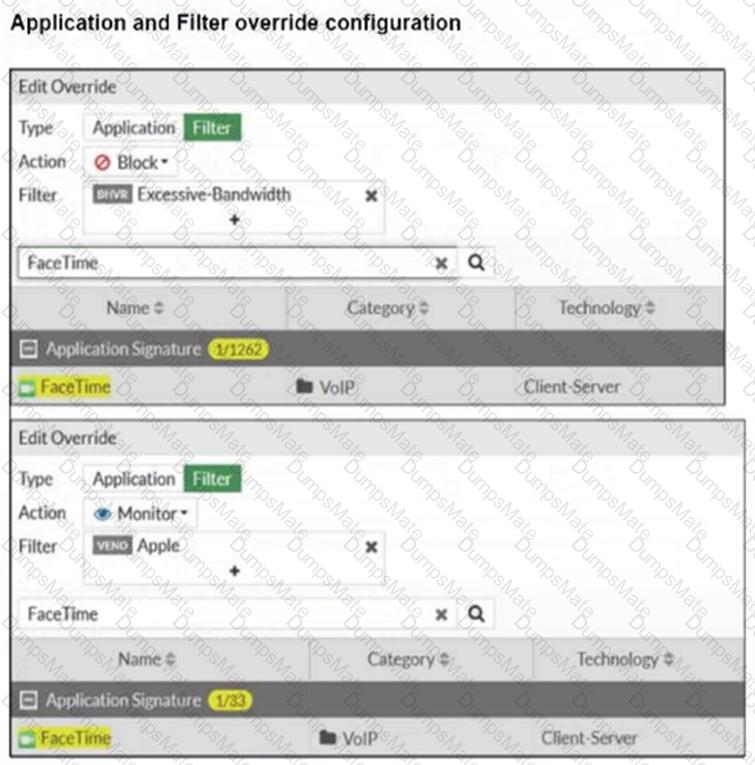

Based on the application sensor configuration and the filter details:

D. Apple FaceTime will be blocked, based on the Excessive-Bandwidth filter configuration: The "Excessive-Bandwidth" filter is set to block, which includes "FaceTime" under its application signature. As a result, FaceTime will be blocked regardless of the "Apple" filter configuration because the "Excessive-Bandwidth" filter takes precedence due to its block action setting.

The other options are not correct:

A. Apple FaceTime will be allowed, based on the Video/Audio category configuration: The Video/Audio category is not relevant because FaceTime is specifically included in the Excessive-Bandwidth filter, which blocks it.

B. Apple FaceTime will be allowed, based on the Apple filter configuration: Although the Apple filter is set to monitor, the block action of the Excessive-Bandwidth filter will override this.

C. Apple FaceTime will be allowed only if the Apple filter in Application and Filter Overrides is set to Allow: The allow setting for the Apple filter is irrelevant in this context, as the block action in the Excessive-Bandwidth filter will prevail.

References

FortiOS 7.4.1 Administration Guide - Application Control and Filtering, page 978.

FortiOS 7.4.1 Administration Guide - Application Sensor Configuration, page 982.

www.example.com

This syntax targets the main domain, which is a common way to configure a web rating override for the home page of a website.

example.com

This syntax also correctly targets the main domain without specifying a subdomain (like "www"), which is valid for configuring a web rating override for the entire site, including the home page.

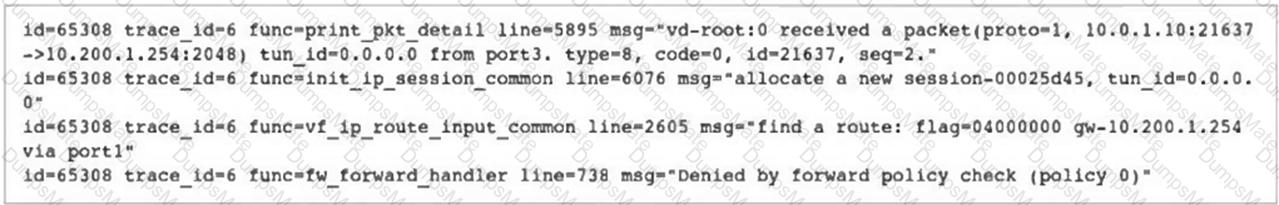

The debug trace output shows that the packet was "Denied by forward policy check (policy 0)." In FortiGate, policy ID 0 corresponds to the default implicit deny policy. This means that if a packet does not match any configured firewall policies, it is denied by the default implicit policy.

References:

FortiOS 7.4.1 Administration Guide: Firewall Policies​

FortiGate's application control can differentiate between parent and child applications and allows administrators to configure distinct actions for each. For example, it can identify Facebook (parent application) and specific functions within it (child applications) like Facebook video or chat, enabling more granular control over application traffic.

By default, DNS queries to FortiGuard servers use UDP port 53.

When the HA override setting is disabled, FortiGate uses the primary election process based on the following criteria:

Connected monitored ports: The unit with the most monitored ports up is preferred.

Priority: The unit with the highest priority is preferred.

System uptime: The unit with the longest uptime is preferred.

FortiGate serial number: Used as the final criterion to break any remaining ties.

References:

FortiOS 7.4.1 Administration Guide: HA election process
