DP-203 Data Engineering on Microsoft Azure Questions and Answers

References:

https://docs.micr osoft.com/en-us/azure/data-lake-store/data-lake-store-secure-data

Three common analytics use cases with Microsoft Azure Databricks

Recommendation engines, churn analysis, and intrusion detection are common scenarios that many organizations are solving across multiple industries. They require machine learning, streaming analytics, and utilize massive amounts of data processing that can be difficult to scale without the right tools. Recommendation engines, churn analysis, and intrusion detection are common scenarios that many organizations are solving across multiple industries. They require machine learning, streaming analytics, and utilize massive amounts of data processing that can be difficult to scale without the right tools.

Note: Recommendation engines, churn analysis, and intrusion detection are common scenarios that many organizations are solving across multiple industries. They require machine learning, streaming analytics, and utilize massive amounts of data processing that can be difficult to scale without the right tools.

If you need to transform data in a way that is not supported by Data Factory, you can create a custom activity, not a mapping flow,5 with your own data processing logic and use the activity in the pipeline. You can create a custom activity to run R scripts on your HDInsight cluster with R installed.

https://docs.microsoft.com/en-us/azure/synapse-analytics/sql-data-wareh ouse/sql-data-warehouse-tables-partition

Watermark Delay indicates the delay of the streaming data processing job.

There are a number of resource constraints that can cause the streaming pipeline to slow down. The watermark delay metric can rise due to:

Not enough processing resources in Stream Analytics to handle the volume of input events. To scale up resources, see Understand and adjust Streaming Units.

Not enough throughput within the input event brokers, so they are throttled. For possible solutions, see Automatically scale up Azure Event Hubs throughput units.

Output sinks are not provisioned with enough capacity, so they are throttled. The possible solutions vary widely based on the flavor of output service being used.

C: Scaling a Stream Analytics job takes advantage of partitions in the input or output. Partitioning lets you

divide data into subsets based on a partition key. A process that consumes the data (such as a Streaming

Analytics job) can consume and write different partitions in parallel, which increases throughput.

E: Streaming Units (SUs) represents the computing resources that are allocated to execute a Stream Analytics

job. The higher the number of SUs, the more CPU and memory resources are allocated for your job. This

capacity lets you focus on the query logic and abstracts the need to manage the hardware to run your Stream

Analytics job in a timely manner.

References:

https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-parallelization

https://do cs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-streaming-unit-consumption

Box 1: TopOne OVER(PARTITION BY Game ORDER BY Score Desc)

TopOne returns the top-rank record, where rank defines the ranking position of the event in the window according to the specified ordering. Ordering/ranking is based on event columns and can be specified in ORDER BY clause.

Box 2: Hopping(minute,5)

Hopping window functions hop forward in time by a fixed period. It may be easy to think of them as Tumbling windows that can overlap and be emitted more often than the window size. Events can belong to more than one Hopping window result set. To make a Hopping window the same as a Tumbling window, specify the hop size to be the same as the window size.

Box 1: No

Note: You can now use a new extension of Azure Stream Analytics SQL to specify the number of partitions of a stream when reshuffling the data.

The outcome is a stream that has the same partition scheme. Please see below for an example:

WITH step1 AS (SELECT * FROM [input1] PARTITION BY DeviceID INTO 10),

step2 AS (SELECT * FROM [input2] PARTITION BY DeviceID INTO 10)

SELECT * INTO [output] FROM step1 PARTITION BY DeviceID UNION step2 PARTITION BY DeviceID

Note: The new extension of Azure Stream Analytics SQL includes a keyword INTO that allows you to specify the number of partitions for a stream when performing reshuffling using a PARTITION BY statement.

Box 2: Yes

When joining two streams of data explicitly repartitioned, these streams must have the same partition key and partition count.

Box 3: Yes

Streaming Units (SUs) represents the computing resources that are allocated to execute a Stream Analytics job. The higher the number of SUs, the more CPU and memory resources are allocated for your job.

In general, the best practice is to start with 6 SUs for queries that don't use PARTITION BY.

Here there are 10 partitions, so 6x10 = 60 SUs is good.

Note: Remember, Streaming Unit (SU) count, which is the unit of scale for Azure Stream Analytics, must be adjusted so the number of physical resources available to the job can fit the partitioned flow. In general, six SUs is a good number to assign to each partition. In case there are insufficient resources assigned to the job, the system will only apply the repartition if it benefits the job.

Once a database has been created by a Spark job, you can create tables in it with Spark that use Parquet as the storage format. Table names will be converted to lower case and need to be queried using the lower case name. These tables will immediately become available for querying by any of the Azure Synapse workspace Spark pools. They can also be used from any of the Spark jobs subject to permissions.

Note: For external tables, since they are synchronized to serverless SQL pool asynchronously, there will be a delay until they appear.

Input type: Stream

You can process real-time IoT data streams with Azure Stream Analytics.

Function: Geospatial

With built-in geospatial functions, you can use Azure Stream Analytics to build applications for scenarios such as fleet management, ride sharing, connected cars, and asset tracking.

Note: In a real-world scenario, you could have hundreds of these sensors generating events as a stream. Ideally, a gateway device would run code to push these events to Azure Event Hubs or Azure IoT Hubs.

Scenario: All cloud data must be encrypted at rest and in transit.

Always Encrypted is a feature designed to protect sensitive data stored in specific database columns from access (for example, credit card numbers, national identification numbers, or data on a need to know basis). This includes database administrators or other privileged users who are authorized to access the database to perform management tasks, but have no business need to access the particular data in the encrypted columns. The data is always encrypted, which means the encrypted data is decrypted only for processing by client applications with access to the encryption key.

References:

https://docs.microsoft. com/en-us/azure/sql-database/sql-database-security-overview

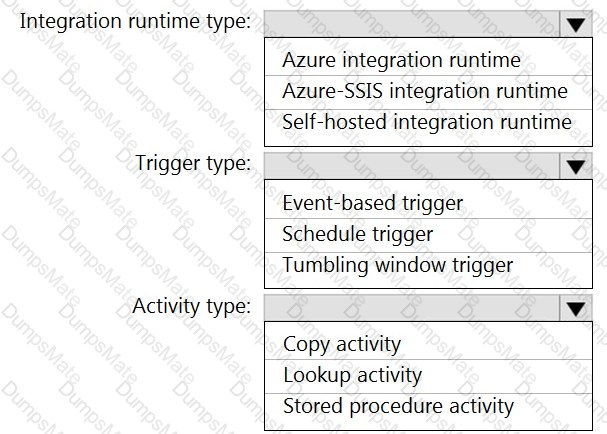

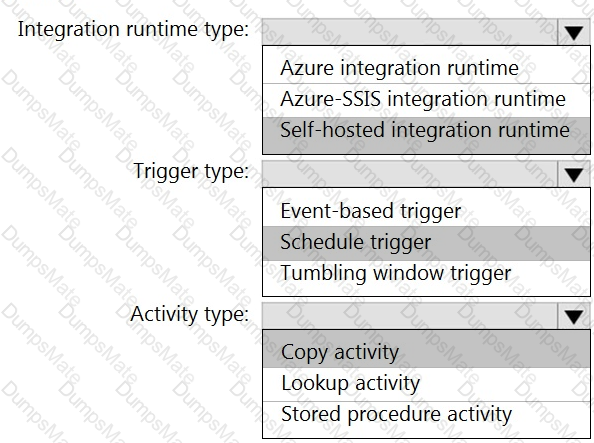

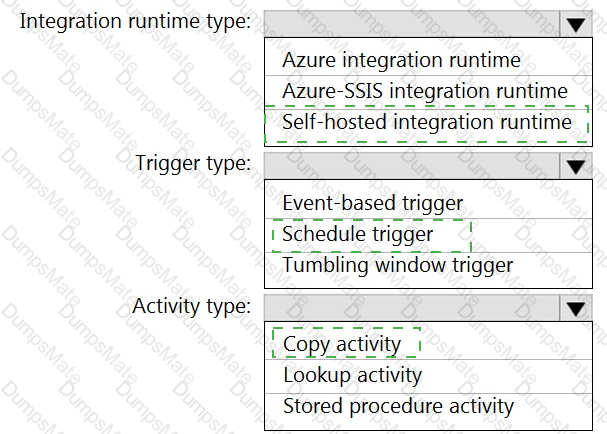

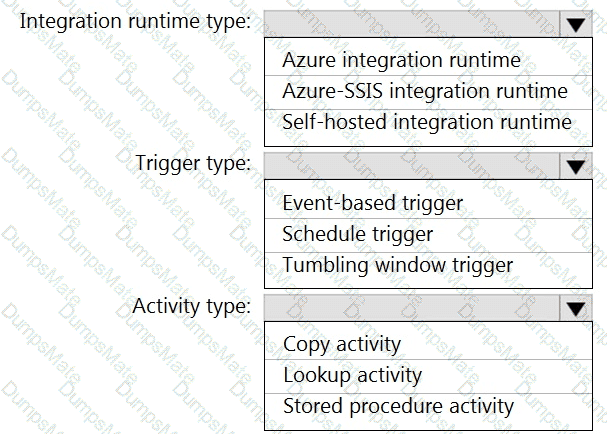

Box 1: Self-hosted integration runtime

A self-hosted IR is capable of running copy activity between a cloud data stores and a data store in private network.

Box 2: Schedule trigger

Schedule every 8 hours

Box 3: Copy activity

Scenario:

Customer data, including name, contact information, and loyalty number, comes from Salesforce and can be imported into Azure once every eight hours. Row modified dates are not trusted in the source table.

Product data, including product ID, name, and category, comes from Salesforce and can be imported into Azure once every eight hours. Row modified dates are not trusted in the source table.

Virtual network rules are one firewall security feature that controls whether the database server for your single databases and elastic pool in Azure SQL Database or for your databases in SQL Data Warehouse accepts communications that are sent from particular subnets in virtual networks.

Server-level, not database-level: Each virtual network rule applies to your whole Azure SQL Database server, not just to one particular database on the server. In other words, virtual network rule applies at the serverlevel, not at the database-level.

References:

https://docs.microsoft.com/en-us/azure/sql-database/sql-database-vnet-service-endpoint-rule-overvi ew

Guarantee Stream Analytics job reliability during service updates

Part of being a fully managed service is the capability to introduce new service functionality and improvements at a rapid pace. As a result, Stream Analytics can have a service update deploy on a weekly (or more frequent) basis. No matter how much testing is done there is still a risk that an existing, running job may break due to the introduction of a bug. If you are running mission critical jobs, these risks need to be avoided. You can reduce this risk by following Azure’s paired region model.

Scenario: The application development team will create an Azure event hub to receive real-time sales data, including store number, date, time, product ID, customer loyalty number, price, and discount amount, from the point of sale (POS) system and output the data to data storage in Azure

Scenario: Implement a surrogate key to account for changes to the retail store addresses.

A surrogate key on a table is a column with a unique identifier for each row. The key is not generated from the table data. Data modelers like to create surrogate keys on their tables when they design data warehouse models. You can use the IDENTITY property to achieve this goal simply and effectively without affecting load performance.

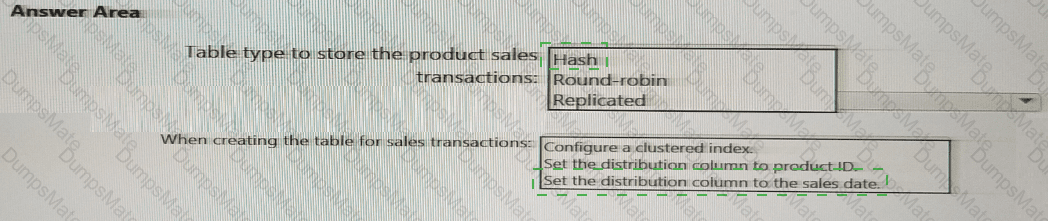

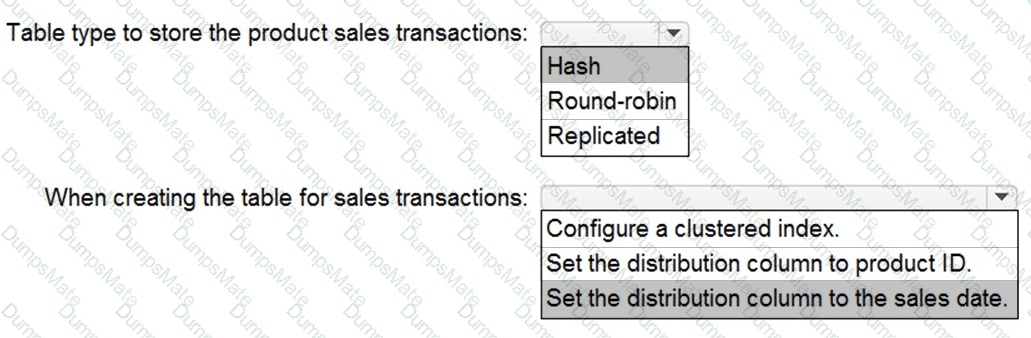

Box 1: Hash

Scenario:

Ensure that queries joining and filtering sales transaction records based on product ID complete as quickly as possible.

A hash distributed table can deliver the highest query performance for joins and aggregations on large tables.

Box 2: Set the distribution column to the sales date.

Scenario: Partition data that contains sales transaction records. Partitions must be designed to provide efficient loads by month. Boundary values must belong to the partition on the right.

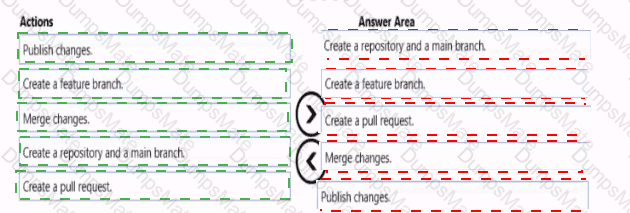

Scenario: Identify a process to ensure that changes to the ingestion and transformation activities can be version-controlled and developed independently by multiple data engineers.

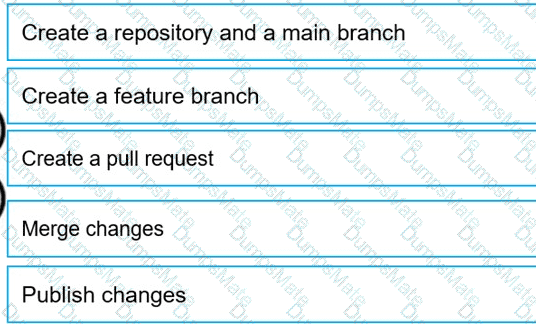

Step 1: Create a repository and a main branch

You need a Git repository in Azure Pipelines, TFS, or GitHub with your app.

Step 2: Create a feature branch

Step 3: Create a pull request

Step 4: Merge changes

Merge feature branches into the main branch using pull requests.

Step 5: Publish changes

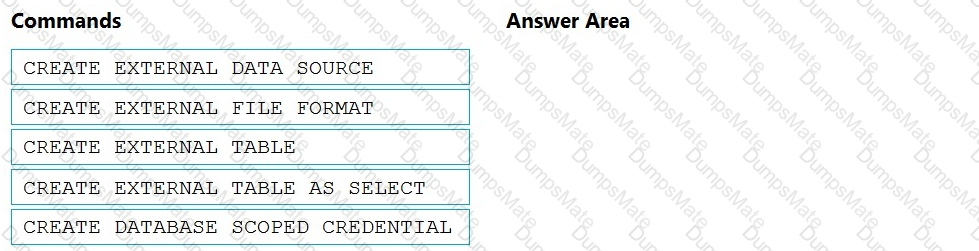

Scenario: Allow Contoso users to use PolyBase in an Azure Synapse Analytics dedicated SQL pool to query the content of the data records that host the Twitter feeds. Data must be protected by using row-level security (RLS). The users must be authenticated by using their own Azure AD credentials.

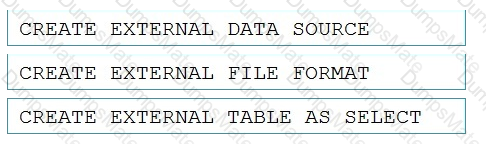

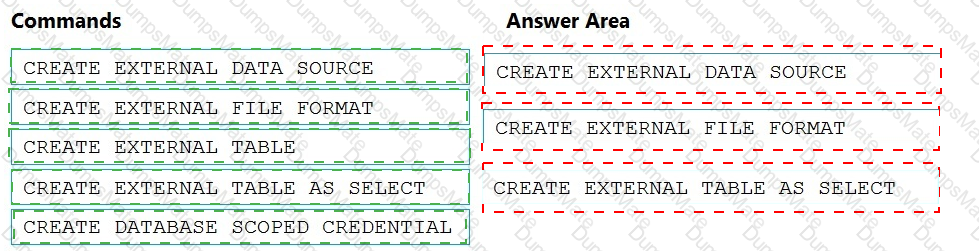

Box 1: CREATE EXTERNAL DATA SOURCE

External data sources are used to connect to storage accounts.

Box 2: CREATE EXTERNAL FILE FORMAT

CREATE EXTERNAL FILE FORMAT creates an external file format object that defines external data stored in Azure Blob Storage or Azure Data Lake Storage. Creating an external file format is a prerequisite for creating an external table.

Box 3: CREATE EXTERNAL TABLE AS SELECT

When used in conjunction with the CREATE TABLE AS SELECT statement, selecting from an external table imports data into a table within the SQL pool. In addition to the COPY statement, external tables are useful for loading data.

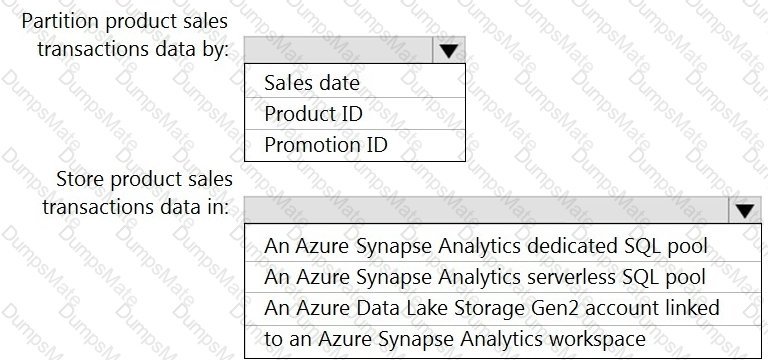

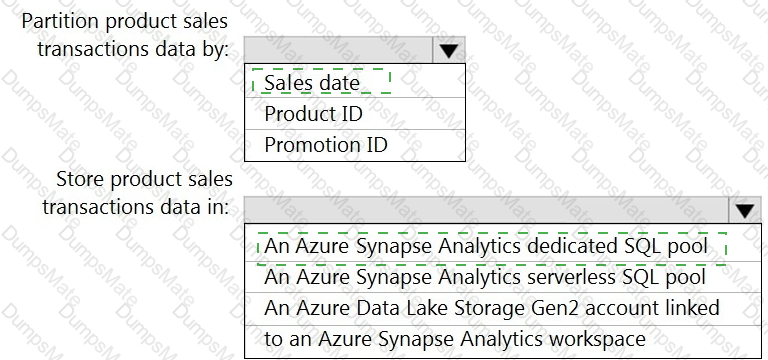

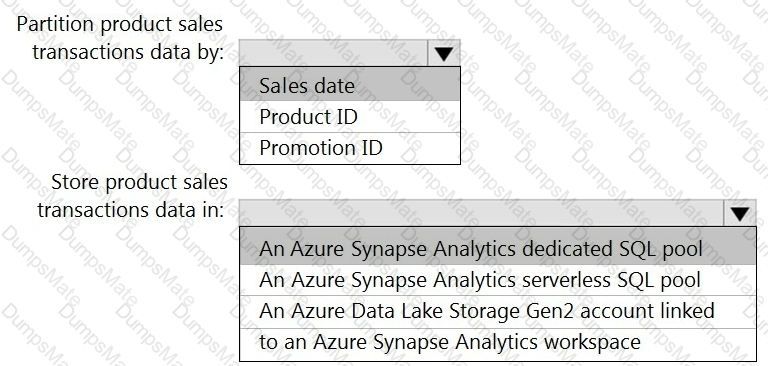

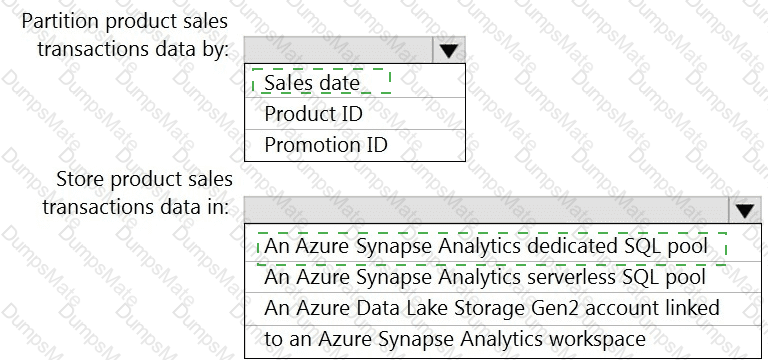

Box 1: Sales date

Scenario: Contoso requirements for data integration include:

Partition data that contains sales transaction records. Partitions must be designed to provide efficient loads by month. Boundary values must belong to the partition on the right.

Box 2: An Azure Synapse Analytics Dedicated SQL pool

Scenario: Contoso requirements for data integration include:

Ensure that data storage costs and performance are predictable.

The size of a dedicated SQL pool (formerly SQL DW) is determined by Data Warehousing Units (DWU).

Dedicated SQL pool (formerly SQL DW) stores data in relational tables with columnar storage. This format significantly reduces the data storage costs, and improves query performance.

Synapse analytics dedicated sql pool

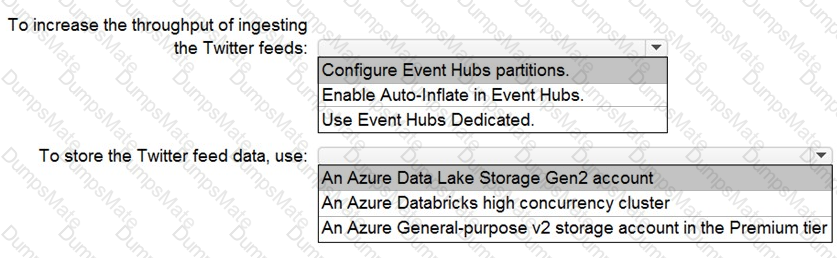

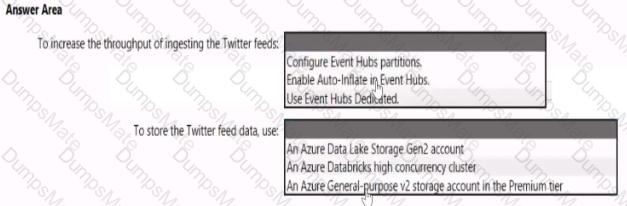

Box 1: Configure Evegent Hubs partitions

Scenario: Maximize the throughput of ingesting Twitter feeds from Event Hubs to Azure Storage without purchasing additional throughput or capacity units.

Event Hubs is designed to help with processing of large volumes of events. Event Hubs throughput is scaled by using partitions and throughput-unit allocations.

Event Hubs traffic is controlled by TUs (standard tier). Auto-inflate enables you to start small with the minimum required TUs you choose. The feature then scales automatically to the maximum limit of TUs you need, depending on the increase in your traffic.

Box 2: An Azure Data Lake Storage Gen2 account

Scenario: Ensure that the data store supports Azure AD-based access control down to the object level.

Azure Data Lake Storage Gen2 implements an access control model that supports both Azure role-based access control (Azure RBAC) and POSIX-like access control lists (ACLs).

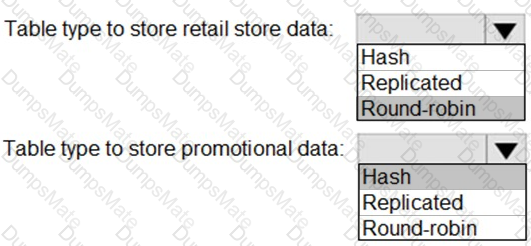

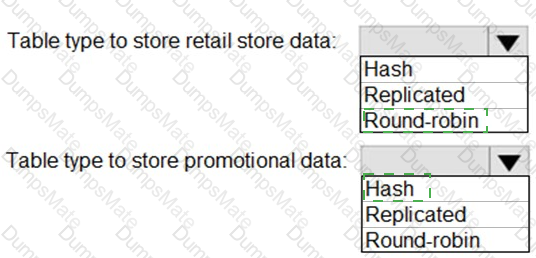

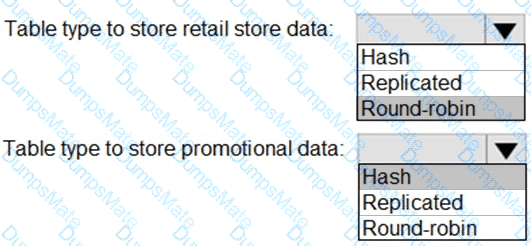

Box 1: Round-robin

Round-robin tables are useful for improving loading speed.

Scenario: Partition data that contains sales transaction records. Partitions must be designed to provide efficient loads by month.

Box 2: Hash

Hash-distributed tables improve query performance on large fact tables.

Materialized views for dedicated SQL pools in Azure Synapse provide a low maintenance method for complex analytical queries to get fast performance without any query change.

Note: When result set caching is enabled, dedicated SQL pool automatically caches query results in the user database for repetitive use. This allows subsequent query executions to get results directly from the persisted cache so recomputation is not needed. Result set caching improves query performance and reduces compute resource usage. In addition, queries using cached results set do not use any concurrency slots and thus do not count against existing concurrency limits.

The alter row transformation allows you to specify insert, update, delete, and upsert policies on rows based on expressions.   You can use the alter row transformation to perform upserts on a sink table by matching on a key column and setting the appropriate row policy

Box 1: PIVOT

PIVOT rotates a table-valued expression by turning the unique values from one column in the expression into multiple columns in the output. And PIVOT runs aggregations where they're required on any remaining column values that are wanted in the final output.

In case of pipeline failures, tumbling window trigger can retry the execution of the referenced pipeline automatically, using the same input parameters, without the user intervention. This can be specified using the property "retryPolicy" in the trigger definition.

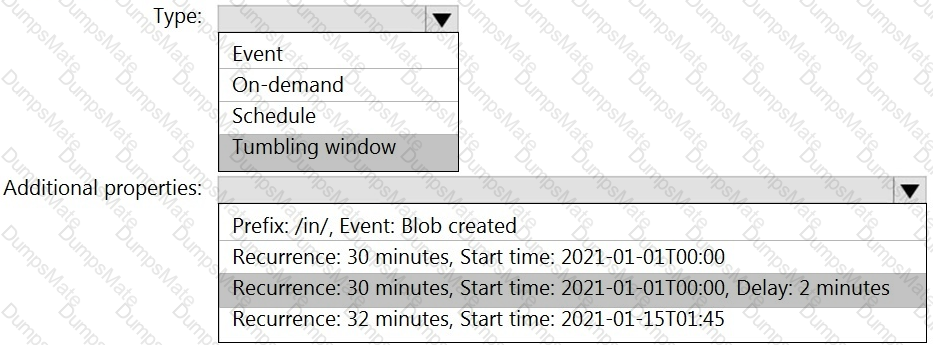

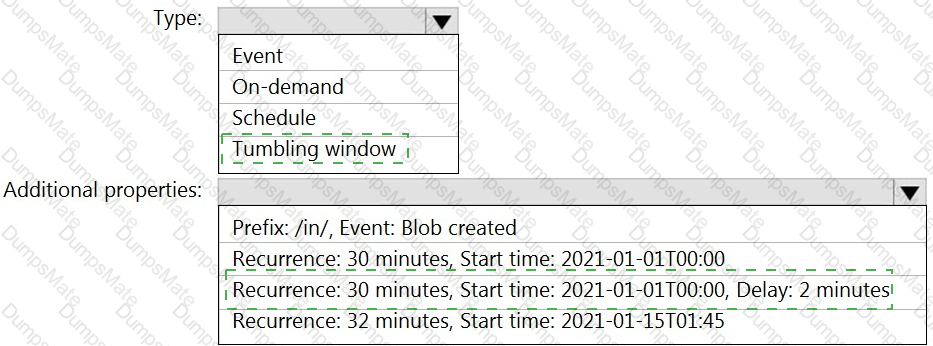

Box 1: Tumbling window

To be able to use the Delay parameter we select Tumbling window.

Box 2:

Recurrence: 30 minutes, not 32 minutes

Delay: 2 minutes.

The amount of time to delay the start of data processing for the window. The pipeline run is started after the expected execution time plus the amount of delay. The delay defines how long the trigger waits past the due time before triggering a new run. The delay doesn’t alter the window startTime.

Security

User must have SELECT permission on an external table to read the data. External tables access underlying Azure storage using the database scoped credential defined in data source.

Note: A database scoped credential is a record that contains the authentication information that is required to connect to a resource outside SQL Server. Most credentials include a Windows user and password.

Box 1: (CLUSTERED COLUMNSTORE INDEX

CLUSTERED COLUMNSTORE INDEX

Columnstore indexes are the standard for storing and querying large data warehousing fact tables. This index uses column-based data storage and query processing to achieve gains up to 10 times the query performance in your data warehouse over traditional row-oriented storage. You can also achieve gains up to 10 times the data compression over the uncompressed data size. Beginning with SQL Server 2016 (13.x) SP1, columnstore indexes enable operational analytics: the ability to run performant real-time analytics on a transactional workload.

Note: Clustered columnstore index

A clustered columnstore index is the physical storage for the entire table.

To reduce fragmentation of the column segments and improve performance, the columnstore index might store some data temporarily into a clustered index called a deltastore and a B-tree list of IDs for deleted rows. The deltastore operations are handled behind the scenes. To return the correct query results, the clustered columnstore index combines query results from both the columnstore and the deltastore.

Box 2: HASH([ProductKey])

A hash distributed table distributes rows based on the value in the distribution column. A hash distributed table is designed to achieve high performance for queries on large tables.

Choose a distribution column with data that distributes evenly

Box 1: openrowset

The easiest way to see to the content of your CSV file is to provide file URL to OPENROWSET function, specify csv FORMAT.

Example:

SELECT *

FROM OPENROWSET(

BULK 'csv/population/population.csv',

DATA_SOURCE = 'SqlOnDemandDemo',

FORMAT = 'CSV', PARSER_VERSION = '2.0',

FIELDTERMINATOR =',',

ROWTERMINATOR = '\n'

Box 2: openjson

You can access your JSON files from the Azure File Storage share by using the mapped drive, as shown in the following example:

SELECT book.* FROM

OPENROWSET(BULK N't:\books\books.json', SINGLE_CLOB) AS json

CROSS APPLY OPENJSON(BulkColumn)

WITH( id nvarchar(100), name nvarchar(100), price float,

pages_i int, author nvarchar(100)) AS book

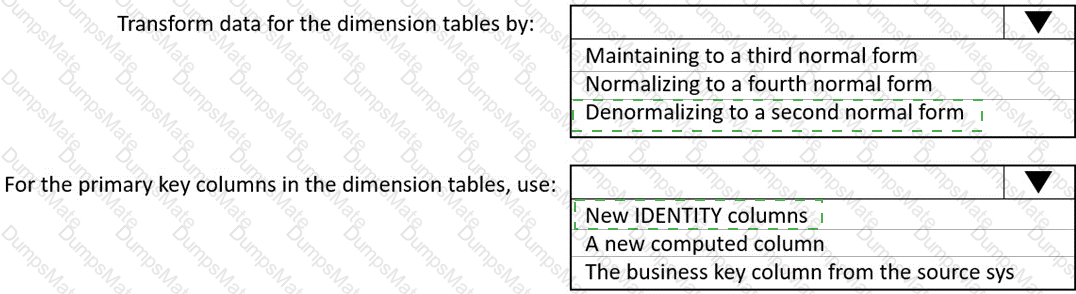

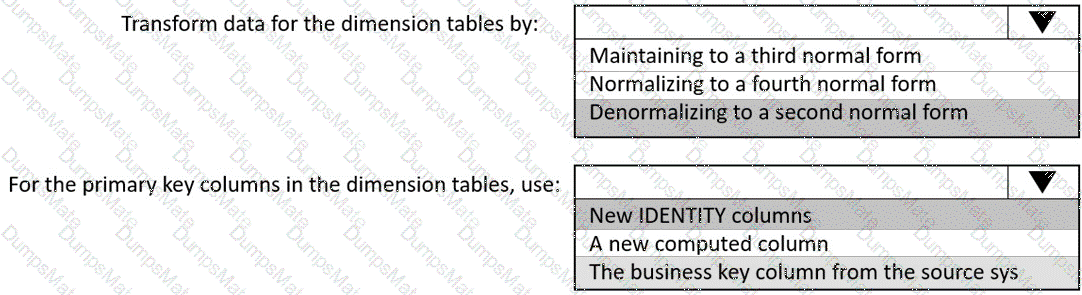

Box 1: Denormalize to a second normal form

Denormalization is the process of transforming higher normal forms to lower normal forms via storing the join of higher normal form relations as a base relation. Denormalization increases the performance in data retrieval at cost of bringing update anomalies to a database.

Box 2: New identity columns

The collapsing relations strategy can be used in this step to collapse classification entities into component entities to obtain flat dimension tables with single-part keys that connect directly to the fact table. The single-part key is a surrogate key generated to ensure it remains unique over time.

Example:

Note: A surrogate key on a table is a column with a unique identifier for each row. The key is not generated from the table data. Data modelers like to create surrogate keys on their tables when they design data warehouse models. You can use the IDENTITY property to achieve this goal simply and effectively without affecting load performance.

Transparent Data Encryption (TDE) helps protect against the threat of malicious activity by encrypting and decrypting your data at rest. When you encrypt your database, associated backups and transaction log files are encrypted without requiring any changes to your applications. TDE encrypts the storage of an entire database

by using a symmetric key called the database encryption key.

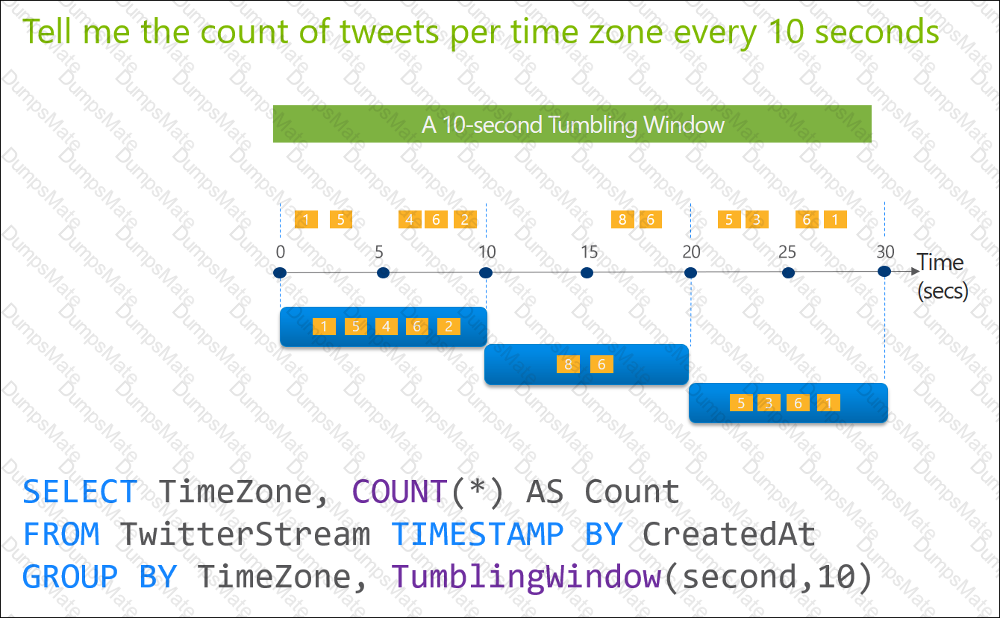

Tumbling window functions are used to segment a data stream into distinct time segments and perform a function against them, such as the example below. The key differentiators of a Tumbling window are that they repeat, do not overlap, and an event cannot belong to more than one tumbling window.

References:

https://docs.microsoft.com/en-us/azure/str eam-analytics/stream-analytics-window-functions

Convert nested JSON to a flattened DataFrame

You can to flatten nested JSON, using only $"column.*" and explode methods.

Note: Extract and flatten

Use $"column.*" and explode methods to flatten the struct and array types before displaying the flattened DataFrame.

Scala

display(DF.select($"id" as "main_id",$"name",$"batters",$"ppu",explode($"topping")) // Exploding the topping column using explode as it is an array type

withColumn("topping_id",$"col.id") // Extracting topping_id from col using DOT form

withColumn("topping_type",$"col.type") // Extracting topping_tytpe from col using DOT form

drop($"col")

select($"*",$"batters.*") // Flattened the struct type batters tto array type which is batter

drop($"batters")

select($"*",explode($"batter"))

drop($"batter")

withColumn("batter_id",$"col.id") // Extracting batter_id from col using DOT form

withColumn("battter_type",$"col.type") // Extracting battter_type from col using DOT form

drop($"col")

)

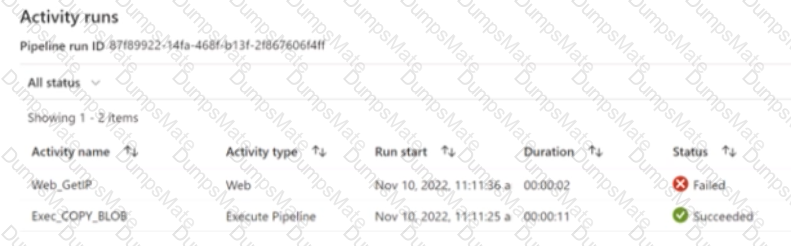

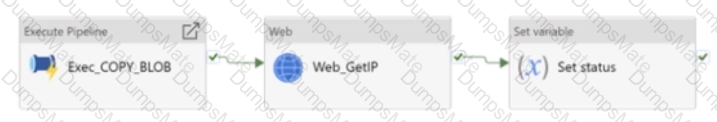

Activities are linked together via dependencies. A dependency has a condition of one of the following: Succeeded, Failed, Skipped, or Completed.

Consider Pipeline1:

If we have a pipeline with two activities where Activity2 has a failure dependency on Activity1, the pipeline will not fail just because Activity1 failed. If Activity1 fails and Activity2 succeeds, the pipeline will succeed. This scenario is treated as a try-catch block by Data Factory.

The failure dependency means this pipeline reports success.

Note:

If we have a pipeline containing Activity1 and Activity2, and Activity2 has a success dependency on Activity1, it will only execute if Activity1 is successful. In this scenario, if Activity1 fails, the pipeline will fail.

Must use an Azure Data Factory, not an Azure Databricks job.

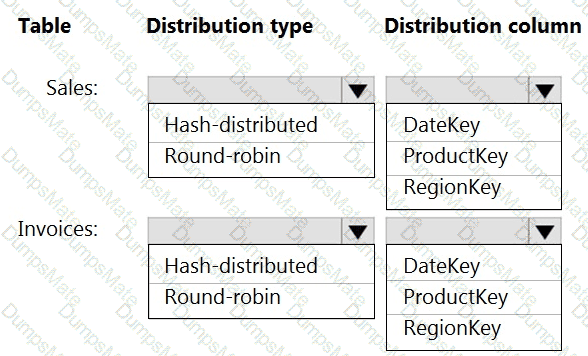

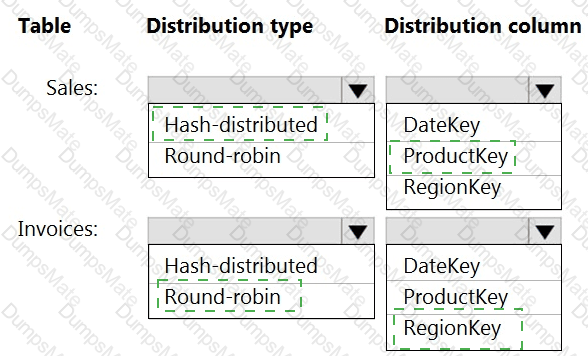

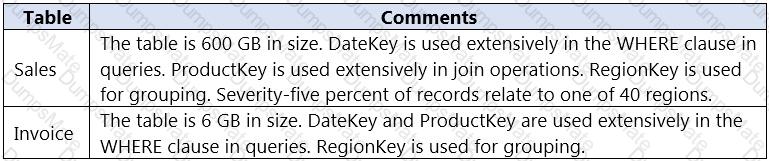

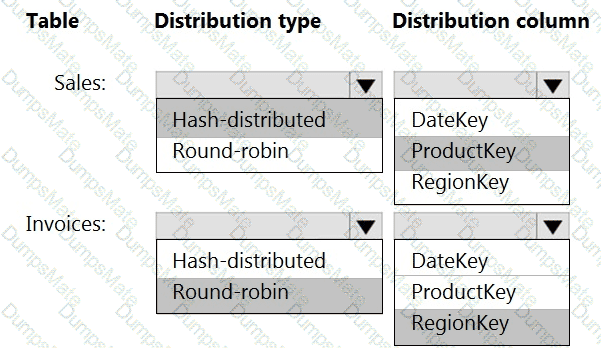

Box 1: Hash-distributed

Box 2: ProductKey

ProductKey is used extensively in joins.

Hash-distributed tables improve query performance on large fact tables.

Box 3: Round-robin

Box 4: RegionKey

Round-robin tables are useful for improving loading speed.

Consider using the round-robin distribution for your table in the following scenarios:

When getting started as a simple starting point since it is the default

If there is no obvious joining key

If there is not good candidate column for hash distributing the table

If the table does not share a common join key with other tables

If the join is less significant than other joins in the query

When the table is a temporary staging table

Note: A distributed table appears as a single table, but the rows are actually stored across 60 distributions. The rows are distributed with a hash or round-robin algorithm.
