DES-1D12 Specialist - Technology Architect Midrange Storage Solutions Exam Questions and Answers

Dell Unity XT storage pools can be configured to minimize the chance of running out of space due to snapshot utilization by setting high and low watermarks to remove old snapshots. A high watermark is set to specify the maximum amount of space that can be consumed by snapshots before the oldest snapshots are automatically removed. This is a good way to ensure that snapshots do not consume all available space, and helps to prevent the pool from running out of space.

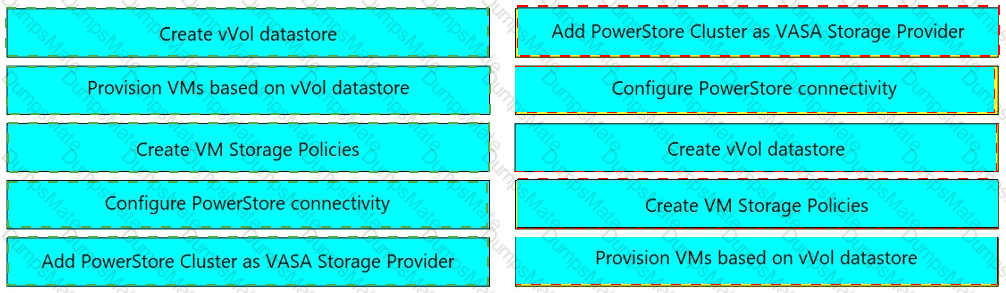

STEP1:VASA

STEP2 :POWERSTORE CONNECTIVITY

STEP3:Create vvol datastore

STEP4:create vm storage policies

STEP5:Provision VMs based on vvol datastore

In Dell Unity XT storage systems, a dynamic pool is built using drive partnership groups. A drive partnership group is a group of drives that are combined to create a pool. A drive partnership group can be made up of SAS, NL-SAS, or Flash drives. In this case, the customer has a single pool built from 24x 800 GB SAS Rash 3 drives and 24x 1 6 TB SAS Rash 3 drives, and 14x 400 SAS Flash 2 drives. All drives are SAS type, and it's only one partnership group.

A storage container is used to present vVol storage from a PowerStore cluster to vSphere. vSphere mounts the storage container as a vVol datastore and makes it available for VM storage. When a PowerStore cluster is used to provide VM storage, user VMs should be provisioned on the vVol datastores. The default storage container is mounted automatically on the nodes of the cluster.

"The engineer should design a system to handle all, or nearly all, IOPS in one particular tier"

(Input/Output Operations Per Second) is a key consideration when sizing a Dell EMC SC Series system for capacity. IOPS is a measure of the performance of a storage system, and a higher number of IOPS generally indicates better performance. Other factors to consider would be the number of disk drives, RAID configuration, and storage capacity required for the specific use case.

This provides improved security and encryption traffic performance for SMB3 by changing the encryption algorithm from AES-CCM-128 to AESGCM-128. Page 40 :https://www.delltechnologies.com/en-zm/collaterals/unauth/white-papers/products/storage/h15572-dell-emc-unity-nas-capabilities.pdf

Unisphere Central is the recommended software tool for the customer as it allows for the monitoring and reporting of multiple Dell Unity and Dell PowerStore arrays through a single interface. It provides a unified management experience and allows for efficient monitoring and troubleshooting of the storage environment.

The embedded module in a Dell Unity XT 480F system provides management functionality for the system, such as control of the storage array, monitoring of system health and performance, and management of storage resources. This embedded module allows you to manage the system through an intuitive web-based interface or via command-line interface.

https://www.dell.com/support/manuals/en-us/storage-sc7020/sc7020-om/sc7020-series-storage-system-back-panel-view?guid=guid-ba3314b9-ddaf-4413-8a25-4bb66c2d421b &lang=en-us

Here we clearly have Each storage controller contains:[...] Expansion slots for I/O cards: Slots for optional front-end connectivity – Fibre Channel and iSCSI I/O cards Slots for optional back-end connectivity – SAS I/O cards [...] SCv3000, SCv3000 and SC5020 owner manual say: One expansion slot for a front-end I/O card:

https://www.delltechnologies.com/de-at/collaterals/unauth/technical-guides-support-information/services/h17356-storage-config-sap-hana-tdi-sc-vg.pdf

The base enclosure is an all-NVMe platform, capable of supporting NVMe SSD, NVMe SCM, and NVMe NVRAM drives. You can populate slots 0 through 20 with NVMe SSD or NVMe SCM drives. Slots 21 through 24 are reserved for NVMe NVRAM drives which serve as additional system write caching. PowerStore 1000 and PowerStore 3000 models contain two NVMe NVRAM drives in slots 23 and 24.

The NAS server DNS can be enabled on the next page. For Directory Services, DNS configuration is required. Add at least one DNS server for the domain.

DELL PDF document about dynamic pools: h16289-dell_emc_unity-dynamic_pools.pdf

Page 20-21. The smallest RAID 5 stripe width the system supports is a 4+1. The smallest dynamic pool created with the RAID 5 4+1 configuration is 6 drives. The minimum drive count includes the number of drives specified in the stripe width, plus the hot spare capacity. The hot spare capacity is selected by the user at pool creation, and can either be set to 1 or 2 drives for every 32 drives in the pool.
