DEE-1111 Expert - PowerMax and VMAX All Flash Solutions Questions and Answers

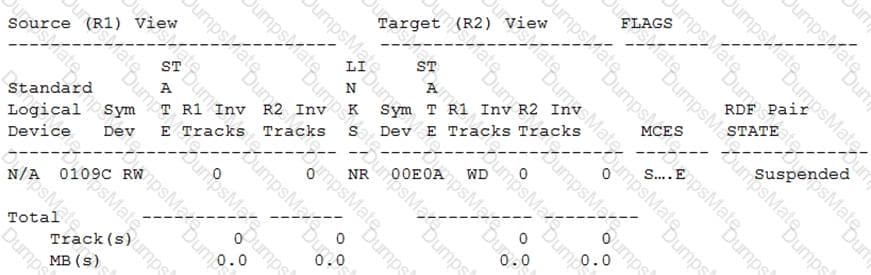

 The symrdf split command is used to suspend SRDF/A replication and make both R1 and R2 devices read/write enabled. This is useful for testing purposes or for creating point-in-time copies of data on both sides. The symrdf establish command can be used to resume SRDF/A replication after a split operation. The exhibit shows that both R1 and R2 devices are read/write enabled and have a Split status, which indicates that a symrdf split command was issued next2

A company plans to implement SRDF/Star, which is a three-site replication solution that provides continuous data protection and disaster recovery capabilities. It is currently using SRDF/S between their two data centers, which are located within 200 kilometersand use synchronous replication. It is setting up a third data center and wants to have at least two identical copies of its data in case of a primary site failure. The third site can be located anywhere in the world and use asynchronous replication. The condition that is needed for the connection between the first two sites and the third site is that the link must be able to transport the delta set of the Recovery Point Objective (RPO) within the company’s Recovery Time Objective (RTO). The delta set is the amount of data that has changed since the last successful replication cycle. The RPO is the maximum acceptable amount of data loss measured in time. The RTO is the maximum acceptable amount of time to restore normal operations after a disaster. The link must have enough bandwidth and latency to ensure that the delta set can be transferred within the RTO without exceeding the RPO.

References:

• SRDF Star software uses and best practices
• SRDF/STAR
• Remote replication using SRDF

In an SRDF/Metro Smart DR configuration, the Fault-Aware Witness gives a higher priority to Bias when selecting the winning array. The bias settings for the devices are used to determine the preferred winner in the event of a failure2. The preferred winner is the side that has priority when requesting the lock from the witness instance2. References: Dell EMC PowerMax and VMAX All Flash: SRDF/Metro Overview and Best Practices

R11 devices are included in a Cascaded SRDF environment. In a cascaded SRDF configuration, the R1 device at the primary site is paired with an R11 device at the secondary site, which is then paired with an R2 device at the tertiary site2. References: NDM overview | Dell EMC PowerMax and VMAX: Non-Disruptive Migration Best Practices and Operational Guide | Dell Technologies Info Hub

In an SRDF/Star configuration, all SRDF/Star device pairs must be of the same geometry and size. This is because SRDF/Star uses concurrent SRDF to maintain synchronous and asynchronous SRDF sessions between three arrays. The devices in these sessions must have identical geometry to ensure data consistency56. References: Dell EMC Solutions Enabler 9.2 SRDF Family CLI User Guide, SRDF/Metro overview | Dell EMC PowerMax and VMAX All Flash: SRDF/Metro Overview and Best Practices

While using DELL EMC Data Erasure on a PowerMax, the minimum number of overwrites needed to support compliance with internal policies and regulatory requirements is 3. The application has prompts and notifications. Such as the option to choose the number of Media Eraser ‘wipes’ (3x times, 5x times or 7x times)1. References: Dell EMC Community Network

The two factors that define Capacity Management are I/O capacity and storage capacity. I/O capacity refers to the ability of the system to handle the incoming and outgoing data traffic from the hosts or applications. Storage capacity refers to the amount of disk space available to store the data. Capacity Management is the process of planning, monitoring, and optimizing the use of these resources to ensure optimal performance, availability, and efficiency of the system.

References:

• Dell EMC PowerMax: Family Overview
• System Resource Usage

The maximum retention period for the SLO Compliance Report is 6 months. This means that data older than 6 months will not be available in the report

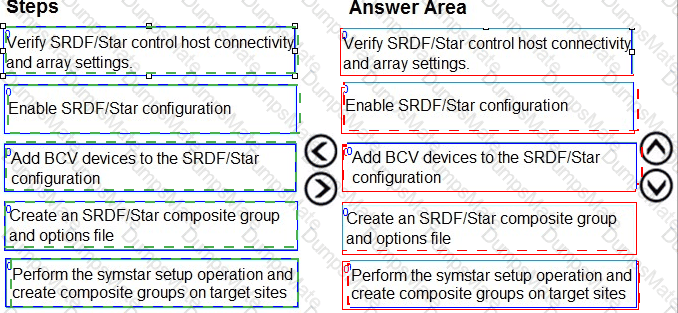

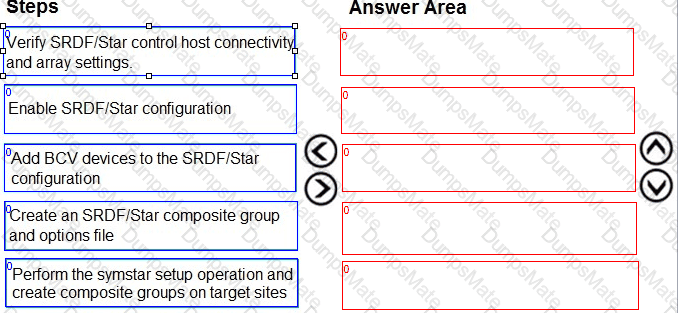

The correct sequence of steps to configure and bring up an SRDF/Star environment is as follows:

• Verify SRDF/Star control host connectivity and array settings. This step involves checking the network connectivity between the control host and the three arrays involved in the SRDF/Star configuration, as well as verifying the array settings such as RDF mode, RDF consistency, and RDF emulation. The control host is the host that runs the Solutions Enabler SYMCLI commands to manage the SRDF/Star configuration.The three arrays are the primary array, the secondary array, and the tertiary array.1
• Enable SRDF/Star configuration. This step involves enabling the SRDF/Star feature on the primary array using the symstar enable command. This command also creates a STAR control device group on the primary array, which contains a single device that acts as a control point for the SRDF/Star configuration.The STAR control device group must have a unique name and number across all arrays.1
• Add BCV devices to the SRDF/Star configuration. This step involves adding Business Continuance Volume (BCV) devices to the STAR control device group on the primary array using the symstar add bcv command. BCV devices are local copies of data that can be used for backup, restore, or testing purposes. BCV devices are required for SRDF/Star configurations to enable fast recovery in case of a disaster.The number of BCV devices must match the number of R1 devices in the SRDF/Star configuration.1
• Create an SRDF/Star composite group and options file. This step involves creating an SRDF/Star composite group on the control host using the symstar create command. An SRDF/Star composite group is a logical grouping of devices that span across three arrays and have different SRDF roles: R11, R21, and R22. An R11 device is an R1 device that is paired with another R1 device in a different SRDF group. An R21 device is an R2 device that is paired with another R1 device in a different SRDF group. An R22 device is an R2 device that is paired with another R2 device in a different SRDF group.The symstar create command also creates an options file that contains various parameters for the SRDF/Star configuration, such as RDF mode, RDF consistency, RDF emulation, and bias setting.1
• Perform the symstar setup operation and create composite groups on target sites. This step involves performing the symstar setup operation on the control host using the symstar setup command. This command establishes the SRDF/Star configuration by creating RDF pairs between devices in different arrays, creating RDF groups on each array, creating composite groups on each array, and synchronizing data across all devices.The symstar setup command also creates composite groups on the secondary and tertiary arrays using the same name and number as the composite group on the primary array.1

References:

• Dell EMC Solutions Enabler 9.2 SRDF Family CLI User Guide

If an administrator implemented SYMACLs on a PowerMax using host-based Access IDs and is no longer able to run SYMCLI commands against the volumes belonging to a host, one possible reason could be that the SYMAPI options file was manually modified with the wrong host ID. The SYMAPI options file contains configuration settings for Solutions Enabler, including host IDs for access control. If this file is incorrectly modified, it could prevent the administrator from running SYMCLI commands against certain volumes34. References: Dell EMC PowerMax and VMAX All Flash: Embedded Management, Role Based Access Control on PowerMax – Storage Intelligence

When the RDF-ECA timer expires, all RDF links will be in a ‘Suspend’ state. This is because the RDF-ECA timer is used to control how long SRDF waits for an acknowledgement from the remote array before it suspends the link. If an acknowledgement is not received within this time, SRDF assumes that there is a problem with the link or remote array and suspends the link to prevent data loss or corruption.

 In PowerMax, each RAID group is divided into 64 logical blocks known as TDATs (Thin Device Addressable Tracks). Each TDAT is configured to hold data at a given data reduction level, from 1:1 uncompressed data all the way to 16:11. References: Data Protection Schemes | Dell PowerMax: Reliability, Availability, and Serviceability | Dell Technologies Info Hub

The user has been assigned the RemoteRep role only. The RemoteRep role allows users to create, manage, and delete SRDF device pairs, as well as view array information, masking objects, device information, and RBAC rules2. However, it does not allow users to create and delete SRDF groups, which requires the StorageAdmin role. Therefore, answer C is correct.

A, B, and D are incorrect because they do not match the user’s profile. SecurityAdmin (A) role allows users to manage security settings such as authentication methods, certificates, RBAC rules, and audit logs2. Auditor (B) role allows users to view array information and audit logs only2. LocalRep (D) role allows users to create, manage, and delete TimeFinder SnapVX sessions from a source device2. None of these roles allow users to create and delete SRDF device pairs.
