D-XTR-MN-A-24 Dell XtremIO Maintenance Achievement Questions and Answers

A key feature of the XtremIO storage array is inline compression. This feature allows data to be compressed in real-time as it is written to the storage system, which helps to reduce storage footprint and improve storage efficiency without impacting performance.

The field replaceable units (FRUs) on an XtremIO X1 Storage Controller include the entire component and the Power Supply Unit (PSU).This information is verified as per the Official Dell XtremIO Maintenance Achievement document, which outlines the FRU replacement procedures for XtremIO products1.

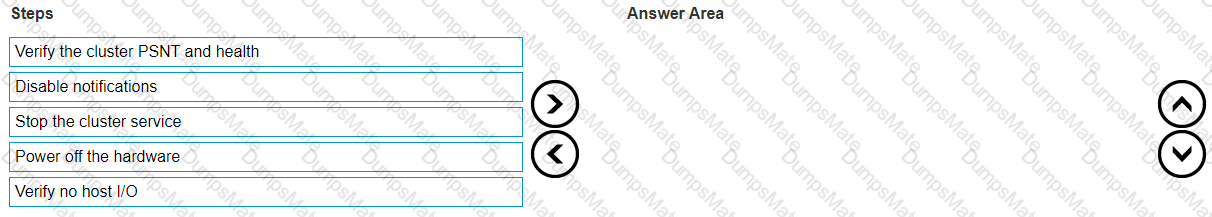

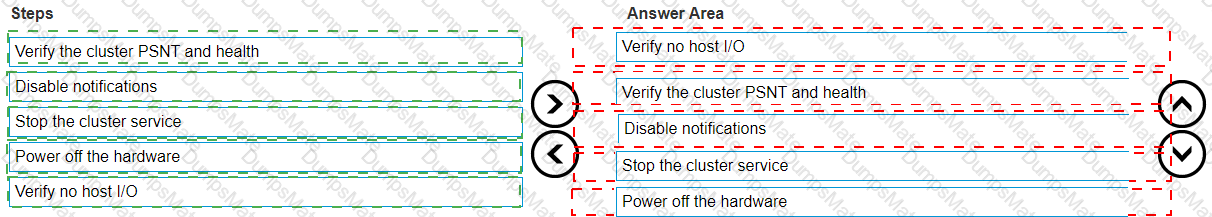

Verify no host I/O: Ensure that there are no active I/O operations from the hosts connected to the XtremIO array. This is crucial to avoid data loss or corruption.

Verify the cluster PSNT and health: Check the Primary Serial Number Tag (PSNT) and the health status of the cluster to ensure everything is functioning properly before proceeding with the shutdown.

Disable notifications: Temporarily disable any notifications to avoid unnecessary alerts during the shutdown process.

Stop the cluster service: Gracefully stop the cluster service to ensure that all processes and services are properly terminated.

Power off the hardware: Finally, power off the hardware to complete the planned shutdown of the XtremIO X2.

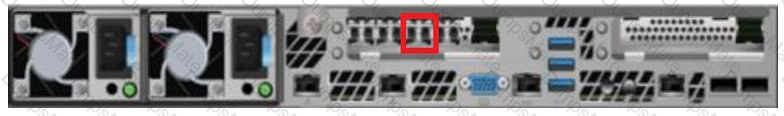

The highlighted port in the exhibit is a Fibre Channel (FC) port. This port type is used for high-speed data transfer between the storage controller and connected devices or networks. Fibre Channel is a technology known for its reliability and speed, making it suitable for storage area networks (SANs).The identification of the FC port is based on recognizing the physical characteristics of FC ports, such as their shape and typical placement on storage devices, as well as knowledge about Dell’s XtremIO systems’ configuration options1.

=========================

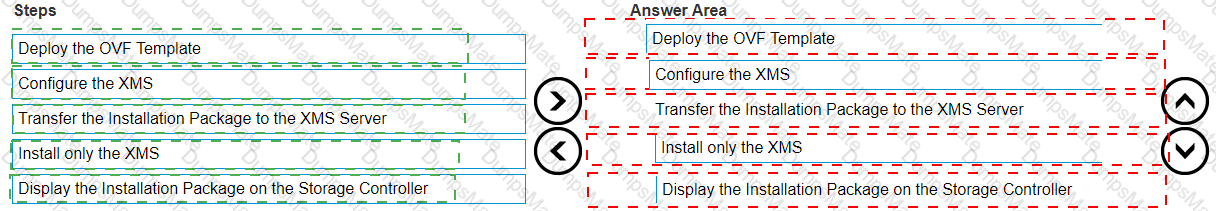

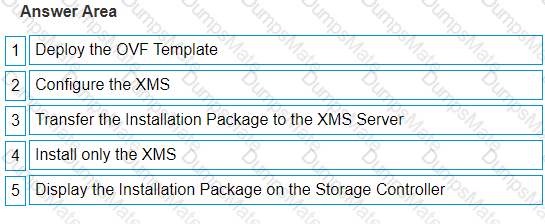

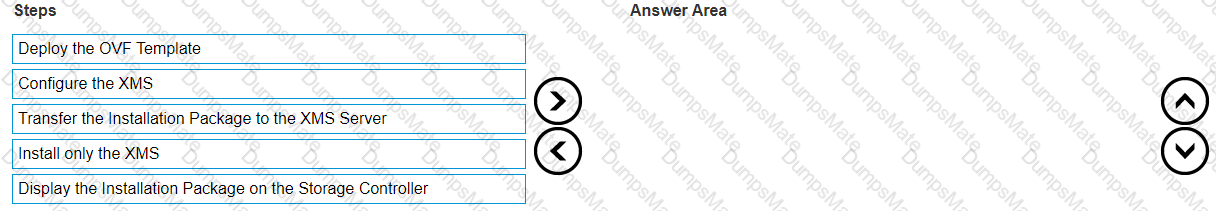

The correct sequence of steps to install a virtual XMS prior to creating the cluster on an XtremIO X2 is:

Deploy the OVF Template

Configure the XMS

Transfer the Installation Package to the XMS Server

Install only the XMS

Display the Installation Package on the Storage Controller

Deploy the OVF Template: Begin by deploying the Open Virtualization Format (OVF) template which is a pre-configured virtual machine that contains all necessary installation files.

Configure the XMS: After deployment, configure XtremIO Management Server (XMS) which involves setting up network configurations and other system settings.

Transfer the Installation Package to the XMS Server: The next step is transferring all necessary installation files for XtremIO to your newly configured XMS server.

Install only the XMS: Proceed with installing only XtremIO Management Server software on your server.

Display the Installation Package on Storage Controller: Finally, ensure that your storage controller can access and display all relevant installation packages for further processes.

These steps are outlined in the Dell XtremIO Maintenance Achievement document and provide a systematic approach to installing a virtual XMS, which is essential for managing and creating an XtremIO X2 cluster.

The Technician Advisor can be found on SolVe Desktop. SolVe Desktop is a comprehensive tool provided by Dell EMC that includes installation, maintenance, and troubleshooting procedures for various Dell EMC products, including XtremIO. It is an essential resource for technicians working with these systems.

When the NVRAM status LED on an XtremIO X2 is flashing red at one-second intervals, it indicates an uncorrectable error. This is a critical status that typically signifies a hardware malfunction or failure within the NVRAM module, which requires immediate attention.NVRAM, or Non-Volatile Random Access Memory, is crucial for retaining data integrity during power losses or system crashes1.

The steps to address this issue usually involve:

Investigating the system logs to identify the specific nature of the error.

Contacting Dell EMC support for guidance on diagnosing and resolving the issue.

Following the recommended procedures for troubleshooting or replacing the affected NVRAM module, as per the support team’s instructions.

It is important to resolve such errors promptly to prevent potential data loss and to maintain the overall health and performance of the storage system1.

=========================

In an XtremIO X2 system, the maximum number of lifetime cycles for NVRAM is 10,000. This number represents the total count of write and erase cycles the NVRAM can endure throughout its lifespan, ensuring data integrity and reliability over time.

In the event of a power failure, the XtremIO X2 array is designed to protect the journal data using a combination ofSupercapacitorandNVRAM. The NVRAM (Non-Volatile Random Access Memory) ensures that the data remains intact without power, while the supercapacitor provides the necessary energy to maintain the power to the NVRAM during the outage.This design allows the XtremIO X2 array to preserve the integrity of the journal data until normal power can be restored1.

=========================

To service an XtremIO X2 with the Technician Advisor tool, the connection is made through the dedicated Management port located on the back of the Storage Controller (SC).This port is specifically designed for management tasks and allows service technicians to access the system for diagnostics and configuration using the Technician Advisor tool1.

The process typically involves:

Locating the dedicated Management port on the back of the SC.

Connecting a compatible cable from the technician’s device to the Management port.

Using the Technician Advisor tool to perform the necessary service tasks.

This information is outlined in the Official Dell XtremIO Maintenance Achievement document, which provides detailed instructions for servicing and maintaining XtremIO X2 storage systems1.

=========================

The XtremIO X2 storage system can be expanded for capacity (Scale-Up) or both capacity and performance (Scale-Out). The system begins with a single building block, called an X-Brick, with a minimum of 18 SSDs.When additional capacity is required, the system scales up, with up to 72 SSDs for a single X-Brick1. Therefore, to upgrade a single X-Brick XtremIO X2 cluster that already contains 36 SSDs, the minimum number of SSDs required would be 18, which is the base configuration for an X-Brick.

=========================

In a multi-brick XtremIO X2-R array, a 36 port InfiniBand switch is used.This type of switch provides the necessary number of ports to accommodate the connectivity requirements of a multi-brick configuration, ensuring high-speed data transfer and communication between the bricks and other components of the storage array1.

The InfiniBand switch plays a crucial role in the XtremIO X2-R’s architecture, as it allows for the interconnection of multiple bricks, which collectively contribute to the array’s performance and scalability.The 36 port switch ensures that there are enough ports available for current use and potential future expansion1.

For an XtremIO X2-S, the ports used on the InfiniBand switches for an Inter-Switch Link (ISL) connection are typically high-numbered ports, which are usually at the end of the port range on the switch.While the specific port numbers can vary depending on the switch model and configuration, ports 35 and 36 are commonly used for ISL connections in many configurations1.

The process to identify the ISL ports is as follows:

Access the InfiniBand switch via the management interface.

Use the appropriate command to list the port configuration (this command can vary based on the switch’s firmware).

Identify the ports configured for ISL, which will be indicated in the port configuration settings.

It’s important to refer to the official Dell XtremIO Maintenance Achievement document or the InfiniBand switch documentation for the exact port numbers as they can differ based on the switch model and the cluster configuration1.
