D-XTR-DY-A-24 Dell XtremIO Deploy Achievement Questions and Answers

The Dell XtremIO Deploy Achievement documents specify different numbers for the maximum volumes in various contexts. However, for the XtremIO Consistency Group, the supported and QA certified number of volumes is 512. This is based on the authoritative information provided in the official release notes and support documents from Dell. It’s important to note that while there may be higher numbers mentioned in some technical documents or API responses, such as 60000 or 32000, these are either not recommended or pertain to different aspects of the XtremIO system, not specifically to the Consistency Group1.

Understanding XtremIO X1 DAE Power Cables: The Disk Array Enclosure (DAE) power cables are critical components in ensuring that the storage system remains operational. Removing these cables disconnects power to the DAE, which should only be done under specific circumstances.

Scenarios for Power Cable Removal:

Normal Shutdown Procedure: In a normal shutdown, the system is powered down gracefully using management interfaces and proper shutdown commands. Physical removal of power cables is typically not part of this process.

Shutdown after Initial Installation: After the initial installation, the system is powered on and configured. A shutdown would again follow a graceful procedure and not involve removing power cables unless there's a specific issue.

Shutdown due to Power Loss: In the event of power loss, the system would already be down, and there would be no need to remove the power cables as the system has lost power.

Emergency Shutdown Procedure: In an emergency, where the system must be immediately powered down to protect data or hardware, it may be necessary to remove the power cables quickly.

Best Practices and Safety:

Removing power cables as part of an emergency shutdown is typically a last resort measure when immediate power disconnection is required to prevent damage or ensure safety.

Following manufacturer guidelines for emergency shutdown ensures that the system is protected and can be safely restarted when the emergency is resolved.

References:

Dell XtremIO Safety and Emergency Procedures

Dell XtremIO Deployment Services

XtremIO X1 User and Maintenance Guide

When initializing an XtremIO cluster for the first time using the create-cluster command, it is essential to provide the cluster's unique identifier, known as the cluster-psnt (Product Serial Number Tag). This parameter ensures that the system can accurately identify and manage the cluster throughout its operational lifecycle. Other parameters, such as hw-package, profile, and package, may be relevant in different contexts, but the cluster-psnt is a mandatory parameter for initial cluster creation.

References:

Dell XtremIO Deployment and Learning Course Materials

XtremIO X2 Installation and Setup Guide

Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

XtremIO management can be performed through the XtremIO Management Server (XMS). The virtual XMS is a scalable solution that can manage multiple X-Brick clusters, specifically up to four. This allows for centralized management of the storage infrastructure, providing flexibility and efficiency. The capability of managing up to four clusters with a virtual XMS makes it a versatile tool for handling large storage environments.

References:

Dell XtremIO Deployment and Learning Course Materials

XtremIO Management and Configuration Guide

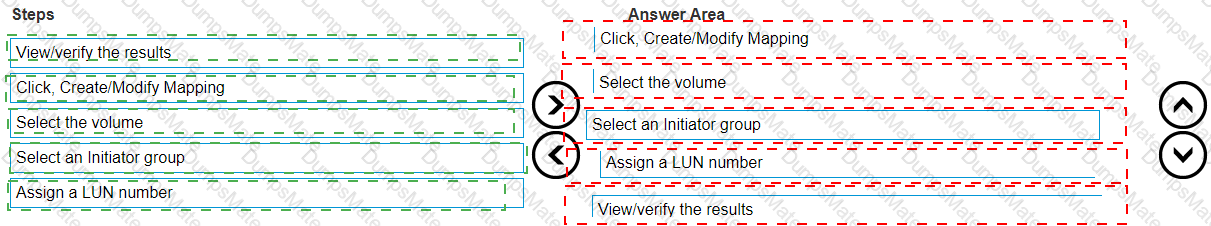

1.

 Click, Create/Modify Mapping

 Select the volume

 Select an Initiator group

 Assign a LUN number

 View/verify the results

Click, Create/Modify Mapping: Start by navigating to the section where you can create or modify mappings in the XtremIO WebUI.

Select the volume: Choose the volume you want to map to a host from the list of available volumes.

Select an Initiator group: Pick the appropriate initiator group, which represents the host or group of hosts to which the volume will be mapped.

Assign a LUN number: Assign a Logical Unit Number (LUN) to the volume, which the host will use to access it.

View/verify the results: Finally, review the mapping configuration to ensure that everything is set up correctly and verify that the host can access the mapped volume.

References:

Dell XtremIO User Guide

XtremIO WebUI Documentation

Dell XtremIO Deployment Services

Best practices for managing volumes and host mappings in XtremIO environments

Power Connectors for XtremIO X2 Dual X-Brick Configuration: Each X-Brick typically requires multiple power connections for redundancy and reliability. A dual X-Brick configuration without a physical XMS would need to account for these requirements.

Calculation:

Each X-Brick has 2 storage controllers, each requiring 2 power connections, totaling 4 power connections per X-Brick.

For a dual X-Brick configuration: 4 power connections per X-Brick * 2 X-Bricks = 8 power connections.

Each DAE (Disk Array Enclosure) typically requires 2 power connections. In a dual X-Brick setup, there are 4 DAEs, totaling 8 power connections.

Total power connections: 8 (for X-Bricks) + 8 (for DAEs) = 16 power connections.

References:

Dell XtremIO X2 Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services

Understanding XtremIO XMS Requirements: The XtremIO Management Server (XMS) is a dedicated server that manages one or more XtremIO clusters. Each XMS can manage multiple clusters, but there are limitations depending on the software version.

Software Version Compatibility:

XtremIO Software 4.0.4-41: This version can manage multiple clusters with a single XMS server.

XtremIO Software 3.0.3-11: This version has more stringent requirements and typically requires a separate XMS server for each cluster due to its older architecture and limitations.

Cluster Configuration:

For the two clusters running 4.0.4-41, a single XMS server can manage both.

For the two clusters running 3.0.3-11, each cluster will require its own XMS server.

Calculation of Minimum XMS Servers:

1 XMS server for the two clusters with software version 4.0.4-41.

2 XMS servers for the two clusters with software version 3.0.3-11.

Therefore, the total minimum number of XMS servers required = 1 (for 4.0.4-41) + 2 (for 3.0.3-11) = 3.

References:

Dell XtremIO Deployment Guide

XtremIO Management Server (XMS) Documentation

Dell XtremIO Deployment Services

Checking Connectivity: Before creating a cluster, it is crucial to ensure that all components such as DAE controllers, IB switches, IPMI, and BBU are correctly connected and operational.

Technician Advisor Tool: This tool is specifically designed to assist with installation and validation of hardware components in an XtremIO environment. It provides comprehensive checks and ensures all components are correctly connected and operational.

Other Options:

WebUI: Typically used for management and monitoring after cluster creation.

Easy-Install Menu: Helps in initial setup but may not provide detailed connectivity checks.

XMCLI: Can be used for various configurations and checks, but the Technician Advisor Tool is more specialized for this purpose.

References:

Dell XtremIO Installation and Setup Guide

Technician Advisor Tool Documentation

Dell XtremIO Deployment Services

Identify the Components: According to the Dell XtremIO Deploy Achievement document, the XtremIO X1 system includes a Storage Controller (SC) and a Battery Backup Unit (BBU)1.

Understand the Configuration: For a single X-Brick cluster, the left power supply in Storage Controller 1 (X1-SC1-PSU-L) should be connected to the corresponding BBU to ensure proper power redundancy and failover capabilities1.

Determine the Correct Connection: The document specifies that each Storage Controller’s left power supply connects to Output1 of the BBU within the same X-Brick cluster1.

Verify the Answer: Based on the information provided, the correct power cable connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB1.

Zoning: Zoning is the process of configuring which devices can communicate with each other on a storage network.

VPLEX and XtremIO: The first step in adding an XtremIO cluster to a VPLEX environment is to zone the VPLEX to the XtremIO Storage Controllers.

Initial Configuration: This step ensures that the VPLEX can recognize and communicate with the XtremIO storage, which is necessary before proceeding with other configurations.

References:

Dell XtremIO and VPLEX Integration Guide

Dell XtremIO Zoning Configuration Documentation

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator would start the configuration process in the “Configuration” section. Here’s how the process typically unfolds:

Log into XMS WebUI: The administrator logs into the XtremIO Management Server (XMS) Web User Interface (WebUI).

Navigate to Configuration: Within the WebUI, the administrator navigates to the “Configuration” tab. This section contains settings and options for managing and configuring the storage array.

Access iSCSI Options: Under the “Configuration” tab, the administrator locates the options for iSCSI settings. This may involve expanding menus or selecting specific sub-options related to iSCSI.

Create iSCSI Portal: Once in the iSCSI settings area, the administrator can create a new iSCSI portal. This involves specifying details such as IP addresses, port numbers, and access controls.

Save and Apply: After entering all necessary information, the administrator saves the configuration and applies it to make the iSCSI portal active.

Verify Connectivity: Finally, the administrator verifies that the iSCSI portal is functioning correctly by connecting to it from an iSCSI initiator.

For detailed instructions and best practices, always refer to the official Dell XtremIO Deploy Achievement document1. This document provides comprehensive guidance on all aspects of setting up and managing XtremIO X2 arrays, including the creation of iSCSI portals.

The send-syr-notification command in the XtremIO XMCLI (XtremIO Management Command Line Interface) is used to test the Connect Home functionality. This feature allows the XtremIO system to send system health and status information to Dell Technologies for proactive monitoring and support. References := Dell Deployment ServicesTo test the Connect Home functionality using the XtremIO XMCLI, the send-email-notification command can be used. This command is designed to send a test email to verify that the email notification system is properly configured and able to send out alerts.

During the installation of an XtremIO X1 system, the document that should be used to identify the ports for IPMI (Intelligent Platform Management Interface) cable connections is the XtremIO Storage Array Hardware Installation and Upgrade Guide. This guide typically contains detailed information about the hardware components, including diagrams and descriptions of the ports, which are essential for correctly connecting the IPMI cables.

The process of identifying the correct IPMI ports usually involves the following steps:

Locate the Guide: Access the XtremIO Storage Array Hardware Installation and Upgrade Guide. This document is designed to provide instructions specifically related to the physical components of the XtremIO system.

Identify the Ports: Use the diagrams and descriptions within the guide to locate the IPMI ports on the XtremIO hardware. These ports are typically labeled and may be color-coded to help distinguish them from other ports.

Connect the Cables: Once the IPMI ports have been identified, connect the IPMI cables to these ports as per the instructions provided in the guide. Ensure that the connections are secure and that the cables are not obstructing any other components.

Verify the Connections: After connecting the cables, verify that the connections match the diagrams and descriptions in the guide. This step is crucial to prevent any issues related to incorrect cabling.

Reference Documentation: For the most accurate and up-to-date information, always refer to the latest version of the XtremIO Storage Array Hardware Installation and Upgrade Guide1. This ensures that any changes or updates to the hardware are taken into account during the installation process.

By following these steps and referring to the correct documentation, you can ensure that the IPMI cable connections are made correctly, which is vital for the remote management and monitoring of the XtremIO X1 system.

For a VMware VM running on vSphere 6.5 that will reside on a datastore provisioned from an XtremIO volume, the disk should be presented to the guest as Thick Provisioned, Eager Zero (EZT). This is recommended for the best performance and efficient capacity usage.

Thick Provisioning, Eager Zero: This type of provisioning allocates all the space required for the virtual disk upfront and marks all the space as zeroed. This means that the physical space is reserved and zeroed on the storage array, ensuring that the VM does not have to wait for space to be allocated or zeroed before writing data. This can lead to better performance, especially for I/O-intensive applications1.

XtremIO and EZT: XtremIO arrays are particularly well-suited for EZT because they use inline deduplication and never actually have to zero out physical media. The metadata is kept in memory, and writes are journaled to memory before being saved to SSDs. XtremIO uses VAAI (vStorage APIs for Array Integration) to accelerate zeroing operations, so hosts do not have to write zeros, and the allocation of EZT virtual disks is a very quick operation1.

Performance Considerations: For applications that require low latency, such as databases, using EZT reduces overall latency for the application. Since XtremIO arrays are designed to handle such operations efficiently, the initial zeroing process with EZT, which could take a long time on traditional storage architectures, is significantly faster1.

In conclusion, for ensuring proper performance and capacity usage for a VM on vSphere 6.5 with an XtremIO volume, Thick Provisioned, Eager Zero is the recommended method of disk presentation.
