Review Test Plan Guidelines: The Test Plan guidelines in the Dell VxBlock Deploy Achievement document outline the procedures for validating the redundancy capabilities of the network1.

Understand Redundancy Validation: Redundancy validation involves testing the network’s ability to continue operating in the event of a component failure1.

Identify Redundancy Components: Top of Rack (ToR) switches are critical components that often have redundancy built-in to ensure network resilience1.

Execute Redundancy Test: To validate redundancy, the primary ToR switch is powered off to simulate a system failure.This tests the failover mechanisms and ensures that the secondary systems take over without service disruption1.

Document and Analyze Results: After the test, the results are documented and analyzed to confirm that redundancy measures are functioning as intended and that there is no loss of connectivity or service1.

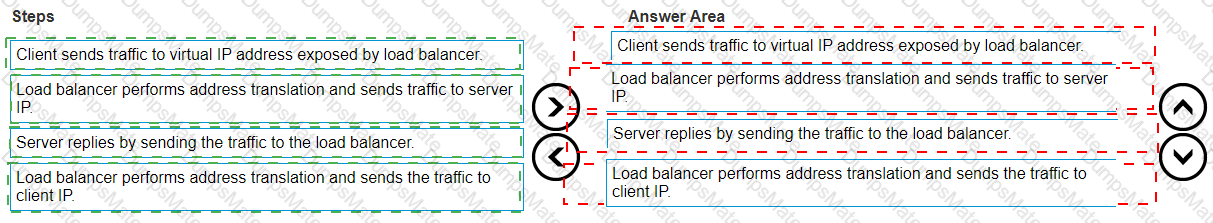

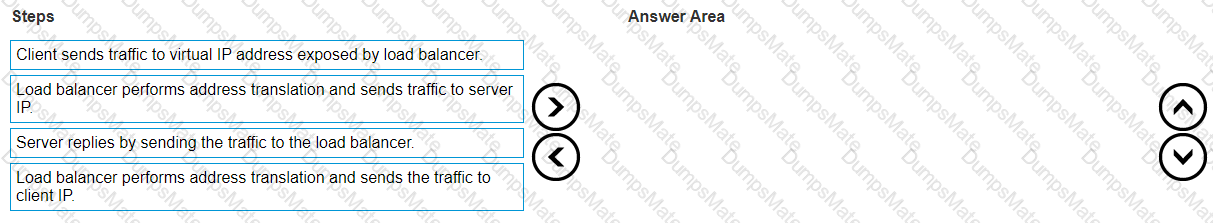

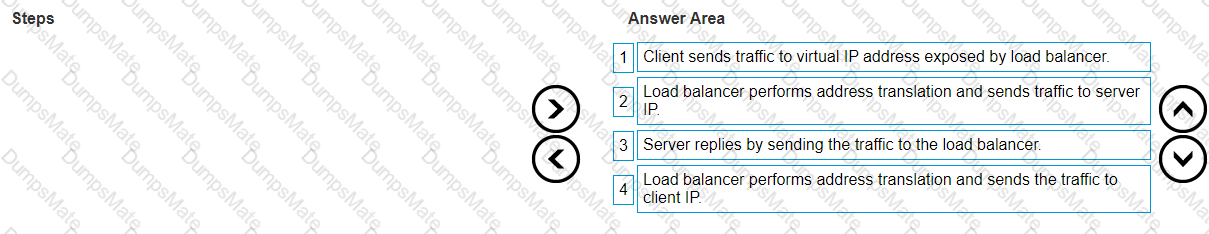

The order of steps taken when using an NSX edge service gateway with proxy mode load balancing is as follows:

Client sends traffic to virtual IP address exposed by the load balancer.

Load balancer performs address translation and sends traffic to server IP.

Server replies by sending the traffic to the load balancer.

Load balancer performs address translation and sends the traffic to client IP.

The process begins with aclient initiating communicationby sending traffic to a virtual IP address, which is managed by the NSX edge service gateway functioning as a load balancer.

Upon receiving the traffic, theload balancer translates this virtual IP addressinto one of the actual server IPs that it manages, effectively directing the client’s request to an appropriate server in its pool.

The selected server processes this request andresponds back, sending its reply to the load balancer rather than directly back to the client.

Finally, once receiving this response from the server, the load balancertranslates it from its own internal server IP back into what appears as a response from the original virtual IP addressand forwards this response on to complete communication loop back at the client’s end.

Understand VxLAN: VxLAN, or Virtual Extensible LAN, is a network virtualization technology that allows for the creation of a Layer 2 network on top of a Layer 3 network1.

Identify Key Benefit: One of the key benefits of VxLAN is that it enables vMotion to occur over Layer 3 subnets, which can span across different geographic locations1.

Recognize VxLAN Capabilities: By encapsulating Layer 2 Ethernet frames into Layer 4 UDP packets, VxLAN allows for the extension of networks over long distances, facilitating vMotion in environments where the physical network infrastructure is spread out1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with this understanding of VxLAN, highlighting its ability to support vMotion across Layer 3 subnets as a significant advantage1.

=========================

Review the VxBlock 1000 documentation: The System Engineer should review the VxBlock 1000 documentation to understand the standard cabling configuration for Fabric Interconnects1.

Identify the role of Fabric Interconnects 1A: Fabric Interconnects serve as the nerve center for data and storage networking in the VxBlock 1000.They manage the connectivity between the compute, storage, and networks1.

Determine the standard connection setup: Typically, Fabric Interconnects 1A would have server uplinks connected to the C-Series servers to manage data traffic between servers and the rest of the network2.

Validate against the deployment checklist: The System Engineer should validate the cabling against the deployment checklist provided in the VxBlock Deploy Achievement document to ensure all connections are correctly made1.

Review Cisco ACI Components: Cisco ACI is a comprehensive networking solution for data centers that includes specific components designed to work within its architecture1.

Identify Non-ACI Component: The Cisco Nexus 7000 series switches are not part of the Cisco ACI solution.Cisco ACI is built on Cisco Nexus 9000 series spine and leaf switches1.

Understand ACI Architecture: The Cisco ACI architecture is designed around the Cisco Application Policy Infrastructure Controller (APIC) and the Nexus 9000 series switches, which work together to provide a policy-driven solution that automates network provisioning and control1.

Recognize ACI Specific Entities: The Cisco ACI End Point Group (EPG) is a fundamental entity within the ACI architecture that groups together similar endpoints with common policy requirements1.

Introduction to the new system: The primary purpose of the Knowledge Transfer process is to introduce the customer team to their new converged or hyperconverged system1.

Familiarization with the environment: This process involves familiarizing the customer’s team with the environment and operational aspects of the VxBlock system1.

Ensuring smooth transition: Knowledge Transfer is crucial for ensuring that the customer’s team can effectively manage and maintain their new system1.

Empowering the customer: By transferring knowledge, the customer’s team is empowered to take full advantage of the system’s capabilities and benefits1.

When creating an NSX logical switch, a required step is to create a new name for the logical switch. Naming the logical switch is necessary to identify and manage it within the NSX environment.

References:

VMware NSX documentation on creating logical switches.

Best practices for network virtualization.

In the RCM (Release Certification Matrix) Upgrade Process RACI (Responsible, Accountable, Consulted, Informed) matrix, the pre-upgrade questionnaire used during the Initiation Phase is typically the responsibility and accountability of the Project Manager and the Customer. The Project Manager ensures the completion of the questionnaire to gather necessary information for planning the upgrade, while the Customer provides the required data.

References:

Dell EMC RCM documentation.

Standard RACI matrix practices in project management.

In a VxBlock 1000 system using AMP-VX, the first component to be powered on is the AMP physical server. This server hosts the management and orchestration tools required to manage the VxBlock system. Ensuring that the AMP physical server is powered on first provides the necessary foundation for other components and services to be initialized and managed properly.

References:

Dell EMC VxBlock System installation and power-on procedures.

AMP-VX deployment and configuration guides.

=========================

Identify the VTEP’s role: The VTEP, or VXLAN Tunnel Endpoint, is responsible for encapsulating and de-encapsulating the network traffic sent over the VXLAN1.

Understand NSX Components: The NSX Controller is a key component of the VMware NSX network virtualization platform.It is responsible for the control plane, managing the state of virtual networks and overlay transport zones1.

Communication with VTEP: The NSX Controller communicates with the VTEP to manage the overlay network and ensure that traffic is correctly routed and encapsulated across the network infrastructure1.

Role of other NSX Components: While the NSX Edge provides routing services and the NSX Manager is the centralized management component, it is the NSX Controller that directly manages the state of the virtual network and communicates with the VTEPs1.

To establish an SSH connection to the Management switch 3172TQ, the IP address 10.10.10.1 should be used. This is the default IP address for the management interface on the switch, allowing for administrative access and configuration.

References:

Dell EMC VxBlock system documentation.

Network administration guides for switch management and access.

During an RCM (Release Certification Matrix) upgrade escalation, the Delivery Manager is an optional resource. While not always required, the Delivery Manager can be involved to provide additional oversight and coordination if needed.

References:

Dell EMC RCM process documentation.

Project management escalation procedures.

In the Cisco UCS 6332-16UP 40-Port Fabric Interconnect, unused server ports can be converted to FC (Fibre Channel) ports. This flexibility allows customers to reconfigure ports based on their specific needs, increasing the number of available FC ports when additional FC connectivity is required.

References:

Cisco UCS Fabric Interconnect configuration guides.

Cisco UCS 6300 Series Fabric Interconnect data sheets and documentation.

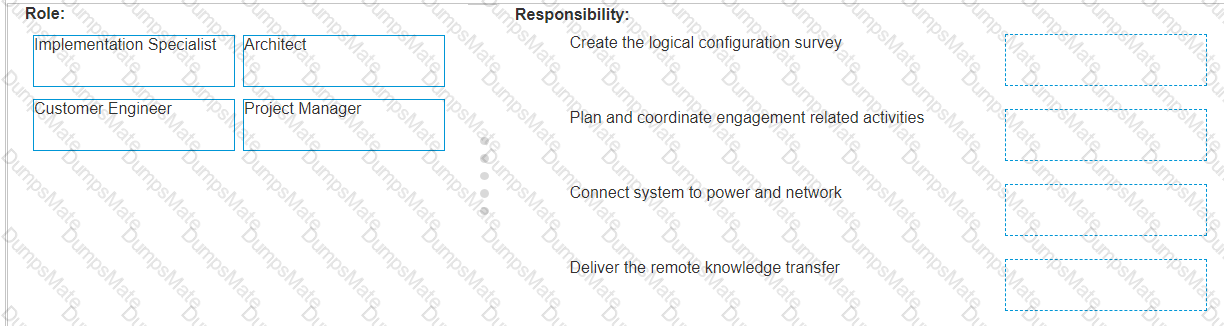

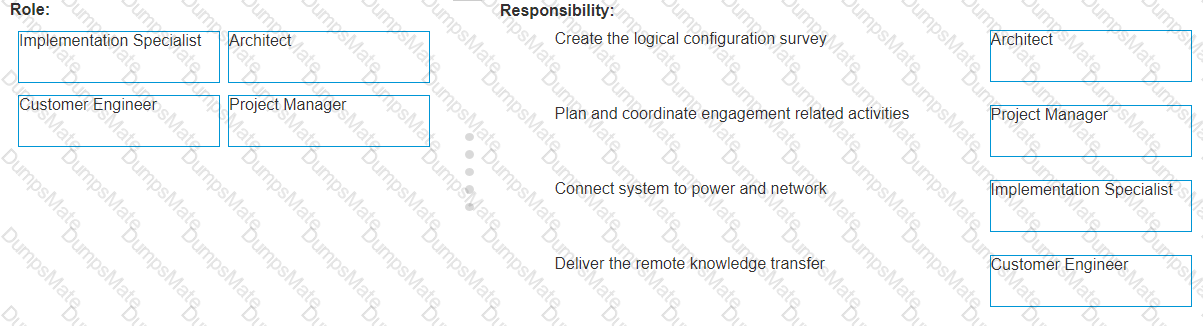

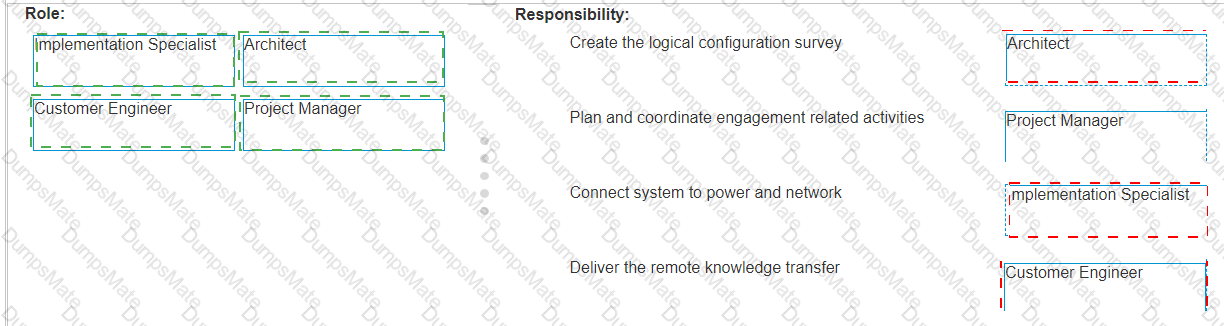

Based on the Dell VxBlock Deploy Achievement document, the roles and their responsibilities are matched as follows:

Implementation Specialist: Connect system to power and network1.

Architect: Create the logical configuration survey1.

Customer Engineer: Deliver the remote knowledge transfer1.

Project Manager: Plan and coordinate engagement related activities1.

Implementation Specialist: This role is typically responsible for the physical aspects of the deployment, such as connecting the system to power sources and the network1.

Architect: The Architect’s responsibility includes designing and creating surveys that capture the logical configuration of the system1.

Customer Engineer: This role often involves interfacing with the customer and providing knowledge transfer to ensure they understand the system1.

Project Manager: The Project Manager oversees the project, planning, and coordinating all activities related to the engagement1.

Integrating NSX for virtual networking while retaining ACI for physical networking is possible, but it may be cost prohibitive. This approach requires careful planning and management of both virtual and physical network environments, potentially leading to higher operational costs and complexity.

References:

Technical resources on integrating VMware NSX with Cisco ACI.

Cost considerations and best practices for hybrid network environments.

VxBlock Central requires 3 VMs to support an RCM (Release Certification Matrix) upgrade. These VMs include the various management and orchestration components necessary tofacilitate the upgrade process and ensure that all aspects of the system are correctly monitored and controlled.

References:

Dell EMC VxBlock Central documentation.

Best practices for deploying and managing VxBlock systems.

Review XtremIO X2 Specifications: The XtremIO X2 storage array is designed to support a scale-out architecture, allowing for the addition of multiple X-Bricks to increase capacity and performance1.

Identify Maximum X-Bricks: According to the specifications, a single XtremIO X2 array can be scaled out to a maximum of 8 X-Bricks1.

Understand Capacity Expansion: This scale-out capability enables the XtremIO X2 array to reach a large physical capacity, accommodating the storage needs of various applications and workloads1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with this information, providing details on the scalability options for the XtremIO X2 storage array1.

Review ACI Fabric Topology: The ACI fabric topology is based on a spine-leaf architecture, which is a scalable, two-layer network topology composed of spine switches and leaf switches1.

Understand Spine-Leaf Benefits: This topology provides high-bandwidth connectivity between leaf switches and spine switches, allowing for efficient data flow across the network1.

Recognize ACI Fabric Design: In an ACI fabric, each leaf switch connects to every spine switch, creating a non-blocking, high-throughput network that supports east-west traffic patterns typical in modern data centers1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with Cisco’s guidelines on ACI fabric, which specify the spine-leaf topology as the standard for ACI deployments1.

Identify the Correct Document: The Port Map is typically used to provide a visual representation of all the connections on a network switch, including those that have been recently upgraded1.

Understand the Purpose of a Port Map: A Port Map is a detailed diagram that shows the physical and logical connections to and from a network switch.It is an essential tool for network administrators to visualize the network topology and troubleshoot connectivity issues1.

Utilize the Port Map: After an upgrade, the Port Map can be referenced to verify that all connections have been correctly re-established and that the switch is functioning as expected within the network infrastructure1.
