D-VPX-OE-A-24 Dell VPLEX Operate Achievement Questions and Answers

The data mobility operation that removes the pointer to the source leg of a RAID-1 device in Dell VPLEX is the “Clean” operation. This operation is part of the data mobility process in VPLEX, which involves migrating data from one storage volume to another.

Data Mobility: Data mobility in VPLEX allows for the non-disruptive movement of data between storage volumes, which is often used for technology refreshes, load balancing, or other maintenance activities1.

RAID-1 Device: A RAID-1 device in VPLEX is a virtual volume that provides data redundancy by mirroring data across two storage volumes, known as legs1.

Clean Operation: The “Clean” operation is used after the data has been successfully migrated to the new storage volume (target leg).It removes the pointer from the old storage volume (source leg), effectively completing the migration process1.

Pointer Removal: Removing the pointer to the source leg is an important step to ensure that the VPLEX system no longer references the old storage volume for read or write operations, and all I/O is directed to the new volume1.

Finalization: Once the “Clean” operation is performed, the source leg can be safely decommissioned or repurposed, as it is no longer part of the RAID-1 device configuration1.

By using the “Clean” operation, administrators can ensure that the data mobility process is completed efficiently and that the VPLEX system maintains data integrity and continuity of service.

In a VPLEX Metro environment, the type of mobility used to move data to a remote cluster is known as device mobility. This process involves the migration of virtual volumes that are backed by VPLEX devices across the two clusters that make up the VPLEX Metro.

Here’s a detailed explanation:

Device Mobility: Device mobility refers to the capability of VPLEX to move a device, which is a logical representation of storage, from one cluster to another within a VPLEX Metro configuration1.

VPLEX Metro: VPLEX Metro is a configuration that allows for synchronous data replication and accessibility between two geographically separated clusters.It provides continuous availability and non-disruptive data mobility1.

Migration Process: The migration of data in a VPLEX Metro involves several steps, starting with the creation of a mobility job, followed by the actual data movement, and finally, the cleanup and completion of the job1.

CLI and GUI Tools: While earlier versions of VPLEX required the use of the Command Line Interface (CLI) for mobility in a Metro configuration, newer versions support this functionality through the Graphical User Interface (GUI) as well2.

Use Cases: Device mobility is often used for load balancing, tech refreshes, or other scenarios where data needs to be moved between clusters without disrupting access to the data1.

By utilizing device mobility, VPLEX Metro allows for the seamless movement of data across clusters, ensuring high availability and flexibility in data management.

The command used to display available statistics for monitoring VPLEX is monitor stat-list. This command provides a list of all the statistical counters that are available for monitoring various components and aspects of the VPLEX system.

Command Function: The monitor stat-list command is part of the VPLEX monitoring suite of commands.It allows administrators to view the different statistics that can be collected and monitored1.

Usage: When executed, this command will output a list of statistics that are available for collection.These statistics can include performance metrics, system health indicators, and other relevant data points that are useful for monitoring the VPLEX environment1.

Monitoring Suite: VPLEX provides a comprehensive set of monitoring tools that enable administrators to keep track of system performance and identify potential issues before they impact operations.The monitor stat-list command is a key component of this suite1.

Other Commands: While the monitor create and monitor add-sink commands are used to set up and direct where statistics should be sent, respectively, and the monitor collect command is used to collect performance data for a specific monitor, the monitor stat-list command is specifically used to list available statistics1.

By using the monitor stat-list command, VPLEX administrators can effectively determine which statistics are available for monitoring, helping them to configure their monitoring setup according to the needs of their environment.

The maximum number of virtual volumes that can be placed into a single consistency group in a Dell VPLEX environment is800. This limit is set to ensure the manageability and performance of the consistency group within the VPLEX system.

Here’s a detailed explanation:

Consistency Group Capacity:A consistency group in VPLEX is a collection of virtual volumes that are managed together to maintain write-order fidelity, which is crucial for applications requiring strong consistency guarantees.

Limit Rationale:The limit of 800 virtual volumes is determined based on the VPLEX system’s ability to handle the overhead associated with managing a large number of volumes in a consistency group, including the coordination of writes and snapshots.

Operational Management:By capping the number of virtual volumes in a consistency group, VPLEX ensures that the group can be managed effectively without compromising the performance of the storage system.

Documentation Reference:The Dell VPLEX Operate Achievement documents outline the specifications and limitations of VPLEX systems, including the details of consistency group capacities1.

Best Practices:Administrators are advised to follow best practices and guidelines provided by Dell when configuring and managing consistency groups to avoid exceeding the recommended limits and to ensure optimal system performance.

It’s important for storage administrators to be aware of these limitations when planning and implementing VPLEX storage solutions to ensure they are operating within the supported configurations.

A VPLEX storage administrator can manage array-based attributes throughstorage tiers. This is part of the VPLEX’s ability to integrate with underlying storage arrays and leverage their native capabilities, such as tiering, to optimize performance and cost.

Here’s a detailed explanation:

Understanding Storage Tiers:Storage tiers are classifications of storage based on performance and cost. High-performance tiers use faster storage media like SSDs, while lower tiers might use traditional HDDs.

VPLEX Integration:VPLEX integrates with underlying storage arrays to manage these tiers. By doing so, it can place data on the appropriate tier based on performance requirements and other policies.

Managing Array-Based Attributes:Within the VPLEX, administrators can define policies that determine how data is placed across these tiers. This is done by managing array-based attributes that dictate tier placement.

Provisioning and Migration:Administrators can provision new volumes or migrate existing ones between tiers as needed, ensuring that the most frequently accessed data is on the highest-performing tiers.

Monitoring and Adjusting:VPLEX provides tools for monitoring performance and usage patterns, allowing administrators to adjust tiering policies and placements to optimize for current workloads.

Documentation and Training:For those seeking to understand the full capabilities and management procedures, Dell provides training and documentation, such as the VPLEX Operate Achievement, which covers these topics in detail123.

By managing storage tiers, VPLEX administrators can ensure that the storage infrastructure is used efficiently, balancing cost and performance effectively.

For VPLEX for All Flash (VAF), both the VS2 and VS6 models are recommended. Here’s why:

VS2 Model: The VS2 model is a previous generation of VPLEX hardware that supports all-flash configurations.It is designed to handle the high throughput and low latency requirements of all-flash storage1.

VS6 Model: The VS6 is the latest generation of VPLEX hardware, offering enhanced performance and scalability compared to the VS2.It is also suitable for all-flash environments and is designed to leverage the full capabilities of flash storage1.

Upgrade Path: Organizations with existing VS2 hardware can continue to use it for VAF, but they may consider upgrading to VS6 for improved performance and newer features.The VPLEX architecture allows for non-disruptive upgrades from VS2 to VS6, making it a future-proof solution1.

VPLEX Technology: Both VS2 and VS6 utilize VPLEX technology that virtualizes storage across multiple arrays, allowing for seamless data mobility and continuous availability.This technology is particularly beneficial in all-flash environments where performance and uptime are critical1.

Documentation: The Dell VPLEX Operate Achievement documents provide detailed information on the capabilities of both VS2 and VS6 models, including their suitability for VAF environments1.

By choosing either VS2 or VS6 models for VPLEX for All Flash, organizations can ensure they have a robust and high-performing storage virtualization platform that meets the demands of modern all-flash arrays.

When setting up a VPLEX system that uses ESRS (EMC Secure Remote Services), it is essential to ensure that the correct ports are open to allow for various types of communication, including access to the VPLEX GUI. The port that needs to be opened on the firewall to allow access to the VPLEX GUI is port 443.

Port 443: This port is commonly used for HTTPS traffic, which is the protocol used for secure web communications.The VPLEX GUI is accessed over a web browser using HTTPS, hence the need for port 443 to be open1.

Firewall Configuration: The firewall administrator must configure the firewall to allow inbound and outbound traffic on port 443 to the VPLEX system’s IP address.This ensures that the technical support engineer and other users can access the VPLEX GUI through a secure connection1.

Troubleshooting Access Issues: If the technical support engineer cannot access the VPLEX GUI, one of the first steps in troubleshooting is to check the firewall settings to confirm that the necessary ports, including port 443, are open1.

ESRS Communication: While ports 25, 9010, and 5901 are important for ESRS communication and other services, they do not facilitate access to the VPLEX GUI.Port 25 is typically used for SMTP email services, port 9010 may be used for internal services, and port 5901 could be used for VNC or other remote access protocols1.

Secure Access: Opening port 443 not only allows access to the VPLEX GUI but also ensures that the communication is encrypted and secure, protecting sensitive data and system configurations1.

By opening port 443 on the firewall, the company ensures secure and reliable access to the VPLEX GUI for administration, monitoring, and troubleshooting purposes.

The VPLEX Mobility feature is designed to address several use cases, but two of the most common ones are:

Tech Refresh: This involves the migration of data from older storage arrays to newer ones without disrupting access to the data.VPLEX Mobility facilitates this process by allowing data to be moved seamlessly between different storage systems, which is essential during technology upgrades1.

Workload Rebalance: This use case involves the dynamic movement of workloads across different storage systems to balance performance and capacity needs.VPLEX Mobility enables administrators to shift data to the most appropriate storage resources as demands change, ensuring optimal performance and utilization1.

References:

VPLEX Mobility: The VPLEX Mobility feature is a key component of the VPLEX system, providing the ability to move data across different storage installations within the same data center, across a campus, or within a geographical region1.

Tech Refresh: The technology refresh use case is particularly important for organizations that need to update their storage infrastructure without causing downtime or affecting ongoing operations.VPLEX Mobility allows for such updates to happen in the background, with no impact on users or applications1.

Workload Rebalance: Workload rebalance is crucial for maintaining performance levels across storage systems, especially in environments where workloads can be unpredictable or where there are periodic spikes in demand.VPLEX Mobility’s ability to move data dynamically helps in managing these scenarios effectively1.

For more detailed information on VPLEX Mobility and its use cases, you can refer to the official Dell documentation on VPLEX Overview and General Best Practices1.

The Unisphere Performance Monitor Dashboard is used to monitor VPLEX performance parameters. This dashboard is part of the Unisphere for VPLEX management suite and provides a graphical interface for monitoring various performance metrics.

Unisphere for VPLEX: Unisphere for VPLEX is the management interface for VPLEX systems.It provides administrators with tools to configure, manage, and monitor VPLEX environments1.

Performance Monitoring: The Performance Monitor Dashboard within Unisphere allows administrators to view real-time and historical performance data.This includes metrics such as I/O rates, latency, and throughput1.

Dashboard Features: The dashboard offers various features such as performance charts, threshold alerts, and detailed reports that help in identifying performance trends and potential issues1.

Accessibility: The dashboard is accessible through the Unisphere web interface, making it convenient for administrators to monitor the VPLEX system from any location1.

Usage: To use the Performance Monitor Dashboard, administrators log into Unisphere for VPLEX, navigate to the performance section, and can then view and analyze the performance data presented in the dashboard1.

By using the Unisphere Performance Monitor Dashboard, administrators can effectively monitor VPLEX performance parameters, ensuring the system operates efficiently and meets performance requirements.

The process of extent and device migration in a Dell VPLEX environment typically involves the following steps:

Create: The initial step is to create a migration job for the extent or device. This involves specifying the source and target extents or devices and setting up the migration parameters.

Commit: Once the migration job is created, the next step is to commit the jB.This action will start the migration process, where data begins to move from the source to the target.

Clean: After the data has been successfully migrated, the system performs a cleanup operation to remove any temporary data structures or logs that were used during the migration process.

Terminate: The final step is to terminate the migration jB.This step concludes the migration process and releases any resources that were allocated for the migration.

References:

The Dell VPLEX documentation provides detailed procedures on how to perform data migration, including the steps involved in migrating extents and devices1.

Best practices and technical guides from Dell also cover the topic of data migration, offering insights into the process and how to ensure a smooth migration experience1.

By following these steps, a storage administrator can successfully migrate extents and devices within the VPLEX environment, ensuring data availability and minimal disruption to services.

The command that collects the most recent performance statistics from all VPLEX directors is SNMPGETBULK. This command is part of the SNMP (Simple Network Management Protocol) suite, which is used for collecting information and managing network devices.

SNMPGETBULK Command: The SNMPGETBULK command retrieves bulk data from SNMP-enabled devices.It is designed to efficiently collect multiple pieces of information in a single request, making it suitable for gathering performance statistics from multiple directors1.

Usage in VPLEX: In the context of Dell VPLEX, the SNMPGETBULK command can be used to query the directors for their most recent performance data. This data can include metrics such as I/O rates, latency, cache usage, and other vital statistics.

Performance Monitoring: Collecting performance statistics is crucial for monitoring the health and efficiency of the VPLEX system. It helps administrators identify potential issues and optimize the system’s performance.

SNMP Configuration: To use the SNMPGETBULK command, SNMP must be configured on the VPLEX system, and the appropriate community strings and access permissions must be set up.

Other Commands: While the monitor stat-list command lists available statistics and the monitor collect command collects performance data for a specific monitor, the SNMPGETBULK command is specifically used for bulk data retrieval across all directors.

By utilizing the SNMPGETBULK command, administrators can effectively gather comprehensive performance data from all VPLEX directors, aiding in the management and optimization of the storage environment.

A VPLEX device is a logical construct that represents storage in the VPLEX environment. The statement that applies to a VPLEX device is:

Application of a RAID Topology: A VPLEX device can have a RAID topology applied to one or more extents.This means that the VPLEX system can take multiple extents, which are segments of storage from an underlying array, and organize them into a RAID configuration for redundancy and performance purposes1.

Extent Definition: An extent in VPLEX is a contiguous range of block addresses presented to VPLEX from a storage volume.It is the basic unit of storage that VPLEX manages1.

Device Composition: A VPLEX device is composed of one or more extents.When these extents are combined and a RAID topology is applied, it creates a VPLEX device that can be presented as a virtual volume to hosts1.

RAID Topologies: VPLEX supports various RAID configurations, such as RAID-1 (mirroring) and RAID-C (concatenation), allowing for flexibility in how data is protected and accessed1.

VPLEX Virtualization: The VPLEX system virtualizes the storage from underlying arrays, allowing for the creation of these devices without being tied to the physical RAID configurations of the arrays themselves1.

By understanding the role of RAID topologies and extents in the creation of VPLEX devices, storage administrators can effectively manage and provision storage in a VPLEX environment.

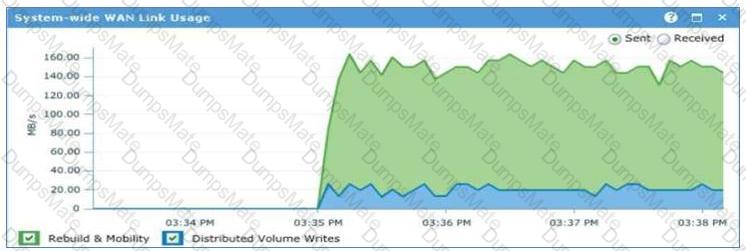

The graph provided in the exhibit shows a high level of ‘Sent’ bandwidth usage, which remains consistently near the upper limit of the chart. This suggests that there is a significant amount of data being sent over the WAN link. In a Dell VPLEX environment, if virtual volumes created on distributed devices experience performance problems, one possible reason could be that I/O demands exceed available WAN COM (WAN Communication) bandwidth.

Here’s a detailed explanation:

High ‘Sent’ Bandwidth Usage: The graph indicates that the ‘Sent’ bandwidth is consistently high, nearing the chart’s maximum capacity.

Impact on Performance: When the I/O of a distributed device exceeds the available WAN COM bandwidth, it can cause a bottleneck, resulting in performance issues such as increased latency or slower response times for write operations.

VPLEX Distributed Architecture: In a VPLEX distributed environment, data must be written to both clusters before an acknowledgment is sent to the host. If the WAN link is saturated, this process is delayed, affecting overall performance.

Monitoring Tools: VPLEX provides monitoring tools that can help identify such issues. The graph in the exhibit likely comes from such a tool, illustrating the system-wide WAN link usage and pinpointing potential performance bottlenecks.

Resolution: To resolve this issue, a storage administrator might need to consider increasing the WAN COM bandwidth, optimizing the data flow, or redistributing the workload to reduce the strain on the WAN link.

References:

Dell EMC VPLEX documentation regarding system performance considerations discusses factors affecting virtual volume performance, including network constraints.

Best practices for VPLEX suggest monitoring WAN link usage and ensuring it aligns with the expected performance levels for distributed devices.

By analyzing the WAN COM bandwidth usage and understanding its impact on distributed device performance, storage administrators can take appropriate actions to mitigate any issues and maintain optimal performance levels.

When a VPLEX distributed device experiences elongated write response times, it is typically due to the characteristic of VPLEX that requires writes to be committed to backend storage on both clusters before an acknowledgement is sent to the host. This ensures data integrity and consistency across the distributed device but can lead to increased response times, especially if there is network congestion or latency issues between the clusters.

Here’s a detailed explanation:

Write I/O Commitment:For a VPLEX distributed device, any write I/O must be committed to backend (BE) storage on both the local and remote clusters1.

Network Impact:If the inter-cluster communication network (FC/IP WAN) is experiencing congestion or high latency, it will increase the round-trip time of I/O packets, leading to performance issues and elongated write response times1.

Performance Best Practices:VPLEX best practices suggest that the round-trip time (RTT) between clusters should not exceed 5 ms to maintain optimal performance, with an RTT of 1 ms recommended for campus-wide networks1.

Troubleshooting Steps:To address such issues, administrators should check for network congestion indicators in the firmware logs and ensure that all WAN communication ports are operational and that SFPs have sufficient power1.

Resolution:If the VPLEX is configured for FC metro and supported by Dell EMC, collecting switch logs and engaging Dell EMC support is advised.For IP metro configurations, validating the health of the IP network is crucial to identify the cause of congestion1.

By understanding this characteristic of VPLEX distributed devices, storage administrators can take appropriate measures to mitigate elongated write response times and maintain system performance.

The SNMP management station connects to the VPLEX Management Server to gather statistics. The Management Server acts as the central point for managing and monitoring the VPLEX environment, including the collection of SNMP statistics.

Management Server Role: The VPLEX Management Server provides a centralized interface for system administration and monitoring.It is responsible for managing the VPLEX clusters and all associated components1.

SNMP Statistics Collection: SNMP (Simple Network Management Protocol) is used for collecting performance and health data from networked devices.The VPLEX Management Server supports SNMP and can be configured to send SNMP traps to a management station1.

Configuration: To enable SNMP monitoring, the VPLEX administrator must configure the Management Server with the appropriate SNMP settings, including the community string and the remote host (management station) details1.

Monitoring with SNMP: Once configured, the SNMP management station can connect to the VPLEX Management Server to collect statistics, which can include a wide range of metrics such as CPU utilization, memory usage, and I/O rates1.

Troubleshooting: If there are issues with SNMP data collection, such as the inability to ping the remote host from the VPLEX Management Server, the administrator may need to check network configurations, such as firewall settings, to ensure proper connectivity1.

By connecting to the VPLEX Management Server, the SNMP management station can effectively gather statistics for monitoring the health and performance of the VPLEX system.
