D-VPX-DY-A-24 Dell VPLEX Deploy Achievement Questions and Answers

In the context of Dell VPLEX, a rebuild occurring on a volume is a condition that would prevent the expansion of that volume. This is because the system needs to ensure data integrity and consistency during the rebuild process before any changes to the volume size can be made.

Rebuild Process: A rebuild is a process where VPLEX re-synchronizes the data across the storage volumes, typically after a disk replacement or a failure1.

Volume Expansion: Expanding a volume involves increasing its size to accommodate more data. This process requires that the volume is in a stable state without any ongoing rebuild operations1.

Data Integrity: During a rebuild, the system is focused on restoring the correct data across the storage volumes. Attempting to expand a volume during this process could lead to data corruption or loss1.

System Restrictions: VPLEX systems have built-in mechanisms to prevent administrators from performing actions that could jeopardize the system’s stability or data integrity, such as expanding a volume during a rebuild1.

Post-Rebuild Expansion: Once the rebuild process is complete and the volume is fully synchronized, the administrator can then proceed with the volume expansion1.

In summary, a rebuild currently occurring on a volume is a condition that would prevent the expansion of that volume in a Dell VPLEX system. The system must first ensure that the rebuild process is completed successfully before allowing any changes to the volume’s size.

In a VPLEX VS2 dual engine setup, each engine is fixed at 72GB of cache, with 36GB per director. Since a dual engine setup contains two engines, the total available cache would be:

72\ GB\ (per\ engine) \times 2\ (engines) = 144\ GB72 GB (per engine)×2 (engines)=144 GB

However, as each engine contains two directors, and each director has 36GB of cache, the total cache available in a dual engine setup would be:

36\ GB\ (per\ director) \times 4\ (directors) = 144\ GB36 GB (per director)×4 (directors)=144 GB

Therefore, the total cache available in a VPLEX VS2 dual engine setup is 144 GB1.

For connecting the MMCS-A to the customer management network in a Dell VPLEX system, it is essential to use the correct port that is designated for management traffic. According to the Dell EMC VPLEX documentation1, each MMCS (Management Module Control Station) has two network connections that connect to the customer’s network. One of these is used for system monitoring and remote connectivity for Dell Technologies Customer Support, and the other is for use by the Network Address Translation (NAT) Gateway.

In the context of the VS6 VPLEX cluster, the management ports are located on MMCS-A and MMCS-B, and both must be configured and connected to the customer network. MMCS-A is the management port that will be accessed for all management and monitoring purposes1. Therefore, the cable that should be connected to the customer management network is the one associated with MMCS-A.

Based on the information provided in the search results and the description of the image, the correct cable to connect to the customer management network for MMCS-A is indicated by the letter B in the exhibit. This connection is crucial for enabling management and monitoring access to the VPLEX system.

After deploying the VPLEX Cluster Witness, the next step is to configure a 2-way VPN between the Witness and both VPLEX sites. This is essential for the Cluster Witness to communicate with each cluster and provide the health check heartbeats required for monitoring.

VPN Configuration: Configure the VPN to ensure secure communication between the VPLEX Cluster Witness and the management servers of both VPLEX clusters1.

Enable Cluster Witness: Once the VPN is configured, enable the VPLEX Cluster Witness on the VPLEX sites. This involves setting up the Cluster Witness to monitor the health and status of the VPLEX clusters1.

Test Connectivity: After enabling the Cluster Witness, test the connectivity between the Cluster Witness and the VPLEX clusters to ensure that the health check heartbeats are being transmitted and received correctly1.

Finalize Setup: Complete any additional setup tasks as required by the VPLEX Metro configuration, such as configuring consistency groups or completing the VPLEX Metro setup1.

Documentation Reference: For detailed instructions and best practices, refer to the Dell VPLEX Deploy Achievement documents, which provide comprehensive guidance on deploying and configuring the VPLEX Cluster Witness1.

In summary, configuring a 2-way VPN is a critical step after deploying the VPLEX Cluster Witness to ensure it can perform its monitoring role effectively within the VPLEX Metro environment.

After a WAN outage, to verify management connectivity between MMCS-A on Cluster-1 and MMCS-A on Cluster-2, the storage administrator should use the vpn status command. This command checks the status of the VPN tunnels that facilitate secure communication between the management servers and the Cluster Witness Server.

Command Execution: The administrator should execute the vpn status command in the VPLEX CLI. This command will provide information about the state of the VPN tunnels1.

Interpreting Results: The output from the vpn status command will indicate whether the IPsec VPN tunnels are up and if the remote management servers are reachable. It will show the status of connectivity with both the management servers and the Cluster Witness Server1.

VPN Tunnel Status: The command will show the status of the VPN tunnel between the management servers, which is crucial for the clusters to communicate and operate as a metro system1.

Cluster Witness Server Connectivity: Additionally, the command will verify the VPN status between the management server and the Cluster Witness Server, ensuring that the witness can monitor the health and status of the clusters1.

Troubleshooting: If the vpn status command indicates that the remote management IP is not reachable, further troubleshooting will be required to establish connectivity. This may involve checking network configurations, firewall settings, and ensuring that the VPN services are running properly1.

In summary, the vpn status command is used to determine if the remote management IP is reachable, providing a quick and effective way to verify management connectivity between VPLEX clusters after a WAN outage.

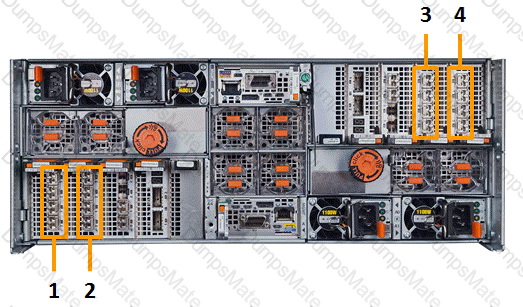

To identify the Director-B back-end ports in a VPLEX system, one must understand the standard port numbering and layout for VPLEX directors. Based on the information provided in the Dell community forum1, the back-end ports for Director-B can be identified by the following method:

Director Identification: Determine which director is Director-B. In a VPLEX system, directors are typically labeled as A or B, and each has a set of front-end and back-end ports1.

Port Numbering: The port numbering for a VPLEX director follows a specific pattern. For example, in a VS2 system, the back-end ports are typically numbered starting from 10 onwards, following the front-end ports which are numbered from 001.

Back-End Ports: Based on the standard VPLEX port numbering, the back-end ports for Director-B would be the second set of ports after the front-end ports. This is because the front-end ports are used for host connectivity, while the back-end ports connect to the storage arrays1.

Exhibit Analysis: In the exhibit provided, if the numbering follows the standard VPLEX layout, number 4 would highlight the Director-B back-end ports, assuming that number 3 highlights the front-end ports and the numbering continues sequentially1.

Verification: To verify the correct identification of the back-end ports, one can refer to the official Dell VPLEX documentation or use the VPLEX CLI to list the ports and their roles within the system1.

In summary, based on the standard layout and numbering of VPLEX systems, number 4 in the exhibit likely highlights the Director-B back-end ports. This identification is crucial for proper configuration and management of the VPLEX system.

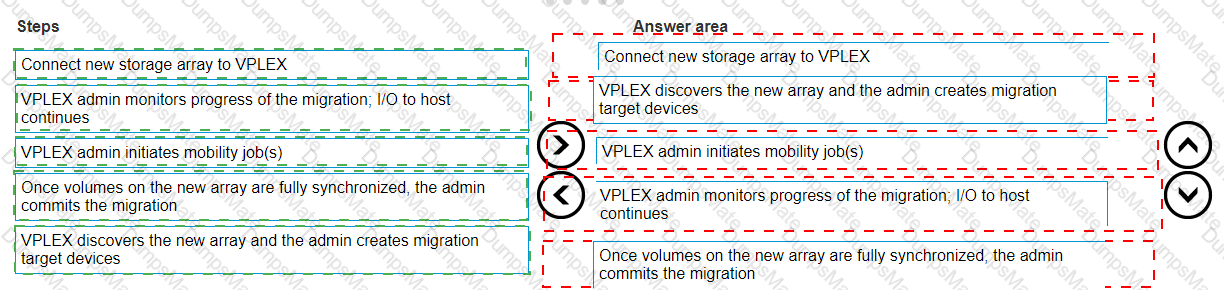

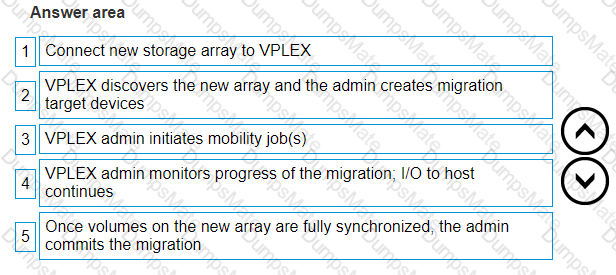

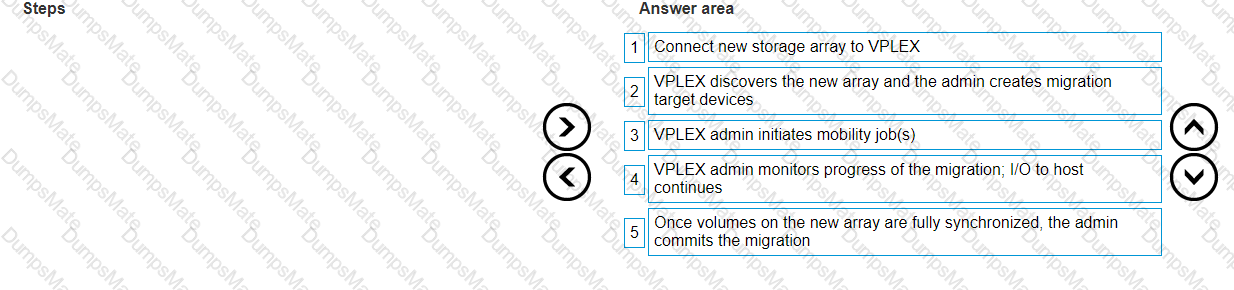

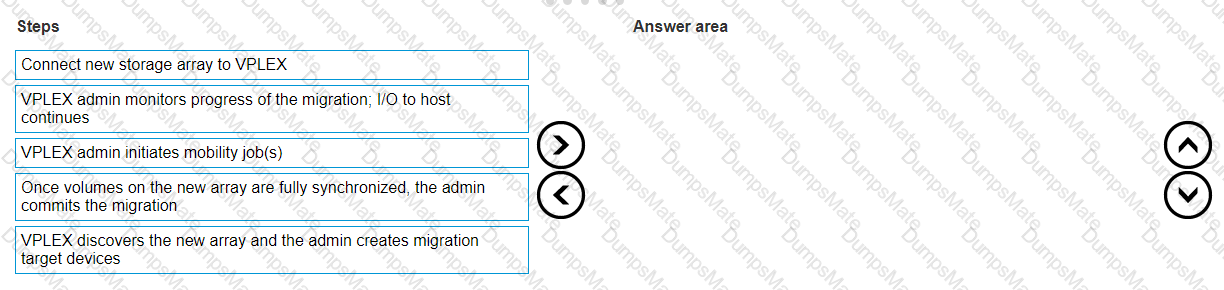

The correct order of steps to migrate from an old array to a new one without disruption using VPLEX is as follows:

Connect the new storage array to VPLEX.

VPLEX discovers the new array, and the admin creates migration target devices.

The VPLEX admin initiates mobility job(s).

VPLEX admin monitors the progress of the migration; I/O to the host continues.

Once volumes on the new array are fully synchronized, the admin commits the migration.

Connect New Storage Array: The first step involves physically connecting the new storage array to the VPLEX system and ensuring proper connectivity1.

Discovery and Device Creation: VPLEX then discovers the new array. The administrator uses the VPLEX management interface to create the target devices that will receive the data from the old array1.

Initiate Mobility Jobs: The administrator initiates mobility jobs using the VPLEX CLI or management interface. These jobs handle the data transfer from the old array’s devices to the new array’s devices1.

Monitor Migration Progress: While the mobility jobs are running, the administrator monitors the progress. During this time, the host continues to perform I/O operations without disruption1.

Commit Migration: After the data has been fully synchronized to the new array, the administrator commits the migration. This finalizes the transfer and allows the host to use the new array’s devices as if they were the original ones1.

This process ensures a smooth and non-disruptive migration from an old storage array to a new one using VPLEX, maintaining continuous availability of applications and data.

To verify that the VPLEX Metro WAN COM link is restored, the storage administrator should run the connectivity validate-local-com command. This command checks the connectivity status of the local communication links within the VPLEX cluster.

Command Execution: The administrator should access the VPLEX CLI and execute the connectivity validate-local-com command. This will initiate a check of the local COM ports’ connectivity status1.

Interpreting Results: After running the command, the administrator should review the output to verify that all expected connectivity is present. The output will indicate whether each local COM port is communicating as expected1.

WAN COM Link: The WAN COM link is responsible for the communication between VPLEX clusters over a wide area network. Ensuring that the local COM links are operational is a prerequisite for the WAN COM link to function properly1.

Post-Outage Verification: Following a WAN outage, it’s crucial to confirm that the communication links are fully operational to maintain the high availability and data mobility features of VPLEX Metro1.

Best Practices: It is recommended to follow the Dell EMC VPLEX best practices for post-outage recovery, which include running the connectivity validate-local-com command to ensure that the system is ready to resume normal operations1.

In summary, the connectivity validate-local-com command is the correct procedure to verify that the VPLEX Metro WAN COM link is restored, as it checks and confirms the presence of all expected local communication link connectivity within the VPLEX cluster.

When configuring a VPLEX Metro cluster, especially for a company planning to create distributed volumes with a large amount of storage like 200 TB, it is essential to adhere to EMC best practices for the size of logging volumes.

Purpose of Logging Volumes: Logging volumes in VPLEX are used to store write logs that ensure data integrity and consistency across distributed volumes. These logs play a critical role during recovery processes1.

Size Considerations: The size of the logging volumes should be proportional to the amount of active data being written to ensure that all write operations are captured in the logs. For 200 TB of distributed storage, a minimum size of 10 GB for each logging volume is recommended to handle the logging requirements1.

Configuration: The logging volumes should be configured on each cluster to provide redundancy and high availability. This means that both clusters in a VPLEX Metro configuration should have logging volumes of at least the minimum recommended size1.

Best Practices: EMC best practices suggest that the logging volume should be sized appropriately to support the operational workload and to ensure that there is sufficient space to capture all write operations without any loss of data1.

Verification and Monitoring: After setting up the logging volumes, it is important to monitor their utilization to ensure they are functioning correctly and to adjust their size if necessary based on the actual workload1.

In summary, consistent with EMC best practices, the minimum size for logging volumes at each cluster in a VPLEX Metro cluster being installed for creating distributed volumes with 200 TB of storage should be 10 GB. This size ensures that the logging volumes can adequately support the write logging requirements for the amount of storage being used.

=========================

Upgrading a VPLEX from VS2 to VS6 hardware involves several critical requirements to ensure a successful and non-disruptive process:

GeoSynchrony Version: The system must be running at least GeoSynchrony 6.0. This is the software that orchestrates operations across the VPLEX infrastructure and ensures compatibility between different hardware generations1.

Code Level Consistency: Both the VS2 and VS6 platforms must be operating at the same software code level. This uniformity is crucial to prevent any incompatibility issues during the upgrade process1.

Engine Count: The number of engines in the existing VS2 setup must match the number of engines in the VS6 configuration. This alignment is necessary to maintain performance and capacity expectations post-upgrade1.

WWN Zoning: Proper WWN (World Wide Name) zoning must be in place. WWN zoning is a method of isolating network traffic to ensure that devices within a Fibre Channel network can only communicate with each other if they are in the same zone1.

Upgrade Process: The upgrade process typically involves replacing the VS2 hardware with VS6 components. This hardware swap should be done in a manner that does not disrupt the ongoing operations and services1.

Post-Upgrade Verification: After the hardware upgrade, it’s essential to verify that all systems are functioning correctly. This includes checking the status of the front-end and back-end ports, as well as the health of the virtual volumes1.

Documentation and Support: Detailed procedures for the upgrade process can be found in the SolVe Desktop Procedure Generator, which provides step-by-step instructions for upgrading cluster hardware from VS2 to VS61.

In summary, the requirements for upgrading a VPLEX from VS2 to VS6 include running GeoSynchrony 6.0 or higher, ensuring both platforms are at the same code level, matching the number of engines, and having proper WWN zoning in place.

When connecting a VPLEX Cluster-1 to VPLEX Cluster-2, the best practice is to ensure that every director port in Cluster-1 is zoned to every director port in Cluster-2 within each fabric. This approach is recommended to maintain a robust and resilient storage network that can handle failover scenarios and provide continuous availability.

Zoning Directors: Zoning is a SAN best practice that isolates traffic within the fabric to specific devices. By zoning every director port from one cluster to every director port in the other cluster, you ensure that there are multiple paths for communication, which enhances redundancy and fault tolerance1.

Fabric Configuration: Each fabric should be configured separately to maintain isolation between the paths. This prevents a single point of failure from affecting all paths and allows for continued operation even if one fabric experiences issues1.

Path Redundancy: With every director port zoned to its counterpart in the other cluster, there are multiple paths for data to travel. This redundancy is crucial for VPLEX Metro’s high availability, as it allows for seamless failover between clusters1.

Continuous Availability: VPLEX is designed for continuous availability, and proper zoning is key to achieving this. The zoning configuration should support VPLEX’s ability to provide uninterrupted access to data, even in the event of hardware failures or maintenance activities1.

Best Practices Documentation: Dell EMC provides detailed documentation on VPLEX implementation and best practices, including zoning recommendations. It is important to consult these documents when planning and implementing zoning for VPLEX clusters1.

In summary, the best practice for connecting VPLEX Cluster-1 to Cluster-2 is to zone every director port to every director port in each fabric, ensuring multiple paths for communication and enhancing the overall resilience of the storage network.

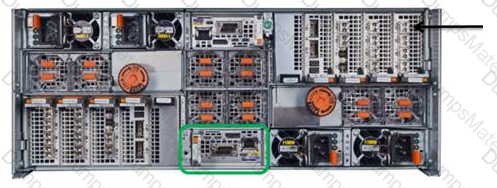

To identify the port indicated by the black arrow, we can refer to the standard VPLEX director port WWN breakdown provided by Dell:

Director Identification: Determine whether the director is A or B. Director B’s WWN is always +1 of Director A’s number1.

Port Numbering: VPLEX director port WWNs are broken down as follows: 0x5001442 [num][seed][IOmodule][port number], where the [port number] is one of {0,1,2,3}1.

Front-End Ports: For VS2 hardware, the front-end ports are typically numbered 0, and the back-end ports are numbered 11.

Exhibit Analysis: If the exhibit shows the standard layout of a VPLEX system and the black arrow points to the first port on Director B, it would be the front-end port 01.

Verification: To confirm the identification, one would typically refer to the official Dell EMC VPLEX documentation for hardware installation and setup, which would provide clear labeling of each port1.

In summary, based on the standard VPLEX port numbering and layout, the port indicated by the black arrow in the exhibit is likely Director B - front-end port 0, assuming that the exhibit follows the standard orientation and labeling conventions.

In the context of performance monitoring, particularly for systems like Dell VPLEX, histograms are used to track latencies and display minimums, maximums, and other statistical data. The term “buckets” is often used to describe the segments within a histogram that categorize the latency data into ranges. Each bucket represents a range of latencies, and the number of events (or I/O operations) that fall into each latency range is counted and displayed1.

Histograms in Monitoring: Histograms provide a visual representation of how data is distributed across different ranges of values, which is particularly useful for understanding the performance characteristics of a system like VPLEX1.

Buckets Explained: Buckets within a histogram divide the entire range of collected data into discrete intervals. For latency tracking, these buckets might represent latency ranges such as 0-1 ms, 1-2 ms, etc1.

Latency Tracking: By collecting latency data in buckets, administrators can quickly identify the distribution of latencies over time, pinpointing whether most I/O operations are fast, slow, or somewhere in between1.

Minimums and Maximums: Histograms make it easy to see the minimum and maximum latencies experienced by the system, as well as the frequency of latencies within each bucket range1.

Performance Analysis: This method of collecting and analyzing performance statistics is crucial for performance tuning and capacity planning, as it helps administrators understand the behavior of their storage systems under different workloads1.

In summary, “buckets” are the correct answer when referring to the segments within a histogram that are used to collect and categorize latency data for performance monitoring purposes in systems like Dell VPLEX.

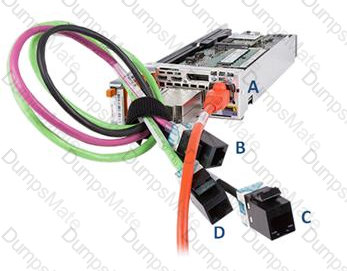

In the event of an unplanned site outage and subsequent recovery, if a storage administrator is unable to access the management server, they can connect to a specific port on the back of the management server with a hardcoded IP address to regain access to the VPLEX cluster and begin troubleshooting.

Identify the Management Port: The management server typically has a dedicated port that can be used for direct access in case of network issues. This port is designed to accept a hardcoded IP address for such scenarios1.

Connect to the Management Port: The administrator should use an Ethernet cable to connect a laptop or a computer directly to the management port, which is usually labeled and can be identified based on the server’s hardware manual or documentation1.

Configure the Hardcoded IP Address: On the connected device, the administrator needs to configure a static IP address that is in the same subnet as the management server’s default IP range1.

Access the VPLEX CLI: Once the connection is established, the administrator can use SSH or a similar protocol to access the VPLEX Command Line Interface (CLI) through the hardcoded IP address1.

Troubleshoot the Issue: With access to the VPLEX CLI, the administrator can now run diagnostic commands, check the system status, and troubleshoot the connectivity issue1.

In this scenario, the correct port to connect to is labeled ‘A’ on the back of the management server. This port is reserved for such direct access and allows the administrator to bypass the network to troubleshoot and resolve the issue.

A storage view in Dell VPLEX is a construct that defines the visibility and access control of storage resources for hosts connected to the VPLEX system. The characteristics of a storage view are crucial for ensuring proper access and management of storage resources.

Initiator Access: An initiator, which is typically a host bus adapter (HBA) on a server, can be part of multiple storage views. This allows a single server to access different storage resources that may be segregated for organizational, performance, or security reasons1.

VPLEX FE Ports: VPLEX Front-End (FE) ports can be included in multiple storage views. This design allows for flexibility in connecting multiple hosts to various storage resources through the same FE port1.

Initiator and FE Port Pairing: While an initiator can be in multiple storage views and a VPLEX FE port can be part of multiple storage views, each specific initiator and FE port pair can only be in one storage view. This restriction ensures that a unique path is maintained between a host and its storage resources, which is important for managing access and avoiding conflicts1.

Storage View Configuration: When configuring a storage view, it is essential to correctly map the initiators to the VPLEX FE ports and assign the appropriate virtual volumes. This setup defines which hosts can access which storage volumes through which paths1.

Best Practices: It is recommended to follow Dell’s best practices for VPLEX storage views to ensure optimal performance, security, and manageability. These practices include proper zoning, LUN masking, and storage view management as outlined in Dell VPLEX documentation1.

In summary, the verified characteristics of a storage view in a Dell VPLEX environment are that an initiator can be in multiple storage views, a VPLEX FE port can be in multiple storage views, but each initiator and FE port pair can only be in one storage view. This configuration ensures that storage resources are properly allocated and managed within the VPLEX system.
