D-PST-MN-A-24 Dell PowerStore Maintenance Achievement Questions and Answers

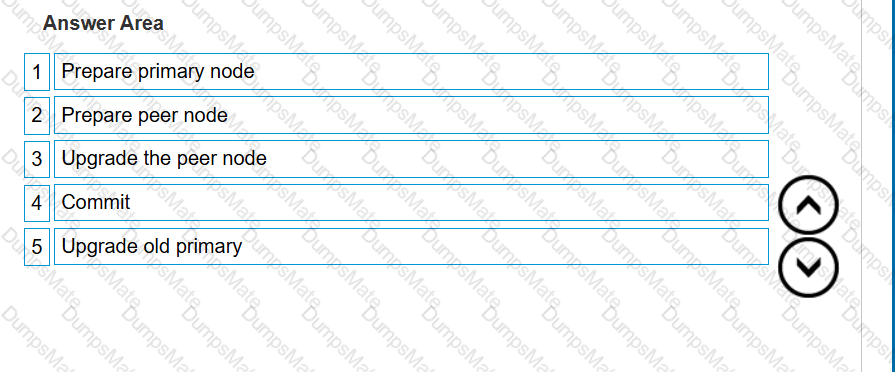

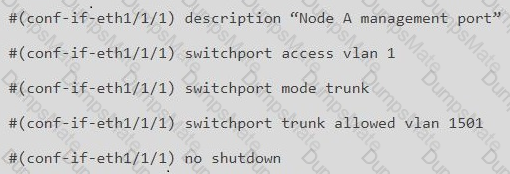

The network configuration shown for a Dell EMC PowerStore T node A management port indicates that VLAN 1 is set as the access VLAN, which means it will pass untagged traffic. The port is also configured as a trunk port, which allows it to pass traffic from multiple VLANs, but only VLAN 1501 is specified in the allowed list, meaning it will pass as tagged traffic. This configuration is typical for network interfaces on storage systems where management traffic is separated from other types of traffic for security and performance reasons.

In detail, the configuration commands are:

switchport access vlan 1: Sets VLAN 1 as the access VLAN, which passes untagged traffic.

switchport mode trunk: Enables trunking on the port, allowing it to pass traffic from multiple VLANs.

switchport trunk allowed vlan 1501: Specifies that only VLAN 1501 traffic is allowed on the trunk and will be tagged.

This setup ensures that management traffic is kept separate from other network traffic and can be managed accordingly.For more information on network configuration for Dell EMC PowerStore systems, you can refer to the PowerStore Networking Guide1. It is important to follow the official documentation to ensure proper configuration and maintenance of the network settings on your storage system.

When the license expiration date is within a week, Dell PowerStore generates awarning-level alert. This alert severity level is used to indicate that action should be taken soon to prevent potential service disruptions or limitations on system functionality. A warning alert is not as severe as a major alert, which would indicate immediate attention is required, but it is more critical than an informational alert, which is typically used for general notifications without immediate impact.

The warning alert serves as a proactive reminder to renew or update the license to ensure continuous operation of the PowerStore system.It is important to address these alerts promptly to maintain access to all features and avoid any limitations on system management operations1.

For more information on alert severities and license management in Dell PowerStore, administrators can refer to the PowerStore documentation on License State Alerts and the PowerStore Manager Overview, which provide detailed explanations of the different alert levels and the steps to manage and resolve licensing issues23. Following the guidelines in these documents will help ensure that the storage system remains fully operational and compliant with licensing requirements.

When the error “-bash: pstcli: command not found” appears after running a PSTCLI command on a Linux host, it typically means that the shell cannot locate the pstcli executable in the directories listed in the PATH environment variable. To resolve this issue, the installation directory of pstcli needs to be added to the PATH variable. This can be done by editing the shell initialization file (such as .bashrc or .bash_profile for Bash shell) and appending the installation directory to the PATH variable.

Here are the steps to resolve the problem:

Locate the installation directory of PSTCLI. If you followed the default installation, it should be in /opt/dellemc/pstcli-version/bin/.

Open the shell initialization file in a text editor. For example, if using Bash, you might edit ~/.bashrc or ~/.bash_profile.

Add the following line to the file: export PATH=$PATH:/opt/dellemc/pstcli-version/bin/. Replace /opt/dellemc/pstcli-version/bin/ with the actual installation directory if it is different.

Save the file and reload the shell configuration by running source ~/.bashrc or source ~/.bash_profile, or simply close and reopen the terminal.

Verify that pstcli can be found by running echo $PATH and ensuring the directory is listed.

Try running the pstcli command again to confirm that the issue is resolved.

By adding the PSTCLI installation directory to the PATH variable, the shell will be able to locate the pstcli executable when the command is run1. It is important to ensure that the PATH variable is correctly set to include all necessary directories for command-line tools to function properly.If the issue persists, it may be necessary to check the installation of PSTCLI or consult the Dell EMC PowerStore documentation for further troubleshooting steps1.

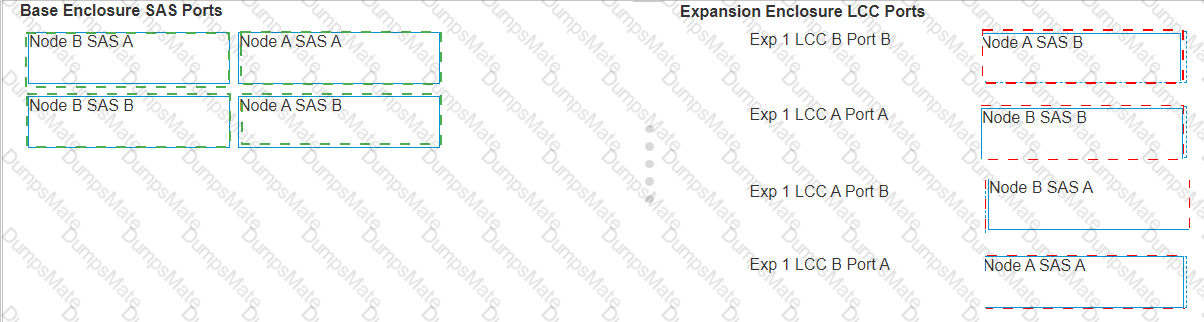

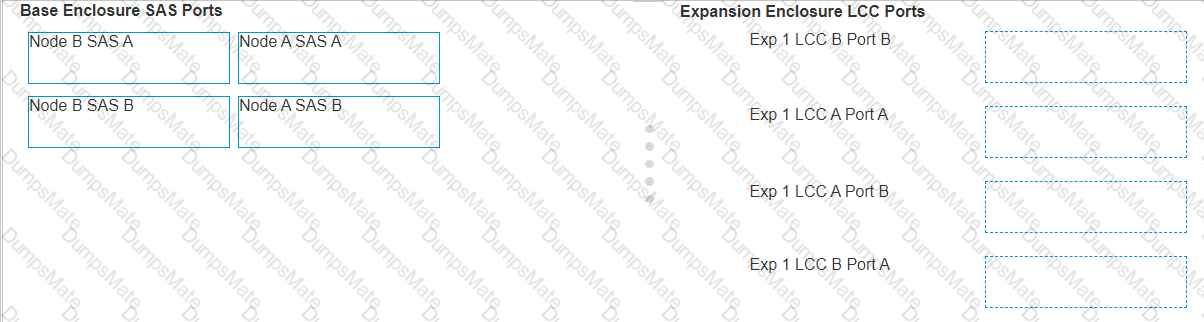

To match the base enclosure SAS ports in column A to their correspondingexpansion enclosure LCC ports in column B for a Dell PowerStore base enclosure connected to a single expansion enclosure, the correct configuration is:

Node B SAS A to Exp 1 LCC A Port B

Node A SAS A to Exp 1 LCC B Port A

Node B SAS B to Exp 1 LCC A Port A

Node A SAS B to Exp 1 LCC B Port B

Step by Step Comprehensive Detailed Explanation with References

Identify the SAS ports on the base enclosure and the LCC ports on the expansion enclosure.

Match the ports according to the configuration provided above.

Connect the cables between the corresponding SAS and LCC ports.

Secure the connections to ensure there is no loose cabling.

Verify the configuration using the PowerStore Manager to ensure all connections are recognized and functioning properly.

For detailed instructions, diagrams, and best practices, refer to the Dell PowerStore Installation and Service Guide1, as well as the Dell EMC PowerStore Quick Start Guide2. These documents provide essential information on the proper setup and maintenance of the storage system, ensuring optimal performance and reliability.

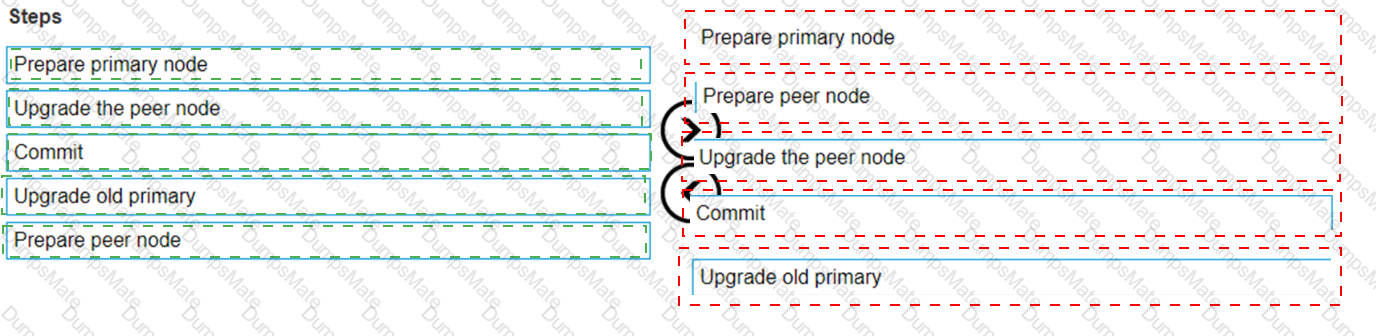

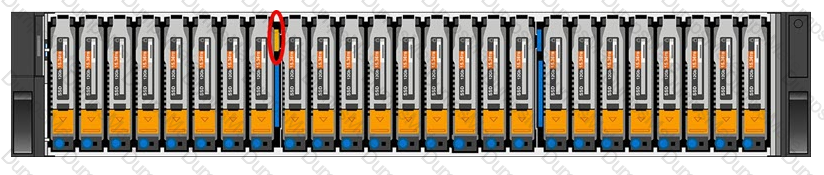

The illuminated amber LED on an expansion enclosure typically indicates a fault. In the context of Dell PowerStore expansion enclosures, an amber light can signify various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

When troubleshooting, the following steps are generally taken:

Identify the specific LED that is illuminated amber using the hardware documentation.

Consult the Dell PowerStore Hardware Guide to determine the exact nature of the fault indicated by the amber LED.

Follow the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If the issue persists, contact Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.

A data collection in Dell EMC PowerStore Manager can be initiated from the cluster, appliance, and alerts sections within the PowerStore Manager user interface. This process is essential for gathering system logs and other information that can be used for troubleshooting or analysis.

To initiate a data collection, follow these steps:

Log into the PowerStore Manager user interface.

Navigate to the ‘Settings’ menu.

Go to the ‘Support’ section.

Select ‘Gather Support Materials’.

Choose the scope of the data collection, which can be at the cluster level, for a specific appliance, or related to certain alerts.

Click the ‘Gather Support Materials’ button to start the collection process.

Monitor the progress in the ‘Jobs’ section of PowerStore Manager or within the ‘Support Materials’ section1.

It is important to note that the data collection process may take some time to complete, depending on the amount of data and the system’s performance.Once the data collection is finished, the gathered materials can be used by Dell EMC support for further analysis or can be reviewed by the storage administrator to address any issues1.For more detailed instructions on data collection, refer to the Dell EMC PowerStore documentation or the support knowledge base articles provided by Dell23. Following these guidelines ensures that the data is collected correctly and efficiently.

The output of the command “svc_diag list – basic” on a Dell PowerStore system typically showsservice taginformation.

The “svc_diag” command is part of the service scripts provided by Dell for diagnostic purposes on PowerStore systems.

The “list” option with the “–basic” flag is used to display a list of basic system information, which usually includes the service tag, among other details.

The service tag is a unique identifier for Dell products that is used for various purposes, including support and maintenance.

While the exact output of the command can vary based on the software version and specific system configuration, the service tag is a common piece of information displayed by such diagnostic commands1.

For the most accurate and up-to-date information about the “svc_diag list – basic” command and its output, it is recommended to consult the Dell PowerStore Service Scripts Guide or contact Dell Support directly.

The Dell EMC PowerStore base enclosure contains two nodes.These nodes are configured in an Active-Standby mode to ensure high availability and load balancing1. Each node is 1U in size and stacks vertically within the base enclosure, with the top node inverted to fit within the compact design.This configuration allows for one node to be actively handling workloads while the other stands by ready to take over in case of a failure or maintenance event, ensuring continuous operation and data accessibility1.

For more detailed information on the node configuration within the PowerStore base enclosure, administrators can refer to the Dell PowerStore Introduction to the Platform documentation, which provides insights into the system’s architecture and design considerations1. It is important to understand the node roles and configurations to effectively manage and maintain the PowerStore system.

A screenshot of a computer Description automatically generated

The maximum number of base enclosures in a cluster for a Dell EMC PowerStore T installation is4.

When planning the installation of a Dell EMC PowerStore T cluster, it is important to consider the scalability of the system.

The PowerStore T series allows for clustering of multiple appliances to increase capacity and performance.

According to the Dell PowerStore: Clustering and High Availability document, there is a minimum of one PowerStore appliance and a maximum of four PowerStore appliances that can be configured in the cluster1.

This means that for a PowerStore T installation, you can start with a single appliance and scale up to a total of four appliances in a cluster as needed1.

For detailed information on clustering and high availability features of the Dell EMC PowerStore T series, you can refer to the official Dell documentation1.

The correct procedure for a Storage Administrator to add a new PowerStore 9000T appliance into an existing single appliance Dell EMC PowerStore 3000T cluster is toadd the new 9000T appliance into the cluster per the procedure; mixed models of the same type are supported.

Dell PowerStore allows for the addition of appliances to an existing cluster, enabling both scaling up and scaling out.

When adding a new appliance to an existing cluster, it is important to ensure that the appliance is uninitialized and that both the new appliance and the existing cluster are in a healthy state1.

The process of adding an appliance is facilitated through the PowerStore Manager.The administrator should navigate to theHardwarepage and click theAddbutton to present the available unconfigured appliances that can be added1.

It is not necessary to configure additional VLT links on the ToR switching specifically for the 9000T to support the increased inter-switch network load as part of the initial addition process1.

There is no requirement that the appliance model and type must match when clustering appliances together, allowing for mixed models of the same type within a cluster1.

Removing NVMe NVRAM drives from the 9000T is not a standard procedure for clustering and is not required for the caching configuration of all clustered appliances to match1.

For detailed procedures on adding appliances to a Dell EMC PowerStore cluster, it is recommended to refer to the official Dell PowerStore Clustering and High Availability documentation or contact Dell EMC support for guidance.

When the link LED of the node A embedded module management Ethernet port is off, it indicates that there is no network connection established. The link LED is typically used to indicate the presence of a network connection and its status.If the LED is off, it means that the Ethernet port is not currently connected to a network or there is an issue preventing the connection from being established1.

In the case of the Dell EMC PowerStore T system, the embedded module management Ethernet ports are used for network management traffic. It is essential that these ports have an activenetwork connection for the system to be managed remotely. If the link LED is off, the following steps should be taken:

Check the physical connection of the Ethernet cable to ensure it is securely plugged into both the node’s port and the corresponding switch or router port.

Verify that the switch or router is powered on and functioning correctly.

Ensure that the correct port on the switch or router is being used and that it is configured correctly for the PowerStore system.

If the issue persists after checking the physical connections and switch/router configuration, consult the Dell EMC PowerStore T Installation and Service Manual for further troubleshooting steps2.

It is important to resolve any network connection issues promptly to maintain the manageability and accessibility of the PowerStore system. Following the official Dell documentation and support resources will help ensure that the system is installed and configured correctly for optimal performance and reliability.

In Dell PowerStore systems, IPsec is used to encrypt traffic for the management network. IPsec (Internet Protocol Security) is a suite of protocols designed to ensure the integrity, confidentiality, and authentication of data communications over an IP network.Encrypting the management network traffic with IPsec is a best practice to secure communication between the management console and the storage system, protecting against potential eavesdropping and unauthorized access1.

The management network is responsible for the overall administration and operation of the storage system, including configuration management, performance monitoring, and system updates. By encrypting this traffic, Dell PowerStore ensures that sensitive management operations are secured.

For detailed information on configuring IPsec for the management network and other best practices for network security within Dell PowerStore environments, users should refer to the official Dell PowerStore documentation, such as the Deployment KB: PowerStore: User Network Firewall Rules Tool and the Dell PowerStore Best Practices Guide12. These documents provide comprehensive guidelines on network configurations, including firewall rules and encryption settings, to maintain the highest levels of security and system integrity.

To connect a service laptop to the Service LAN port of a Dell EMC PowerStore node, the laptop’s Ethernet interface should be configured with a static IP address and netmask. The correct configuration is:

IP:128.221.1.249

Netmask:255.255.255.0

Gateway: None1

This configuration allows the service laptop to communicate with the PowerStore nodes for SSH and PowerStore Manager (UI) access. It’s important to note that the laptop can be physically connected to one of the PowerStore nodes at a time, or to both nodes’ Service LAN ports using a small switch or hub.However, multiple appliances should never be connected to the same hub or switch as the nodes use the same internal IPs1.

Once the IP is configured as shown above and the physical connection is established, you can ping the relevant IPs:

Node A: 128.221.1.250

Node B: 128.221.1.251

You should only be able to ping the IPs where you are physically connected to. If you can ping, you can proceed to use SSH to connect to the IPs over port 22 using your preferred SSH client.For file transfers, SCP protocol must be used1.

For more detailed instructions on how to connect to the system over the Service LAN Ports for SSH and PowerStore Manager access, refer to the Dell Support Knowledge Base Article1.

The command svc_journalctl -f -g "st_io_monitor" is used within the Dell PowerStore environment to retrieve log messages that are associated with the specified error, in this case, “st_io_monitor”, and to monitor for their re-occurrence. The -f flag is typically used to follow thelog, meaning it will continue to output new log messages as they are appended to the journal.The -g flag is used to filter the log output based on a specific pattern1.

This command is part of the suite of service scripts provided by Dell for system maintenance and troubleshooting.It enables service technicians and system administrators to view log messages from the system journal in a consistent and easy-to-read format, which is crucial for diagnosing and resolving issues1.

For more detailed information on using this command and understanding the system journal logs, users should refer to the Dell PowerStore Service Scripts Guide or contact Dell Support for technical assistance1. It’s important to use these commands as per the guidelines provided in the official documentation to ensure proper system maintenance and to avoid any unintended consequences.
