Understanding iDRAC Direct and Connection Methods

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

iDRAC Direct Overview

iDRAC Direct provides a direct connection to the Integrated Dell Remote Access Controller (iDRAC) using a USB interface.

Purpose: Allows administrators to perform management tasks locally without needing network access.

Features Accessed via iDRAC Direct:

RACADM: Remote Access Controller Admin CLI tool for managing iDRAC settings.

WS-Man: Web Services Management protocol for remote management.

Connection Interface

Physical Connection: Requires a USB cable connected between the administrator's laptop and the server's iDRAC Direct port.

Type of USB Port Used: Dell PowerEdge servers typically use a Micro USB port for iDRAC Direct connections.

Explanation of Options

Option A: USB-C

Explanation: USB-C is a newer USB standard with a reversible connector. As of the knowledge cutoff in 2023, Dell servers primarily use Micro USB for iDRAC Direct, not USB-C.

Conclusion: Incorrect.

Option B: Micro USB

Correct Answer: The iDRAC Direct port uses a Micro USB interface.

Option C: Mini USB

Explanation: Mini USB is an older standard, larger than Micro USB, and not commonly used in modern servers for management interfaces.

Conclusion: Incorrect.

Option D: USB-A

Explanation: USB-A refers to the standard rectangular USB port found on most computers. The server's iDRAC Direct port does not use USB-A.

Conclusion: Incorrect.

Dell Operate References

Server Management and Configuration Tools (14%)

Highlights the importance of understanding connection methods to iDRAC.

Define the function of the iDRAC, login procedures, licensing, and connection methods: Emphasizes knowledge of physical interfaces used for management.

Conclusion

To use iDRAC Direct features like RACADM and WS-Man, the system administrator needs to connect via the Micro USB port on the server.

Selecting the Appropriate Recovery Tool

Server Management and Configuration Tools (14%)

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

Scenario Analysis

Constraints:

Non-secure location: Security of the connection is a concern.

High latency connection: Requires a tool that operates efficiently over slow networks.

Objective: Recover a PowerEdge server using an existing server profile.

Option Evaluations

Option A: iDRAC

Analysis: While iDRAC provides remote management, accessing it via a web interface may be slow and less secure in high latency and non-secure environments.

Option B: Redfish

Analysis: Redfish uses HTTPS, which is secure but may not perform well over high latency connections and requires more overhead.

Option C: IPMI

Analysis: IPMI lacks robust security features and is not recommended in non-secure locations.

Option D: RACADM

Correct Answer

Advantages:

Secure: Can use SSH for secure command-line access.

Efficient: Command-line interface minimizes bandwidth usage, suitable for high latency.

Powerful: Allows full management of the server, including applying existing server profiles.

Scriptable: Enables automation and faster recovery processes.

Understanding RACADM

RACADM (Remote Access Controller Admin):

A command-line utility for managing Dell servers via iDRAC.

Supports both local and remote management.

Ideal for automated scripts and low-bandwidth situations.

Dell Operate References

Server Management and Configuration Tools (14%)

Emphasizes understanding different management tools and their appropriate use cases.

System Administration (18%)

Covers configuring and managing servers in various environments.

Conclusion

Given the need for a secure and efficient tool in a high latency and non-secure location, RACADM is the optimal choice for recovering the PowerEdge server using an existing server profile.

Understanding Granular User Privileges in iDRAC9

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management

Granular User Privileges in iDRAC9

iDRAC9 provides the ability to assign specific privileges to user accounts, allowing for fine-grained control over what actions users can perform.

Explanation of Options

Option A: Access virtual console

Explanation: Access to the virtual console is a specific privilege that can be granted or denied to individual users in iDRAC9. This allows administrators to control who can remotely access the server's console.

Conclusion: Correct Answer.

Option B: Readonly

Explanation: The Readonly privilege is a role that allows users to view settings without making changes. It is not considered a granular privilege but a predefined user role.

Conclusion: Not as granular as specific privileges.

Option C: Edit logs

Explanation: iDRAC9 does not provide a specific privilege to edit logs, as logs are critical records that should not be altered for security and auditing purposes.

Conclusion: Incorrect.

Option D: Change dashboard view

Explanation: Changing the dashboard view is a user interface preference and not typically a privilege that is controlled or assigned in iDRAC9.

Conclusion: Incorrect.

Dell Operate References

System Administration (18%)

Configure user access: Understanding how to assign and manage user privileges in iDRAC9.

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods: Emphasizes the importance of controlling access to management functions.

Conclusion

Access virtual console is a granular user privilege configurable in iDRAC9, allowing administrators to control remote console access on a per-user basis.

Troubleshooting Inability to Change BIOS Settings or Access Lifecycle Controller

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management

Server Security Features (26%)

Analyze server security features

Understanding System Lockdown Mode

System Lockdown Mode is a security feature in Dell PowerEdge servers that prevents unauthorized configuration changes to the system.

Effects of Lockdown Mode:

Disables the ability to make changes to BIOS settings.

Restricts access to the Lifecycle Controller.

Ensures system configurations remain consistent and secure.

Explanation of Options

Option A: System Administrator is set to the Operator role.

Explanation: The Operator role typically has permissions to view settings but cannot make changes. However, this would not prevent access to the Lifecycle Controller entirely.

Conclusion: Possible, but does not explain the inability to access the Lifecycle Controller.

Option B: System Lockdown Mode is enabled.

Explanation: Enabling System Lockdown Mode restricts configuration changes and access to management utilities like the Lifecycle Controller.

Conclusion: Correct Answer.

Option C: Group Manager is enabled without a primary server.

Explanation: Group Manager is an iDRAC feature for managing multiple servers. While misconfigurations here can cause issues, it would not typically prevent BIOS changes or access to the Lifecycle Controller.

Conclusion: Less likely.

Option D: The iDRAC ISM is installed and disabled.

Explanation: The iDRAC Service Module (iSM) provides additional management capabilities but does not affect BIOS settings or Lifecycle Controller access when disabled.

Conclusion: Incorrect.

Dell Operate References

System Administration (18%):

Configure user access, lockdown mode, and group management: Understanding how System Lockdown Mode impacts system administration tasks.

Server Security Features (26%):

Analyze server security features: Recognizing the role of security features like Lockdown Mode in restricting system changes.

Conclusion

The inability to make configuration changes in the BIOS settings or access the Lifecycle Controller is due to System Lockdown Mode being enabled. Disabling Lockdown Mode will restore the ability to make changes.

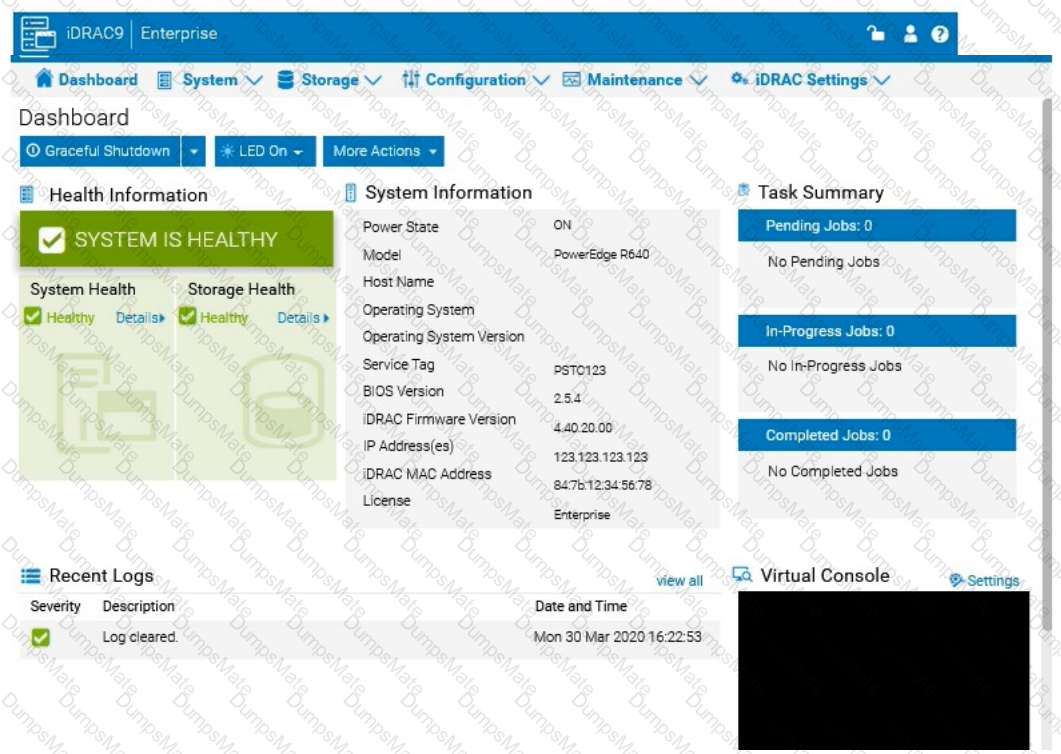

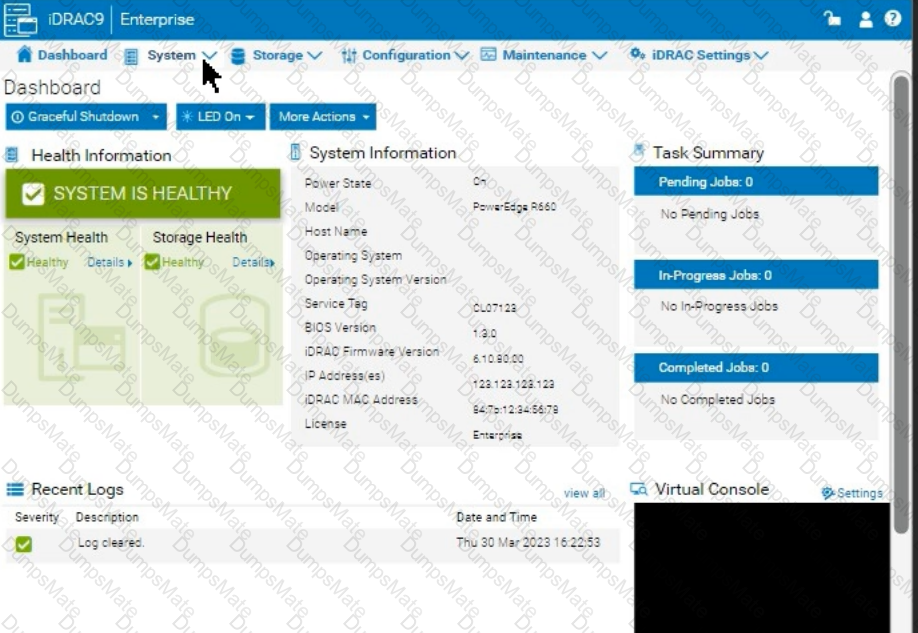

 Launch the Simulator:

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

 Navigate to System Information:

In the top menu bar, select the "Configuration" tab.

From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

 Check the H965i Storage Controller:

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration.

Change the NIC Selection to Shared. This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared, additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port. This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

To prevent unwanted configuration changes in the iDRAC UI, you can adjust user roles, permissions, or enable specific security settings to restrict access for junior IT staff. Here are the steps to secure the iDRAC configuration:

Step-by-Step Guide:

Access User Settings:

In the iDRAC interface, navigate to iDRAC Settings from the main menu.

Choose User Authentication or Users to manage user accounts and permissions.

Adjust User Roles and Permissions:

Identify the accounts associated with junior IT staff.

For each user account, adjust the role to Read-Only if you want them to have view-only access without making configuration changes.

Alternatively, set their permissions to exclude configuration changes. This may involve assigning a custom role with limited access based on your needs.

Enable Configuration Lock (if available):

Some versions of iDRAC offer a Configuration Lock feature, which prevents any configuration changes until the lock is removed by an administrator.

Navigate to Configuration > System Security or User Authentication, depending on the version, and enable the Configuration Lock option.

Set Up Two-Factor Authentication (Optional):

For added security, enable Two-Factor Authentication under iDRAC Settings > Network or Security settings. This step ensures only authorized users can access and make changes to the iDRAC UI.

Save and Apply Security Changes:

After setting up the desired restrictions and permissions, save the settings to apply the changes.

Verify that junior IT staff accounts now have restricted access and cannot make configuration changes.

Log Out and Test the Changes:

Log out of the administrator account and log in with a junior IT staff account to confirm that the permissions are set correctly.

Ensure that configuration changes are disabled and that the user can only view the iDRAC interface as per the restrictions.

By following these steps, you can restrict junior IT staff from making any configuration changes within the iDRAC interface, thus preventing accidental or unauthorized modifications.

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture.

Enable Verbose Mode or Capture Full POST Sequence. This setting ensures that the entire POST process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs, enable it to ensure detailed logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save.

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot. Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can then be reviewed to identify any hardware or configuration issues preventing the server from booting successfully.

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed: Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.
