D-PDD-DY-23 Dell PowerProtect DD Deploy 2023 Questions and Answers

To resolve the issue and set up the cleaning schedule and manual cleaning on your PowerProtect DD system, follow these steps based on the information provided:

Access the Cleaning Schedule Settings:

Go to File System Settings.

Navigate to the Cleaning tab.

2. Set the Cleaning Schedule:

Frequency: Choose Weekly.

At: Set the cleaning to start every Tuesday at 6:00 AM.

Throttle: Set the throttle to 50% for scheduled cleaning.

3. Manually Start Cleaning:

After setting the schedule, initiate the cleaning manually from the File System settings.

Set the manual cleaning throttle to 30% to ensure system resources are not overused during the process.

RADIUS is commonly supported in PowerProtect DD for external authentication, allowing integration with centralized authentication systems for user management and access control.

To configure a user account for Retention Lock Compliance Edition with specific role and password policies on a PowerProtect DD system, follow these steps:

Step 1: Access the User Management Section

In the DD System Manager interface, go to Administration or Users (exact location may vary).

Look for an option to manage user accounts.

Step 2: Create or Verify the Account

If the account asterix1 already exists:

Select the user and edit the properties.

If the account does not exist:

Click on Add User or Create New User.

Enter the Username as asterix1.

Set the Password as password2.

Step 3: Assign the Compliance Role

Ensure that asterix1 is assigned the correct role, which is usually Security Officer or a similar role necessary for Retention Lock Compliance.

This role allows the user to manage and enforce compliance-related settings on the system.

Step 4: Set Password Expiration Policy

Configure the Password Aging Policy:

Set Password Expiration or Maximum Days to 180 days.

Ensure Minimum Days and Warning Days are set as needed or required by the compliance policy.

Step 5: Save and Verify

Save the changes and verify that the account asterix1 is now listed with the appropriate role and password settings.

This configuration ensures that the asterix1 account is in place with the correct permissions and that the password is set to expire after 180 days. Let me know if you need more assistance!

To schedule space reclamation on a PowerProtect DD system as specified, here’s the general procedure to follow in the DD System Manager:

Log into DD System Manager: Access the management interface for your PowerProtect DD system.

Navigate to Data Management: In the sidebar, look for an option labeled Data Management or similar (may vary slightly depending on the exact DD OS version).

Select Space Reclamation: Within Data Management, find and select Space Reclamation settings.

Set Schedule:

Click on Schedule and choose to add a new schedule if not already present.

Set the Day to Monday.

Set the Time to 4:00 AM.

Configure Resource Limit:

Look for an option to limit the resource usage for the reclamation task.

Set the Maximum System Resource Usage (or a similarly named option) to 25% to avoid impacting the system performance excessively.

Save the Schedule: Confirm and save your settings.

Verify the Schedule: Check that the schedule appears correctly in the list, indicating it will run every Monday at 4:00 AM with the specified resource usage limit.

After completing these steps, the PowerProtect DD system should reclaim space as scheduled without exceeding 25% resource usage, minimizing its impact on other system operations.

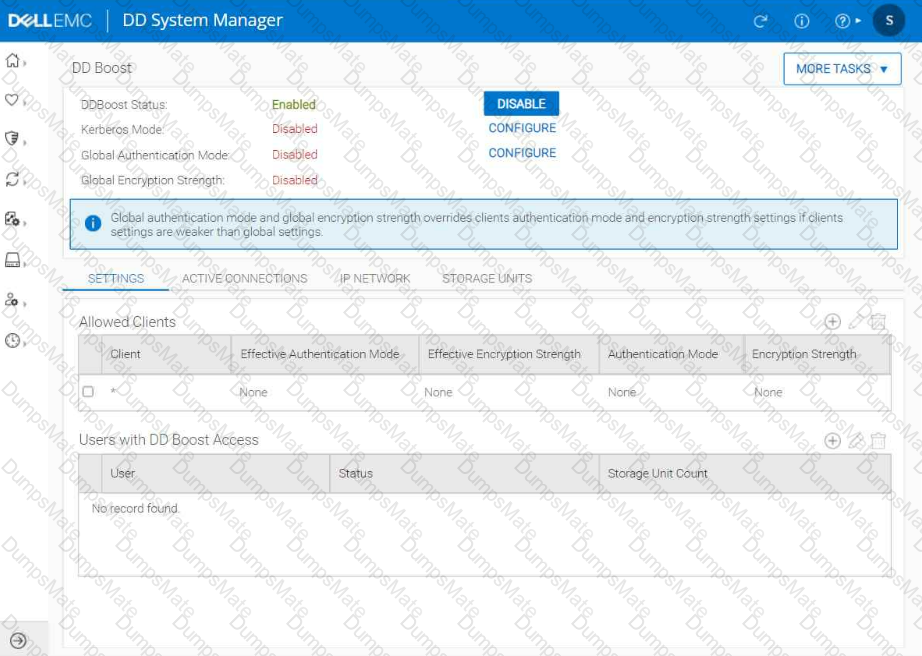

To configure DD Boost, enable it, create a new user, and set up a storage unit in the DD System Manager, follow these steps:

Enable DD Boost:

In the Protocols section on the left sidebar, locate DD Boost and click on it.

Inside the DD Boost settings, find the option to enable DD Boost if it's currently disabled.

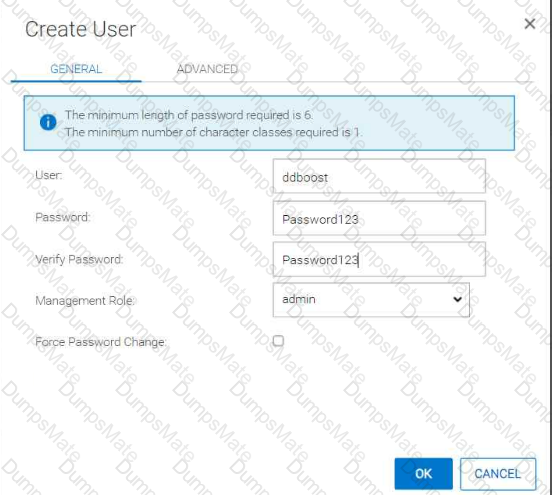

Create a New User:

Go to Administration or Users (location varies based on version).

Select Add User or New User.

Set the username as ddboost and the password as Password123.

Assign the appropriate permissions, typically Admin or Read/Write access, based on best practice recommendations for DD Boost users.

Create a Storage Unit:

Return to the DD Boost section.

Look for an option labeled Storage Units or similar, and choose Add Storage Unit.

Name the storage unit SU1.

Ensure that the newly created ddboost user has access to this storage unit.

Save and Confirm:

After configuring, save all settings and confirm the changes.

Verify that DD Boost is enabled, the user ddboost exists with the specified permissions, and the storage unit SU1 is created and accessible by this user.

This completes the setup for DD Boost with a new user and storage unit on PowerProtect DD. Let me know if you need more assistance with any of these steps.

A screenshot of a computer Description automatically generated

A screenshot of a login form Description automatically generated

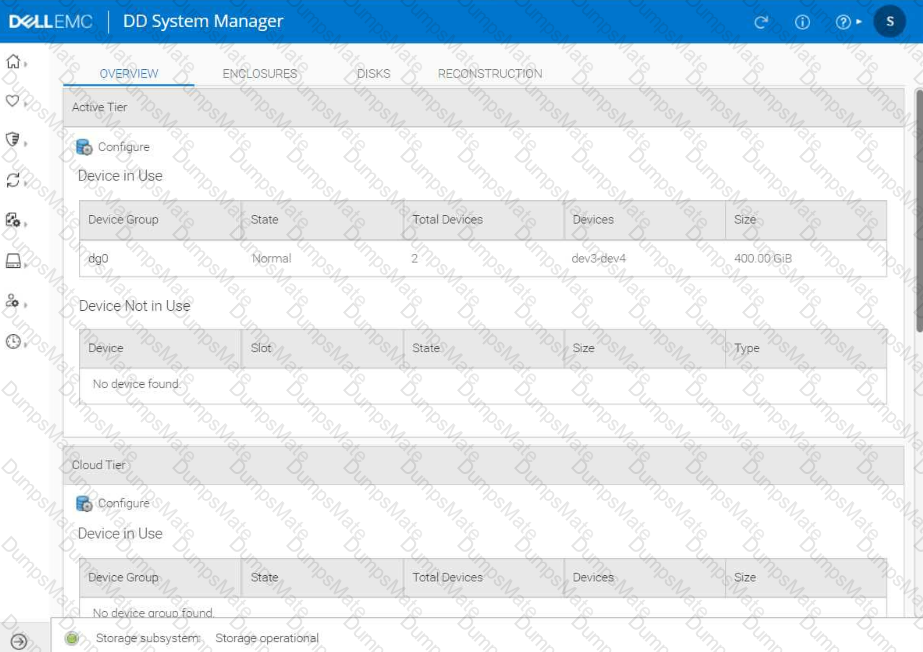

To flash an LED on a hard drive and bring a disk back online using the DD System Manager or DDOS CLI, follow these general steps:

Step 1: Identify the Disk

In DD System Manager:

Go to the Hardware section in the sidebar.

Locate the list of disks, and find Disk 1.5 (the offline disk).

In DDOS CLI (if using CLI):

Use the command to list disks and confirm the status of Disk 1.5.

Command example: disk show state or disk show summary.

Step 2: Flash the LED on the Disk

In DD System Manager:

In the Hardware section, select Disk 1.5.

Look for an option like Flash LED or Locate Drive to help identify the physical disk.

Activate the LED flash to identify the disk physically.

In DDOS CLI:

Use the command: disk locate 1.5 to flash the LED for Disk 1.5.

Step 3: Bring the Disk Back Online

In DD System Manager:

After identifying the disk, check for options to Bring Online or Reactivate Disk 1.5.

Select the option to return the disk to operation.

In DDOS CLI:

Use the command: disk unfail 1.5 to bring the disk back online.

Step 4: Verify the Disk Status

Confirm in DD System Manager or by using the disk show state command in CLI that Disk 1.5 is now online and functioning.

After completing these steps, the LED should flash to help locate the disk physically, and then Disk 1.5 will be returned to an operational state. Let me know if you need further guidance!

A screenshot of a computer Description automatically generated

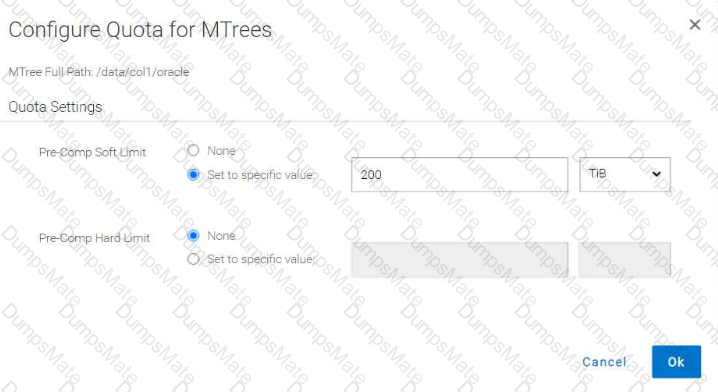

To configure a new MTree with a specified path and size limit in PowerProtect DD, follow these steps:

Step 1: Access the MTree Management Section

In the DD System Manager interface, locate Data Management in the sidebar.

Select MTree from the dropdown menu to manage MTrees.

Step 2: Create a New MTree

Click on Create MTree or Add MTree (the exact button label may vary).

Set the Path for the MTree as /data/col1/oracle.

Step 3: Set the MTree Size Limit

In the MTree creation dialog, look for an option to set a Quota or Size Limit for the MTree.

Set the Size Limit to 200 TiB to ensure the MTree does not exceed this capacity.

Step 4: Save the Configuration

Confirm and save your settings to create the MTree with the specified path and size restriction.

After these steps, you should have a new MTree at /data/col1/oracle with a maximum allowed size of 200 TiB. Let me know if further assistance is required!

A screenshot of a computer Description automatically generated

If backups are failing when using a dynamic interface group, one of the likely causes is that DD Boost is disabled. Since DD Boost is essential for optimized data transfer during backups, its disabled status would lead to backup failures even if other configurations appear correct.

If you need to verify this in the simulator:

Go to the Protocols section.

Check the status of DD Boost.

Ensure that DD Boost is enabled to allow backups to proceed successfully.

The Global-Compression Factor quantifies how effectively the compression algorithms are reducing the size of the data stored on the system. It reflects the overall impact of compression on data size, helping administrators understand the efficiency of the compression techniques being applied.

Virtual Synthetic Backups are an efficient method for consolidating full and incremental backups without moving large amounts of data. This method is particularly useful when restores are frequent because it reduces the time and resources required to create new full backups. Instead, it synthesizes a full backup from previous full and incremental backups, making the restore process faster and more efficient. This helps to optimize performance and minimize the strain on the backup system during frequent restores.

Explanation: The gzfast compression algorithm is the default for PowerProtect DD3300, balancing compression efficiency and performance. It ensures data is compressed without compromising backup or restore speeds.

The iDRAC (Integrated Dell Remote Access Controller) for PowerProtect DD appliances is typically set to this default IP address, allowing administrators to access the management interface for remote management and monitoring. This IP address can be changed as needed to fit the network configuration.

In the DS60 storage shelf, slots are organized into columns and rows for easy identification. The columns are numbered from 0 to 9, indicating 10 slots in total, while the rows are labeled from A to F, indicating 6 rows. This identification scheme helps administrators manage and organize the physical components of the storage system effectively.

The correct order for configuring Retention Lock Compliance on a PowerProtect DD system is as follows:

Configure the system to use DD Retention Lock Compliance

Enable DD Retention Lock Compliance on the system

Enable the security officer authorization

Add one or more security officer users

Create iDRAC users

To set up Retention Lock Compliance on a PowerProtect DD system, each step must be followed carefully to ensure compliance and security. Here’s a breakdown of each step:

Configure the System to Use DD Retention Lock Compliance: Start by configuring the system settings to enable Retention Lock Compliance. This step establishes the system's capability to enforce data retention policies and ensure that data is protected according to regulatory requirements.

Enable DD Retention Lock Compliance on the System: Once the system is configured, activate the Retention Lock Compliance feature on the DD appliance. This step enforces write-once, read-many (WORM) compliance, ensuring that data cannot be altered or deleted during the retention period.

Enable Security Officer Authorization: Security officers play a critical role in managing and monitoring Retention Lock Compliance. Enabling security officer authorization provides an additional layer of control, where only authorized personnel can perform sensitive tasks related to compliance settings.

Add One or More Security Officer Users: Designate users as security officers who have the authority to manage retention policies and handle compliance-related tasks on the system. This setup helps in managing roles and access control effectively.

Create iDRAC Users: Finally, create iDRAC (Integrated Dell Remote Access Controller) users if needed. iDRAC users can help manage the system remotely, especially in larger environments where remote management of compliance settings is beneficial.

This ordered process ensures that Retention Lock Compliance is correctly configured, aligning with regulatory requirements for data protection and management.

Explanation: The FS25 expansion shelf must be cabled on a separate private chain to avoid performance degradation and potential conflicts with other shelf types. This cabling rule ensures optimal data flow and stability within the PowerProtect DD system.

Explanation: Data Segment Processing (DSP) on PowerProtect DD offloads deduplication functions to the backup host, where segmenting, fingerprinting, and sending only unique data references improve backup efficiency and reduce storage footprint. When Distributed Segment Processing (DSP) is enabled on a PowerProtect DD appliance, key functions such as segmenting, fingerprinting, and sending the fingerprints are performed on the backup host. DSP offloads some processing tasks to the backup host, allowing the appliance to focus on storage efficiency and performance. Here’s how each function works with DSP:

Segmenting: The backup host divides data into smaller segments.

Fingerprinting: Each segment is hashed (fingerprinted) to identify unique data segments.

Sending the fingerprints: Only the fingerprints are sent to the DD appliance, allowing it to verify deduplication without transferring the full data. This process minimizes bandwidth and optimizes backup efficiency.

The maximum backup speed of the PowerProtect DD Virtual Edition (DDVE) when utilizing DD Boost is 4.2TB per hour. DD Boost is a feature that enhances the speed and efficiency of data transfers between the backup application and the Data Domain appliance by performing deduplication operations closer to the source, thus reducing network traffic and improving throughput. DDVE’s performance capabilities are optimized for virtualized environments, and the 4.2TB/h rate represents the upper limit under ideal conditions, maximizing data protection performance in virtual setups.

Explanation: A small TCP window size can restrict data throughput, leading to suboptimal performance in CIFS-based file transfers. Adjusting the TCP window size can help maximize network bandwidth utilization and improve transfer speeds.

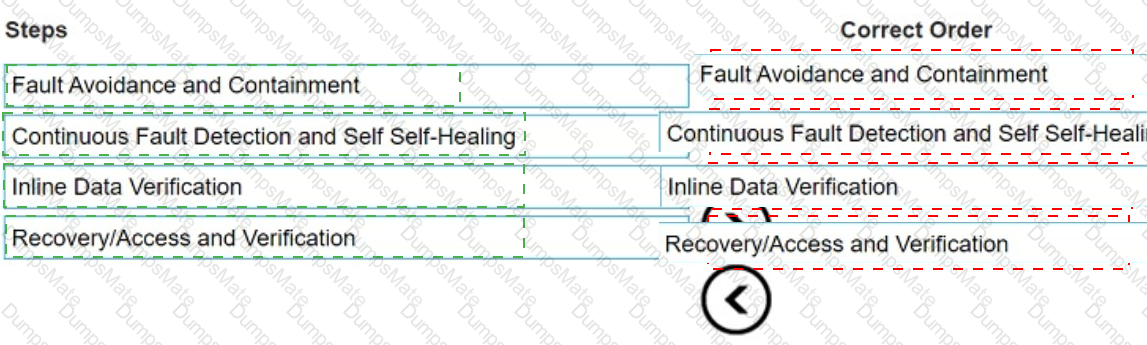

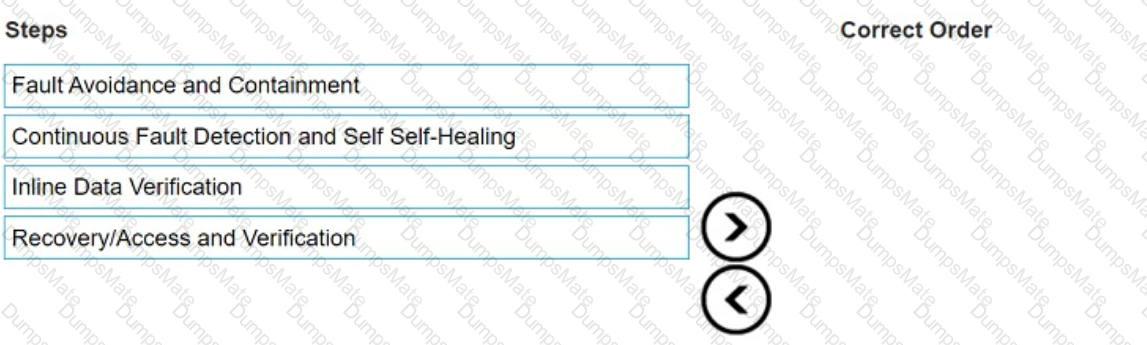

The correct order of operations for the Data Invulnerability Architecture (DIA) elements is as follows:

Fault Avoidance and Containment

Continuous Fault Detection and Self-Healing

Inline Data Verification

Recovery/Access and Verification

The Data Invulnerability Architecture (DIA) in Dell PowerProtect DD systems is designed to ensure data integrity and resiliency throughout the data storage process. Here’s how each element plays a role in this ordered sequence:

Fault Avoidance and Containment: This is the first layer of protection. DIA focuses on preventing faults before they occur and containing any potential issues, ensuring that faults do not propagate within the system. This stage is critical as it forms the foundational protection layer.

Continuous Fault Detection and Self-Healing: After implementing containment, the system continuously monitors for faults. It actively identifies and mitigates issues through self-healing mechanisms, addressing any detected errors autonomously to maintain data integrity.

Inline Data Verification: As data is written to storage, the inline data verification checks data integrity on the fly. This step ensures that any corruption or errors in data are detected immediately, enabling early intervention before data is permanently stored.

Recovery/Access and Verification: The final step ensures that, during data recovery, the integrity of the data is verified before it is accessed or restored. This stage completes the DIA cycle by confirming that data retrieved from storage is accurate and intact.

This ordered approach in DIA is designed to provide robust protection against data loss or corruption, making Dell PowerProtect DD appliances highly reliable for data protection needs.

Explanation: By enabling Smart Scale services from DDMC, the Smart Scale architecture pools together a set of DD series appliances into a group under the data center in which they are coordinated with each other for space balancing. Smart Scale supports up to 32 systems in a system pool and four system pools in a data center.

Explanation: Expiring snapshots and initiating file system cleaning are effective ways to free up space on a full PowerProtect DD system. These actions help reclaim storage by removing old, unneeded data without impacting active backups. When a PowerProtect DD system is full and no further data can be written or deleted, the following actions can be taken to free up space:

Expire Existing Snapshots: This process involves removing old or expired snapshots that are no longer needed, which helps in reclaiming space within the system.

Start File System Cleaning: File system cleaning is a maintenance operation that reclaims unused space by consolidating and removing data that is no longer needed, such as expired or deleted data segments. This process is essential in freeing up capacity when the system is near or at full utilization.

These steps allow administrators to make space available on the system without immediately adding new storage or altering the configuration.

This command shows a list of all the support bundle files that have been created, allowing administrators to view and manage them.
