C1000-130 IBM Cloud Pak for Integration V2021.2 Administration Questions and Answers

In IBM Cloud Pak Foundational Services, the License Service is responsible for collecting, tracking, and reporting license usage data. It ensures compliance by monitoring the consumption of IBM Cloud Pak licenses across the environment.

The License Service refreshes its data every 5 minutes to keep the license usage information up to date.

This frequent update cycle helps organizations maintain accurate tracking of their entitlements and avoid non-compliance issues.

A. 1 hour (Incorrect)

The License Service updates its records more frequently than every hour to provide timely insights.

B. 30 seconds (Incorrect)

A refresh interval of 30 seconds would be too frequent for license tracking, leading to unnecessary overhead.

C. 5 minutes (Correct)

The IBM License Service refreshes its data every 5 minutes, ensuring real-time tracking without excessive system load.

D. 30 minutes (Incorrect)

A 30-minute refresh would delay the reporting of license usage, which is not the actual behavior of the License Service.

Analysis of the Options:

IBM License Service Overview

IBM Cloud Pak License Service Data Collection Interval

IBM Cloud Pak Compliance and License Reporting

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM App Connect, when integrating flows across a hybrid environment (a combination of cloud and on-premises systems), an Integration Agent is required to enable callable flows.

Callable flows allow one integration flow to invoke another flow that may be running in a different environment (on-premises or cloud).

The Integration Agent acts as a bridge between IBM App Connect Designer (cloud-based) or App Connect Dashboard and the on-premises resources.

It ensures secure and reliable communication between different environments.

Option A (Incorrect – Switch server): No such component is needed in App Connect for hybrid integrations.

Option B (Incorrect – Mapping assist): This is used for transformation support but does not enable cross-environment callable flows.

Option C (Correct – Integration agent): The Integration Agent is specifically designed to support callable flows across hybrid environments.

Option D (Incorrect – Kafka): While Kafka is useful for event-driven architectures, it is not required for invoking callable flows between App Connect instances.

Why is the Integration Agent needed?Analysis of the Options:IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM App Connect Hybrid Integration Guide

Using Integration Agents for Callable Flows

IBM Cloud Pak for Integration Documentation

During the installation of IBM Cloud Pak for Integration (CP4I), an initial admin password is automatically generated and securely stored in a Kubernetes secret called platform-auth-idp-credentials.

This secret is located in the ibm-common-services namespace, which is a central namespace used by IBM Cloud Pak Foundational Services to manage authentication, identity providers, and security.

The stored credentials are required for initial login to the IBM Cloud Pak platform and can be retrieved using OpenShift CLI (oc).

Retrieving the Initial Admin Password:To view the stored credentials, administrators can run the following command:

sh

Copy

oc get secret platform-auth-idp-credentials -n ibm-common-services -o jsonpath='{.data.admin_password}' | base64 --decode

This will decode and display the initial admin password.

A. platform-auth-idp-credentials in the IAM service installation folder (Incorrect)

The IAM (Identity and Access Management) service does store authentication-related configurations, but the admin password is specifically stored in a Kubernetes secret, not in a local file.

C. platform-auth-idp-credentials in the /sbin folder (Incorrect)

The /sbin folder is a system directory on Linux-based OSes, and IBM Cloud Pak for Integration does not store authentication credentials there.

D. platform-auth-idp-credentials in the master-node root folder (Incorrect)

IBM Cloud Pak stores authentication credentials securely within Kubernetes secrets, not directly in the root folder of the master node.

Analysis of Incorrect Options:

IBM Cloud Pak for Integration - Retrieving Admin Credentials

IBM Cloud Pak Foundational Services - Managing Secrets

Red Hat OpenShift - Managing Kubernetes Secrets

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

Uninstalling IBM Cloud Pak for Integration (CP4I) v2021.2 requires removing the operators, instances, and related resources from the OpenShift cluster. One method to achieve this is through the OpenShift console, which provides a graphical interface for managing operators and deployments.

The OpenShift Web Console allows administrators to:

Navigate to Operators → Installed Operators and remove CP4I-related operators.

Delete all associated custom resources (CRs) and namespaces where CP4I was deployed.

Ensure that all PVCs (Persistent Volume Claims) and secrets associated with CP4I are also deleted.

This is an officially supported method for uninstalling CP4I in OpenShift environments.

Why Option D (OpenShift Console) is Correct:

A. Uninstall.sh → ❌ Incorrect

There is no official Uninstall.sh script provided by IBM for CP4I removal.

IBM’s documentation recommends manual removal through OpenShift.

B. Cloud Pak for Integration console → ❌ Incorrect

The CP4I console is used for managing integration components but does not provide an option to uninstall CP4I itself.

C. Operator Catalog → ❌ Incorrect

The Operator Catalog lists available operators but does not handle uninstallation.

Operators need to be manually removed via the OpenShift Console or CLI.

Explanation of Incorrect Answers:

Uninstalling IBM Cloud Pak for Integration

OpenShift Web Console - Removing Installed Operators

Best Practices for Uninstalling Cloud Pak on OpenShift

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, profiles define the resource allocation and configuration settings for deployed services. When creating a second medium-size profile, the system will allocate the resources according to the medium-size specifications, without affecting the first profile.

IBM Cloud Pak for Integration supports multiple profiles, each with its own resource allocation.

When a second medium-size profile is created, it is independently assigned the medium-size configuration without modifying the existing profiles.

This allows multiple services to run with similar resource constraints but remain separately managed.

Why Option B is Correct:

A. The first profile will be replaced by the second profile. → ❌ Incorrect

Creating a new profile does not replace an existing profile; each profile is independent.

C. The first profile will be re-configured with a medium size. → ❌ Incorrect

The first profile remains unchanged. A second profile does not modify or reconfigure an existing one.

D. The second profile will be configured with a large size. → ❌ Incorrect

The second profile will retain the specified medium size and will not be automatically upgraded to a large size.

Explanation of Incorrect Answers:

IBM Cloud Pak for Integration Sizing and Profiles

Managing Profiles in IBM Cloud Pak for Integration

OpenShift Resource Allocation for CP4I

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, which runs on Red Hat OpenShift, the component responsible for determining the placement of workloads (pods) on worker nodes is the Scheduler.

API Server (Option A): The API Server is the front-end of the OpenShift and Kubernetes control plane, handling REST API requests, authentication, and cluster state updates. However, it does not decide where workloads should be placed.

Controller Manager (Option B): The Controller Manager ensures the desired state of the system by managing controllers (e.g., ReplicationController, NodeController). It does not handle pod placement.

Etcd (Option C): Etcd is the distributed key-value store used by OpenShift and Kubernetes to store cluster state data. It plays no role in scheduling workloads.

Scheduler (Option D - Correct Answer): The Scheduler is responsible for selecting the most suitable node to run a newly created pod based on resource availability, affinity/anti-affinity rules, and other constraints.

When a new pod is created, it initially has no assigned node.

The Scheduler evaluates all worker nodes and assigns the pod to the most appropriate node, ensuring balanced resource utilization and policy compliance.

In CP4I, efficient workload placement is crucial for maintaining performance and resilience, and the Scheduler ensures that workloads are optimally distributed across the cluster.

Explanation of OpenShift Components:Why the Scheduler is Correct?IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM CP4I Documentation – Deploying on OpenShift

Red Hat OpenShift Documentation – Understanding the Scheduler

Kubernetes Documentation – Scheduler

In IBM Cloud Pak for Integration (CP4I) v2021.2, when instantiating a new capability via the Platform Navigator, distributed tracing data is not automatically available. To enable tracing and observability for a capability, it must be registered with the Operations Dashboard.

The Operations Dashboard in CP4I provides centralized observability, logging, and distributed tracing across integration components.

Capabilities such as IBM API Connect, App Connect, IBM MQ, and Event Streams need to be explicitly registered with the Operations Dashboard to collect and display tracing data.

Registration links the capability with the distributed tracing service, allowing telemetry data to be captured.

Why "Register the capability with the Operations Dashboard" is the correct answer?

Why the Other Options Are Incorrect?Option

Explanation

Correct?

A. Press the 'enable' button in the Operations Dashboard.

❌ Incorrect – There is no single 'enable' button that automatically registers capabilities. Manual registration is required.

❌

B. Add 'operationsDashboard: true' to the deployment YAML.

❌ Incorrect – This setting alone does not enable distributed tracing. The capability still needs to be registered with the Operations Dashboard.

❌

C. Run the oc register command against the capability.

❌ Incorrect – There is no oc register command in OpenShift or CP4I for registering capabilities with the Operations Dashboard.

❌

Final Answer:✅ D. Register the capability with the Operations Dashboard

IBM Cloud Pak for Integration - Operations Dashboard

Enabling Distributed Tracing in IBM CP4I

IBM CP4I - Observability and Monitoring

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

Single Sign-On (SSO) is an authentication mechanism that allows users to log in once and gain access to multiple applications without re-entering credentials. In IBM Cloud Pak for Integration (CP4I), Enterprise LDAP and OpenShift authentication both support SSO.

Enterprise LDAP (B) – ✅ Supports SSO

Lightweight Directory Access Protocol (LDAP) is commonly used in enterprises for centralized authentication.

CP4I can integrate with Enterprise LDAP, allowing users to authenticate once and access multiple cloud services without needing separate logins.

OpenShift Authentication (E) – ✅ Supports SSO

OpenShift provides OAuth-based authentication, enabling SSO across multiple OpenShift-integrated services.

CP4I uses OpenShift’s built-in identity provider to allow seamless user authentication across different Cloud Pak components.

A. 2FA (Incorrect):

Two-Factor Authentication (2FA) enhances security by requiring an additional verification step but does not inherently support SSO.

C. Plain Text over HTTPS (Incorrect):

Plain text authentication is insecure and does not support SSO.

D. Enterprise SSH (Incorrect):

SSH authentication is used for remote access to servers but is not related to SSO.

Analysis of the Incorrect Options:

IBM Cloud Pak for Integration Authentication & SSO Guide

Red Hat OpenShift Authentication and Identity Providers

IBM Cloud Pak - Integrating with Enterprise LDAP

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, workloads requiring authentication with Identity and Access Management (IAM) need an OAuth secret for secure access. One way to obtain this secret and register a workload is through the OperandConfig API file.

OperandConfig API is used in Cloud Pak for Integration to configure operands (software components).

It provides a mechanism to retrieve secrets, including the OAuth secret necessary for authentication with IBM IAM.

The OAuth secret is stored in a Kubernetes secret, and OperandConfig API helps configure and retrieve it dynamically for a registered workload.

Why Option D is Correct:

A. Extracting the ibm-entitlement-key secret. → Incorrect

The ibm-entitlement-key is used for entitlement verification when pulling IBM container images from IBM Container Registry.

It is not related to OAuth authentication or IAM registration.

B. Through the Red Hat Marketplace. → Incorrect

The Red Hat Marketplace is for purchasing and deploying OpenShift-based applications but does not provide OAuth secrets for IAM authentication in Cloud Pak for Integration.

C. Using a Custom Resource Definition (CRD) file. → Incorrect

CRDs define Kubernetes API extensions, but they do not directly handle OAuth secret retrieval for IAM registration.

The OperandConfig API is specifically designed for managing operand configurations, including authentication details.

Explanation of Incorrect Answers:

IBM Cloud Pak for Integration Identity and Access Management

IBM OperandConfig API Documentation

IBM Cloud Pak for Integration Security Configuration

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, when deploying IBM MQ containers in OpenShift, queue definitions and other MQSC (MQ Script Command) commands need to be provided to configure the MQ environment dynamically. This is typically done using a Kubernetes ConfigMap, which allows administrators to define and inject configuration files, including MQSC scripts, into the containerized MQ instance at runtime.

A ConfigMap in OpenShift or Kubernetes is used to store configuration data as key-value pairs or files.

For IBM MQ, a ConfigMap can include an MQSC script that contains queue definitions, channel settings, and other MQ configurations.

When a new MQ container is deployed, the ConfigMap is mounted into the container, and the MQSC commands are executed to set up the queues.

Why is ConfigMap the Correct Answer?Example Usage:A sample ConfigMap containing MQSC commands for queue definitions may look like this:

apiVersion: v1

kind: ConfigMap

metadata:

name: my-mq-config

data:

10-create-queues.mqsc: |

DEFINE QLOCAL('MY.QUEUE') REPLACE

DEFINE QLOCAL('ANOTHER.QUEUE') REPLACE

This ConfigMap can then be referenced in the MQ Queue Manager’s deployment configuration to ensure that the queue definitions are automatically executed when the MQ container starts.

A. MORegistry - Incorrect

The MORegistry is not a component used for queue definitions. Instead, it relates to Managed Objects in certain IBM middleware configurations.

B. CCDTJSON - Incorrect

CCDTJSON refers to Client Channel Definition Table (CCDT) in JSON format, which is used for defining MQ client connections rather than queue definitions.

C. OperatorImage - Incorrect

The OperatorImage contains the IBM MQ Operator, which manages the lifecycle of MQ instances in OpenShift, but it does not store queue definitions or execute MQSC commands.

IBM Documentation: Configuring IBM MQ with ConfigMaps

IBM MQ Knowledge Center: Using MQSC commands in Kubernetes ConfigMaps

IBM Redbooks: IBM Cloud Pak for Integration Deployment Guide

Analysis of Other Options:IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

jsonpath='{.status.channels[*].name}'

performs the following actions:

oc get packagemanifest → Retrieves the package manifest information for operators installed on the OpenShift cluster.

-n ibm-common-services → Specifies the namespace where IBM Common Services are installed.

ibm-common-service-operator → Targets the IBM Common Service Operator, which manages foundational services for Cloud Pak for Integration.

-o jsonpath='{.status.channels[*].name}' → Extracts and displays the available upgrade channels from the operator’s status field in JSON format.

The IBM Common Service Operator is part of Cloud Pak for Integration Foundational Services.

The status.channels[*].name field lists the available upgrade channels (e.g., stable, v1, latest).

This command helps administrators determine which upgrade paths are available for foundational services.

Why Answer A is Correct:

B. It displays the status and names of channels in the default queue manager. → Incorrect

This command is not related to IBM MQ queue managers.

It queries package manifests for IBM Common Services operators, not queue managers.

C. It retrieves a manifest of services packaged in Cloud Pak for Integration operators. → Incorrect

The command does not return a full list of services; it only displays upgrade channels.

D. It returns an operator package manifest in a JSON structure. → Incorrect

The command outputs only the names of upgrade channels in plain text, not the full JSON structure of the package manifest.

Explanation of Incorrect Answers:

IBM Cloud Pak Foundational Services Overview

OpenShift PackageManifest Command Documentation

IBM Common Service Operator Details

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In Red Hat OpenShift GitOps, which is based on ArgoCD, the deployment process is centered around Git repositories. The framework typically uses at least two repositories:

Application Repository – Contains the source code, manifests, and configurations for the application itself.

Environment Configuration Repository (Correct Answer) – Stores Kubernetes/OpenShift manifests, Helm charts, Kustomize overlays, or other deployment configurations for different environments (e.g., Dev, Test, Prod).

This separation of concerns ensures that:

Developers manage application code separately from infrastructure and deployment settings.

GitOps principles are applied, enabling automated deployments based on repository changes.

The Environment Configuration Repository serves as the single source of truth for deployment configurations.

Why the Other Options Are Incorrect?Option

Explanation

Correct?

A. Nexus

❌ Incorrect – Nexus is a repository manager for storing binaries, artifacts, and dependencies (e.g., Docker images, JAR files), but it is not a GitOps repository.

❌

B. Ansible configuration

❌ Incorrect – While Ansible can manage infrastructure automation, OpenShift GitOps primarily uses Kubernetes manifests, Helm, or Kustomize for deployment configurations.

❌

D. Maven

❌ Incorrect – Maven is a build automation tool for Java applications, not a repository type used in GitOps workflows.

❌

Final Answer:✅ C. Environment configuration

Red Hat OpenShift GitOps Documentation

IBM Cloud Pak for Integration and OpenShift GitOps

ArgoCD Best Practices for GitOps

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, which runs on Red Hat OpenShift Container Platform (OCP), a Kubernetes namespace is alternatively referred to as a Project.

In Kubernetes, a namespace is a logical isolation mechanism that helps organize and manage resources within a cluster.

In OpenShift (OCP), which is built on Kubernetes, a Project is essentially a namespace with additional OpenShift-specific functionalities such as role-based access control (RBAC), quotas, and security policies.

OpenShift extends the standard Kubernetes namespace concept by integrating user and group access controls, making the Project a more feature-rich alternative.

Thus, in the context of IBM Cloud Pak for Integration (CP4I) v2021.2, the correct alternative representation of a Kubernetes namespace is a Project in OpenShift.

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM CP4I Documentation – OpenShift Project Management

Red Hat OpenShift Documentation – Understanding Projects and Namespaces

Kubernetes Documentation – Namespaces

Before installing IBM Cloud Pak for Integration (CP4I) on an OpenShift Cluster, an administrator needs to verify that the cluster meets the infrastructure prerequisites such as CPU, memory, and overall resource availability.

The most effective way to check real-time resource utilization and capacity is by using the oc adm top nodes command.

This command provides a summary of CPU and memory usage for all nodes in the cluster.

It is part of the OpenShift administrator CLI (oc adm), which is designed for cluster-wide management.

The information is fetched from Metrics Server or Prometheus, giving accurate real-time data.

It helps administrators assess whether the cluster has sufficient resources to support CP4I deployment.

Why is oc adm top nodes the correct answer?Example usage:oc adm top nodes

Example Output:scss

Copy

NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%

worker-node-1 1500m 30% 8Gi 40%

worker-node-2 1200m 25% 6Gi 30%

Why the Other Options Are Incorrect?Option

Explanation

Correct?

A. Use the oc cluster status command to dump the node capacity and utilization statistics for all the nodes.

❌ Incorrect – The oc cluster status command does not exist in OpenShift CLI. Instead, oc status gives a summary of the cluster but does not provide node resource utilization.

❌

B. Use the oc get nodes -o wide command to obtain the capacity and utilization statistics of memory and compute of the nodes.

❌ Incorrect – The oc get nodes -o wide command only shows basic node details like OS, internal/external IPs, and roles. It does not display CPU or memory utilization.

❌

C. Use the oc describe nodes command to dump the node capacity and utilization statistics for all the nodes.

❌ Incorrect – The oc describe nodes command provides detailed information about a node, but not real-time resource usage. It lists allocatable resources but does not give current utilization stats.

❌

Final Answer:✅ D. Use the oc adm top nodes command to obtain the capacity and utilization statistics of memory and compute of the nodes.

IBM Cloud Pak for Integration - OpenShift Infrastructure Requirements

Red Hat OpenShift CLI Reference - oc adm top nodes

Red Hat OpenShift Documentation - Resource Monitoring

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, when new IBM MQ (Message Queue) containers are deployed, sensitive data such as passwords, credentials, and encryption keys must be securely injected into the container environment.

The correct Kubernetes object for storing and injecting sensitive data is a Secret.

Kubernetes Secrets securely store sensitive data

Secrets allow IBM MQ containers to retrieve authentication credentials (e.g., admin passwords, TLS certificates, and API keys) without exposing them in environment variables or config maps.

Unlike ConfigMaps, Secrets are encrypted and access-controlled, ensuring security compliance.

Used by IBM MQ Operator

When deploying IBM MQ in OpenShift/Kubernetes, the MQ operator references Secrets to inject necessary credentials into MQ containers.

Example:

Why is "Secret" the correct answer?apiVersion: v1

kind: Secret

metadata:

name: mq-secret

type: Opaque

data:

mq-password: bXlxYXNzd29yZA==

The MQ container can then access this mq-password securely.

Prevents hardcoding sensitive data

Instead of storing passwords directly in deployment files, using Secrets enhances security and compliance with enterprise security standards.

Why are the other options incorrect?❌ A. Replicator

The Replicator is responsible for synchronizing and replicating messages across MQ queues but does not store sensitive credentials.

❌ B. MQRegistry

The MQRegistry is used for tracking queue manager details but does not manage sensitive data injection.

It mainly helps with queue manager registration and configuration.

❌ C. DeploymentConfig

A DeploymentConfig in OpenShift defines how pods should be deployed but does not handle sensitive data injection.

Instead, DeploymentConfig can reference a Secret, but it does not store sensitive information itself.

IBM MQ Security - Kubernetes Secrets

IBM Docs – Securely Managing MQ in Kubernetes

IBM Cloud Pak for Integration Knowledge Center

Covers how Secrets are used in MQ container deployments.

Red Hat OpenShift Documentation – Kubernetes Secrets

Secrets in Kubernetes

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, Identity and Access Management (IAM) is part of Foundational Services, which provides authentication and authorization across different modules within CP4I.

When configuring IAM for single sign-on (SSO), the administrator must have administrator access to the IAM service. This is essential for:

Integrating external identity providers (IdPs) such as LDAP, SAML, or OIDC.

Managing user roles and access control policies across the Cloud Pak environment.

Configuring SSO settings for seamless authentication across all IBM Cloud Pak services.

IAM service administrators have full control over authentication and SSO settings.

They can configure and integrate identity providers for authentication.

This level of access is required to modify IAM settings in Cloud Pak for Integration.

Why Answer D (Access to IAM service as administrator) is Correct?

A. Access to the OpenShift Container Platform console as kubeadmin. → Incorrect

While kubeadmin is a cluster-wide OpenShift administrator, this role does not grant IAM administrative privileges in Cloud Pak Foundational Services.

IAM settings are managed within IBM Cloud Pak, not solely through OpenShift.

B. Access to IBM Cloud Pak for Integration as kubeadmin. → Incorrect

kubeadmin can manage OpenShift resources, but IAM requires specific access to the IAM service within Cloud Pak.

IAM administrators are responsible for configuring authentication, SSO, and identity providers.

C. Access to OpenShift cluster as root. → Incorrect

Root access is not relevant here because OpenShift does not use root users for administration.

IAM configurations are done within Cloud Pak, not at the OpenShift OS level.

Explanation of Incorrect Answers:

IBM Cloud Pak Foundational Services - IAM Configuration

Configuring Single Sign-On (SSO) in IBM Cloud Pak

IBM Cloud Pak for Integration Security Overview

OpenShift Authentication and Identity Management

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, which runs on Red Hat OpenShift, administrators often need to interact with running containers for troubleshooting, debugging, or configuration changes. The correct command to attach the shell to a running container is:

oc attach -c

This command connects the user to the standard input (stdin), output (stdout), and error (stderr) streams of the specified container inside a pod.

Alternatively, for interactive shell access, administrators can use:

oc exec -it -c -- /bin/sh

or

oc exec -it -c -- /bin/bash

if the container supports Bash.

A. run → ❌ Incorrect

The oc run command creates a new pod rather than attaching to an existing running container.

C. connect → ❌ Incorrect

There is no oc connect command in OpenShift or Kubernetes for attaching to a container shell.

D. shell → ❌ Incorrect

OpenShift and Kubernetes do not have a shell command for connecting to a running container.

Instead, the oc exec command is used to start an interactive shell session inside a container.

Explanation of Incorrect Answers:

OpenShift CLI (oc) Command Reference

IBM Cloud Pak for Integration Troubleshooting Guide

Kubernetes attach vs exec Commands

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, the Automation Assets Deployment capability is designed to help users efficiently manage integration assets within the Cloud Pak environment. This capability provides a centralized repository where users can store, manage, retrieve, and search for integration assets that are essential for automation and integration processes.

Option A is incorrect: The Automation Assets Deployment feature is not a streaming platform for managing data from multiple sources. Streaming platforms, such as IBM Event Streams, are used for real-time data ingestion and processing.

Option B is incorrect: Similar to Option A, this feature does not focus on data streaming or management from a single source but rather on handling integration assets.

Option C is correct: The Automation Assets Deployment capability provides a comprehensive solution for storing, managing, retrieving, and searching integration-related assets within IBM Cloud Pak for Integration. It enables organizations to reuse and efficiently deploy integration components across different services.

Option D is incorrect: While this capability allows for storing and managing assets, it also provides retrieval and search functionality, making Option C the more accurate choice.

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM Cloud Pak for Integration Documentation

IBM Cloud Pak for Integration Automation Assets Overview

IBM Knowledge Center – Managing Automation Assets

In IBM Cloud Pak for Integration (CP4I) v2021.2, which runs on Red Hat OpenShift, cluster logging can be forwarded to external third-party systems, with Splunk being one of the officially supported destinations.

OpenShift Cluster Logging Operator enables log forwarding.

Supports forwarding logs to various external logging solutions, including Splunk.

Uses the Fluentd log collector to send logs to Splunk's HTTP Event Collector (HEC) endpoint.

Provides centralized log management, analysis, and visualization.

B. Kafka Broker – OpenShift does support sending logs to Kafka, but Kafka is a message broker, not a full-fledged logging system like Splunk.

C. Apache Lucene – Lucene is a search engine library, not a log management system.

D. Apache Solr – Solr is based on Lucene and is used for search indexing, not log forwarding.

OpenShift Log Forwarding to Splunk

IBM Cloud Pak for Integration – Logging and Monitoring

Red Hat OpenShift Logging Documentation

OpenShift Log Forwarding Features:Why Not the Other Options?IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References

IBM Cloud Pak for Integration (CP4I) relies on IBM Common Services for authentication, licensing, and other foundational functionalities. The License Service API is a key component that enables the monitoring and reporting of software license usage across the cluster.

Authentication to the License Service APITo authenticate to the IBM License Service APIs, a token is required, which is stored in the ibm-licensing-token secret within the ibm-common-services namespace (where IBM Common Services are installed).

When Cloud Pak for Integration (installed in the cp4i namespace) needs to interact with the License Service API, it retrieves the authentication token from this secret in the ibm-common-services namespace.

The ibm-licensing-token secret is automatically created in the ibm-common-services namespace when the IBM License Service is deployed.

This token is required for authentication when querying licensing information via the License Service API.

Since IBM Common Services are installed in ibm-common-services, and the licensing service is part of these foundational services, authentication tokens are stored in this namespace rather than the cp4i namespace.

Why is Option D Correct?

Analysis of Other Options:Option

Correct/Incorrect

Reason

A. A token available in ibm-licensing-token secret in the cp4i namespace.

❌ Incorrect

The licensing token is stored in the ibm-common-services namespace, not in cp4i.

B. A password available in platform-auth-idp-credentials in the ibm-common-services namespace.

❌ Incorrect

This secret is related to authentication for the IBM Identity Provider (OIDC) and is not used for licensing authentication.

C. A password available in ibm-entitlement-key in the cp4i namespace.

❌ Incorrect

The ibm-entitlement-key is used for accessing IBM Container Registry to pull images, not for licensing authentication.

D. A token available in ibm-licensing-token secret in the ibm-common-services namespace.

✅ Correct

This is the correct secret that contains the required token for authentication to the License Service API.

IBM Documentation: IBM License Service Authentication and Tokens

IBM Knowledge Center: Managing License Service in OpenShift

IBM Redbooks: IBM Cloud Pak for Integration Deployment Guide

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

OpenShift Pipelines are based on Tekton, an open-source framework for building Continuous Integration/Continuous Deployment (CI/CD) pipelines natively in Kubernetes.

Tekton provides Kubernetes-native CI/CD functionality by defining pipeline resources as custom resources (CRDs) in OpenShift. This allows for scalable, cloud-native automation of software delivery.

Kubernetes-Native: Unlike Jenkins, which requires external servers or agents, Tekton runs natively in OpenShift/Kubernetes.

Serverless & Declarative: Pipelines are defined using YAML configurations, and execution is event-driven.

Reusable & Extensible: Developers can define Tasks, Pipelines, and Workspaces to create modular workflows.

Integration with GitOps: OpenShift Pipelines support Argo CD for GitOps-based deployment strategies.

Why Tekton is Used in OpenShift Pipelines?Example of a Tekton Pipeline Definition in OpenShift:apiVersion: tekton.dev/v1beta1

kind: Pipeline

metadata:

name: example-pipeline

spec:

tasks:

- name: echo-hello

taskSpec:

steps:

- name: echo

image: ubuntu

script: |

#!/bin/sh

echo "Hello, OpenShift Pipelines!"

A. Travis → ❌ Incorrect

Travis CI is a cloud-based CI/CD service primarily used for GitHub projects, but it is not used in OpenShift Pipelines.

B. Jenkins → ❌ Incorrect

OpenShift previously supported Jenkins-based CI/CD, but OpenShift Pipelines (Tekton) is now the recommended Kubernetes-native alternative.

Jenkins requires additional agents and servers, whereas Tekton runs serverless in OpenShift.

D. Argo CD → ❌ Incorrect

Argo CD is used for GitOps-based deployments, but it is not the underlying technology of OpenShift Pipelines.

Tekton and Argo CD can work together, but Argo CD alone does not handle CI/CD pipelines.

Explanation of Incorrect Answers:

IBM Cloud Pak for Integration CI/CD Pipelines

Red Hat OpenShift Pipelines (Tekton)

Tekton Pipelines Documentation

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, when deploying a highly available single-resilient queue manager, storage considerations are crucial to ensuring fault tolerance and failover capability.

A single-resilient queue manager uses a shared file system that allows different queue manager instances to access the same data, enabling failover to another node in the event of failure. The key requirement is data write integrity, ensuring that only one instance has access at a time and that locks are properly released in case of a node failure.

Option A is correct: A shared file system must support data consistency and failover mechanisms to ensure that only one instance writes to the queue manager logs and data at any time. If the active instance fails, another instance can take over using the same storage.

Option B is incorrect: While cloud storage replication across availability zones is useful, it does not replace the need for a proper shared file system with write integrity.

Option C is incorrect: Persistent volumes are supported for resilient queue managers when deployed in Kubernetes environments like OpenShift, as long as they meet the required file system properties.

Option D is incorrect: A single resilient queue manager can recover quickly by failing over to a standby node, often faster than a multi-instance queue manager, which requires additional failover processes.

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM MQ High Availability Documentation

IBM Cloud Pak for Integration Storage Considerations

IBM MQ Resiliency and Disaster Recovery Guide

In IBM Cloud Pak for Integration (CP4I) v2021.2, Event Endpoint Management (EEM) is the capability that describes, catalogs, and socializes APIs for Kafka event sources with application developers.

Event Endpoint Management (EEM) allows developers to discover and consume Kafka event sources in a structured way, similar to how REST APIs are managed in an API Gateway.

It provides a developer portal where event-driven APIs can be exposed, documented, and consumed by applications.

It helps organizations share event-driven APIs with internal teams or external consumers, enabling seamless event-driven integrations.

Why "Event Endpoint Management" is the Correct Answer?

Why the Other Options Are Incorrect?Option

Explanation

Correct?

A. Gateway Endpoint Management

❌ Incorrect – Gateway endpoint management refers to managing API Gateway endpoints for routing and securing APIs, but it does not focus on event-driven APIs like Kafka.

❌

B. REST Endpoint Management

❌ Incorrect – REST Endpoint Management deals with traditional RESTful APIs, not event-driven APIs for Kafka.

❌

D. API Endpoint Management

❌ Incorrect – API Endpoint Management is a generic term for managing APIs but does not specifically focus on event-driven APIs for Kafka.

❌

Final Answer:✅ C. Event Endpoint Management

IBM Cloud Pak for Integration – Event Endpoint Management

IBM Event Endpoint Management Documentation

Kafka API Discovery & Management in IBM CP4I

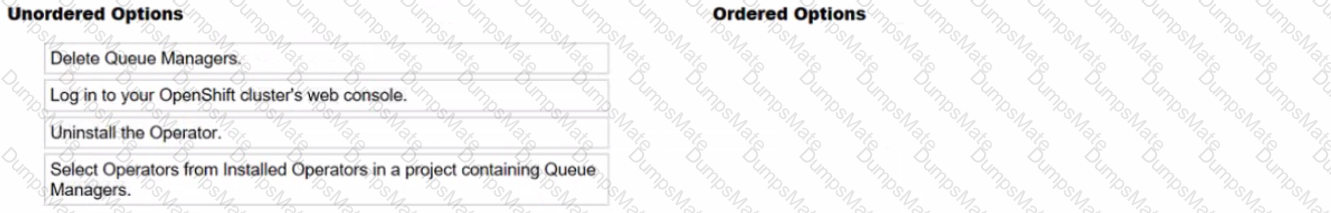

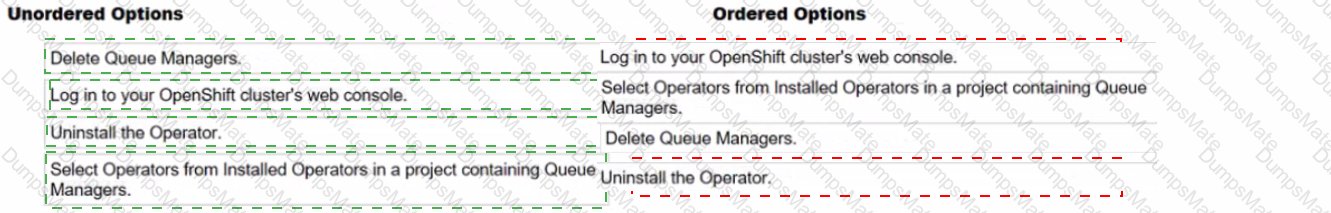

Correct Ordered Steps to Delete IBM MQ from IBM Cloud Pak for Integration (CP4I):

1️⃣ Log in to your OpenShift cluster's web console.

Access the OpenShift web console to manage resources and installed operators.

2️⃣ Select Operators from Installed Operators in a project containing Queue Managers.

Navigate to the Installed Operators section and locate the IBM MQ Operator in the project namespace where queue managers exist.

3️⃣ Delete Queue Managers.

Before uninstalling the operator, delete any existing IBM MQ Queue Managers to ensure a clean removal.

4️⃣ Uninstall the Operator.

Finally, uninstall the IBM MQ Operator from OpenShift to complete the deletion process.

To properly delete IBM MQ from IBM Cloud Pak for Integration (CP4I), the steps must be followed in the correct order:

Logging into OpenShift Web Console – This step provides access to the IBM MQ Operator and related resources.

Selecting the Installed Operator – Ensures the correct project namespace and MQ resources are identified.

Deleting Queue Managers – Queue Managers must be removed before uninstalling the operator; otherwise, orphaned resources may remain.

Uninstalling the Operator – Once all resources are removed, the MQ Operator can be uninstalled cleanly.

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM MQ in Cloud Pak for Integration

Managing IBM MQ Operators in OpenShift

Uninstalling IBM MQ on OpenShift

In IBM Cloud Pak for Integration (CP4I), operators—including the App Connect Operator—are managed through Operator Lifecycle Manager (OLM) in Red Hat OpenShift. OLM provides two upgrade approval strategies:

Automatic: The operator is upgraded as soon as a new compatible version becomes available.

Manual: An administrator must manually approve the upgrade.

The App Connect Operator supports automatic upgrades when configured with the Automatic approval strategy during installation or later through OperatorHub settings. If this setting is enabled, OpenShift will detect new compatible versions and upgrade the operator without requiring manual intervention.

B. The setting for automatic upgrades can only be specified at the time the App Connect Operator is installed.

Incorrect, because the approval strategy can be modified later in OpenShift’s OperatorHub or via CLI.

C. Once the App Connect Operator is installed, the approval strategy cannot be modified.

Incorrect, because OpenShift allows administrators to change the approval strategy at any time after installation.

D. There is no option to require manual approval for updating the App Connect Operator.

Incorrect, because OLM provides both manual and automatic approval options. If manual approval is set, the administrator must manually approve each upgrade.

Why Other Options Are Incorrect:IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM App Connect Operator Upgrade Process

OpenShift Operator Lifecycle Manager (OLM) Documentation

IBM Cloud Pak for Integration Operator Management

In IBM Cloud Pak for Integration (CP4I) v2021.2, when integrating LDAP (Lightweight Directory Access Protocol) for authentication, an account lockout policy can be configured to enhance security.

The account lockout policy is designed to prevent brute-force attacks by temporarily or permanently restricting user access after multiple failed login attempts.

If a user enters incorrect credentials multiple times, the account is locked based on the configured policy.

The lockout can be temporary (auto-unlock after a period) or permanent (admin intervention required).

This prevents attackers from guessing passwords through repeated login attempts.

The policy's main function is to restrict access after repeated failed attempts, ensuring security.

It helps mitigate brute-force attacks and unauthorized access.

LDAP enforces the lockout rules based on the organization's security settings.

How the Account Lockout Policy Works:Why Answer D is Correct?

A. It warns the administrator if multiple login attempts fail. → Incorrect

While administrators may receive alerts, the primary function of the lockout policy is to restrict access, not just warn the admin.

B. It prompts the user to change the password. → Incorrect

An account lockout prevents login rather than prompting a password change.

Password change prompts usually happen for expired passwords, not failed logins.

C. It deletes the user account. → Incorrect

Lockout disables access but does not delete the user account.

Explanation of Incorrect Answers:

IBM Cloud Pak for Integration Security & LDAP Configuration

IBM Cloud Pak Foundational Services - Authentication & User Management

IBM Cloud Pak for Integration - Managing User Access

IBM LDAP Account Lockout Policy Guide

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, App Connect Enterprise (ACE) Dashboard requires persistent storage to maintain configurations, logs, and runtime data. The supported storage type for the ACE Dashboard instance is file storage because:

It supports ReadWriteMany (RWX) access mode, allowing multiple pods to access shared data.

It ensures data persistence across restarts and upgrades, which is essential for managing ACE integrations.

It is compatible with NFS, IBM Spectrum Scale, and OpenShift Container Storage (OCS), all of which provide file system-based storage.

A. Ephemeral storage – Incorrect

Ephemeral storage is temporary and data is lost when the pod restarts or gets rescheduled.

ACE Dashboard needs persistent storage to retain configuration and logs.

B. Flash storage – Incorrect

Flash storage refers to SSD-based storage and is not specifically required for the ACE Dashboard.

While flash storage can be used for better performance, ACE requires file-based persistence, which is different from flash storage.

D. Raw block storage – Incorrect

Block storage is low-level storage that is used for databases and applications requiring high-performance IOPS.

ACE Dashboard needs a shared file system, which block storage does not provide.

Why the other options are incorrect:

IBM App Connect Enterprise (ACE) Storage Requirements

IBM Cloud Pak for Integration Persistent Storage Guide

OpenShift Persistent Volume Types

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In Red Hat OpenShift, installing OpenShift GitOps (based on ArgoCD) requires elevated cluster-wide permissions because the installation process:

Deploys Custom Resource Definitions (CRDs).

Creates Operators and associated resources.

Modifies cluster-scoped components like role-based access control (RBAC) policies.

Only a user with cluster-admin privileges can perform these actions, making cluster-admin the correct role for installing OpenShift GitOps.

Command to Install OpenShift GitOps:oc apply -f openshift-gitops-subscription.yaml

This operation requires cluster-wide permissions, which only the cluster-admin role provides.

Why the Other Options Are Incorrect?Option

Explanation

Correct?

A. cluster-operator

❌ Incorrect – No such default role exists in OpenShift. Operators are managed within namespaces but cannot install GitOps at the cluster level.

❌

C. admin

❌ Incorrect – The admin role provides namespace-level permissions, but GitOps requires cluster-wide access to install Operators and CRDs.

❌

D. operator

❌ Incorrect – This is not a valid OpenShift role. Operators are software components managed by OpenShift, but an operator role does not exist for installation purposes.

❌

Final Answer:✅ B. cluster-admin

Red Hat OpenShift GitOps Installation Guide

Red Hat OpenShift RBAC Roles and Permissions

IBM Cloud Pak for Integration - OpenShift GitOps Best Practices

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

When upgrading IBM Cloud Pak for Integration (CP4I) and switching from Common Services (CS) monitoring to OpenShift monitoring, it is crucial to determine whether CS monitoring is currently enabled.

The correct command to check this is:

sh

CopyEdit

oc get pods -n ibm-common-services | grep monitoring

This command (oc get pods -n ibm-common-services) lists all pods in the ibm-common-services namespace, which is where IBM Common Services (including monitoring components) are deployed.

Using grep monitoring filters the output to show only the monitoring-related pods.

If monitoring-related pods are running in this namespace, it confirms that CS monitoring is enabled.

B (oc list pods -A | grep -i monitoring) – Incorrect

The oc list pods command does not exist in OpenShift CLI. The correct command to list all pods across all namespaces is oc get pods -A.

C (oc describe pods/ibm-common-services | grep monitoring) – Incorrect

oc describe pods/ibm-common-services is not a valid OpenShift command. The correct syntax would be oc describe pod -n ibm-common-services, but this only provides details of a specific pod, not a general check for monitoring pods.

D (oc get containers -A) – Incorrect

The oc get containers command is not valid in OpenShift CLI. Instead, oc get pods -A lists all pods, but it does not specifically filter monitoring-related services in the ibm-common-services namespace.

Explanation of Incorrect Options:IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM Documentation: Monitoring IBM Cloud Pak foundational services

IBM Cloud Pak for Integration: Disabling foundational services monitoring

OpenShift Documentation: Managing Pods in OpenShift

In IBM Aspera High-Speed Transfer Server (HSTS), UDP ports are crucial for enabling high-speed data transfers. When multiple instances of Aspera HSTS exist in a cluster, each instance must be assigned a unique UDP port to avoid conflicts and ensure proper traffic routing.

Aspera HSTS relies on UDP for high-speed file transfers (as opposed to TCP, which is typically used for control and session management).

If multiple HSTS instances share the same UDP port, packet collisions and routing issues can occur.

Ensuring unique UDP ports across instances allows for proper load balancing and optimal performance.

B. UDP and TCP ports have to be the same.

Incorrect, because UDP and TCP serve different purposes in Aspera HSTS.

TCP is used for session initialization and control, while UDP is used for actual data transfer.

C. Each TCP port must be unique.

Incorrect, because TCP ports do not necessarily need to be unique across multiple instances, depending on the deployment.

TCP ports can be shared if proper load balancing and routing are configured.

D. UDP ports must be the same.

Incorrect, because using the same UDP port for multiple instances causes conflicts, leading to failed transfers or degraded performance.

Key Considerations for Aspera HSTS in a Cluster:Why Other Options Are Incorrect:IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM Aspera HSTS Configuration Guide

IBM Cloud Pak for Integration - Aspera Setup

IBM Aspera High-Speed Transfer Overview
