To configure a Secure Private Access (SPA) solution to share endpoint information between FortiSASE and a corporate FortiGate, you need to take the following steps:

Add the FortiGate IP address in the secure private access configuration on FortiSASE:

This step allows FortiSASE to recognize and establish a connection with the corporate FortiGate.

Use the FortiClient EMS cloud connector on the corporate FortiGate to connect to FortiSASE:

The EMS (Endpoint Management Server) cloud connector facilitates the integration between FortiClient endpoints and FortiSASE, enabling seamless sharing of endpoint information.

Register FortiGate and FortiSASE under the same FortiCloud account:

By registering both FortiGate and FortiSASE under the same FortiCloud account, you ensure centralized management and synchronization of configurations and policies.

References:

FortiOS 7.2 Administration Guide: Provides details on configuring Secure Private Access and integrating with FortiGate.

FortiSASE 23.2 Documentation: Explains how to set up and manage connections between FortiSASE and corporate FortiGate.

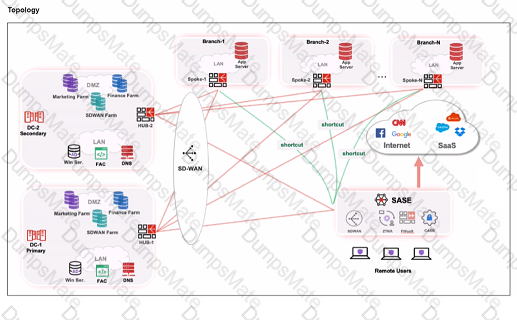

When remote users connected to FortiSASE require access to internal resources on Branch-2, the following process occurs:

SD-WAN Capability:

FortiSASE leverages SD-WAN to optimize traffic routing based on performance metrics and priorities.

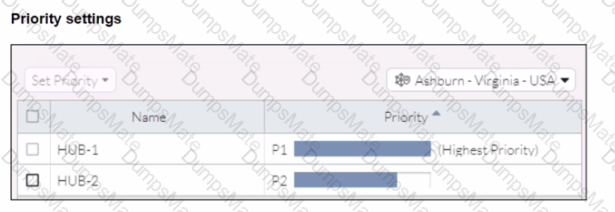

In the priority settings, HUB-1 is configured with the highest priority (P1), whereas HUB-2 has a lower priority (P2).

Traffic Routing Decision:

FortiSASE evaluates the available hubs (HUB-1 and HUB-2) and selects HUB-1 due to its highest priority setting.

Once the traffic reaches HUB-1, it is then routed to the appropriate branch based on internal routing policies.

Branch-2 Access:

Since HUB-1 has the highest priority, FortiSASE directs the traffic to HUB-1.

HUB-1 then routes the traffic to Branch-2, providing the remote users access to the internal resources.

References:

FortiOS 7.2 Administration Guide: Details on SD-WAN configurations and priority settings.

FortiSASE 23.2 Documentation: Explains how FortiSASE integrates with SD-WAN to route traffic based on defined priorities and performance metrics.

Based on the provided exhibits and the configuration details, the reason why users are still able to download the eicar.com-zip file despite having an antivirus profile applied is due to the Web Filter allowing the traffic. Here is the step-by-step detailed explanation:

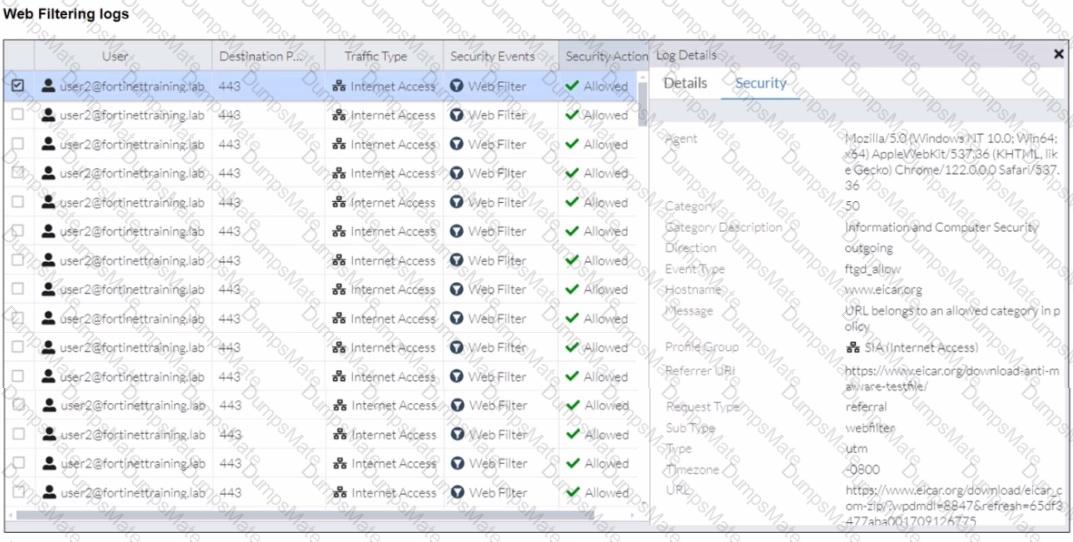

Web Filtering Logs Analysis:

The logs show that the traffic to the destination port 443 (which is HTTPS) is allowed and the security event triggered is Web Filter.

The log details indicate that the URL belongs to an allowed category in the policy and thus, the traffic is permitted by the Web Filter.

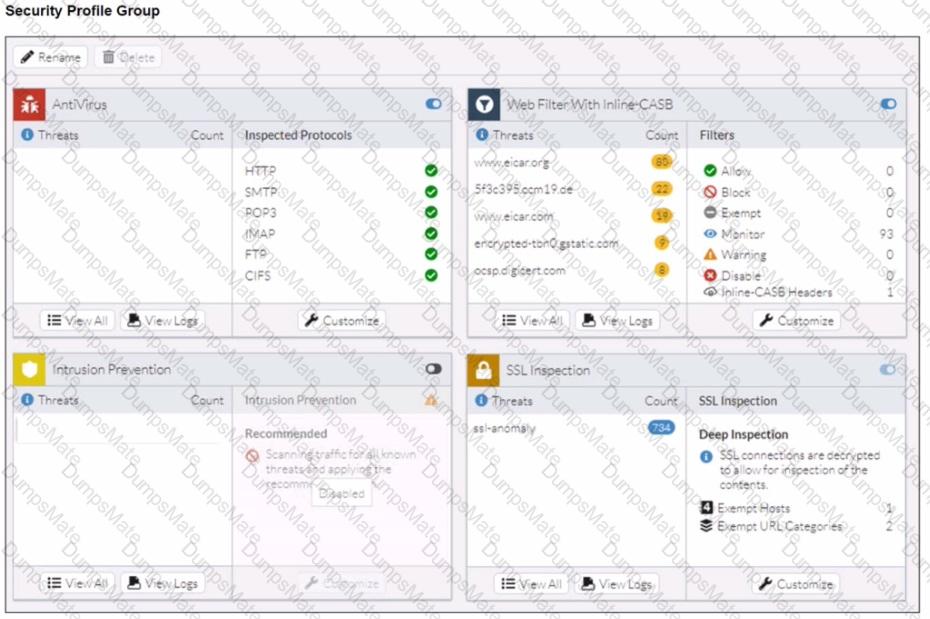

Security Profile Group Configuration:

The Web Filter with Inline-CASB section indicates that the sitewww.eicar.org is being monitored (93 occurrences) and not blocked.

Since the Web Filter is set to allow traffic from this site, the antivirus profile will not block it because the Web Filter decision takes precedence.

Antivirus Profile Configuration:

Although the antivirus profile is configured, the logs do not show any antivirus actions being triggered. This indicates that the web filter is overriding the antivirus action.

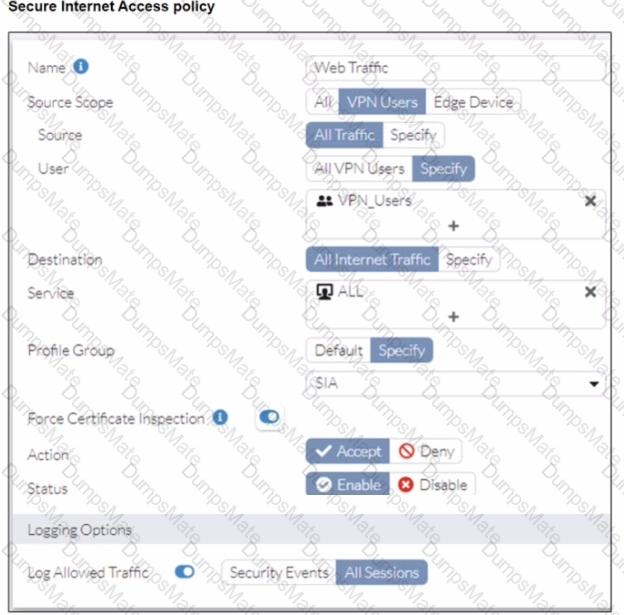

Policy Configuration:

The policy named "Web Traffic" shows that it has logging enabled and is set to accept traffic.

The profile group "SIA" applied to this policy includes both Web Filter and Antivirus settings. However, since the Web Filter is allowing the traffic, the antivirus profile does not get the chance to inspect it.

References:

FortiGate Security 7.2 Study Guide: Provides details on the precedence of web filtering over antivirus in security profiles.

Fortinet Knowledge Base: Detailed explanation of web filtering and antivirus profiles interaction.
