2V0-41.24 VMware NSX 4.X Professional V2 Questions and Answers

esxcfg-nics -l: This command lists all physical NICs on the ESXi host along with their link status, allowing you to check if any vmnic link status is down.

esxcli network nic list: This command provides a list of network interfaces with their details, including link status, making it useful for verifying if the link status of a vmnic is down.

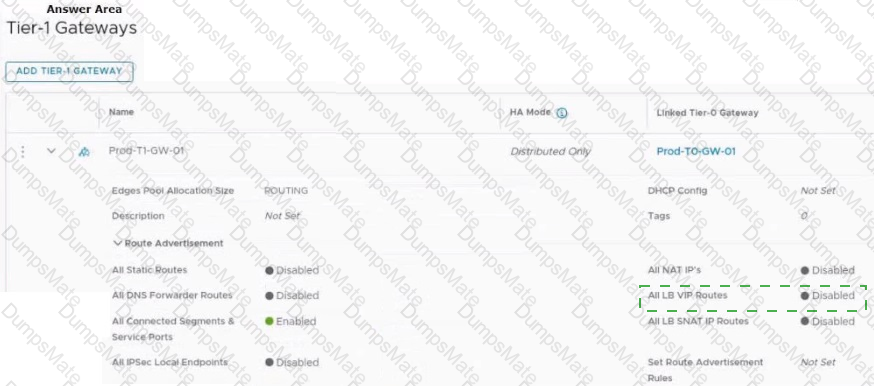

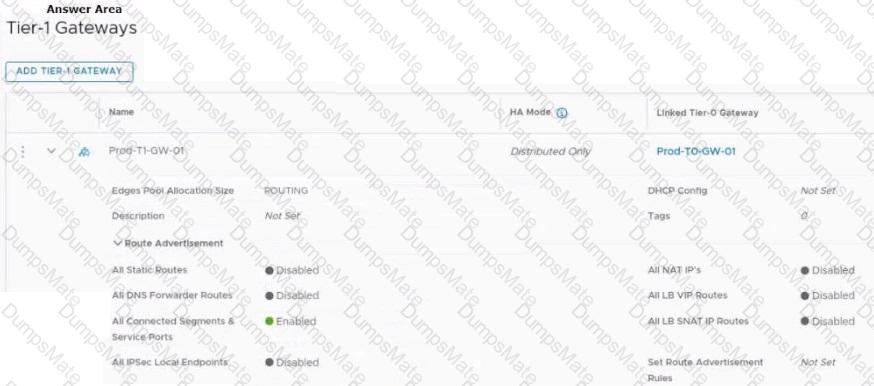

The correct answer is to enable the option All LB VIP Routes on the Tier-1 gateway route advertisement settings. This option allows the Tier-1 gateway to advertise the NSX Advanced Load Balancer LB VIP routes to the Tier-0 gateway and other peer routers, so that the end users can reach the production website by using the VIP address1. The other options are not relevant for this scenario.

To mark the correct answer by clicking on the image, you can click on the toggle switch next to All LB VIP Routes to turn it on. The switch should change from gray to blue, indicating that the option is enabled. See the image below for reference:

The Traceflow tool in NSX injects synthetic traffic into the data plane and monitors the traffic flow through the network, allowing administrators to observe how the traffic is handled at each hop. This approach helps identify issues such as dropped packets, routing errors, or misconfigurations by providing visibility into the path taken by the traffic and any potential disruptions.

Load Balancing Algorithm

You specify the following parameters during the creation of a server pool:

• Name: A unique name for the server pool.

• Cloud: The cloud connector details for the NSX environment.

• VRF Context: Virtual Routing Framework (VRF) is a method to isolate traffic in a system. VRF is also called a route domain in the load balancer community. A global VRF context is created by default. Network administrators might create custom VRF contexts to isolate traffic between different tenants or subsets.

• Default Server Port: New connections to servers will use this destination service port. The default port is 80.

• Load-balancing algorithm: The selected load-balancing algorithm controls how the incoming connections are distributed among the servers in the pool.

• Tier-1 gateway (logical router): Specify the Tier-1 gateway that you want to attach the server pool to. This value matches the Tier-1 gateway specified for the virtual service and VIP.

The VLANs used in VRF Lite are configured on the uplink interface of the VRF gateway, which enables traffic segmentation and routing within the VRF context.

The uplink trunk segment is where multiple VLANs can be configured and tagged, allowing them to be used by the VRF Lite setup for routing and segmentation across the network.

A group is a logical construct that represents a collection of objects in NSX, such as segments, segment ports, virtual machines, IP addresses, MAC addresses, tags, or security policies. A group can be used to define dynamic membership criteria based on various attributes or filters. A group can also be used as the scope of a distributed firewall rule, which means that the rule will apply to all the traffic that matches the group membership criteria32

The netcpa process is responsible for Local Control Plane (LCP) connectivity with the Central Control Plane (CCP) in NSX. Using the command esxcli network ip connection list | grep netcpa, administrators can verify the connectivity status between the LCP on the ESXi host and the CCP, ensuring proper communication for NSX operations.

To support Equal-Cost Multi-Path (ECMP) routing in an NSX environment, Bidirectional Forwarding Detection (BFD) must be used for failover detection. BFD is a rapid failure detection protocol that works with ECMP to provide fast failure detection between routers. It helps in detecting link failures more quickly than traditional protocols, ensuring that traffic is routed through available paths as quickly as possible.

The set ntp-server command is used on NSX Manager and NSX Edge to configure the NTP (Network Time Protocol) settings. This command allows administrators to specify the NTP server, ensuring that the NSX components synchronize their time accurately with the designated time server.

Switch Visualization in the NSX UI provides a clear mapping between virtual NICs (vNICs) and the physical adapters on the host. This feature allows administrators to see how virtual network interfaces connect to the underlying physical network infrastructure, which is essential for troubleshooting connectivity issues on transport nodes.

VMware NSX is a portfolio of networking and security solutions that enables consistent policy, operations, and automation across multiple cloud environments1

The VMware NSX portfolio includes the following solutions:

VMware NSX Data Center: A platform for data center network virtualization and security that delivers a complete L2-L7 networking stack and overlay services for any workload1

VMware NSX Cloud: A service that extends consistent networking and security to public clouds such as AWS and Azure1

VMware NSX Advanced Load Balancer: A solution that provides load balancing, web application firewall, analytics, and monitoring for applications across any cloud12

VMware NSX Distributed IDS/IPS: A feature that provides distributed intrusion detection and prevention for workloads across any cloud12

VMware NSX Intelligence: A service that provides planning, observability, and intelligence for network and micro-segmentation1

VMware NSX Federation: A capability that enables multi-site networking and security management with consistent policy and operational state synchronization1

VMware NSX Service Mesh: A service that connects, secures, and monitors microservices across multiple clusters and clouds1

VMware NSX for Horizon: A solution that delivers secure desktops and applications across any device, location, or network1

VMware NSX for vSphere: A solution that provides network agility and security for vSphere environments with a built-in console in vCenter1

VMware NSX-T Data Center: A platform for cloud-native applications that supports containers, Kubernetes, bare metal hosts, and multi-hypervisor environments1

VMware Tanzu Kubernetes Grid and VMware Tanzu Kubernetes Cluster are not part of the VMware NSX portfolio. They are solutions for running Kubernetes clusters on any cloud3

VMware Aria Automation is not a real product name. It is a fictional name that does not exist in the VMware portfolio.

https://blogs.vmware.com/networkvirtualization/2020/01/nsx-hero.html/

TIER0_DISTRIBUTED_ROUTER: The Tier-0 Distributed Router spans all transport nodes, providing distributed routing capabilities across the NSX environment at the Tier-0 level.

DISTRIBUTED_ROUTER_TIER1: Similarly, the Tier-1 Distributed Router spans all transport nodes, enabling distributed routing at the Tier-1 level, which allows routing functions to occur closer to the workload VMs across the transport nodes.

IP Pool: This allows you to define a range of IP addresses within NSX that the TEPs can use.

DHCP Server: This enables the TEPs to automatically obtain IP addresses from a DHCP server configured in the network.

The MAC Table on an ESXi host is used to determine the location of a particular workload for frame-forwarding decisions. This table maps MAC addresses to specific interfaces, enabling the ESXi host to forward frames to the correct destination based on the MAC address of the workload. This is crucial for efficient Layer 2 forwarding decisions within the host.

The RouterLink port between a Tier-1 Gateway and a Tier-0 Gateway is automatically created when the Tier-1 Gateway is connected to the Tier-0 Gateway through the NSX UI. This link enables routing between the Tier-1 and Tier-0 gateways without the need for manual configuration of segments or logical switches.

RSA SecureID: RSA SecureID is a commonly used two-factor authentication (2FA) system that can integrate with VMware Identity Manager for enhanced security during authentication, making it a suitable AAA system for user authentication.

LDAP and OpenLDAP based on Active Directory (AD): VMware Identity Manager can integrate with LDAP and OpenLDAP directories, including Active Directory (AD), for centralized user authentication. This allows users to authenticate against an organization's directory service.

NSX Intelligence provides a visual overview of network connections within the NSX domain, allowing administrators to see the traffic flows between different VMs and networks. It offers detailed visibility into network traffic patterns, application dependencies, and security posture, making it a valuable tool for monitoring and troubleshooting within NSX environments.

The set auth-policy command in the NSX CLI is used to configure the authentication policy for local users. This command allows administrators to adjust settings related to password policies, lockout policies, and other authentication-related parameters for local user accounts on NSX Manager.

In NSX, the FABRIC message ID is used to capture and export syslog events related to host preparation and other fabric-related activities. These events are important for tracking and troubleshooting the setup and configuration of NSX components across the fabric, including host preparation events.

The set service nsx-manager log-level debug command is used to set the NSX Manager’s logging level to debug mode. Setting the log level to debug can provide more detailed logging information, which is useful for troubleshooting issues within the NSX Manager.

Core Files should be excluded when collecting support bundles through NSX Manager because they may contain sensitive information, such as memory dumps that could reveal sensitive data from processes at the time of an issue. Excluding core files helps ensure that potentially sensitive data is not unintentionally shared.

In Non-Preemptive failover policy, once a failover occurs and a new Active node is designated, the original failed node will not automatically become the Active node upon recovery. This setting ensures that the failover does not revert to the original node after it comes back online, maintaining the stability of the network by keeping the current Active node as is.

Auditor: Allows users to view settings and logs without making changes.

Full access: Provides complete control over all NSX settings and configurations.

None: No permissions are granted, restricting access completely.

Read: Allows users to view configurations and settings without editing capabilities.

It supports a 4-byte autonomous system number: BGP on a Tier-0 Gateway supports 4-byte AS (Autonomous System) numbers, which are necessary for larger routing domains.

Can be used as an Exterior Gateway Protocol: BGP is commonly used as an Exterior Gateway Protocol to establish routing between different autonomous systems (AS).

BGP is enabled by default: On a Tier-0 Gateway, BGP is typically enabled by default, allowing administrators to configure it for external routing.

TEP (Tunnel Endpoint): TEPs (Tunnel Endpoints) are configured on transport nodes to handle the encapsulation and decapsulation of the Geneve protocol. TEPs are responsible for creating the overlay network by encapsulating traffic in the Geneve protocol when it moves between transport nodes and decapsulating it upon arrival.

According to the VMware NSX Documentation, these are two of the ways that you can use to configure Distributed Firewall on VDS:

NSX API: This is a RESTful API that allows you to programmatically configure and manage Distributed Firewall on VDS using HTTP methods and JSON payloads. You can use tools such as Postman or curl to send API requests to the NSX Manager node.

NSX UI: This is a graphical user interface that allows you to configure and manage Distributed Firewall on VDS using menus, tabs, buttons, and forms. You can access the NSX UI by logging in to the NSX Manager node using a web browser.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-0DEF9F18-608D-4B5C-9175-5514750E901B.html

NSX Intelligence is a distributed analytics solution within the VMware NSX Portfolio that provides visibility and dynamic security policy enforcement in NSX environments. It enables detailed traffic analysis, identifies security threats, and helps in the automated creation and enforcement of security policies based on observed network traffic patterns and behaviors.

To validate the BGP connection status between the Tier-0 Gateway and the upstream physical router on an NSX Edge node, the correct sequence involves enabling the specific logical router (Tier-0 Gateway), checking the VRF (Virtual Routing and Forwarding) context, and then using the show bgp neighbor command to view the BGP session status.

enable : This command enables the logical router interface (Tier-0 Gateway) to access its configuration.

get vrf : This command checks the specific VRF (used for routing separation) to see the associated routing table.

show bgp neighbor: This command displays the status of the BGP connection, including details about the neighbor relationships and their state.

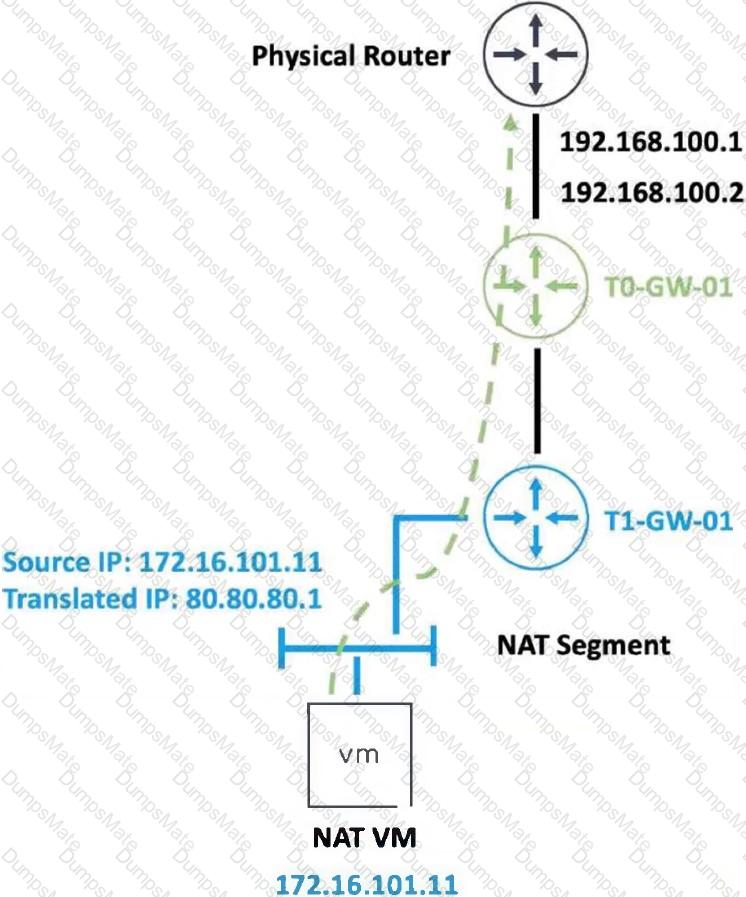

Source NAT (SNAT) is used to translate the private IP address (172.16.101.11) of the NAT VM to a public IP address (80.80.80.1) as the packets leave the NAT-Segment network. SNAT changes the source IP of outbound packets, allowing private IP addresses within the internal network to be mapped to public IP addresses for communication with external networks.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-69DF70C2-1769-4858-97E7-B757CAED08F0.html#:~:text=On%20the%20north%2Dsouth%20traffic,Guest%20Introspection%20(GI)%20platform .

The main components on the edge node for north-south malware prevention perform the following functions:

• IDS/IPS engine: Extracts files and relays events and data to the security hub

North-south malware prevention uses the file extraction features of the IDS/IPS engine that runs on NSX Edge for north-south traffic.

• Security hub: Collects file events, obtains verdicts for known files, sends files for local and cloud-based analysis, and sends information to the security analyzer

• RAPID: Provides local analysis of the file

• ASDS Cache: Caches reputation and verdicts of known files
